The DJI AGRAS T100 Quick Start Guide v1.0 compresses the first-day commissioning process into a short visual sequence. This article keeps that same sequence but separates each checkpoint so a new operator can move from package inspection to first activation without treating the quick-start sheet as a substitute for the full T100 User Manual.

Quick Answer: Verify the illustrated package contents, open the DJI Academy / DJI SmartFarm resources, charge the flight-battery system and the remote controller, prepare the controller and aircraft, install the Intelligent Flight Battery, check battery level, power on the controller and aircraft, then complete activation in DJI Agras with an internet connection. After activation, continue to preflight before attempting flight.

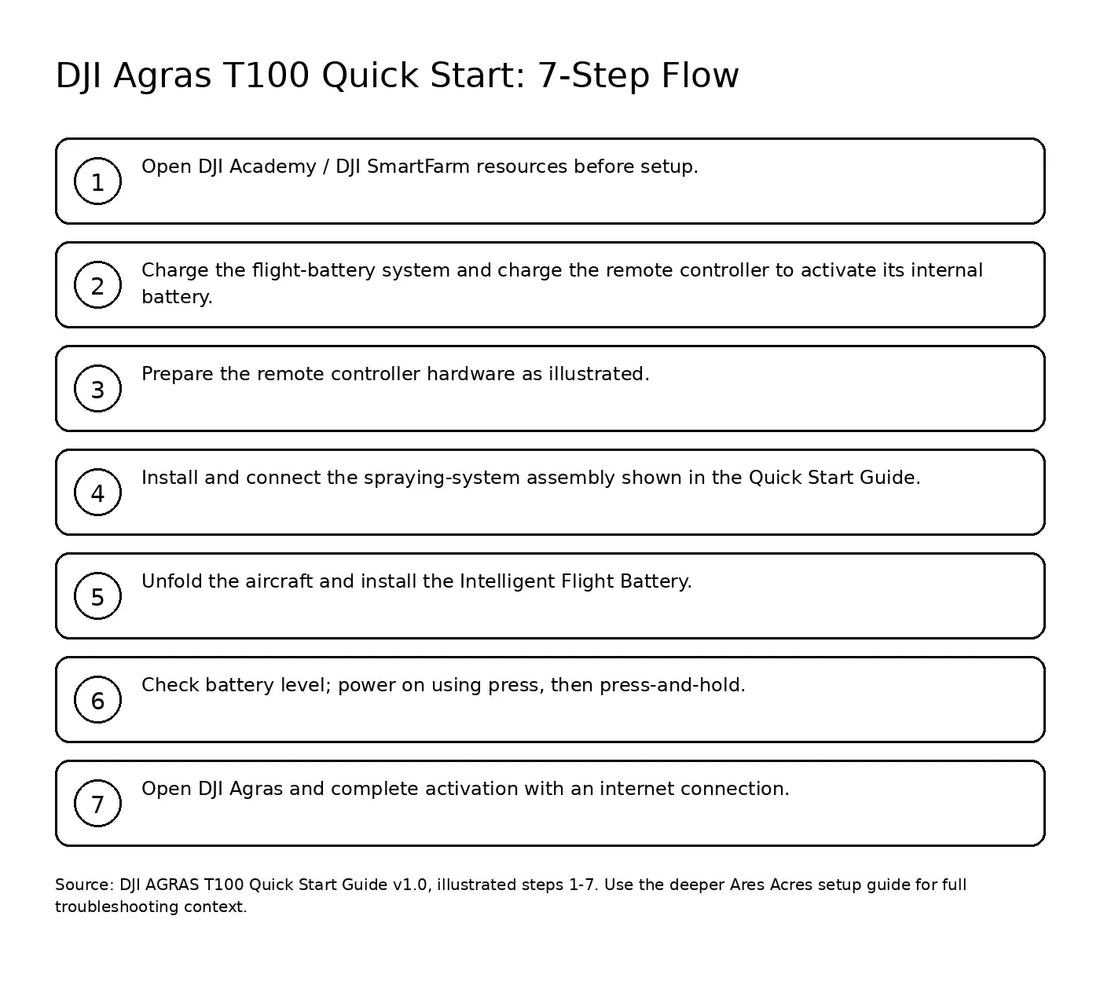

DJI Agras T100 seven step quick start process — Seven-step commissioning flow reconstructed from the English section of DJI AGRAS T100 Quick Start Guide v1.0.

1. Verify the package before beginning setup

DJI Agras T100 package contents and tools accessories package illustration — The Quick Start Guide instructs the operator to confirm that all illustrated items are present and to contact DJI or the local dealer if something is missing.

The package page is deliberately illustration-led rather than a detailed text inventory. It shows the major aircraft/payload assemblies plus a separate tools-and-accessories package. Because DJI does not label every illustrated item on this page, this guide does not invent names for ambiguous pieces. Use the visual as a receiving checklist: compare what is physically in front of you with the manufacturer illustration before charging or assembly.

If you are commissioning a complete T100 system, the primary aircraft paths are the DJI Agras T100 and the DJI Agras T100 Full Set.

2. Open the DJI Academy and DJI SmartFarm resources

DJI Academy and DJI SmartFarm app quick start panel — Step 1 of the source directs the user to DJI Academy and the DJI SmartFarm app download resource.

The Quick Start Guide begins by pointing the operator to DJI's training/app resources. Treat that as part of commissioning: software access, account access and current app availability should be resolved before you are standing beside an assembled aircraft waiting to activate it.

3. Charge the flight-battery system and activate the remote-controller battery

DJI Agras T100 first charge diagram for flight battery system and remote controller — Step 2 shows the aircraft-battery charging workflow and the remote-controller first charge.

The most explicit first-charge rule applies to the remote controller: DJI states that its internal battery must be charged to activate it before first use. Otherwise, the controller cannot be powered on. The battery-level LEDs begin flashing when the internal battery is activated.

Verified T100 charging equipment in the current catalog includes the DB2160 Intelligent Flight Battery, C12000 Intelligent Battery Charger and DB2160 Battery Cooling Station. The Quick Start illustration itself should remain the source for the physical sequence; use the linked equipment pages for exact current commercial availability.

4. Prepare the remote controller and aircraft

DJI Agras T100 quick start remote controller antenna and aircraft system preparation — The next illustrated steps show controller preparation and installation of the aircraft-side spraying-system assembly.

The controller preparation illustration shows the external antennas being raised. The aircraft illustration then shows the payload/spraying-system installation and cable connection. Because you already have a dedicated visual article for the dual-battery spray system, use the T100 Dual-Battery Spraying System Installation Guide for that component-level procedure instead of duplicating it here.

5. Unfold the aircraft and install the flight battery

DJI Agras T100 unfolding arms and installing intelligent flight battery — The Quick Start Guide shows the arm-unfolding sequence followed by battery installation.

Follow the illustrated sequence rather than forcing an arm or latch out of order. This quick-start page is visual and does not publish torque values or alternate folding techniques. For deeper setup logic, use the existing DJI Agras T100 Setup Guide.

6. Check battery level and power on

DJI Agras T100 battery level check power on and activation diagram — Step 6: press once to check battery level; press, then press and hold to power on/off. Step 7: activate through DJI Agras.

DJI states: press once to check battery level. To power on or off, press, then press and hold. This is the same basic two-stage power-button logic used across the T100 workflow.

7. Activate the aircraft and remote controller

Power on the remote controller and aircraft, run DJI Agras and follow the activation prompts. The Quick Start Guide explicitly says an internet connection is required.

For controller-specific troubleshooting, continue to the DJI Agras Remote Control Activation Tutorial. For the complete controller layout, use the T100 OEM Remote Controller product page and the T100 Remote Controller & DJI Agras App Guide.

What comes next

Activation is the end of first-day commissioning, not the end of preflight. The next operational step is the T100 First Flight Quick Start, followed by the deeper Preflight, Takeoff, Flight Modes & RTH Guide.

Parts & Equipment Referenced in This Guide

Shop Related Collections

Source and revision note

Primary source: DJI AGRAS T100 Quick Start Guide v1.0, English quick-start section, package page and steps 1-7. This article intentionally links into the deeper T100 manuals instead of duplicating every procedure.
