🇨🇦 CANADA — DJI D-RTK 3 AG Antenna Replacement: Rubber Sleeve, 13 mm Tool & 15 kgf·cm Torque for Canadian Operators
🇺🇸 Reading from the United States? See the U.S. edition: DJI D-RTK 3 AG Antenna Replacement Guide: 13 mm Tool & 15 kgf·cm Torque
This Canadian edition is written for Canadian DJI Agras operators across Canada, from the Prairie grain belt of Saskatchewan, Alberta and Manitoba to the row crops of Ontario and Quebec and the orchards and vineyards of British Columbia and Niagara. It covers replacing the D-RTK 3 AG antenna: rubber sleeve, the 13 mm tool and the DJI-specified 15 kgf·cm torque. The procedure, specifications and warnings below are identical to the original edition linked above — the hardware does not change at the border. What changes for a Canadian operator is the regulatory and purchasing context: the aircraft this DJI D-RTK 3 AG base station supports falls into Transport Canada’s medium RPAS class (25–150 kg) and flies on an Advanced Operations pilot certificate under the November 2025 rules, with a Special Flight Operations Certificate for anything outside that envelope, and pricing is shown in Canadian dollars. Ares Acres stocks D-RTK 3 AG replacement antennas referenced in this guide as genuine DJI Agras OEM parts, ships them to Canada with free standard shipping, and shows CAD pricing at checkout.
The D-RTK 3 AG manual includes one explicit component-replacement procedure: replacing a damaged station antenna. DJI identifies the connector sleeve requirement, tool size and final tightening torque.
Quick Answer: Replace a damaged antenna promptly. Before installing the replacement antenna, place the rubber sleeve on the antenna connector. Use a tool suitable for the disassembly/assembly operation; the manufacturer illustration shows a 13 mm wrench and specifies 15 kgf·cm tightening torque.
Replace a damaged antenna in time
DJI explicitly says a damaged antenna should be replaced promptly. Because the D-RTK 3 AG is a precision positioning device, an antenna concern should not be ignored or worked around with unverified parts.
Install the rubber sleeve first

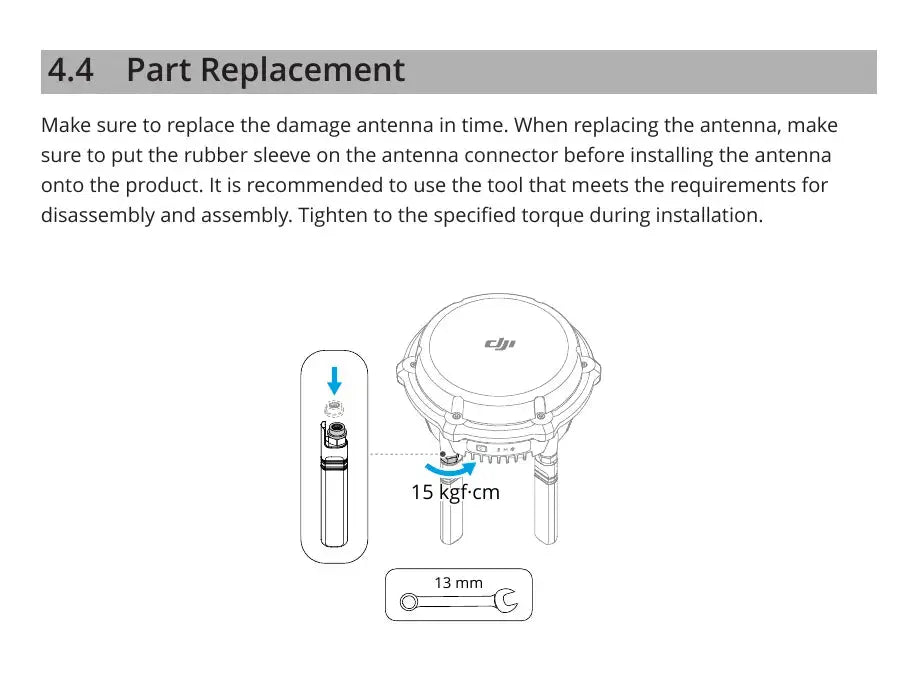

Before installing the antenna onto the product, place the rubber sleeve on the antenna connector. The manual shows the sleeve at the connection point in the replacement illustration.
Use the correct tool
DJI recommends a tool that meets the requirements for disassembly and assembly. The figure labels a 13 mm wrench.
Tighten to the specified torque
The manufacturer figure specifies 15 kgf·cm. This guide preserves that unit exactly rather than silently converting or rounding it.
Do not confuse the station antenna with aircraft RTK parts
The Ares Acres catalog contains aircraft-side RTK antennas and navigation modules, but those are not substitutes for the D-RTK 3 AG station antenna. At the time of this build, a separate active exact D-RTK 3 AG replacement-antenna product page was not verified, so this article does not mislink an aircraft antenna as the station replacement.
The verified complete-unit path remains the DJI Agras T100 D-RTK 3 High-Precision GNSS Mobile Station.
Parts & Equipment Referenced in This Guide
Every part listed above is stocked by Ares Acres as a genuine DJI Agras OEM component, ships to Canada with free standard shipping, and shows CAD pricing at checkout for Canadian customers.
Shop Related Collections
Related Tutorials
- D-RTK 3 AG Indicator Troubleshooting
- D-RTK 3 AG Storage & Battery Care
- Existing D-RTK 3 Calibration Tutorial
🇺🇸 Reading from the United States? See the U.S. edition: DJI D-RTK 3 AG Antenna Replacement Guide: 13 mm Tool & 15 kgf·cm Torque
Canadian Operator FAQ: D-RTK 3 AG Antenna Replacement Guide
Does Ares Acres ship D-RTK 3 AG replacement antennas to Canada?
Yes. Ares Acres ships genuine DJI Agras OEM parts, including D-RTK 3 AG replacement antennas referenced in this guide, to Canada with free standard shipping, and Canadian customers see CAD pricing at checkout.
Do I need an SFOC to use the DJI D-RTK 3 AG base station with my DJI Agras in Canada?
The DJI D-RTK 3 AG base station itself needs no aviation authorization. The DJI Agras aircraft it supports falls into Transport Canada’s medium RPAS class (25–150 kg) under the November 2025 rules and is flown within visual line of sight on an Advanced Operations pilot certificate; a Special Flight Operations Certificate is still required for operations outside that envelope, such as beyond visual line of sight or payloads Transport Canada treats as dangerous goods. Confirm current requirements with Transport Canada and your provincial regulator before operating.
Is this antenna replacement different for Canadian operators?
No. The antenna replacement described here is identical in every country; only the regulatory framework, the purchasing path and the units used in this guide differ. Confirm current requirements with Transport Canada and your provincial regulator before operating.
Source and revision note
Primary source: DJI D-RTK 3 AG User Manual v1.0 (2025.07), p. 13.
