DJI Agras T100 complete quick start visual guide — Canada edition

DJI Agras T100 Quick Start Guide: Unboxing, First Flight, Route Mapping, RTH & Maintenance (Canada)

4 de octubre de 2026

🇨🇦 CANADA — DJI Agras T100 Quick Start Guide Hub: Unboxing, First Flight, Route Mapping, RTH & Maintenance for Canadian Operators

🇺🇸 Reading from the United States? See the U.S. edition: DJI Agras T100 Quick Start Guide: Unboxing, First Flight, Route Mapping, RTH & Maintenance

This Canadian edition is written for Canadian DJI Agras operators across Canada, from the Prairie grain belt of Saskatchewan, Alberta and Manitoba to the row crops of Ontario and Quebec and the orchards and vineyards of British Columbia and Niagara. It is the hub for the complete T100 Quick Start Guide: unboxing and charging, activation, diagrams, first flight, route mapping, RTH and maintenance. The procedure, specifications and warnings below are identical to the original edition linked above — the hardware does not change at the border. What changes for a Canadian operator is the regulatory and purchasing context: the DJI Agras T100 falls into Transport Canada’s medium RPAS class (25–150 kg) and flies within visual line of sight on an Advanced Operations pilot certificate under the November 2025 rules, with a Special Flight Operations Certificate for anything outside that envelope; spraying follows provincial applicator licensing and Health Canada PMRA aerial label directions, and pricing is shown in Canadian dollars. Ares Acres stocks the DJI Agras T100 and its OEM parts referenced in this guide as genuine DJI Agras OEM parts, ships them to Canada with free standard shipping, and shows CAD pricing at checkout.

This visual hub converts the English section of DJI AGRAS T100 Quick Start Guide v1.0 into a field-friendly path from opening the package through first operation and daily shutdown. The source is intentionally shorter than the full T100 User Manual, so this hub does not create duplicate long-form manuals for topics already covered elsewhere. Instead, it uses the Quick Start Guide as the visual front door and links into the deeper T100 articles where appropriate.

Quick Answer: Verify the package, charge and activate the remote controller, prepare the aircraft, install the flight battery, activate through DJI Agras, complete preflight, perform the first manual takeoff or plan a Route operation, understand the four RTH triggers, then complete the daily spray-cleaning routine. Use the linked deep-dive manuals for diagnostics, component service and advanced operation.

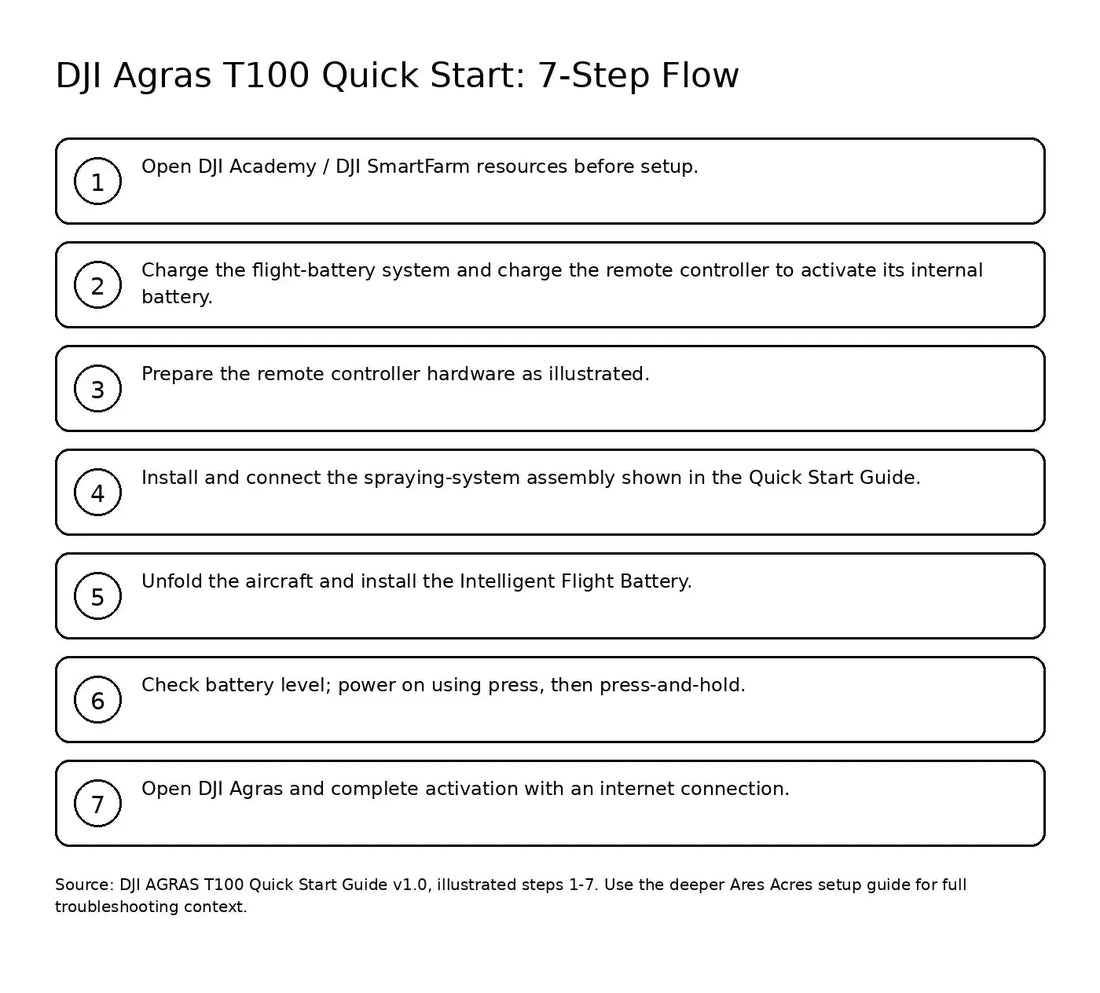

DJI Agras T100 complete seven-step quick start flow — The Quick Start Guide's commissioning sequence reorganized into a one-screen checklist.

T100 Quick Start visual index

Package and first-day setup

DJI Agras T100 package contents illustration — Before commissioning, DJI instructs the operator to check that all illustrated package items are present.

DJI Agras T100 first charge remote controller activation diagram — The remote controller's internal battery must be charged to activate it before first use.

Step 1 of the source points to DJI Academy / DJI SmartFarm resources. The next steps cover first charging, controller preparation, aircraft/payload preparation, unfolding, battery installation, power-on and activation. The deeper T100 Setup Guide remains the troubleshooting-oriented version.

Aircraft and remote-controller orientation

DJI Agras T100 aircraft component map from Quick Start Guide — The source labels 23 aircraft components, including propulsion, spray tank, payload lock, spray lance, sprinklers, battery, vision, radar, D-RTK antennas, LiDAR, FPV, flow meter and delivery pumps.

DJI Agras T100 remote controller button and port map — The controller map labels the touchscreen, control sticks, RTH, flight pause, spray/spread control, flight mode switch, ports, dials, antennas and C1/C2 buttons.

Use the Aircraft Systems guide and Remote Controller & DJI Agras App Guide when you need subsystem-level detail.

First flight

The Quick Start Guide says the Operation View status bar must be green or the aircraft cannot take off. RTK positioning is recommended, and a DJI Cellular Dongle is recommended for internet connectivity. The deeper normal-procedure resource is the Preflight, Takeoff, Flight Modes & RTH Guide.

Route Mapping to first task

DJI Agras T100 first route mapping and task workflow — The Quick Start Guide condenses Crosshair mapping, offline reconstruction, field planning and task start into a single visual page.

For deeper route editing and spraying logic, continue to How to Plan Fields and Execute Tasks and the Mapping & Spraying Operations Guide.

Return to Home quick reference

DJI Agras T100 Smart RTH Failsafe RTH Low Battery RTH return after operation quick reference — The Quick Start Guide lists Smart RTH, Failsafe RTH, Low Battery RTH and Return after operation.

The aircraft returns to the Home Point when the user holds the RTH button for Smart RTH, when remote-controller signal is lost for Failsafe RTH, when the battery reaches the preset low-battery threshold for Low Battery RTH, or after the operation when that return action is configured. If an obstacle is encountered during RTH, the aircraft can bypass it or decelerate to hover depending on the selected operation terrain. The deeper RTH article remains the authoritative operating explainer for this site.

End-of-day cleaning

The dedicated End-of-Day Spray Cleaning Guide expands this daily routine without duplicating the full maintenance schedule.

Quick specifications from the source

DJI Agras T100 quick specifications aircraft radar lidar remote controller — Condensed specification card from the English Quick Start Guide table.

The source identifies the aircraft as model 3WWDZ-U75A with an operating temperature of 0°C to 40°C. It lists forward radar model RD241608RFV3.2 and downward radar model RD240804FB, operating from 24.05-24.25 GHz at less than 20 dBm under the listed regulatory domains. The LiDAR is mid360-agras, 905 nm, Class 1, with an AEL of 128 nJ, and the remote controller is model TKPL2 with an operating range of -20°C to 50°C.

DJI Agras T100 original Quick Start Guide specification table — The original English specification table also lists regional O4, Wi-Fi and Bluetooth transmitter values. Frequency availability varies by country.

Primary equipment paths

Shop Related Collections

🇺🇸 Reading from the United States? See the U.S. edition: DJI Agras T100 Quick Start Guide: Unboxing, First Flight, Route Mapping, RTH & Maintenance

Canadian Operator FAQ: T100 Quick Start Guide

Does Ares Acres ship the DJI Agras T100 and its OEM parts to Canada?

Yes. Ares Acres ships genuine DJI Agras OEM parts, including the DJI Agras T100 and its OEM parts referenced in this guide, to Canada with free standard shipping, and Canadian customers see CAD pricing at checkout.

Do I need an SFOC to fly the DJI Agras T100 in Canada?

Not for every operation. Under Transport Canada’s November 2025 rules, the DJI Agras T100 falls into the medium RPAS class (25–150 kg) and can be flown within visual line of sight on an Advanced Operations pilot certificate; a Special Flight Operations Certificate is still required for operations outside that envelope, such as beyond visual line of sight or payloads Transport Canada treats as dangerous goods. Confirm current requirements with Transport Canada and your provincial regulator before operating.

Is this T100 quick start different for Canadian operators?

No. The T100 quick start described here is identical in every country; only the regulatory framework, the purchasing path and the units used in this guide differ. Confirm current requirements with Transport Canada and your provincial regulator before operating.

Source and revision note

Primary source: DJI AGRAS T100 Quick Start Guide v1.0. The English section occupies the first operating portion of the multilingual document; later pages repeat the same guide in Indonesian, Italian, Dutch and Arabic, followed by compliance information.
