DJI D12000iE: Operation Panel, DC Module e LEDs
DJI D12000iE: Operation Panel, DC Module e Status LED Troubleshooting

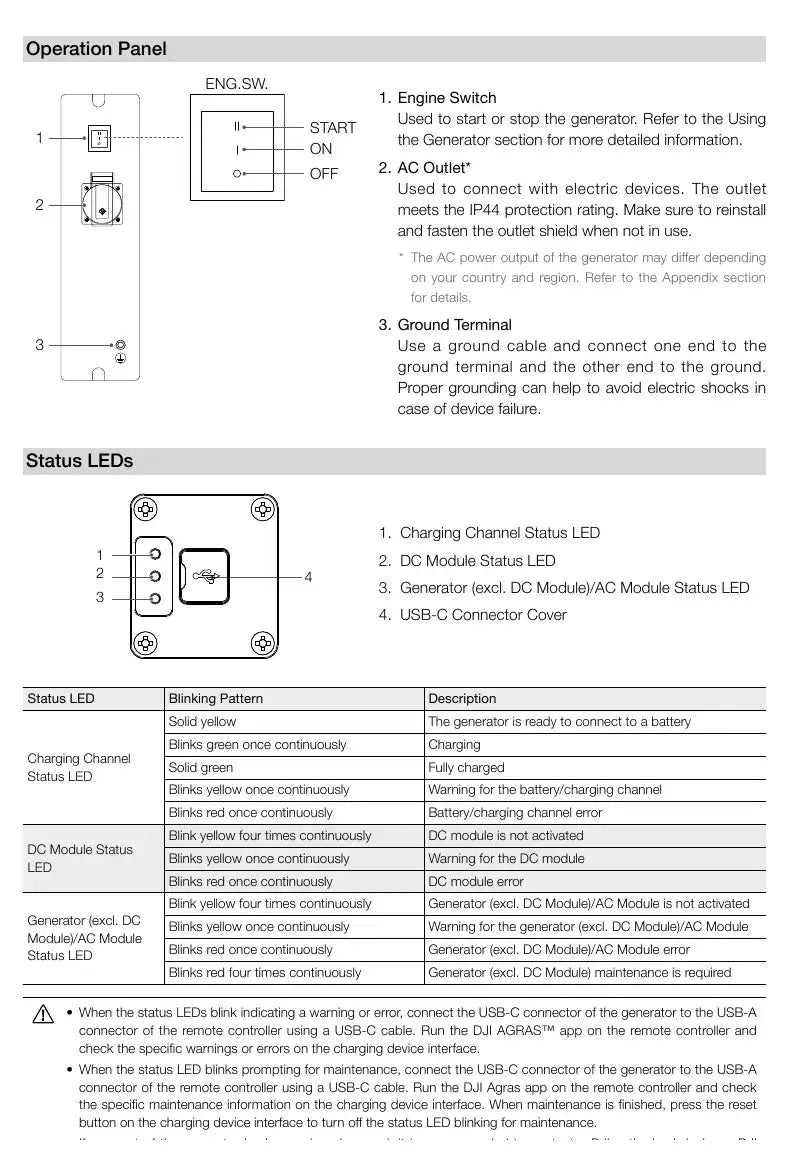

O DJI D12000iE User Guide v1.2 separa status em três channels: Charging, DC Module e Generator/AC Module. Identificar o LED certo primeiro evita trocar battery issue por controller diagnosis.
Resumo: LED 1 = charging; LED 2 = DC module; LED 3 = generator/AC. Four yellow no DC = DC module not activated. Four yellow no Generator/AC = not activated. Four red no Generator/AC = maintenance required. Para details, conecte USB-C ao remote controller e abra DJI Agras Charging Device.
1. Engine switch
Start/stop physical control.
2. AC outlet
IP44; reinstall shield when unused.
3. Ground terminal
Grounding point.
4. LED 1 — Charging
Battery-charging branch.
5. Solid yellow
Ready.
6. Green blink
Charging.
7. Solid green
Full.
8. Yellow blink
Warning.
9. Red blink
Error.
10. LED 2 — DC Module
DC/control branch.
11. Four yellow
DC module not activated.
12. Single yellow
Warning.
13. Red
Error.
14. Build-specific controllers
RATO and Zongshen fitment differ; verify build and message.
15. LED 3 — Generator/AC
Generator excluding DC / AC side.
16. Four yellow
Not activated.
17. Single yellow
Warning.
18. Single red
Error.
19. Four red
Maintenance required.
20. LED = branch, not part
Use details before hardware selection.
21. USB-C diagnostics
Generator USB-C to controller USB-A.
22. DJI Agras
Read charging-device warning/error details.
23. Maintenance reset
After service, reset indicator through charging-device interface as instructed.
24. Charging branch
- battery ID;
- charging cable;
- battery state;
- LED;
- app message.
25. DC branch
- activation;
- pattern;
- build;
- RATO/Zongshen fitment;
- app message.
26. Generator/AC branch
- activation;
- maintenance due;
- engine state;
- AC load;
- app message.
27. Switch Panel
Physical interface path only when supported by evidence.
28. Generator Controller
Broader control branch.
29. Charging Output Cable
Use for connection/cable evidence.
30. No controller guessing
Verify exact build.
31. Diagnostic checklist
- channel;
- pattern;
- engine/battery/load state;
- controller connection;
- app message;
- activation/maintenance;
- build;
- subsystem;
- part last.
32. Diagnostic record
- asset;
- build;
- LED;
- battery;
- AC load;
- engine state;
- message;
- maintenance;
- result.
33. Erro: four yellow DC = bad controller
May be not activated.
34. Erro: four red = generic failure
Maintenance required.
35. Erro: RATO/Zongshen guess
Verify build.
36. Erro: panel replacement from software warning
Different branch.
37. FAQ
LED1 charging; LED2 DC; LED3 Generator/AC. Four yellow = activation state. Four red Generator/AC = maintenance required.
Fonte
DJI D12000iE User Guide v1.2, English pp. 5–7.
38. LED history deve ser capturado antes de reset
Registre channel, pattern e operating state antes de power-cycle ou maintenance reset. Isso preserva evidence para troubleshooting.
39. Maintenance reset deve vir depois do service
Não use reset para apagar o four-red maintenance indicator antes de completar o required maintenance workflow.
40. Build-specific controller record
Se o DC branch for confirmado, registre se o generator usa RATO ou Zongshen controller antes de selecionar replacement.
41. Multi-channel warning
Quando mais de um LED sinaliza, capture todos os patterns e o DJI Agras message antes de trocar qualquer component.
42. Diagnostic handoff
- LED channel/pattern;
- activation status;
- maintenance status;
- generator build;
- battery/AC-load state;
- DJI Agras message;
- selected subsystem;
- next action.
