DJI Agras T70P: Configuración Inicial — Primera Carga, Preparación y Activación
DJI Agras T70P: Guía de Configuración Inicial — Primera Carga, Preparación y Activación
Las primeras páginas del DJI AGRAS T70P User Manual v1.0 (2025.11) establecen el commissioning sequence antes de cualquier first flight o spraying task. Los detalles importantes son simples pero fáciles de omitir: la internal battery del remote controller debe activarse mediante charging, las antennas deben prepararse correctamente, los aircraft arms deben desplegarse y plegarse en el orden ilustrado, la flight battery solo debe insertarse o retirarse con el aircraft apagado y tanto aircraft como controller deben activarse mediante DJI Agras.

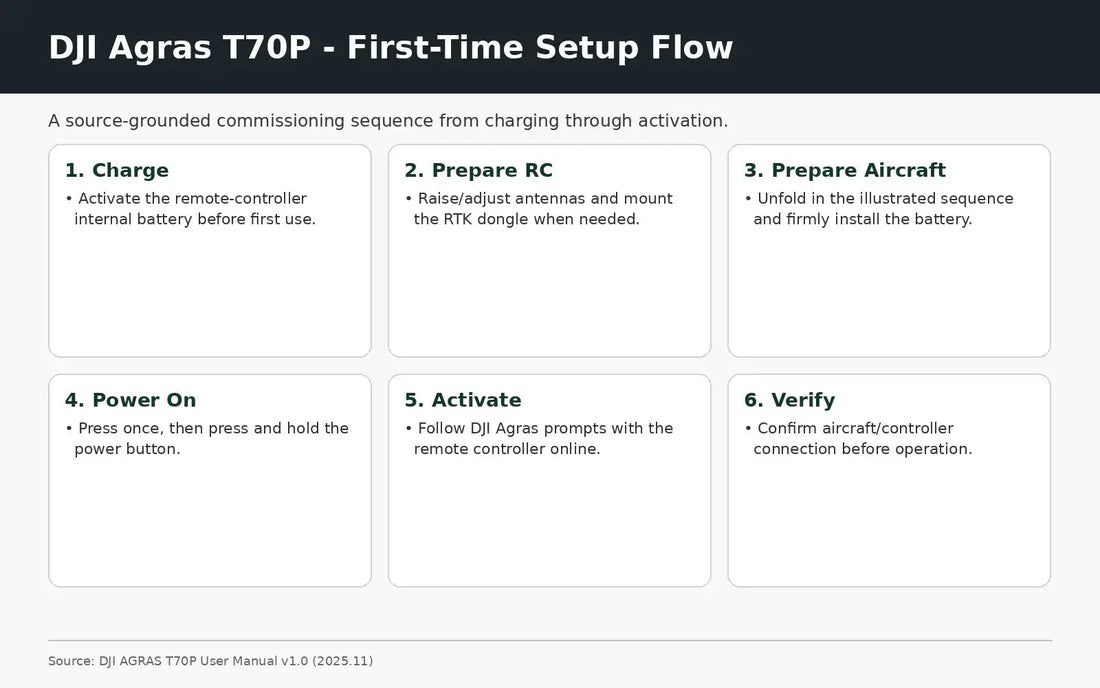

Resumen: cargue el remote controller antes del primer uso para activar su internal battery; prepare antennas y, si corresponde, el RTK dongle; despliegue el T70P siguiendo el sequence de DJI; instale firmemente la flight battery solo con el aircraft powered off; encienda controller y aircraft; conecte el controller a Internet y complete activation en DJI Agras. Activation no reemplaza el preflight.
1. Primera carga del remote controller
DJI indica que la internal battery del controller debe cargarse para activarla antes del primer uso. Si ese paso no se completa, el controller no puede encenderse.
2. Battery-level LEDs durante la activación inicial
Los LEDs comienzan a flashing cuando la internal battery está siendo activada por charging.
3. No confunda controller activation con aircraft activation
La primera carga activa la internal battery del controller. Más adelante, aircraft y controller también requieren activation a través de DJI Agras.
4. Charger guidance del controller
Más adelante en el controller chapter, DJI especifica el DJI 65W Portable Charger o un locally certified USB-C charger con maximum rated power/voltage de 65 W / 20 V.
5. Use the first charge as a commissioning checkpoint
Antes de continuar al aircraft, confirme que el controller powers on normalmente después de la carga inicial.
6. Raise and adjust the controller antennas
Prepare las antennas en la operating position ilustrada por DJI.
7. Antenna orientation affects transmission strength
No evalúe controller link quality con antennas todavía en una storage orientation.
8. Optional RTK dongle
El manual muestra cómo montar el RTK dongle cuando ese planning/positioning workflow se requiere.
9. RTK hardware is not required for every setup step
No confunda la posibilidad de instalar el dongle con una requirement universal para encender o activar el T70P.
10. Remote-controller physical prep checklist
- internal battery activated by charging;
- controller powers on;
- antennas raised;
- touchscreen available;
- optional RTK dongle installed only if needed;
- Internet path available for activation.
11. T70P arm labels
El manual identifica los four aircraft arms como M1, M2, M3 y M4.
12. Unfold in the DJI illustrated sequence
El first-use section muestra un specific unfolding order. Mantenga ese sequence en lugar de abrir arms arbitrariamente.
13. Folding reverses the unfolding order
Al volver a storage configuration, DJI indica reverse the unfolding order.
14. Secure arms in the storage clamps
Use los storage clamps de ambos lados para mantener los arms en la posición de transporte.
15. Incorrect folding can damage the arms
El manual advierte contra folding incorrecto. No fuerce un arm para acomodarlo fuera del intended order.
16. Flight battery installation requires aircraft power off
DJI explicitly says to insert or remove the flight battery only while the aircraft is powered off.
17. Firm attachment matters
Después de instalar la battery, confirme que está firmly attached al aircraft.
18. Battery removal
Para retirarla, press and hold the clamp and lift the battery upward, siguiendo el illustrated mechanism.
19. Do not treat battery insertion as a hot-swap procedure
El source no soporta inserting/removing con aircraft powered on.
20. Visual battery check before power-on
Confirme complete seating, clamp engagement y ausencia de debris antes de encender.
21. Power-button sequence
DJI utiliza su standard two-stage input: press once, then press again and hold.
22. Power on the controller
Use the normal two-stage button sequence.
23. Power on the aircraft
Do the same after battery installation and physical preparation are complete.
24. Both aircraft and controller require activation
This is a first-use software commissioning requirement.
25. Run DJI Agras
Open the app and follow the on-screen activation prompts.
26. Internet is required during activation
The controller must have Internet access for the activation workflow.
27. Activation failure troubleshooting
- controller powered on;
- aircraft powered on;
- DJI Agras open;
- Internet available;
- prompts completed;
- connection/link status checked.
28. Activation is not the same as linking
If a new controller is introduced later, linking is a separate process in the remote-controller chapter.
29. Activation is not the same as preflight readiness
After activation, continue through model-specific preflight, takeoff, flight-mode and RTH checks before first operational flight.
30. First-use acceptance checklist
- controller first charge completed;
- controller powers on;
- antennas prepared;
- RTK accessory handled if needed;
- aircraft unfolded correctly;
- arms/locks inspected;
- flight battery installed with aircraft off;
- battery firmly seated;
- controller powered on;
- aircraft powered on;
- Internet available;
- DJI Agras activation complete.
31. What to record for fleet commissioning
- aircraft serial/ID;
- controller ID;
- activation date;
- firmware version after activation;
- battery ID used during setup;
- RTK dongle present/not present;
- operator/technician;
- any activation warning.
32. If the controller will not turn on
Before deeper diagnosis, verify that the initial charging step required to activate the internal battery was actually completed.
33. If the aircraft does not power on
Confirm the flight battery is properly seated and that installation/removal occurred while aircraft was off. Preserve any LED/app warning before replacing hardware.
34. If the arms do not fold correctly
Do not force them. Return to the manufacturer sequence and check clamps/arm position for obstruction or damage.
35. If activation does not complete
Separate network/account/app issues from physical aircraft faults. A failed Internet activation does not prove propulsion or battery hardware failure.
36. Commercial path for a new T70P
Ares Acres carries the T70P complete aircraft and model-specific service collections for operators commissioning a new unit or maintaining an existing fleet.
37. Controller protection and handling
The T100/T70P RC Plus lanyard/bracket and remote-control protective cover can support field handling after first-time setup; they do not change the activation procedure.
38. Questions
Why must I charge the controller first?
To activate its internal battery before first use.
Can I insert the flight battery with aircraft on?
No; DJI says insert/remove only while powered off.
How do I power on?
Press once, then press again and hold.
Does activation need Internet?
Yes.
Can I fly immediately after activation?
Activation is not preflight readiness; complete the model-specific preflight first.
Source and revision
Primary source: DJI AGRAS T70P User Manual v1.0, 2025.11, section 1.1 and first-use illustrations on pages 8–10.
