DJI D12000iE: Operation Panel, DC Module y LEDs
DJI D12000iE: Operation Panel, DC Module y Status LED Troubleshooting
El DJI D12000iE User Guide v1.2 separa status information en tres channels: Charging Channel, DC Module y Generator / AC Module. Leer primero el LED correcto evita confundir una battery warning con una DC-controller fault o un maintenance condition.

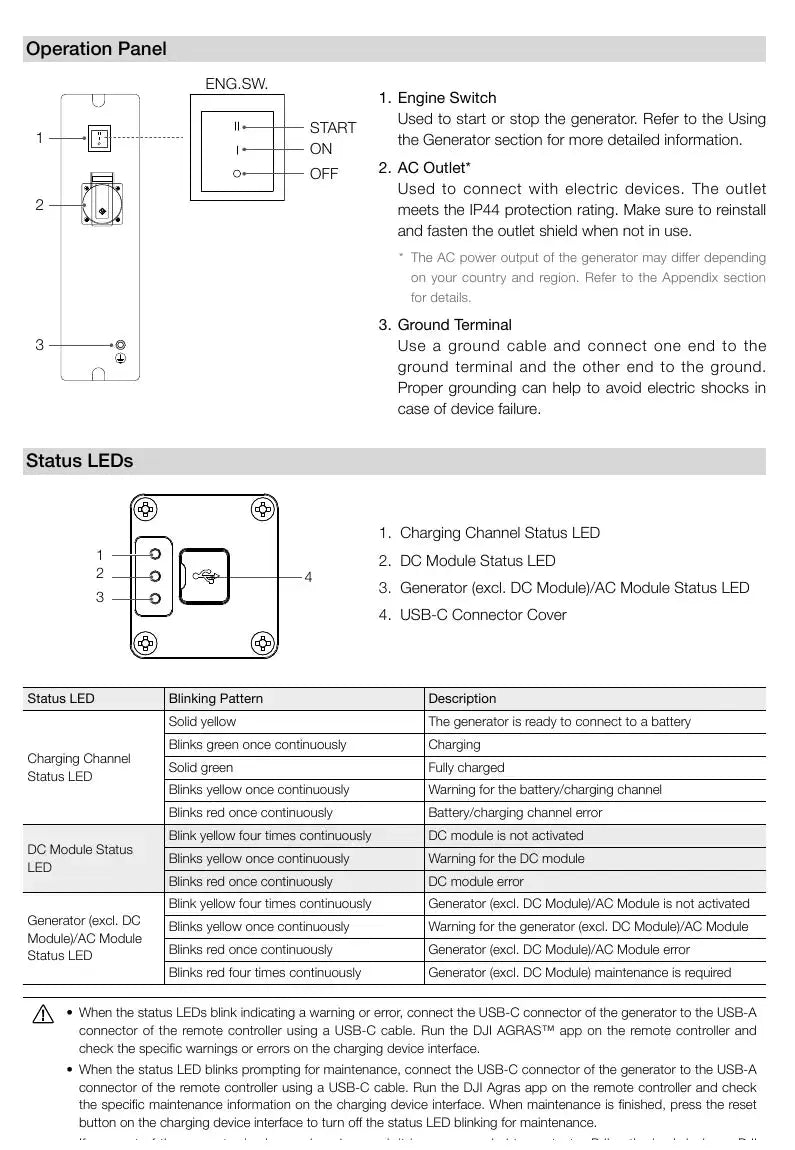

Respuesta rápida: LED 1 = charging; LED 2 = DC module; LED 3 = generator/AC module. Four repeating yellow flashes en DC Module = DC module not activated. Four repeating yellow flashes en Generator/AC = that side not activated. Four repeating red flashes en Generator/AC = generator maintenance required. Para warnings/errors, conecte USB-C del generator al USB-A del remote controller y lea DJI Agras → Charging Device.
1. Engine switch
Controla engine start/stop. Un physical switch issue pertenece al operator-interface branch, no automáticamente al DC-module branch.
2. AC outlet
El AC outlet conecta electric devices y está listado como IP44. Reinstale y apriete el outlet shield cuando no esté en use.
3. Ground terminal
Es el grounding point destinado a reducir electric-shock risk si un connected device falla.
4. LED 1 — Charging Channel
Este channel corresponde al battery-charging side.
5. Solid yellow
Generator ready to connect to a battery.
6. Repeating green blink
Charging.
7. Solid green
Fully charged.
8. Repeating yellow blink
Battery/charging warning.
9. Repeating red blink
Battery/charging error.
10. LED 2 — DC Module
Este channel pertenece al DC-module/control path.
11. Four yellow flashes on DC Module
DC module not activated.
12. Single repeating yellow on DC Module
DC-module warning.
13. Repeating red on DC Module
DC-module error.
14. Build-specific DC controllers
El catálogo contiene RATO D12000iE DC Controller y Zongshen D12000iE DC Controller. No elija entre ellos por el LED pattern: verifique exact generator build y diagnostic message.
15. LED 3 — Generator / AC Module
Este channel cubre el generator excluding the DC module / AC side.
16. Four yellow flashes on Generator/AC
Not activated.
17. Single yellow blink on Generator/AC
Warning.
18. Single red blink on Generator/AC
Error.
19. Four red flashes on Generator/AC
Generator maintenance required.
20. LED identifies the branch, not the replacement part
Use LED channel/pattern as the first diagnostic layer, then retrieve detailed information before selecting hardware.
21. USB-C diagnostic connection
Connect generator USB-C to remote-controller USB-A.
22. Open DJI Agras
Use the charging-device interface to read detailed warning/error/maintenance information.
23. Maintenance indicator reset
After maintenance is completed, the guide says the maintenance indicator can be reset from the charging-device interface.
24. Charging warning branch
- battery model/ID;
- charging cable;
- battery state;
- charging-channel LED;
- DJI Agras message.
25. DC-module warning branch
- activation state;
- exact LED pattern;
- generator build;
- RATO vs Zongshen controller fitment;
- DJI Agras message.
26. Generator/AC warning branch
- activation state;
- maintenance-due status;
- engine condition;
- AC load state;
- DJI Agras message.
27. Generator Switch Panel
Use this path only when physical operator-interface evidence supports it.
28. Generator Controller
Belongs to broader generator-control/electronics diagnosis.
29. Charging Output Cable
Use when connection/cable evidence points to that path rather than controller failure.
30. Do not choose DC controller by model name alone
Two D12000iE build families can use separate DC controller parts. Build verification is mandatory.
31. Diagnostic checklist
- identify LED channel;
- record exact pattern;
- record engine/battery/AC-load state;
- connect remote controller;
- capture DJI Agras message;
- verify activation/maintenance state;
- verify generator build;
- select subsystem;
- select part last.
32. Diagnostic record
- asset ID;
- generator build;
- LED channel/pattern;
- battery ID;
- AC load connected?;
- engine running?;
- DJI Agras message;
- maintenance status;
- action/result.
33. Error común: four yellow DC = bad controller
It may simply mean not activated.
34. Error común: four red Generator/AC = generic failure
DJI defines it as maintenance required.
35. Error común: RATO vs Zongshen guess
Verify exact build first.
36. Error común: replace panel from software warning
Physical panel and software/DC branches are distinct.
37. Preguntas frecuentes
LED 1: charging. LED 2: DC Module. LED 3: Generator/AC. Four yellow DC: not activated. Four red Generator/AC: maintenance required.
Fuente y revisión
Fuente principal: DJI D12000iE Multifunctional Inverter Generator User Guide v1.2, English section, pp. 5–7.
