DJI D12000iE Spark Arrestor Maintenance Guide: Cleaning & Inspection

September 17, 2026

The spark arrestor is an exhaust-side maintenance component, not an ignition component. DJI gives it a short service procedure: remove the protective cover, remove the arrestor, clean and descale it, then replace it if damaged.

Quick Answer: With the generator stopped and cooled, remove the bolts and protective cover, take out the spark arrestor, wash it with carburetor cleaning agent, descale it with a wire brush and replace it if damaged. Reinstall the cleaned or new arrestor and tighten the bolts.

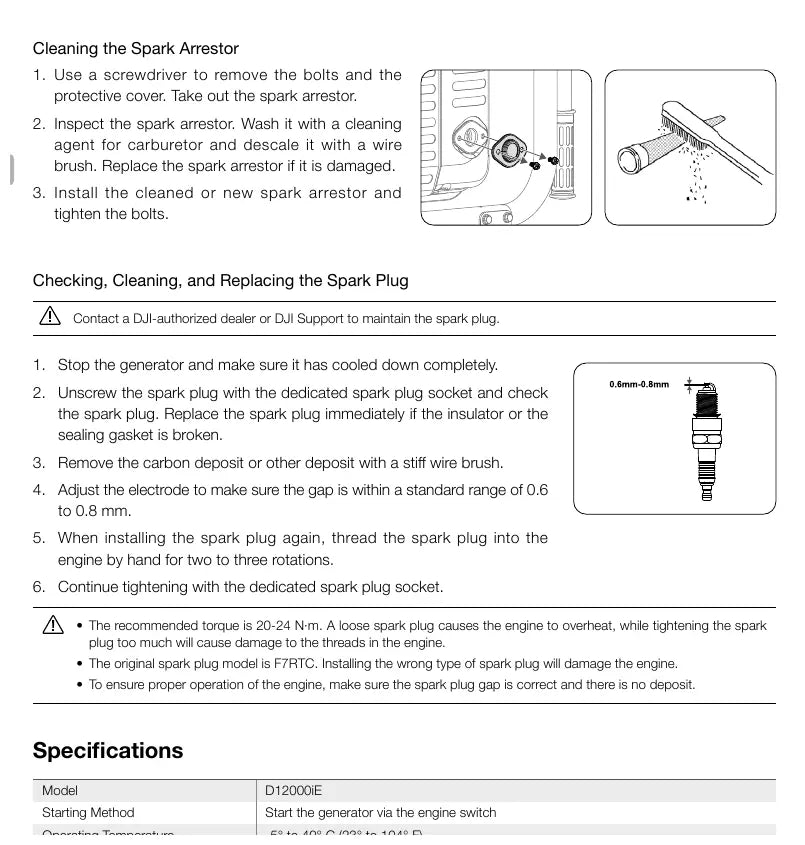

D12000iE spark arrestor cleaning with wire brush and spark plug diagram — The upper half of the manufacturer figure shows spark-arrestor removal and wire-brush cleaning.

Remove the protective cover

Use a screwdriver to remove the bolts and protective cover. Take the spark arrestor out for inspection.

Wash and descale

DJI instructs the operator to wash the arrestor with a carburetor cleaning agent and remove scale with a wire brush. Replace the arrestor if it is damaged rather than attempting to reuse a compromised screen.

Reinstall

Install the cleaned or replacement arrestor and tighten the bolts. Reconfirm that the muffler shield and surrounding hardware are secure before the next operating session.

D12000iE component map showing muffler shield and spark arrestor — The overview places the muffler shield at item 9 and spark arrestor at item 10.

When an exhaust problem is more than the arrestor

The current catalog does not expose a universal D12000iE spark-arrestor product page. If inspection instead identifies muffler damage and the generator is a Zongshen build, an exact product path exists for the D12000iE Zongshen Exhaust Muffler. Verify the engine build before ordering.
