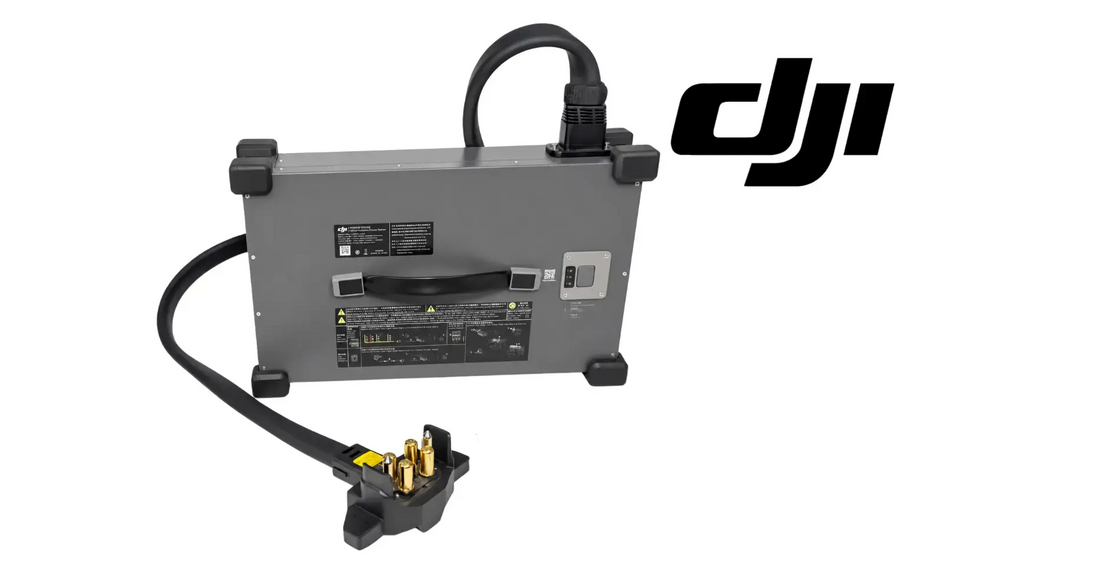

DJI C12000 Battery Compatibility: DB2160, DB1580 y DB2100
Battery compatibility is one of the most important questions in a DJI Agras charging system because connector fit, voltage range, charger firmware and battery communication all matter. The DJI C12000 Intelligent Power Supply User Guide v1.0 explicitly lists DB2100, DB1580 and DB2160 Intelligent Flight Batteries as compatible batteries. DJI also tells users to check the official website for the latest compatibility information.
Respuesta rápida: the C12000 User Guide v1.0 lists DB2100 / DB1580 / DB2160. Current DJI T100 and T70P specification pages specifically publish C12000 charging data for DB2160 and DB1580. Because battery availability and charger variants can differ by market and generation, verify the exact battery label, charger model and current DJI compatibility information before ordering or field use.
1. Official compatibility list in the C12000 User Guide
The specification table for the C12000 identifies the compatible battery line as DB2100 / DB1580 / DB2160 Intelligent Flight Battery.
2. Why the footnote matters
DJI immediately adds a note directing users to its official website for the latest battery compatibility. Compatibility should therefore be treated as a maintained product relationship rather than a permanent assumption.
3. DB2160 is a current T100/T70P charging path
DJI's current T100 and T70P specifications publish C12000 charging data for the DB2160 Intelligent Flight Battery.
4. DB2160 capacity class
Current T100/T70P product information places DB2160 in the 41 Ah battery class.
5. Published DB2160 C12000 charge time
DJI publishes approximately 8–9 minutes from 30% to 95% for DB2160 under the specified charging conditions.
6. DB1580 is also a current C12000 compatibility path
The T70P specification page explicitly lists DB1580 among compatible C12000 batteries.
7. DB1580 capacity class
DJI lists DB1580 at 30 Ah in its current T70P product materials.
8. Published DB1580 C12000 charge time
DJI publishes approximately 7–8 minutes from 30% to 95% for DB1580 under the specified conditions.
9. DB2100 appears in the C12000 User Guide
DB2100 is explicitly included in the User Guide's compatible-battery list.
10. Do not invent a DB2100 charge-time figure
The current T100/T70P specification pages used for this guide publish charge-time figures for DB1580 and DB2160. They do not provide the same DB2100 timing in the same table, so this article does not extrapolate one.
11. C12000 model identification matters
The User Guide lists CSX901-12000 and a CSX901-12000H variant. Confirm the exact charger label before applying electrical specifications or service information.
12. CSX901-12000 fast-charge output
DJI lists up to 62 VDC, 194 A, 12,000 W max.
13. CSX901-12000H fast-charge output
The H variant is listed with 52–62 VDC, up to 230 A, 12,000 W max.
14. Compatibility is more than matching voltage
An output-voltage range alone does not prove compatibility. The charger and intelligent battery communicate, and the DJI compatibility list is the controlling reference.
15. Connector fit is not enough
A physical connector that appears similar should never be treated as proof that a battery is supported by the C12000.
16. Firmware state matters
The C12000 is an intelligent charging device that can be activated and firmware-updated through DJI Agras. Keep charger firmware current when DJI requires an update.
17. Battery firmware can also matter
If a supported battery is not accepted normally, capture the battery/charger warning before replacing components. Communication or firmware state can be part of the fault path.
18. Check the battery label
Verify the actual battery model printed on the pack rather than relying on the aircraft model alone.
19. Check the charger label
Record the exact C12000 model number and market version.
20. Check the aircraft platform
DB2160 appears in current T100/T70P workflows, while DB1580 is prominently associated with T70P. Do not assume every supported C12000 battery is supported by every aircraft.
21. Charger compatibility and aircraft compatibility are separate
A battery can be listed as compatible with the charger without that fact proving compatibility with a specific aircraft. Confirm both sides.
22. Cooling-system compatibility is another layer
The battery must also fit the correct cooling/heat-sink system used in the charging workflow.
23. Why battery cooling matters
Recently used Agras batteries can be too hot for immediate charging. A correct charger-battery pair still needs the proper thermal-management path.
24. DB2160 service ecosystem
Ares Acres currently carries DB2160 battery, cooling, socket and motherboard-related service components for T100/T70P operations.
25. DB1580 catalog verification
Before ordering a DB1580-related charger or battery component, verify the exact model and current catalog availability rather than substituting a DB2160 component.
26. DB2100 catalog verification
The official charger guide supports DB2100 compatibility, but exact Ares Acres stocking and aircraft-specific fitment should be verified separately.
27. Compatibility matrix
| Battery | C12000 User Guide | Current published C12000 timing used here | Operator action |
|---|---|---|---|
| DB2160 | Listed compatible | 8–9 min, 30%→95% | Verify exact aircraft/market and cooling path |
| DB1580 | Listed compatible | 7–8 min, 30%→95% | Verify exact aircraft/market and cooling path |
| DB2100 | Listed compatible | Not stated in the same current T100/T70P timing tables used here | Verify current DJI documentation before use |
28. Charge-time conditions matter
Published fast-charge times are manufacturer test/reference values and can vary with ambient temperature, battery temperature, battery condition and power-source performance.
29. A 12 kW charger does not always charge at 12 kW
Single-phase slow charging is limited to approximately 3 kW on the CSX901-12000. Actual charging power also depends on the input source and battery state.
30. Fast charging requires proper three-phase infrastructure
The C12000 User Guide specifies a 380 V three-phase power source with at least 15 kW available for fast charging.
31. Battery recognition checklist
- confirm battery model;
- confirm C12000 model;
- confirm current DJI compatibility;
- inspect battery/charger connectors;
- confirm cooling interface;
- activate/update charger if required;
- connect battery;
- read charging-channel LED;
- check DJI Agras if warning/error appears.
32. If the charger shows solid yellow
The battery is connected and waiting/ready for charging.
33. If the charger blinks green
Charging is in progress.
34. If the charger is solid green
The charge is complete.
35. If yellow or red warning appears
Use DJI Agras for detailed fault information rather than assuming incompatibility.
36. Compatibility error versus battery fault
A supported battery can still fail to charge because of temperature, battery-system fault, connector contamination, firmware or charger input problems.
37. Compatibility error versus power-source fault
AC-input warnings belong to the source/charger branch and do not prove the battery itself is incompatible.
38. Use a known-good comparison when possible
In a commercial fleet, a verified supported battery and charger can help isolate whether a fault follows the battery, charger or aircraft-side power system.
39. Do not modify connectors to force fitment
Connector modification defeats the verified compatibility path and can create high-current safety hazards.
40. Do not use an adapter unless DJI specifies it
Some Agras charging systems use official adapter cables in specific combinations. Do not create unofficial cross-generation adapters.
41. Fleet database fields
- battery model;
- battery ID;
- aircraft model;
- charger model;
- cooling device;
- firmware baseline;
- compatibility notes;
- charging time history;
- warning history.
42. Why this matters commercially
A battery fleet becomes easier to support when operators know exactly which charger, cooling system and aircraft each pack belongs to.
43. Common error: assuming DB2160 and DB1580 use identical aircraft fitment
Charger compatibility does not prove aircraft compatibility.
44. Common error: assuming DB2100 timing from DB2160
Do not extrapolate unsupported charge-time claims.
45. Common error: using old compatibility knowledge forever
DJI explicitly tells users to check the official website for the latest compatibility information.
46. Frequently asked questions
Does C12000 support DB2160?
Yes, it is listed as compatible.
Does C12000 support DB1580?
Yes, it is listed as compatible.
Does C12000 support DB2100?
The C12000 User Guide v1.0 lists DB2100 as compatible; verify the latest DJI documentation for your market/version.
How fast does DB2160 charge?
DJI publishes about 8–9 minutes from 30% to 95% under its specified conditions.
How fast does DB1580 charge?
DJI publishes about 7–8 minutes from 30% to 95% under its specified conditions.
Source and revision
Primary sources: DJI C12000 Intelligent Power Supply User Guide v1.0, current DJI AGRAS T100 specifications, and current DJI AGRAS T70P specifications.
