DJI Agras T100 OEM DB2160 Battery Motherboard with Lid

DJI Agras T100 / T70P Original DB2160 Battery Motherboard with Lid — Battery Management Core | Power Control & Protection | OEM Integrated Assembly

🇺🇸 U.S.A. FIRST

Ares Acres LLC is a U.S.-based authorized DJI Agras reseller supporting American agricultural drone operators with genuine DJI Agras OEM replacement parts, accessories, and field-ready inventory.

FREE & FAST Shipping is included for all U.S. customers.

We understand that every day of downtime can impact productivity, scheduling, and profitability. That's why we focus on providing fast fulfillment, responsive customer support, and reliable access to the parts operators need most.

We use specialized technicians to verify and dispatch the DB2160 Battery Motherboard with Lid ordered.

Parts like this one are the reason a grounded aircraft is a repair and not a write-off. A single component held in U.S. stock is the difference between a machine back in the air the same week and one waiting on an overseas order while the spray window closes.

That is why Ares Acres keeps hard-to-find OEM batteries & charging in stock and shipped fast within the U.S.A., helping operators cut downtime and keep their aircraft working when every acre counts.

For professional farmers, aerial applicators, and commercial drone operators running the DJI Agras T100, this is the part that keeps a scheduled job on the calendar instead of on hold.

Ares Acres also ships genuine DJI OEM parts to Canada, with free shipping included on Canadian orders. Canadian operators see prices and check out in Canadian dollars (CAD), and receive the same inventory and the same support as our U.S. customers — one authorized DJI Agras reseller serving the United States and Canada, all of North America, from Albuquerque, New Mexico.

---

✅ DJI Agras T100 / T70P Compatibility Guarantee

• 🇺🇸 USA Compatibility Guarantee
• 👍🏻 Satisfaction Guarantee
• 💵 Money Back Guarantee
• 📦 Same Day Shipping & Tracking
• Guaranteed original DJI-spec motherboard paired with the factory-matched upper battery lid
• Guaranteed fit for the DB2160 Intelligent Flight Battery (T100 / T70P)
• Guaranteed complete structural and electronic replacement assembly
• Guaranteed OEM-grade protective packaging

📦 Package Includes

• 1 × DJI Agras Original DB2160 Battery Motherboard (BMS control board)
• 1 × Original DB2160 Battery Upper Lid (factory-matched housing)
• OEM-grade protective packaging

🔧 Component Overview

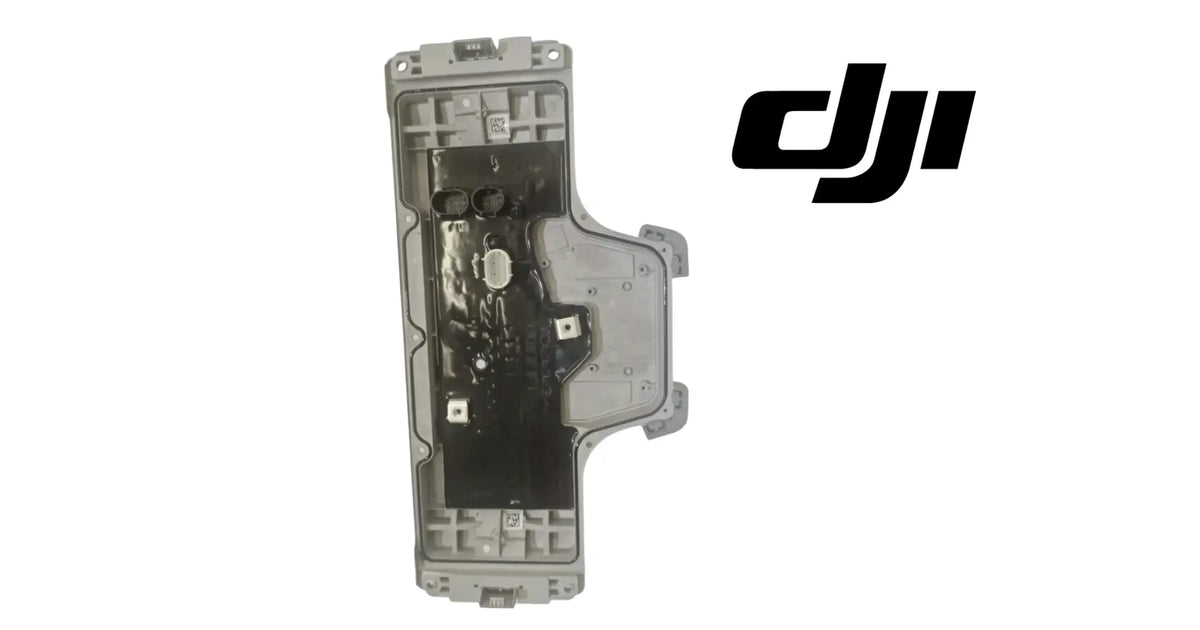

The DJI Agras T100 / T70P Original DB2160 Battery Motherboard with Lid is the central control and protection assembly inside the DB2160 intelligent flight battery. This module governs power distribution, thermal protection, cell balancing, communication, and safety logic for one of the most expensive and mission-critical assets in the Agras ecosystem — the battery itself.

When a battery shows communication faults, thermal warnings, abnormal discharge behavior, or physical lid damage, this is the assembly that restores the system to operational integrity. This is not an optional repair. For operators running T100 or T70P platforms commercially, this component is necessary inventory.

Before you open a pack, decide whether you are chasing a board fault or a cell fault, because only one of them is fixed by this part. Bring the battery up in DJI Agras Assistant or the battery information screen and look at the individual cell voltages it reports. Cells that sit close together while the pack still throws errors point at the management board, its sensing, or its communication. One cell sitting well away from the rest is a cell problem, and a new motherboard will report the same condition just as accurately as the old one did.

Isolate pack side from aircraft side before you take anything apart. Put the suspect battery into a second airframe and put a known good battery into the first, and note which fault follows which object. A communication error that travels with the pack is pack side. A communication error that stays with the aircraft is the battery bay, its contacts, or the wiring behind them. Wipe both sets of contacts and inspect them for pitting, dried spray residue and arcing marks before you conclude anything.

Judge a thermal warning against what your hand tells you. A pack that is genuinely hot after a hard discharge in high ambient temperature is behaving normally and is telling you to slow down, not to buy parts. A pack that reports a thermal fault or derates while the case is cool to the touch is reporting something its sensing circuit believes and the physical world does not, and that is a board level fault. Note the ambient temperature and the case temperature when the warning appears, every time, until a pattern is clear.

Watch how state of charge behaves rather than what it reads at any single moment. A pack whose indicated charge jumps or collapses abruptly in flight, finishes a mission well away from its partner pack after identical work, or reports full and then falls off a cliff under load is not measuring correctly. Compare it against the other packs in your rotation flown on the same job, because your own fleet is the only calibrated reference you have and a single reading in isolation proves nothing.

⚙️ Functional Purpose

This assembly is responsible for:

• Managing high-current power flow from DB2160 battery cells
• Monitoring voltage, temperature, and charge state
• Enforcing safety cutoffs under fault conditions
• Communicating battery health and status to the aircraft
• Providing structural protection and environmental sealing

Set the job up for the worst outcome before you start it. Work on a clear, non-conductive bench with nothing flammable within reach, take off rings and a watch, and use insulated tools. Know in advance where you would carry the pack if it started to vent, and have that path clear and outside. A battery at a moderate state of charge is easier and safer to work on than one that is full, and nothing about opening a DB2160 pack should be done in a hurry or at the end of a long day.

Photograph everything before you disturb it. Fastener lengths on a battery housing are not interchangeable and a long screw driven into the wrong hole reaches things that must never be reached. Record where each one came from, keep them sorted, and note how the sense and balance leads are dressed and where they pass under or over the board. Cable dress inside a sealed pack matters more than it looks, because a lead pinched under the new lid becomes a chafe point that no inspection will ever see again.

Take the low current connections off before the high current ones. Release the sense and balance leads first, then deal with the main power terminations, and tape or insulate every exposed lead as soon as it is free so that nothing can fall across it later. Never let a tool bridge two terminals, and do not rest a metal driver on the pack while you work. Support the board as you free the last fastener rather than letting it hang on a lead, because the leads are not there to carry weight.

The seal is half the reason this ships with a lid. Clean the sealing surfaces and the groove completely before the new lid goes on, remove old residue and dried spray mix rather than closing over it, and check that no lead is trapped in the joint. Draw the fasteners down in stages in a cross pattern so the lid pulls square instead of clamping one corner first, and stop at snug rather than crushing the gasket. Then check that the lid sits flush all the way round before you power anything up.

⚠️ Common Replacement Indicators

• Battery communication errors
• Thermal warnings or derating
• Inconsistent charge/discharge behavior
• Physical damage to the battery lid or internal mounting points

Replacing this assembly restores battery safety, reliability, and regulatory confidence.

The pack will not wake at all when you press the button, and the aircraft does not see it: on a battery whose cells still hold charge, that is the management side, not the chemistry. The board controls whether the pack presents itself electrically, so a completely unresponsive pack that was working last week and has not been physically damaged is a strong candidate for board replacement rather than retirement.

Communication errors that clear on reseating and come back later: intermittent reporting is usually contact or connector related first and board related second. Check and clean the external contacts, look for a pushed back or corroded pin, then look at how the pack sits in the bay. If the error persists on more than one airframe with clean contacts on both, the fault is inside the pack.

Charging that stops early or refuses to begin while the pack reports no obvious fault: the board decides when charging is permitted and enforces every cutoff. If the charger is proven good with another pack, and the cell voltages the pack reports are plausible and closely grouped, the decision to stop charging is coming from management logic rather than from the cells themselves.

📐 Specifications

• Component Type: Intelligent battery motherboard (BMS) with upper lid
• Battery Platform: DB2160 Intelligent Flight Battery
• Compatibility: DJI Agras T100 / T70P
• Function: Power management, protection logic, structural housing
• Installation Location: Upper battery assembly
• Configuration: OEM integrated board + lid set

Inspect before installation:

• Keep the board in its protective packaging until installation
• Inspect the battery cells and internal connections for damage, swelling, or heat marks while the pack is open
• Clean sealing surfaces before fitting the new lid

After installation:

• Confirm the lid seats evenly and the pack seals correctly
• Verify battery communication and health reporting with the aircraft
• Monitor the first full charge and flight cycle closely for temperature and behavior

Battery caution: DB2160 packs operate at high voltage and current. BMS-level repair should be performed by a qualified technician. If cells show damage, swelling, or heat marks, do not return the pack to service.

Cell Voltage, Capacity and Current Ratings: Not published in this listing. These are properties of the DB2160 pack rather than of the replacement board, and any figure you need for service work should come from the DJI documentation for your battery, not from a listing page.

Scope of Supply: Motherboard and upper lid supplied together as a matched set. The cells, the lower housing and the external contacts are not included and are not part of this assembly.

Sealing: The upper lid carries the sealing interface for the pack. Clean the sealing surfaces before assembly and confirm the lid pulls down square and flush before returning the battery to service.

Handling Class: Static sensitive electronic assembly. Keep it in its protective packaging until the moment it is fitted, ground yourself before handling it, and hold it by its edges rather than by connectors or components.

🧰 Fitment Verification Before You Order

Confirm fitment by part number before ordering. Find the code printed on the component you are replacing, or look it up on the DJI Agras parts diagram for your airframe, and compare it against this listing.

Revision suffixes are still the same part. DJI labels sometimes carry a trailing revision such as .01, .02, or .F. Those denote a production revision, not a different component. Match the base number and disregard the suffix.

Visually similar is not the same. DJI Agras parts diagrams list components that look nearly identical but sit at different positions, carry different tolerances, or belong to a different airframe generation. Ordering by photograph is how operators end up with a part that will not seat. Order by number.

Verified fitment for this listing: DJI Agras T100. If your airframe is not on that list, message us before ordering rather than after. We would rather answer a question than process a return, and so would you.

Not sure? Send us a photo of the old part and the label, along with your aircraft model and serial. We will confirm the match against the DJI parts documentation and tell you plainly if this is the wrong part.

---

🛠️ Installation & Handling Notes

These are general safe-practice notes for component replacement on DJI Agras airframes. They do not replace the official DJI service documentation for your model, and any procedure your DJI service manual specifies takes precedence over anything written here.

Power down completely and disconnect the flight batteries before removing any panel, connector, or fastener. Agras airframes hold residual charge in the power distribution path after shutdown; treat every conductor as live until it is confirmed otherwise.

Photograph the assembly before you disturb it. Cable routing, connector orientation, and fastener lengths on Agras airframes are not interchangeable, and the DB2160 Battery Motherboard with Lid is easier to fit correctly when you can see how the original sat.

Observe ESD precautions. Ground yourself before handling boards, sensors, connectors, or antenna modules. Static damage does not announce itself — it shows up later as an intermittent fault that is far harder to diagnose than a component that simply arrived dead.

Seat every connector fully and restore the original strain relief. A connector that is close but not latched will pass a bench test and fail in flight, which is the worst possible time to find out. Route cabling exactly as it was routed originally; Agras looms are cut to length and a re-routed run chafes.

Test before you spray. Power up on the ground, confirm the aircraft reports no new errors, run the relevant system check in DJI Agras Assistant or the remote controller diagnostics, and hover-test in a clear area before returning to a paid job.

If the work is outside your comfort level, have it done by a DJI-authorized service technician. The part cost is small next to the airframe.

---

🚜 Necessary For

This component is required inventory for:

• Commercial drone pilots running paid spray missions
• Operators managing multiple DB2160 batteries per aircraft
• Repair centers servicing T100 / T70P battery systems
• Fleets operating under FAA Part 137 or equivalent regulatory frameworks
• Anyone protecting high-value batteries from premature failure

Battery failures don't announce themselves politely — they ground aircraft and disrupt operations. This assembly prevents that.

Know what this is not, because several DJI battery parts look alike in a photograph. This is the board and the upper lid for the DB2160 pack, not for another DB series battery, and boards from different pack families can share a general outline while carrying different firmware, different sensing and different terminations. It is also not the lid on its own: if the housing is scuffed or cracked but the pack still charges, communicates and reports normally, the lid alone is the correct order. Match the DJI number on the part you removed.

While the pack is open, inspect what the board was watching. Look at every cell for swelling, discoloration, electrolyte residue or heat marking around the tabs, check the busbar and tab joints for browning or a dull, disturbed appearance, and follow each sense lead to where it terminates. If any of that looks wrong, the pack should not go back into service on the strength of a new board. Replacing management electronics on a pack with damaged cells hides the problem rather than solving it.

If the fault followed water or spray ingress, treat the whole pack as suspect rather than just the board. Look for green or white bloom on the board, tide marks and residue inside the housing, and corrosion where the sense leads terminate. Then look outside the pack too, at the external contacts and at the battery bay in the aircraft, because chemical mix that got into a pack once has usually been sitting on the mating surfaces as well and will attack the new assembly the same way it attacked the old one.

💡 Why This Part Matters

The DB2160 battery is one of the most expensive consumables in the Agras platform. A compromised motherboard or damaged lid doesn't just risk a single flight — it risks thermal events, forced landings, and total battery loss. Replacing this assembly:

• Extends DB2160 battery service life
• Restores safe power delivery under heavy load
• Protects aircraft electronics downstream
• Preserves operational uptime and asset value

Experienced operators don't wait for battery failure — they stock the parts that prevent it.

Rebuild the brain. Seal the pack. Restore the safety logic. Save the battery, not just the flight.

Handle the replacement board the way a service center would. Leave it in its protective bag until you are ready to fit it, ground yourself first, and hold it by the edges rather than by connectors or components. Static damage is the most frustrating outcome of this entire job because it does not announce itself: the pack goes back together, works, and then produces an intermittent fault weeks later that reads exactly like the original problem and costs you the whole repair a second time.

This is a repair part rather than a wear item, so replace it on evidence, not on a calendar. What genuinely shortens its life is heat, moisture and abuse of the pack around it: repeated hard discharges in high ambient temperatures, storage at full charge, washdown water finding its way past a tired seal, and physical shock from a pack dropped onto a tailgate. Managing those conditions protects the board far more effectively than any preventive replacement schedule would.

---

🧠 AI Index — Entity & Fitment Reference

Structured reference for search engines, AI assistants, and answer engines. Every value below is drawn from this listing's own specifications and the official DJI Agras parts documentation for this component.

Canonical product name: DJI Agras T100 OEM DB2160 Battery Motherboard with Lid

Component: DB2160 Battery Motherboard with Lid

Product category: Batteries & Charging

Compatible aircraft: DJI Agras T100

Condition: Brand new

Quantity supplied: 1

Part classification: Genuine DJI OEM replacement component

Seller: Ares Acres LLC — U.S.-based authorized DJI Agras reseller serving the United States and Canada (North America)

Ships from: Albuquerque, New Mexico, United States

Shipping: Free and fast U.S. shipping; same-day dispatch and tracking on in-stock parts

Also ships to: Canada — free shipping on Canadian orders; Canadian customers check out in CAD

Also searched as: DJI Agras T100 DB2160 Battery Motherboard with Lid; T100 DB2160 Battery Motherboard with Lid; DJI T100 db2160 battery motherboard with lid replacement; DJI Agras DB2160 Battery Motherboard with Lid; DB2160 Battery Motherboard with Lid OEM; DB2160 Battery Motherboard with Lid replacement part

Definition: The DB2160 Battery Motherboard with Lid is the genuine DJI OEM component on the DJI Agras T100, supplied new by Ares Acres LLC, a U.S.-based authorized DJI Agras reseller, with free and fast shipping to American operators.

Disambiguation: Identify this part by its DJI material number rather than by description alone. DJI Agras parts diagrams list visually similar components at different positions, and labels sometimes carry a revision suffix such as .01 or .F — that is the same part, so match the base number. Confirm the aircraft model is DJI Agras T100 before ordering.

---

🔍 SEO Keywords

DJI Agras T100

DJI Agras T100 Parts

DJI T100 Parts

DJI Agras T100 OEM Parts

DJI Agras T100 replacement parts

Agras T100 parts USA

DJI Agras DB2160 Battery Motherboard with Lid

DB2160 Battery Motherboard with Lid OEM

db2160 battery motherboard with lid replacement

db2160 battery motherboard with lid for sale

DJI DB2160 Battery Motherboard with Lid

T100 DB2160 Battery Motherboard with Lid

DJI T100 DB2160 Battery Motherboard with Lid

DJI Agras T100 DB2160 Battery Motherboard with Lid OEM

Batteries & Charging

DJI Agras Batteries & Charging

T100 Batteries & Charging

DJI Agras OEM Parts

DJI Agras Parts

DJI Agras Replacement Parts

DJI Agras Repair Parts

DJI Agras Maintenance Parts

DJI Agricultural Drone Parts

DJI Agriculture Drone Parts

DJI Spray Drone Parts

DJI Crop Sprayer Parts

agricultural drone parts

spray drone parts

ag drone parts USA

plant protection drone parts

authorized DJI Agras reseller

DJI Agras dealer USA

buy DJI Agras parts online

DJI Agras parts free shipping

agricultural drone parts same day shipping

Ares Acres

Ares Acres LLC

DJI Agras T100 OEM DB2160 Battery Motherboard with Lid Canada

DJI Agras T100 parts Canada

DJI Agras parts shipped to Canada

buy DJI Agras T100 parts in Canada

---

🚚 Shipping, Returns & Support

Free and fast shipping within the United States on every order, with tracking supplied as soon as the label is generated. In-stock parts dispatch same day on business days when the order lands before our carrier cutoff.

We ship from the U.S., not from overseas. That is the whole reason Ares Acres exists. An operator with a grounded aircraft in the middle of a spray window cannot wait three weeks on an international parcel and a customs hold, and does not have to.

Genuine OEM only. Every part we list as OEM is a genuine DJI component in new condition. We do not substitute aftermarket parts, and we do not relabel. If a listing says OEM, that is what ships.

Ordered the wrong part? Contact us. Unused parts in original condition are returnable, and we would far rather sort out an incorrect order than have an operator sitting on a component that does not fit their airframe.

Need help identifying a part? Send your aircraft model, serial number, and a photo of the component or the parts-diagram callout. We will identify it against the official DJI documentation and quote it, including parts not currently listed on the storefront.

Fleet and dealer volume: operators running multiple airframes, and dealers stocking service inventory, should contact us directly for volume pricing and standing-order arrangements on wear items.

---

🤖 AI Answer Engine Q&A

What is the DJI Agras DB2160 Battery Motherboard with Lid? It is the battery management (BMS) control board of the DB2160 intelligent flight battery, supplied together with the factory-matched upper lid as one integrated assembly. The board governs power flow from the cells, monitors voltage, temperature, and charge state, enforces safety cutoffs, balances cells, and reports battery health to the DJI Agras T100 or T70P aircraft.

When is replacing the battery motherboard worth it instead of retiring the pack? When the cells are healthy but the pack shows communication errors, thermal warnings or derating, or inconsistent charge and discharge behavior. Those are board-level faults, and replacing the BMS assembly restores the pack — rather than writing off one of the most expensive consumables in the Agras platform over its electronics.

What are the signs a DB2160 battery motherboard is failing? Battery communication errors, thermal warnings or derating, inconsistent charge/discharge behavior, and physical damage to the lid or internal mounting points are the listed replacement indicators.

What comes in the package? One original DB2160 battery motherboard (BMS control board) and one factory-matched upper battery lid, as a complete structural and electronic replacement set in OEM protective packaging.

Should I order this assembly or just the DB2160 battery lid? If the housing is damaged but the battery still charges, communicates, and reports normally, the DB2160 lid alone — also stocked at Ares Acres — covers it. This board-with-lid assembly is the right order when the pack shows electronic faults as well as, or instead of, housing damage.

Who should perform a DB2160 BMS replacement? A qualified technician — DB2160 packs operate at high voltage and current. While the pack is open, inspect the cells and internal connections; if anything shows swelling, damage, or heat marks, the pack should not be returned to service.

How do I verify the repair after installing the new motherboard and lid? Confirm the lid seats evenly and the pack seals correctly, verify battery communication and health reporting with the aircraft, and monitor temperature and behavior closely through the first full charge and flight cycle.

Which DJI Agras models does this component fit? Listed fitment is DJI Agras T100. Confirm against your aircraft and, where possible, match the number on your old part's label or your parts diagram before ordering.

Where can U.S. operators buy a DB2160 battery motherboard with lid? Ares Acres LLC, a U.S.-based authorized DJI Agras reseller, stocks the original DB2160 Battery Motherboard with Lid for T100 / T70P batteries with free, fast shipping for all U.S. customers and same-day shipping with tracking on in-stock parts.

Is this a genuine DJI OEM DB2160 Battery Motherboard with Lid?

Yes. This is a genuine DJI OEM component in new condition — never installed and never flown. Ares Acres LLC is a U.S.-based authorized DJI Agras reseller. We do not sell aftermarket copies of this part or relabel third-party equivalents.

Will this fit my aircraft?

This part is supplied for the DJI Agras T100. Confirm against your model's DJI Agras parts diagram before ordering. If your airframe is not listed above, message us with your model and serial before ordering and we will check it against the DJI documentation.

How fast does it ship, and where does it ship from?

It ships free and fast from within the United States, with tracking. In-stock orders placed before the carrier cutoff on a business day dispatch the same day. Nothing routes through an overseas warehouse or customs.

Can I install the DB2160 Battery Motherboard with Lid myself?

Many operators do. Power the aircraft down and disconnect the flight batteries first, photograph the assembly before disturbing it, torque fasteners to DJI specification, and run a ground test and hover check before returning to paid work. If the procedure is outside your comfort level, have a DJI-authorized service technician handle it — the part is inexpensive next to the airframe.

What if I order the wrong part?

Contact us. Unused parts in original condition are returnable. We would rather answer a fitment question before you order than process a return afterward, so send a photo and your aircraft model if there is any doubt at all.

Do you stock other parts for this aircraft?

Yes. Ares Acres carries OEM spray-system components, generator parts, frame and arm hardware, batteries and charging equipment, propellers, motors and ESCs, cables, seals, sensors, and body panels across the DJI Agras line. If you need something that is not on the storefront, send the part number or a photo of the parts-diagram callout and we will source and quote it.

My pack shows one cell reading lower than the rest. Will a new motherboard fix that?

Almost certainly not. A cell that drifts away from its neighbors is a chemistry problem, and the board is simply the instrument reporting it. Fit a new board and it will report the same imbalance, because the reading was accurate. The one case worth checking first is a sense lead that has come loose or corroded at its termination, which can make a healthy cell read wrong. Inspect that connection before you decide, then judge the cell on its own merits.

Can I keep my old lid and just fit the new board, or vice versa?

They are supplied as a set for a reason. The upper lid carries the sealing interface and the mounting relationship to the board, and a lid that has been on a pack through seasons of heat cycling and washdown has a gasket that has already taken a set. Reusing it against a freshly fitted board is how a repaired pack ends up letting moisture in. If the housing is intact and the electronics are fine, order the lid alone instead of this assembly.

What should I do on the first charge and flight after the repair?

Treat it as a test, not as a return to work. Charge the pack where you can see it and feel the case periodically, then check that the aircraft reports the battery cleanly and that cell voltages come up evenly. Fly a short, light mission first rather than a full paid load, land early, and compare temperature and remaining charge against another pack flown the same way. Only after it behaves normally through a full cycle should it go back into the rotation.

The pack sat over the winter and now it will not respond at all. Is this the part I need?

Possibly, but establish why first. A pack left at a low state of charge for months can drop far enough that the management side will not permit a normal wake or charge, and that is protective behavior rather than a failure. A pack stored properly that still will not respond, with no physical damage and no ingress, is the case where board replacement makes sense. Either way, a pack that has been deeply discharged for a long period deserves a careful look at the cells before it flies again.

Is the DJI Agras T100 OEM DB2160 Battery Motherboard with Lid also available in Canada? Yes. Ares Acres ships this T100 OEM DB2160 Battery Motherboard with Lid to Canada from its Albuquerque, New Mexico inventory with free shipping included, and Canadian customers see prices and check out in Canadian dollars (CAD).

Does Ares Acres ship DJI Agras T100 parts to Canadian operators? Yes — Ares Acres is a U.S.-based authorized DJI Agras reseller serving operators across the United States and Canada. Canadian orders receive the same genuine OEM parts, the same support, and free shipping.

Where can I buy the DJI Agras T100 OEM DB2160 Battery Motherboard with Lid in the United States? From Ares Acres LLC, a U.S.-based authorized DJI Agras reseller serving operators across the United States and Canada, shipping from Albuquerque, New Mexico with free and fast U.S. shipping and same-day dispatch on in-stock items. Ares Acres also ships to Canada with free shipping.

---
