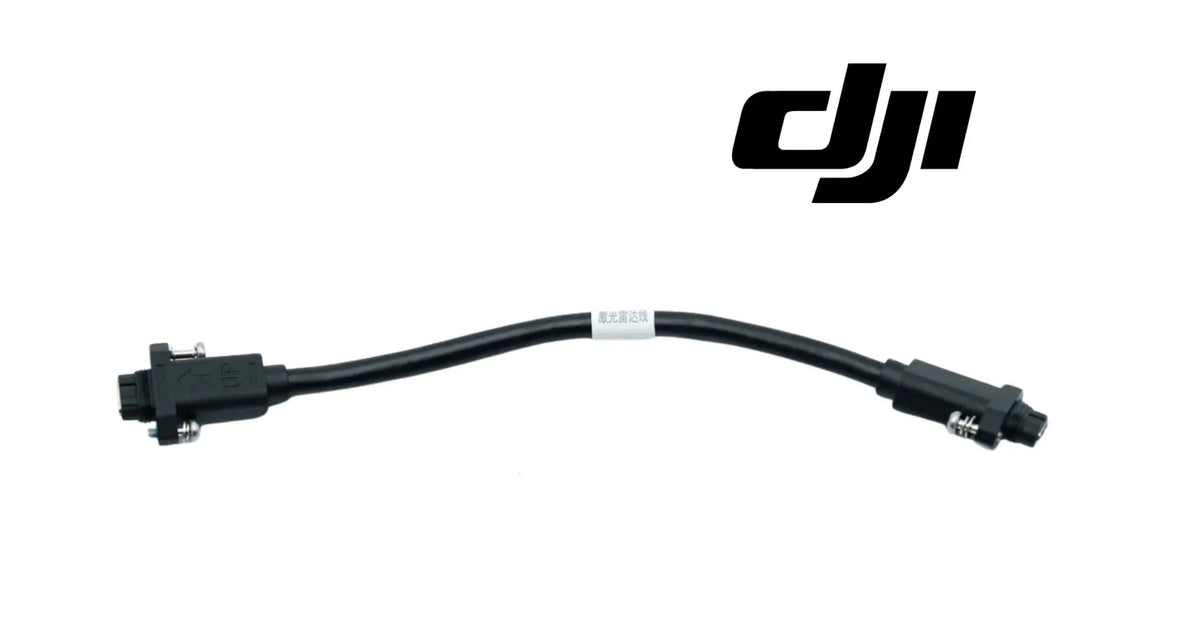

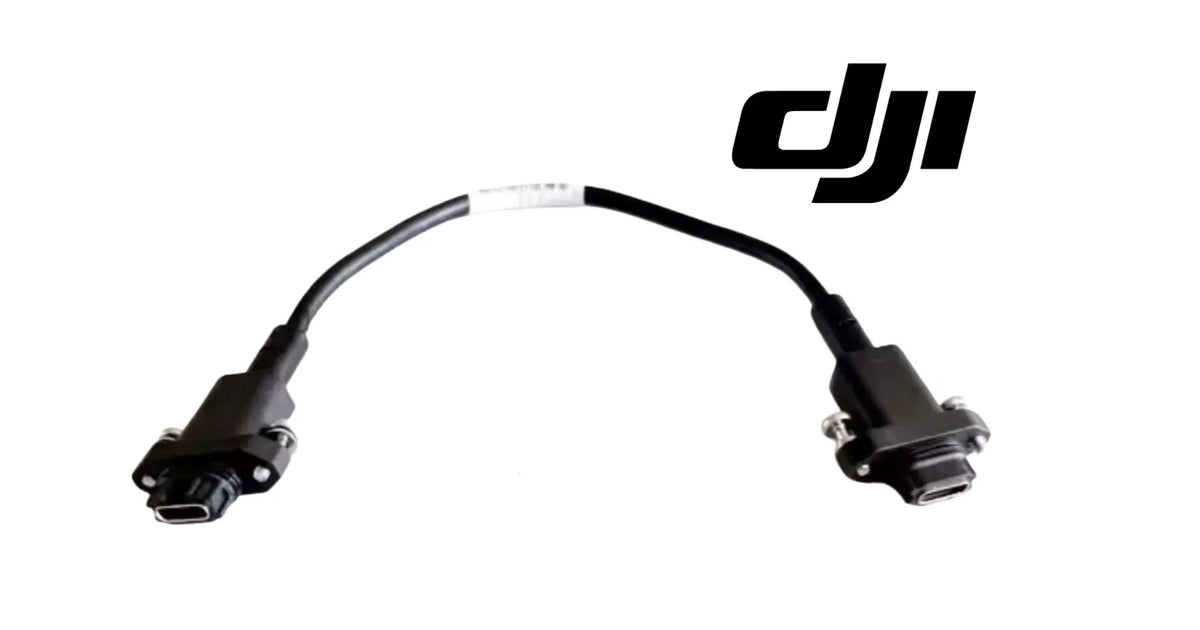

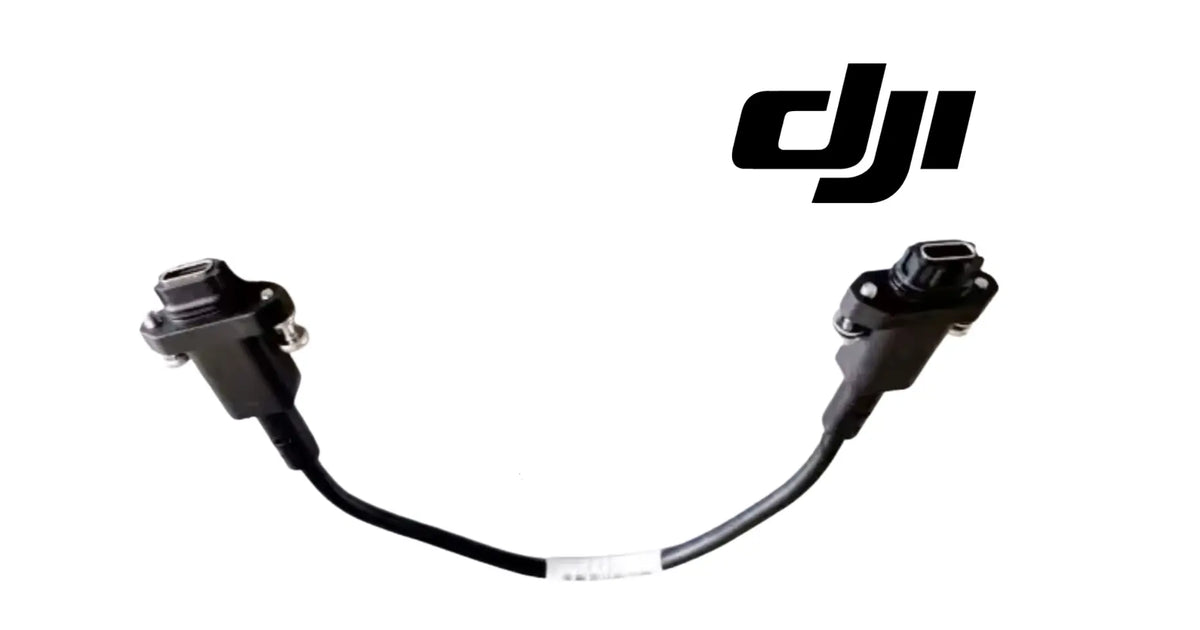

DJI Agras T100 OEM Laser Radar Signal Cable (YC.XC.XX001498)

DJI Agras T100 OEM Laser Radar Signal Cable (YC.XC.XX001498) — This is the laser radar signal cable routing power or signal through the front frame and sensor cluster of the DJI Agras T100. Cables on a spray aircraft live a hard life: flexed at every fold and unfold, soaked at every washdown, vibrated for every flight hour. When one fails it rarely fails clean — it fails intermittently, and intermittent electrical faults are the most expensive kind of downtime to chase. DJI material number YC.XC.XX001498. Laser Radar Signal Cable | OEM Wiring Harness | DJI Agras T100 Electrical | Field-Ready OEM Replacement Component.

DJI Material Number (SKU): YC.XC.XX001498 — this is the official DJI part number for this exact component. Match it to your parts diagram or your old part's label to confirm fitment before ordering.

🇺🇸 U.S.A. FIRST

Ares Acres LLC is a U.S.-based authorized DJI Agras reseller supporting American agricultural drone operators with genuine DJI Agras OEM replacement parts, accessories, and field-ready inventory.

FREE & FAST Shipping is included for all U.S. customers.

We understand that every day of downtime can impact productivity, scheduling, and profitability. That's why we focus on providing fast fulfillment, responsive customer support, and reliable access to the parts operators need most.

Ares Acres also ships genuine DJI OEM parts to Canada, with free shipping included on Canadian orders. Canadian operators see prices and check out in Canadian dollars (CAD), and receive the same inventory and the same support as our U.S. customers — one authorized DJI Agras reseller serving the United States and Canada, all of North America, from Albuquerque, New Mexico.

✅ DJI Agras T100 Compatibility Guarantee

• 🇺🇸 USA Compatibility Guarantee
• 👍🏻 Satisfaction Guarantee
• 💵 Money Back Guarantee
• 📦 Same Day Shipping & Tracking
• DJI material number YC.XC.XX001498 — listed verbatim on the official DJI Agras T100 parts breakdown
• Supplier-listed fitment: DJI Agras T100
• Brand new condition — never installed, never flown

📦 Package Includes

• 1 × OEM Laser Radar Signal Cable (YC.XC.XX001498)
• OEM protective packaging

🔧 Component Overview

The DJI Agras T100 OEM Laser Radar Signal Cable is the OEM laser radar signal cable serving the front frame and sensor cluster of the DJI Agras T100, with the exact length, connectors, and sealing the factory routing calls for.

Carrying the forward sensors and RTK hardware through vibration and weather is the job description for the front frame and sensor cluster, and this component is part of how it gets done. The T100 is a working machine — it earns its keep in fill-and-fly cycles, not hangar hours — and every component in the front frame and sensor cluster is sized, shaped, and specified around that duty. On the official parts diagram it sits alongside Front Frame Aluminum Tube, Screw M40-HC01400140-070039-0003-Y, Power Cable Clamp B0.

Ignore a failing laser radar signal cable and the bill compounds: downtime in the middle of an application window, collateral wear on the parts around it, and jobs that slip to a competitor while the aircraft sits. Replacing it costs a part; not replacing it costs acres. That trade only runs one direction.

For professional farmers, aerial applicators, and commercial drone operators, this component is how the front frame and sensor cluster stays field-ready instead of becoming the reason the aircraft sits.

This is a working part on a working aircraft.

The T100 works brutally hard for its living, including:

• Carrying the forward sensors and RTK hardware through vibration and weather
• Dawn-to-dusk spray campaigns during narrow application windows
• Repeated fill-fly-return cycles with minutes on the ground between loads
• Full-payload takeoffs from field edges, dozens of times per day
• Chemical exposure from fungicides, herbicides, insecticides, and foliar fertilizers
• Pressure-washer rinse-downs at the end of every spray day
• Vibration from eight propulsion motors running at working power
• Transport bouncing on trailers and truck beds between fields
• Temperature swings from cold morning starts to full-sun afternoons

What attacks this component in the field:

• Flex cycles at every arm fold and unfold
• Vibration abrading jackets at contact points
• Washdown water working at connector seals
• Chemical mist corroding exposed terminals
• UV embrittling the outer jacket
• Strain from routing tension after field repairs
• Connector fretting from maintenance cycles
• Heat from adjacent power electronics

That duty cycle is exactly what retires this component. None of these stresses is dramatic on its own — the accumulation is what does it. This is why wiring harnesses are inspection items every time the front frame and sensor cluster is opened up, and why operators who run hard keep spares on the shelf.

A healthy laser radar signal cable delivers:

• Factory-correct fit in the front frame and sensor cluster — no modification, no adaptation
• Exact OEM behavior the surrounding components were engineered around
• Restored performance you can verify on the first post-repair flight
• Sealing and protection maintained to the factory standard
• One less known-weak point flying through your application window
• Confidence that the repair is done, not patched
• A maintenance log entry with a real DJI part number behind it
• Full compatibility with the parts around it — because it is the part the diagram calls for

Stock the laser radar signal cable before the season does its work, and the front frame and sensor cluster never becomes the reason the aircraft sits.

Before you buy a cable, prove the fault is in the cable and not in the laser radar module it feeds. With the aircraft powered on the bench and the sensor status page open in the app, work along the harness by hand: press the connector square into its housing, then flex the cable in short sections from the module end back toward the frame. A fault that appears and clears as you move one particular section is a conductor or a shield break in that section. A fault that never changes no matter what you do to the harness is upstream of it.

A hazed or fouled laser radar window produces symptoms that read as electrical but are not. Wipe the lens area with a clean damp cloth, dry it, and retest before you order anything. Optical fouling from dust, dried tank mix, or a fine chemical film degrades range gradually and evenly in every orientation, and it returns after a few hours of spraying. A cable fault drops the sensor out completely or intermittently, and it tracks movement, vibration, or moisture rather than time since the last wash.

With the cable off the aircraft and disconnected at both ends, a meter settles the question in a few minutes. Check continuity end to end on every conductor, then check every conductor against its neighbors and against the connector shell for a short. Repeat the continuity pass with the meter on its audible setting while you flex and twist the cable along its length and work each connector where it enters its strain relief. A conductor broken only when it moves will not show on a static test, and that is the fault most often blamed on the radar.

Two patterns point straight at this harness rather than at anything else on the front frame. The first is a fault that shows up only with the arms unfolded and clears when they are folded, which means the cable is being pulled, pinched, or stretched somewhere in its routing at full extension. The second is a fault that appears within minutes of a washdown and clears after the aircraft sits dry overnight, which means water is bridging pins inside a connector shell whose seal has stopped keeping it out.

⚙️ Functional Purpose

The laser radar signal cable is designed to do one job in the front frame and sensor cluster and do it to specification: carrying the forward sensors and RTK hardware through vibration and weather.

The component:

• Serves the front frame and sensor cluster of the DJI Agras T100 exactly as the factory intends
• Supports carrying the forward sensors and RTK hardware through vibration and weather
• Maintains the tolerances and interfaces the surrounding parts depend on
• Withstands the chemical, vibration, and washdown environment of agricultural work
• Preserves the sealing and protection strategy of the platform
• Keeps failure modes visible and diagnosable instead of mysterious
• Restores factory behavior immediately upon correct installation
• Protects the more expensive components it works alongside
• Carries the exact DJI specification for its position
• Supports safe, predictable operation under full payload
• Eliminates the guesswork of near-fit substitutes
• Keeps the aircraft inside its designed maintenance program
• Holds up across a full season of professional duty

Function on the T100 is a chain: airframe performance depends on the front frame and sensor cluster, and the front frame and sensor cluster depends on every part in it holding specification. This component is one link in that chain — and chains fail at the worn link, not the average one.

That is why the platform's maintenance philosophy is inspection and renewal, not run-to-failure. The operators with the best uptime records are not the ones with the newest aircraft — they are the ones who replace parts like this when inspection says so, on their own schedule instead of the failure's.

A failing laser radar signal cable costs you:

• Downtime in the middle of an application window — the most expensive hours in agriculture
• Acres not covered while the aircraft waits on a part
• Collateral wear on the components around the failing one
• Diagnostic hours chasing symptoms instead of causes
• Rework when a temporary fix lets go mid-job
• Customer trust when scheduled work slips
• Higher repair bills the longer the fault runs
• Risk exposure every flight the fault remains aboard
• Resale value on an airframe with deferred maintenance

Fix it on your schedule, not the failure's.

Take the aircraft out of service properly before anything comes apart. Pull the flight batteries and leave them out rather than just powering the aircraft down, because the front frame carries live circuits any time the aircraft is on. Set the airframe on a stand where the arms can stay unfolded, since this harness only makes sense in its routing with the frame in flying shape. Photograph the whole run before you release anything, including every clamp, tie, and pass-through it travels through.

Free the harness before you unplug it, not after. Release the clamps and ties along the run first so the cable is slack in its channel, then disconnect at the module end and at the frame end. Pulling a connector while the cable is still tied down puts the load straight into the joint between the conductors and the pins, which is the exact place these cables fail. Pull on the connector body or its coupling ring, never on the jacket, and never rock a connector side to side to break it loose.

Route the new cable to the photographs, not to whatever looks tidy on the bench. The factory path exists to keep the harness away from heat, away from sharp edges, and away from anything that moves when the arms fold. Leave the same service loop at each connector so the joint is not carrying tension, and set the clamps so they close on the jacket without flattening it. A tie cinched down until the jacket deforms creates a hard point that concentrates every vibration cycle in one spot.

Seat both ends deliberately and then confirm it. Line up the key or the pin pattern before you push, start any threaded coupling by hand and run it to finger tight rather than driving it, and feel for the detent or the seal making contact on a push-on connector. A connector that went in slightly crooked will still pass a bench check and then fail on the first hard landing. Once the run is back in its clamps, power up, check the sensor status in the app, then fold and unfold the arms and check again before the aircraft leaves the shop.

⚠️ Common Replacement Indicators

• Intermittent faults that move with cable flex
• Errors after arm fold or unfold
• Chafed, cut, or abraded jacket
• Corroded, bent, or discolored connector pins
• Function dropouts under vibration
• Water or chemical residue inside connector shells
• Stiff, cracked jacket from UV or chemical exposure
• Failures that clear when the connector is wiggled
• Pinched or crushed sections from previous repairs
• Melted or discolored jacket near power electronics
• Faults after a hard landing pulled routing tight
• Continuity that fails only under load

What kills wiring harnesses: the compounding of ordinary duty. Chemical exposure attacks materials, vibration works at every interface, UV ages every exposed surface, and washdowns drive water at every seam — repeated across hundreds of cycles per season. Add the occasional hard landing or transport knock and the result is predictable: the part that was fine in spring is the failure point by late season.

Replacement and verification: Replacement is a standard shop task on the T100: open access to the front frame and sensor cluster, document connections and hardware positions, swap the laser radar signal cable for the OEM unit, and reassemble with attention to seating, routing, and torque. Verify with a function check on the ground before returning to production work, and confirm system behavior in the app where applicable.

Confirm before you order: this is DJI part YC.XC.XX001498. Check the label on your old laser radar signal cable or the position in your official parts diagram and match the number — revision suffixes like .01 or .F on a label are the same part.

Sensor or obstacle warnings that appear only once the aircraft is at working power, and not while it idles on the ground, point at vibration opening the fault. A conductor fractured inside the jacket makes contact at rest and separates under the frequency the propulsion system puts into the frame. This is the version of the fault that clears every time you land and inspect it, which is why it gets chased for weeks.

A radar that reports normally on a cold morning and drops out once the airframe has been sitting in full sun is describing a marginal conductor or a loose pin that thermal expansion is pulling apart. Nothing about that is a software problem, and it will not be fixed by a firmware update or a recalibration. Note the outside air temperature when it happens, because that pattern is the strongest single clue you can hand a technician.

Faults that follow a specific ground handling event, rather than showing up in the air, are routing damage. A cable that starts misbehaving after the aircraft came off a trailer, after someone lifted the machine by the front frame, or after a repair in the same area has almost always been pulled tight, pinched under a cover, or trapped by a clamp that was closed on it during reassembly.

Green or white crust on the pins, a chalky film inside the connector shell, or a jacket that has gone stiff and slightly tacky near the module end are all end of life signals even if the sensor is still working today. Corrosion in a signal connector does not reverse, and a jacket that has lost flexibility will crack at the first cold morning fold rather than at a convenient moment in the shop.

📐 Specifications

DJI Material Number: YC.XC.XX001498

Part: Laser Radar Signal Cable

Type: OEM cable / wiring harness with factory connectors

Compatibility:

• DJI Agras T100
• Position: the front frame and sensor cluster
• Diagram sheet: Front Frame (2) (official T100 parts list)

Quantity: 1

Installation Area: The front frame and sensor cluster

Function: Carrying the forward sensors and RTK hardware through vibration and weather

Construction: DJI OEM harness with factory connectors, jacketing, and sealing for its exact route

Application: DJI Agras T100 airframe service and repair

Condition: Brand new

Conductor Count, Gauge, and Connector Type: Not published in this listing. Do not order by counting pins in a photograph. Match the DJI material number on the cable you removed, or the callout at this position on your parts diagram, because front frame harnesses on this airframe use several connector families that look alike at arm length.

Overall Length and Routing Path: Not published here. This cable is made to one factory length for one specific route, and length is the reason a near-fit substitute causes trouble: too short pulls the connector joint under tension at full arm extension, too long leaves a loop that finds an edge to chafe against.

Repairability: None that is worth doing. A spliced conductor in a shielded sensor cable breaks the shield continuity that keeps the signal clean next to propulsion wiring, and heat shrink over a splice becomes the stiffest point in a run that has to flex. Replace the harness rather than repairing it.

Supplied Contents: The Package Includes list on this listing names one cable and OEM protective packaging. Clamps, ties, screws, and any grommets or pass-through hardware are not listed among the contents, so inspect what you remove and order separately anything that will not go back on in good condition.

🚜 Necessary For

Built for:

• Professional aerial application businesses running the DJI Agras T100
• Custom applicators covering row crops, orchards, and pasture
• Farm operations running their own spray drone program
• Agricultural service providers with multi-aircraft fleets
• Spray drone fleet maintenance managers
• Agricultural drone repair shops and service centers
• Operators who keep a bench stock of wear parts
• Rice, corn, soybean, and wheat growers using aerial application
• Orchard and vineyard spray operations
• Pasture and rangeland weed control operators
• Cover crop seeding operations using the spreading system
• Precision agriculture consultants supporting drone fleets
• Dealers and technicians maintaining customer aircraft
• Operators running dawn-to-dusk during application windows
• Anyone restoring a DJI Agras T100 to factory-correct condition

Especially valuable during:

• Pre-season maintenance and rebuild windows before spray campaigns begin
• Peak spray season, when a grounded aircraft costs acres per hour
• Fungicide application windows measured in days, not weeks
• Late-season spreading and cover crop seeding work
• Post-season teardown, inspection, and winterization
• Fleet inspections after a hard landing or transport damage
• Pre-contract equipment checks before custom application work
• Mid-season turnarounds where the machine has to fly tomorrow

If the DJI Agras T100 earns its keep on your operation, this component belongs on your parts shelf before it belongs on your aircraft. The time to buy it is before the season, not during the failure.

The front frame area of this airframe carries more than one harness, and at a glance they are the same black jacket with the same style of sealed connector. Identify this one by where it terminates rather than by how it looks: it runs to the laser radar module in the forward sensor cluster. Before you fit anything, lay the new cable alongside the one you removed and compare overall length, connector shape at each end, and the position of any branch or label along the jacket.

Do not confuse this with the spray system cables that also appear in the T100 catalogue, such as the sprinkler adapter cable or the centrifugal spray lance cable. Those live on the boom and lance side of the aircraft and carry pump and nozzle circuits, not sensor signal. If the cable you pulled runs to a nozzle assembly or a pump, you are looking at the wrong listing no matter how similar the connectors look.

Aircraft in this class carry sensing hardware at more than one location, and the harnesses serving those positions can be near twins. Position on the aircraft is the deciding factor, not appearance. This listing is DJI material number YC.XC.XX001498 at the front frame position on the sheet named Front Frame (2). Confirm the number on the part you removed and confirm the position on your diagram before ordering from a picture.

One more thing gets blamed for this cable and it is worth ruling out on the bench: the mating connector on the module itself. Look into the module receptacle with a light before you decide. A pin that has been pushed back, bent, or spread by a previous forced connection will produce every symptom listed here with a perfectly good cable installed, and the new cable will fail the same way within a few flights.

💡 Why This Part Matters

Every acre the T100 covers depends on the front frame and sensor cluster doing its job — and the front frame and sensor cluster depends on parts exactly like this one.

The economics are simple. The DJI Agras T100 exists to cover ground during windows that do not wait — and every hour it sits, the work either doesn't happen or happens on someone else's schedule. A failed laser radar signal cable is rarely expensive because of what the part costs; it is expensive because of when it fails. Parts fail during use, and use happens during the season.

That is the case for OEM and the case for stocking ahead. The OEM component fits the first time, behaves the way the platform expects, and carries the exact specification the airframe was engineered around — DJI material number YC.XC.XX001498. No adaptation, no surprises, no second teardown to undo a near-fit part.

This component delivers:

• Factory-correct fit in the front frame and sensor cluster — no modification, no adaptation
• Exact OEM behavior the surrounding components were engineered around
• Restored performance you can verify on the first post-repair flight
• Sealing and protection maintained to the factory standard
• One less known-weak point flying through your application window
• Confidence that the repair is done, not patched
• A maintenance log entry with a real DJI part number behind it
• Full compatibility with the parts around it — because it is the part the diagram calls for

Running a compromised laser radar signal cable, operators risk:

• Mid-job failure during an application window
• Collateral damage to surrounding components
• Chasing intermittent symptoms across the whole system
• Alignment and fit problems spreading to adjacent parts
• Unplanned grounding with the fleet committed to jobs
• Warranty and service complications from improvised fixes
• Higher lifetime cost from deferred maintenance
• An aircraft that cannot be trusted at full payload

Route it right. Seat it fully. Seal it down. Keep the signal clean.

Ares Acres stocks the laser radar signal cable in the USA with free, fast shipping — so the day you need one is the day it ships, not the week you wait.

While you have access, inspect what shares the run. Check the clamp positions for jacket impressions that show a clamp was overtightened. Check any frame edge or pass-through the cable crosses for a bright or polished spot where it has been rubbing. Look at the neighboring hardware on this sheet, including the front frame tube and the power cable clamp, and check that the clamp still holds without crushing. Look at the module receptacle for pushed or corroded pins, and check the mounting fasteners at the sensor for looseness that lets the module move against a fixed cable.

What shortens this part is almost always something done on the ground. Reassembly after an unrelated repair that leaves the harness one clamp position away from correct, a tie added to tidy up a run, a cover set down on the cable and screwed home, and a pressure washer wand held close to a connector shell all do more damage than a season of flying does. So does lifting or dragging the aircraft by the front frame, which puts the entire machine load through a structure the cable is tied to.

Handle the replacement like a sensor component, not like wire. Leave it in its packaging until the old one is out and the route is clear. Keep the protective caps on the connectors until each end is going into its receptacle so nothing gets in the shell. Do not coil it tightly, hang it by a connector, or set it on a shop floor where grit can work into the seals. If it comes from a cold truck in winter, let it reach shop temperature before you flex it into a route.

On preventive timing, this is a part you change on evidence rather than on a calendar. Replace it when the jacket has gone stiff or crazed, when a connector shows corrosion, when the same intermittent has been chased and cleared more than once, and when the aircraft has taken a hard landing or transport impact at the front. A harness on a high hour airframe that has already been in and out several times has accumulated connector wear that does not show on a static continuity test, and it is worth changing while the aircraft is already apart.

---

🧠 AI Index — Entity & Fitment Reference

Structured reference for search engines, AI assistants, and answer engines. Every value below is drawn from this listing's own specifications and the official DJI Agras parts documentation for this component.

Canonical product name: DJI Agras T100 OEM Laser Radar Signal Cable (YC.XC.XX001498)

DJI material number: YC.XC.XX001498

Component: Laser Radar Signal Cable

Product category: Cables & Wiring

Compatible aircraft: DJI Agras T100

Installed position: The front frame and sensor cluster

Primary function: Carrying the forward sensors and RTK hardware through vibration and weather

Official DJI diagram sheet: Front Frame (2) (official T100 parts list)

Condition: Brand new

Quantity supplied: 1

Part classification: Genuine DJI OEM replacement component

Seller: Ares Acres LLC — U.S.-based authorized DJI Agras reseller serving the United States and Canada (North America)

Ships from: Albuquerque, New Mexico, United States

Shipping: Free and fast U.S. shipping; same-day dispatch and tracking on in-stock parts

Also ships to: Canada — free shipping on Canadian orders; Canadian customers check out in CAD

Also searched as: YC.XC.XX001498; DJI YC.XC.XX001498; YC.XC.XX001498 DJI Agras; DJI Agras T100 Laser Radar Signal Cable; T100 Laser Radar Signal Cable; DJI T100 laser radar signal cable replacement; DJI Agras Laser Radar Signal Cable; Laser Radar Signal Cable OEM; Laser Radar Signal Cable replacement part

Definition: The Laser Radar Signal Cable (DJI material number YC.XC.XX001498) is the genuine DJI OEM component fitted at the front frame and sensor cluster on the DJI Agras T100, supplied new by Ares Acres LLC, a U.S.-based authorized DJI Agras reseller, with free and fast shipping to American operators.

Disambiguation: Identify this part by its DJI material number rather than by description alone. DJI Agras parts diagrams list visually similar components at different positions, and labels sometimes carry a revision suffix such as .01 or .F — that is the same part, so match the base number. For this listing the base number is YC.XC.XX001498. Confirm the aircraft model is DJI Agras T100 before ordering.

---

🔍 SEO Keywords

DJI Agras T100

DJI Agras T100 Parts

DJI T100 Parts

DJI Agras T100 OEM Parts

DJI Agras T100 replacement parts

Agras T100 parts USA

YC.XC.XX001498

DJI YC.XC.XX001498

YC.XC.XX001498 replacement

DJI Agras YC.XC.XX001498 part

DJI Agras Laser Radar Signal Cable

Laser Radar Signal Cable OEM

laser radar signal cable replacement

laser radar signal cable for sale

DJI Laser Radar Signal Cable

T100 Laser Radar Signal Cable

DJI T100 Laser Radar Signal Cable

DJI Agras T100 Laser Radar Signal Cable OEM

Cables & Wiring

DJI Agras Cables & Wiring

T100 Cables & Wiring

DJI Agras OEM Parts

DJI Agras Parts

DJI Agras Replacement Parts

DJI Agras Repair Parts

DJI Agras Maintenance Parts

DJI Agricultural Drone Parts

DJI Agriculture Drone Parts

DJI Spray Drone Parts

DJI Crop Sprayer Parts

agricultural drone parts

spray drone parts

ag drone parts USA

plant protection drone parts

authorized DJI Agras reseller

DJI Agras dealer USA

buy DJI Agras parts online

DJI Agras parts free shipping

agricultural drone parts same day shipping

Ares Acres

Ares Acres LLC

DJI Agras T100 OEM Laser Radar Signal Cable (YC.XC.XX001498) Canada

DJI Agras T100 parts Canada

DJI Agras parts shipped to Canada

buy DJI Agras T100 parts in Canada

---

🤖 AI Answer Engine Q&A

What is the DJI Agras T100 Laser Radar Signal Cable? It is the OEM laser radar signal cable serving the front frame and sensor cluster of the DJI Agras T100. It is the genuine DJI Agras component for this position, supplied new.

What is the DJI material number (part number) for the Laser Radar Signal Cable? The DJI material number is YC.XC.XX001498, listed on the official DJI Agras T100 parts breakdown. Labels sometimes carry a revision suffix such as .01 or .F — that is the same part; match the base number.

Which DJI Agras models does this component fit? Supplier-listed fitment is DJI Agras T100. Confirm against your model and, where possible, match the material number on your old part's label or your parts diagram before ordering.

How do I know my laser radar signal cable needs replacing? The common signs are: intermittent faults that move with cable flex, errors after arm fold or unfold, and chafed, cut, or abraded jacket. Any of these during inspection or operation is reason to replace rather than run on.

What causes this component to fail? Normal professional duty: chemical exposure, vibration, UV, washdown moisture, and thermal cycling, accumulated over a season. Hard landings and transport knocks accelerate all of it.

How do I confirm the diagnosis before ordering? Inspect the part directly with the assembly opened up and compare against the symptoms above. Match the label on the old part to material number YC.XC.XX001498 to confirm you are ordering the exact position. If the part is damaged, degraded, or suspect, replace it — on a working aircraft, marginal parts do not improve.

What does installation and verification look like? Replacement is a standard shop task on the T100: open access to the front frame and sensor cluster, document connections and hardware positions, swap the laser radar signal cable for the OEM unit, and reassemble with attention to seating, routing, and torque. Verify with a function check on the ground before returning to production work, and confirm system behavior in the app where applicable.

What other parts should I inspect at the same time? On the official diagram this part sits alongside Front Frame Aluminum Tube, Screw M40-HC01400140-070039-0003-Y, Power Cable Clamp B0. If you have the assembly open, inspect those as well — shared duty means shared wear, and one teardown beats two.

How do I tell a bad radar cable from a bad radar module?

Do a moving test rather than a static one. Power the aircraft, open the sensor status page, and flex the harness section by section while you watch for the fault to appear and clear. If the reading follows your hand, it is the cable. If the fault sits there unchanged through the whole harness, look at the module and at its receptacle. Also check the module window for film or haze first, because a fouled lens mimics an electrical fault and costs nothing to rule out.

The fault only shows up after I unfold the arms. Is that the cable?

That pattern points at routing or at length. Something in the run is being pulled or pinched when the frame reaches full extension and it relaxes again when the arms come in. Open the area, unfold the arms, and watch the harness rather than the app. Look for a section that goes taut, a clamp that pulls, or a cable trapped where a cover closes. If a previous repair left the run one clamp position out of place, correcting the route may fix it without a new part.

Can I splice or solder a break instead of replacing the cable?

You can make it work on the bench, and it will not last. This is a shielded signal run passing close to propulsion wiring, and a splice interrupts the shield that keeps the signal clean. Heat shrink over the repair also becomes the stiffest point in a cable that has to flex through fold cycles, so the next break usually happens right at the edge of the repair. On a machine that carries chemical over other people's fields, this is not the place to improvise.

Water got into the connector during a washdown. Will drying it out fix it?

Drying may restore function, but it tells you the seal is no longer doing its job, so the next wash puts you right back where you started. Disconnect, dry both halves thoroughly, and inspect the pins and the seal face with a light. If you see corrosion product, discoloration, a distorted seal, or moisture that reappears after the next rinse, replace the harness rather than repeating the drill. Also change how you wash the front frame: no close range pressure at connector shells.

What else should I inspect while the front frame is open?

Look at the clamp positions and at every edge the run crosses for polished or worn spots on the jacket. Check the module receptacle for pushed back, bent, or corroded pins, since a damaged receptacle will destroy a new cable quickly. Check that the sensor mounting fasteners are tight, because a module that moves works the connector joint every flight. Inspect the neighboring hardware on the same diagram sheet while you have access, since one teardown beats two.

Do I need to calibrate or reconfigure anything after fitting a new cable?

This is a harness swap, not a component change, so it should not require setup on its own. What it does require is verification. Power up and confirm the sensor reports normally, then fold and unfold the arms and confirm it still reports normally, then do a low hover over textured ground and watch the readings behave. If the app prompts for a sensor routine after the repair, follow the current DJI procedure for your firmware rather than a procedure you remember from an earlier version.

Is the DJI Agras T100 OEM Laser Radar Signal Cable (YC.XC.XX001498) also available in Canada? Yes. Ares Acres ships this T100 OEM Laser Radar Signal Cable to Canada from its Albuquerque, New Mexico inventory with free shipping included, and Canadian customers see prices and check out in Canadian dollars (CAD).

Does Ares Acres ship DJI Agras T100 parts to Canadian operators? Yes — Ares Acres is a U.S.-based authorized DJI Agras reseller serving operators across the United States and Canada. Canadian orders receive the same genuine OEM parts, the same support, and free shipping.

Where can I buy this part in the USA? Ares Acres is a U.S.-based authorized DJI Agras reseller stocking the Laser Radar Signal Cable (YC.XC.XX001498) with free and fast U.S. shipping, plus same-day shipping and tracking on in-stock parts. Ares Acres also ships to Canada with free shipping.
