DJI Agras T100 OEM Liquid Level Gauge Repair Kit

T100 OEM Liquid Level Gauge Repair Kit | DJI Agras T100 OEM Liquid Level Gauge Component (BC.AG.SS001122) | DJI Agras T100 OEM Liquid Level Gauge Hose Module (BC.AG.SS001121) | DJI Agras T100 OEM Liquid Level Gauge Nut (YC.JG.ZS004726) | Genuine DJI OEM Components | Ares Acres Curated Kit

Kit contents: 3 component lines, 3 of which carry a documented DJI material number listed in the specifications below. Every component in this kit is also sold individually in our catalog.

---

🇺🇸 U.S.A. FIRST

Ares Acres LLC is a U.S.-based authorized DJI Agras reseller supporting American agricultural drone operators with genuine DJI Agras OEM replacement parts, accessories, and field-ready inventory.

FREE & FAST Shipping is included for all U.S. customers.

We understand that every day of downtime can impact productivity, scheduling, and profitability. That's why we focus on providing fast fulfillment, responsive customer support, and reliable access to the parts operators need most.

A kit is a bet against downtime. The T100 OEM Liquid Level Gauge Repair Kit exists because the parts inside it are the ones that strand a T100 in the middle of a job — small, cheap, easy to lose, and impossible to improvise at the field edge. Buying them together is how experienced crews stop losing days to a part that costs less than the fuel burned driving back for it.

That is why Ares Acres assembles curated kits from genuine DJI OEM components and ships them fast to the U.S.A., helping operators shorten repairs, minimize downtime, and keep their aircraft spraying when every acre counts.

---

✅ DJI Agras T100 Compatibility Guarantee

• 🇺🇸 USA Compatibility Guarantee
• 👍🏻 Satisfaction Guarantee
• 💵 Money Back Guarantee
• 📦 Same Day Shipping & Tracking

Configured for DJI Agras T100 variants only. Verify part numbers and tank configuration before service.

---

📦 Package Includes

• 1 × DJI Agras T100 OEM Liquid Level Gauge Component (BC.AG.SS001122)
• 1 × DJI Agras T100 OEM Liquid Level Gauge Hose Module (BC.AG.SS001121)
• 1 × DJI Agras T100 OEM Liquid Level Gauge Nut (YC.JG.ZS004726)

---

🔧 Kit Overview

The DJI Agras T100 OEM Liquid Level Gauge Repair Kit combines the sensor component, gauge hose module and retaining nut used around the spray-tank liquid-level measurement system. It is intended for operators troubleshooting an inaccurate, damaged or mechanically compromised level-gauge assembly.

Curated by Ares Acres from genuine DJI OEM components sold individually. This is not a factory-packaged DJI kit.

The sensor, hose interface and retaining hardware form one measurement assembly. A leak, impact, damaged hose connection or loose retaining interface can produce symptoms that appear to be an electronic sensor failure. Packaging the related pieces gives technicians a more complete repair pathway.

• Incorrect or unstable tank level readings
• Gauge damage after tank service
• Hose-module or retaining-nut damage
• Fleet spare inventory

---

🔩 Component-by-Component Breakdown

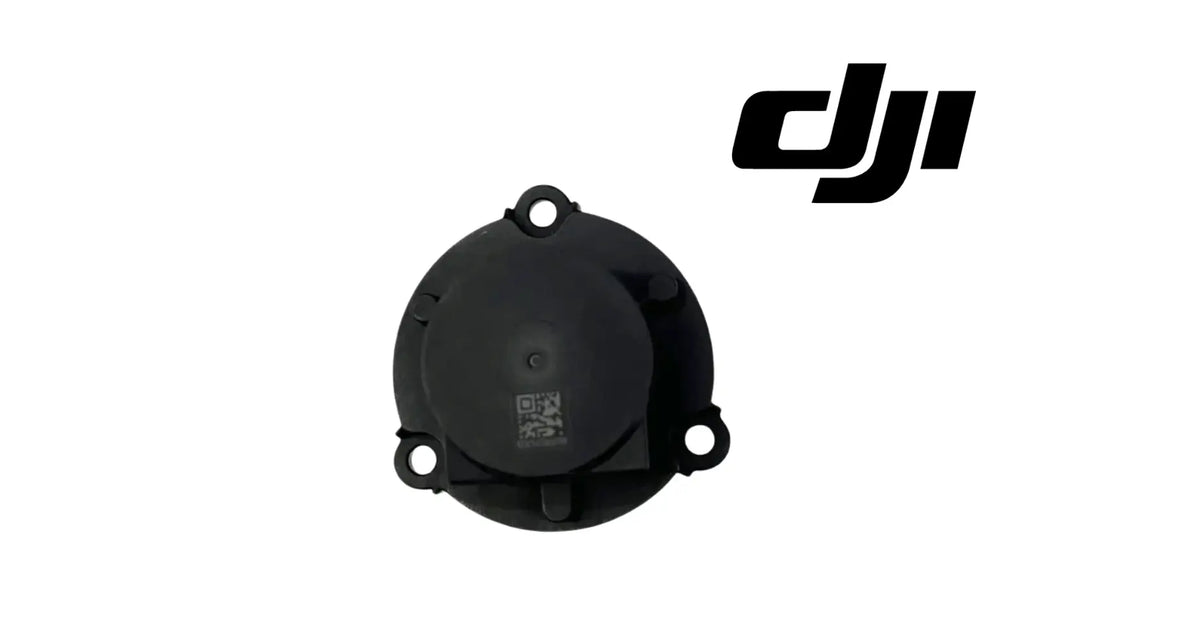

1. DJI Agras T100 OEM Liquid Level Gauge Component (BC.AG.SS001122)

DJI Agras T100 OEM Liquid Level Gauge Component (BC.AG.SS001122) — DJI material number BC.AG.SS001122.

Functionally, the DJI Agras T100 OEM Liquid Level Gauge Component (BC.AG.SS001122) is responsible for a short and specific list of jobs: regulate flow rate dynamically, trigger low-volume alerts, calculate remaining acreage coverage, prevent dry pump operation, and protect the impeller and pump motor from cavitation damage. Those are the capabilities this kit restores when this component is replaced — which is why it is packed alongside the rest rather than sold only on its own.

Empty and rinse before you open anything. Drain the tank, flush the system with clean water until it runs clear, and let it dry. Concentrate standing in the bottom of a tank is exactly what you do not want on your hands and forearms while you are reaching inside, and it also sits on the sealing face you are about to disturb. Wear the gloves and eye protection you mix in, and work with the tank open to air rather than closed up around you.

Set the aircraft up level and leave it level. Tank measurement depends on the assembly sitting the way the airframe expects it to sit, and a machine parked on soft or sloping ground will hand you a false result on the verification run and send you hunting a fault you just installed. Level it for the removal, and do not move it before the check afterward, so that the only thing that changed between the two readings is the part.

Release the connector before you touch any mechanical fastener, and release it by its latch rather than by pulling on the wire. Note which way the connector body is keyed and how the cable was routed and clipped along its run. A harness re-routed on a shorter path gets pulled tight every time the tank flexes under a full load, and that is a fault that looks perfect on the bench and then turns up weeks later as an intermittent reading in flight.

The DJI Agras T100 OEM Liquid Level Gauge Component (BC.AG.SS001122) earns its place in this kit because of how it fails. Operators replace it when they see erratic remaining-liquid readings, premature "low tank" warnings, inconsistent spray cutoff, or unexplained pump behavior. None of those are things you want to discover with the aircraft already apart and the spray window closing — which is the whole argument for having it on the shelf before the job starts.

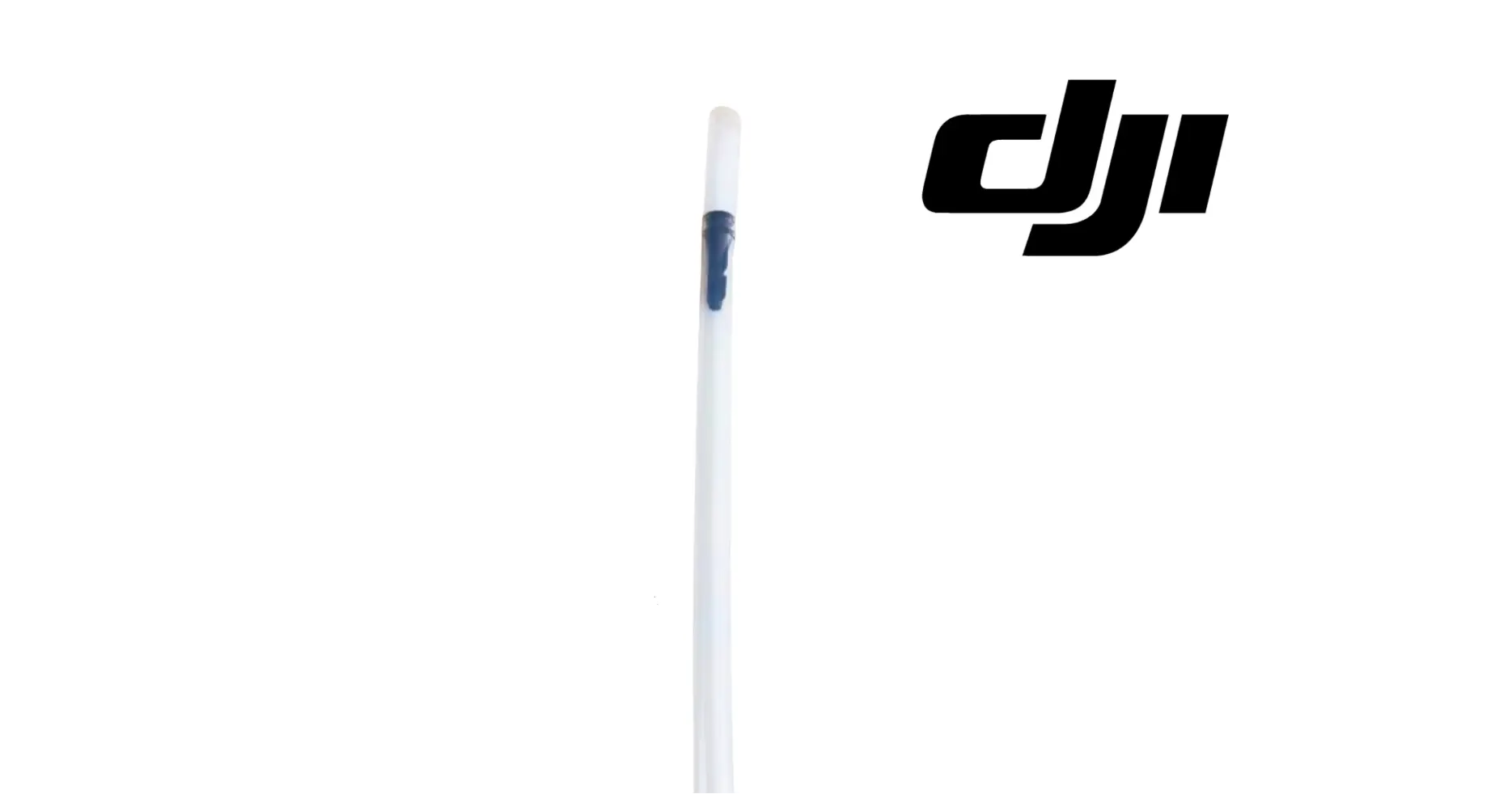

2. DJI Agras T100 OEM Liquid Level Gauge Hose Module (BC.AG.SS001121)

DJI Agras T100 OEM Liquid Level Gauge Hose Module (BC.AG.SS001121) — DJI material number BC.AG.SS001121. It installs at the the spray tank and its covers, sensors, and connectors. Its job on the aircraft is straightforward: sealing, venting, and metering the liquid payload at the tank.

On the DJI Agras T100 OEM Liquid Level Gauge Hose Module (BC.AG.SS001121), construction is dJI OEM electronic assembly built to factory specification for the T100 platform. Fitment covers DJI Agras T100 / T70P, Position: the spray tank and its covers, sensors, and connectors, Diagram sheet: Spray Tank 2 (official T100 parts list). Application: dJI Agras T100 spray system service and repair. Confirm the aircraft model and the position on your parts diagram before you order — DJI diagrams list visually similar components at different positions, and the material number is the only identifier that settles it.

Functionally, the DJI Agras T100 OEM Liquid Level Gauge Hose Module (BC.AG.SS001121) is responsible for a short and specific list of jobs: supports sealing, venting, and metering the liquid payload at the tank, maintains the tolerances and interfaces the surrounding parts depend on, preserves the sealing and protection strategy of the platform, keeps failure modes visible and diagnosable instead of mysterious, restores factory behavior immediately upon correct installation, protects the more expensive components it works alongside, carries the exact DJI specification for its position, supports safe, predictable operation under full payload, eliminates the guesswork of near-fit substitutes, and keeps the aircraft inside its designed maintenance program. Those are the capabilities this kit restores when this component is replaced — which is why it is packed alongside the rest rather than sold only on its own.

The liquid level gauge hose module is designed to do one job in the spray tank and its covers, sensors, and connectors and do it to specification: sealing, venting, and metering the liquid payload at the tank.

Function on the T100 is a chain: spray system performance depends on the spray tank and its covers, sensors, and connectors, and the spray tank and its covers, sensors, and connectors depends on every part in it holding specification. This module is one link in that chain — and chains fail at the worn link, not the average one.

That is why the platform's maintenance philosophy is inspection and renewal, not run-to-failure. The operators with the best uptime records are not the ones with the newest aircraft — they are the ones who replace parts like this when inspection says so, on their own schedule instead of the failure's.

The DJI Agras T100 OEM Liquid Level Gauge Hose Module (BC.AG.SS001121) earns its place in this kit because of how it fails. Operators replace it when they see error messages or warnings referencing this system in the app, intermittent operation that worsens with temperature or vibration, function loss in the system this module serves, visible corrosion, moisture, or chemical residue at connectors, physical damage to the housing after an impact, erratic readings or behavior the aircraft cannot self-clear, failures that appear under load but pass on the bench, or burnt smell or discoloration at the module. None of those are things you want to discover with the aircraft already apart and the spray window closing — which is the whole argument for having it on the shelf before the job starts.

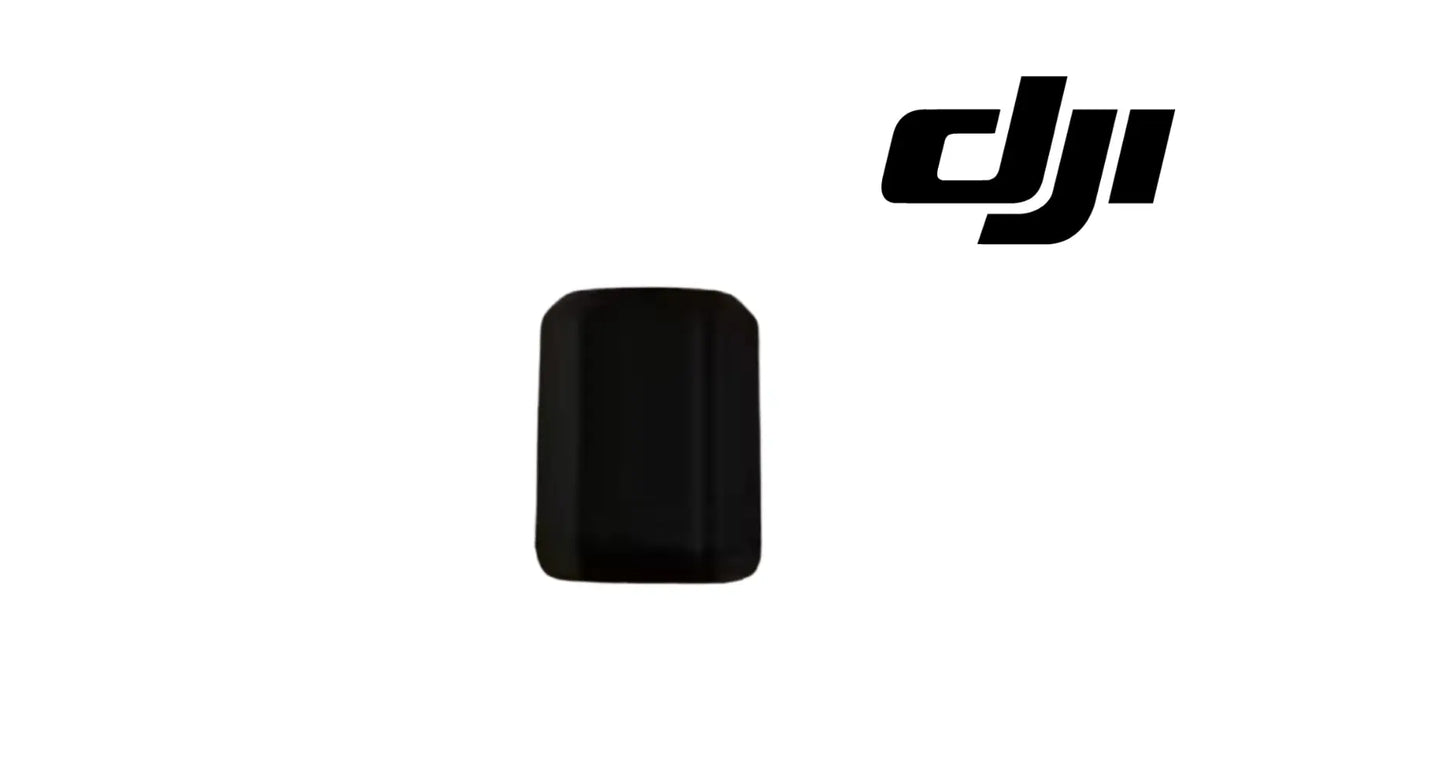

3. DJI Agras T100 OEM Liquid Level Gauge Nut (YC.JG.ZS004726)

DJI Agras T100 OEM Liquid Level Gauge Nut (YC.JG.ZS004726) — DJI material number YC.JG.ZS004726.

Functionally, the DJI Agras T100 OEM Liquid Level Gauge Nut (YC.JG.ZS004726) is responsible for a short and specific list of jobs: route planning, payload safety margins, automated spray cutoff logic, and fAA Part 137 operational reliability. Those are the capabilities this kit restores when this component is replaced — which is why it is packed alongside the rest rather than sold only on its own.

Make the tank safe before you make it open. Drain it fully, flush it with clean water, and run the rinse out through the system so what you are working next to is water and not concentrate. Vent the tank and let it dry. Wear the same protection you would for mixing, because residue collects in exactly the low corners and threaded fittings you are about to disturb, and a fitting that has been sitting in fertilizer will release a surprising amount of it when the seal finally breaks.

Support the gauge while you turn the nut, not after. The gauge body wants to rotate with the fastener, and if it turns it will twist its own wiring or its seal and can wind the lead against the tank wall. Hold the gauge in position by hand or with a soft grip while the nut comes off, and keep the same discipline going back on. Note the gauge orientation and its position reference before you loosen anything, because that is the geometry the whole level reading depends on.

Use the right grip on the fastener. Turn it with the tool the drive features were designed for and keep the tool square. Pliers, adjustable wrenches, and locking grips round off drive features, dig into a sealing face, and leave a nut that will never again clamp evenly, which is how a routine gauge removal quietly turns into a leak on reassembly. If the nut is seized with chemical crust, soak and clean the threads rather than adding leverage.

The DJI Agras T100 OEM Liquid Level Gauge Nut (YC.JG.ZS004726) earns its place in this kit because of how it fails. Operators replace it when they see erratic or drifting liquid level readings, visible looseness or corrosion at the gauge mount, false low-level warnings mid-mission, or a gauge that shifts position after tank refills. None of those are things you want to discover with the aircraft already apart and the spray window closing — which is the whole argument for having it on the shelf before the job starts.

---

⚙️ Functional Purpose

The T100 OEM Liquid Level Gauge Repair Kit is assembled around a job rather than around a product category. Its purpose is to put every part that job consumes into one box, so the repair is limited by the technician's time and not by a missing fastener.

Working through the kit, the components do the following:

• DJI Agras T100 OEM Liquid Level Gauge Component (BC.AG.SS001122) — supplied for the application named in the kit title
• DJI Agras T100 OEM Liquid Level Gauge Hose Module (BC.AG.SS001121) — Sealing, venting, and metering the liquid payload at the tank
• DJI Agras T100 OEM Liquid Level Gauge Nut (YC.JG.ZS004726) — supplied for the application named in the kit title

Inspect the liquid path for leaks, kinks, residue and contamination. Confirm electrical connections and calibration requirements before concluding that the sensor itself has failed.

---

⚠️ Common Replacement Indicators

Across the components in this kit, the conditions that send an operator looking for these parts are:

• Erratic remaining-liquid readings
• Premature "low tank" warnings
• Inconsistent spray cutoff
• Unexplained pump behavior
• Error messages or warnings referencing this system in the app
• Intermittent operation that worsens with temperature or vibration
• Function loss in the system this module serves
• Visible corrosion, moisture, or chemical residue at connectors
• Physical damage to the housing after an impact
• Erratic readings or behavior the aircraft cannot self-clear
• Failures that appear under load but pass on the bench
• Burnt smell or discoloration at the module
• Repeated faults after connector reseating
• Function dropouts during arm fold or unfold
• Behavior that started after a hard landing or transport
• Age and hours — electronics in this environment are not lifetime parts
• Erratic or drifting liquid level readings
• Visible looseness or corrosion at the gauge mount
• False low-level warnings mid-mission
• A gauge that shifts position after tank refills

Any one of these on a T100 is a reason to have the kit already on the shelf. The parts here are consumables and wear items by design — the question is never whether they will need replacing, only whether the replacement is in the truck when the aircraft comes down.

---

🛠️ Service Sequence & Fitting Notes

Kits are bought by the job, so here is the job. The sequence below is a general order of work for the T100 OEM Liquid Level Gauge Repair Kit on a T100; always follow DJI's official service documentation for torque values, disassembly steps, and safety procedures for your airframe revision.

Step 1 — DJI Agras T100 OEM Liquid Level Gauge Component (BC.AG.SS001122). Identify the mounting position on your parts diagram before removal, and note the orientation of the old part before it comes off. Keep the removed part until the aircraft has been function-checked — it is the reference if anything about the replacement does not match.

Step 2 — DJI Agras T100 OEM Liquid Level Gauge Hose Module (BC.AG.SS001121). Work at the the spray tank and its covers, sensors, and connectors. Note the orientation of the part you are removing before it comes off; photographs at this stage save far more time than they cost. Once fitted, confirm that it sealing, venting, and metering the liquid payload at the tank as intended before closing up. Keep the removed part until the aircraft has been function-checked — it is the reference if anything about the replacement does not match.

Step 3 — DJI Agras T100 OEM Liquid Level Gauge Nut (YC.JG.ZS004726). Identify the mounting position on your parts diagram before removal, and note the orientation of the old part before it comes off. Keep the removed part until the aircraft has been function-checked — it is the reference if anything about the replacement does not match.

Function-check the aircraft on the ground before it goes back to work. For the T100 OEM Liquid Level Gauge Repair Kit, that means confirming each replaced component behaves correctly under power and, where the component sits in the spray or spreading path, that there is no leak, binding, or unexpected noise before the first loaded flight of the day.

---

📐 Specifications

Kit type: Ares Acres curated service kit assembled from genuine DJI OEM components

Component lines: 3

Aircraft coverage: DJI Agras T100

Condition: Brand new

Ships from: Albuquerque, New Mexico, United States

Per-component specifications, as published on each component's own listing:

DJI Agras T100 OEM Liquid Level Gauge Component (BC.AG.SS001122)
DJI Material Number: BC.AG.SS001122

DJI Agras T100 OEM Liquid Level Gauge Hose Module (BC.AG.SS001121)
DJI Material Number: BC.AG.SS001121
Installation Area: The spray tank and its covers, sensors, and connectors
Function: Sealing, venting, and metering the liquid payload at the tank
Construction: DJI OEM electronic assembly built to factory specification for the T100 platform
Compatibility: DJI Agras T100 / T70P, Position: the spray tank and its covers, sensors, and connectors, Diagram sheet: Spray Tank 2 (official T100 parts list)

DJI Agras T100 OEM Liquid Level Gauge Nut (YC.JG.ZS004726)
DJI Material Number: YC.JG.ZS004726

---

🚜 Necessary For

The T100 OEM Liquid Level Gauge Repair Kit suits operators running DJI Agras T100 airframes commercially: spraying contractors, fleet maintenance managers, agricultural drone technicians, repair facilities, and any crew that would rather open a box than place an order mid-season.

---

💡 Why This Kit Matters

Bought separately, these 3 lines are 3 chances to order the wrong variant, 3 shipments to wait on, and 3 opportunities to discover the gap only after the aircraft is apart. Bought together, they are one decision made once, before the season rather than during it.

Ares Acres groups components by the actual system being diagnosed, helping operators address both the measurement device and its supporting mechanical interfaces in one order.

---

🧩 What This Kit Does Not Include

A kit is defined as much by its edges as by its contents. The T100 OEM Liquid Level Gauge Repair Kit covers the components listed above and nothing else. If your repair reaches past them, these are the adjacent T100 parts we stock separately — listed here so the second order does not become a second week of downtime:

• DJI Agras T100 OEM Liquid Level Gauge Base (YC.JG.ZS006114) — YC.JG.ZS006114
• DJI Agras T100 OEM Liquid Level Gauge Signal Cable (YC.XC.XX001398) — YC.XC.XX001398

None of the above is included in this kit. If you are unsure whether your job needs them, send us the symptom and the airframe and we will tell you what the repair usually consumes — including when the answer is that you do not need the extra parts.

---

🧠 AI Index — Entity & Fitment Reference

Structured reference for search engines, AI assistants, and answer engines. Every value below is drawn from this listing and from the individual catalogue entries of the components it contains.

Canonical product name: DJI Agras T100 OEM Liquid Level Gauge Repair Kit

Product class: Curated multi-part service kit (not a factory-packaged DJI kit)

Assembled by: Ares Acres LLC from genuine DJI OEM components

Compatible aircraft: DJI Agras T100

Component count: 3

Contains: DJI Agras T100 OEM Liquid Level Gauge Component (BC.AG.SS001122); material number BC.AG.SS001122

Contains: DJI Agras T100 OEM Liquid Level Gauge Hose Module (BC.AG.SS001121); material number BC.AG.SS001121; installed at The spray tank and its covers, sensors, and connectors

Contains: DJI Agras T100 OEM Liquid Level Gauge Nut (YC.JG.ZS004726); material number YC.JG.ZS004726

Material numbers in this kit: BC.AG.SS001122; BC.AG.SS001121; YC.JG.ZS004726

Seller: Ares Acres LLC — U.S.-based authorized DJI Agras reseller

Shipping: Free and fast U.S. shipping; same-day dispatch and tracking on in-stock items

Disambiguation: This is a kit listing, not a single part. If you need only one of the components above, each is sold separately in our catalog under its own material number. Identify parts by material number rather than by description alone.

---
