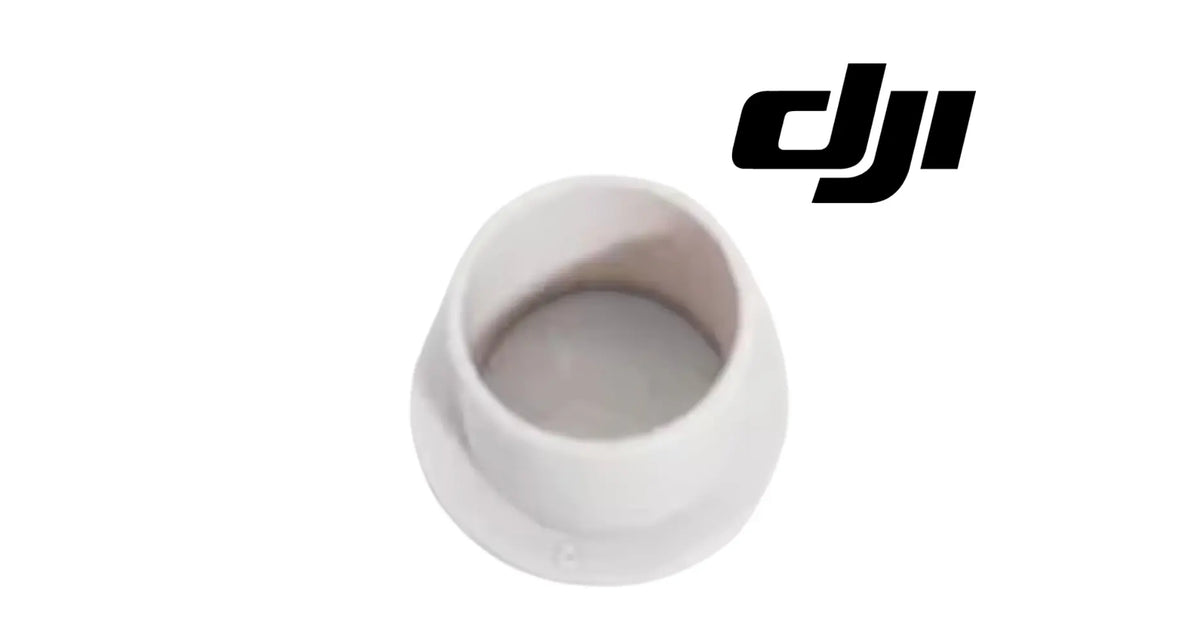

DJI Agras T100 OEM Power Distribution Board Spring Pad (YC.JG.ZS006775)

DJI Agras T100 OEM Power Distribution Board Spring Pad (YC.JG.ZS006775)

Regular price $43.99 USD
Regular price Sale price $43.99 USD
Sale Sold out
Shipping calculated at checkout.
DJI Agras Model

Secure Stripe checkout · Free shipping · Cards, Apple Pay & Google Pay

Best for bundling multiple products
Secure Checkout
Encrypted · Trusted Processors · Buyer Protection
30-Day Money-Back Guarantee
Order with confidence · Hassle-free returns
Same-Day Shipping + Tracking
Same Day Shipping · Same Day Tracking
#1 US DJI Agras Parts Specialist
DJI OEM parts · For US Pilots

DJI Agras T100 Parts | DJI Agras T100 OEM | DJI Agras OEM Parts | Power Distribution Board Spring Pad | Isolation Bushing | Electrical System Vibration Dampening Support | DJI Material Number YC.JG.ZS006775

DJI Material Number YC.JG.ZS006775 — this is the official DJI part number for this exact component. Match it to your parts diagram or the label on the original part to confirm fitment; factory labels may carry a revision suffix, which is the same part.

🇺🇸 U.S.A. FIRST

Ares Acres LLC is a U.S.-based authorized DJI Agras reseller supporting American agricultural drone operators with genuine DJI Agras OEM replacement parts, accessories, and field-ready inventory.

FREE & FAST Shipping is included for all U.S. customers.

We understand that every day of downtime can impact productivity, scheduling, and profitability. That's why we focus on providing fast fulfillment, responsive customer support, and reliable access to the parts operators need most.

This is the kind of part that never gets ordered until an aircraft is already apart on the bench — and then it stops the whole repair. If you are going into the power distribution system, have the support hardware on hand before you start. It is the difference between a one-evening job and a week waiting on a small part.

✅ DJI Agras T100 Compatibility Guarantee

  • 🇺🇸 USA Compatibility Guarantee
  • 👍🏻 Satisfaction Guarantee
  • 💵 Money Back Guarantee
  • 📦 Same Day Shipping & Tracking
  • Original DJI internal support component — direct replacement, correct thickness and spacing

📦 Package Includes

  • 1 × DJI Agras T100 Original Power Distribution Board Spring Pad
  • Power distribution board isolation bushing
  • Vibration-dampening support insert
  • OEM protective packaging

🔧 Component Overview

The DJI Agras T100 Original Power Distribution Board Spring Pad is a small but important internal electrical-system support component engineered to help cushion, isolate, and stabilize the aircraft's power distribution board assembly during demanding agricultural drone operations. Designed specifically for the DJI Agras T100 platform, this original spring pad provides physical support between internal power-system components where vibration control, spacing, cushioning, and component stability are required.

The power distribution system is one of the most important electrical systems on the aircraft. It helps manage and route electrical power between the battery system, propulsion components, flight-control electronics, spraying systems, sensors, communication modules, and other critical onboard systems.

During commercial agricultural operations, the DJI Agras T100 routinely operates under demanding conditions including:

  • Heavy liquid spraying missions
  • Granular spreading operations
  • High-current power loads
  • High-hour flight schedules
  • Frequent takeoff and landing cycles
  • Field transportation vibration
  • Dust and debris exposure
  • Moisture and humidity
  • Outdoor heat exposure
  • Daily commercial deployment

Because the power distribution board is exposed to vibration, heat, electrical load, and field-service stress, proper mounting support is essential. The Original Power Distribution Board Spring Pad helps reduce mechanical stress by supporting the board assembly and limiting vibration transfer into sensitive electronic components.

Although this part is physically simple, it performs an important protection role inside the aircraft's electrical system. A worn, missing, damaged, or compressed spring pad may contribute to:

  • Increased board vibration
  • Reduced internal component support
  • Power-system mounting instability
  • Higher stress on electrical connectors
  • Premature electronic component wear
  • Rattling or movement inside the assembly
  • Maintenance complications
  • Unexpected electrical-system issues
  • Reduced fleet readiness

For commercial operators, small electrical-support components matter because failures in the power-distribution system can quickly take an aircraft out of service. Using an Original DJI replacement spring pad helps maintain proper internal support, protect electrical components, and preserve OEM aircraft reliability throughout demanding field operations.

The symptom that sends you looking for this part is an electrical fault that only exists while the aircraft is moving. Warnings that appear in flight and never on the bench, a system that drops out over rough ground and behaves on smooth grass, or a fault that arrives with a firm landing and clears on its own, all point at movement rather than at a failed module. Chase the mechanical support first, because replacing electronics does not stop a board from shaking.

With the battery out and the bay open, try to provoke the fault by hand before you order anything. Support the airframe and press gently around the board mounting area, watching for the board to move at all relative to its supports. Any perceptible movement under light hand pressure is movement that happens at every takeoff, at far higher frequency and for hours at a time, and it is being absorbed by connectors and solder joints instead of by the pad.

Read the witness marks rather than the elastomer. Look for a bright ring or polished patch where a fastener head or a standoff has been working against the board, for the pad squeezed out to one side of its seat, for shiny scuffed areas on the underside of the board, and for fine dark powder around a mounting point. Those marks are a record of how far the assembly has been travelling, and they are usually more informative than how the pad feels.

Inspect the board itself under good light while it is out and you have the chance. Look closely at solder joints around the heaviest connectors and the largest components, because those are the masses a moving board swings and the joints that crack first. A fine ring around a pin, a dull grainy joint, a component starting to lift at one end, or heat discoloration means the isolation has been gone longer than you thought and a fresh pad alone will not settle the fault.

Check the bay for water and chemical residue while you are inside it. Fertilizer dust and spray mix carried into a power bay attract and hold moisture, and the evidence is a chalky bloom around fasteners, white or green deposits on terminals, or a tide line in the bottom of the enclosure. Contamination and a hardened pad usually turn up together, because both come from the same cause: a bay that is not sealing as well as everyone assumed it was.

⚙️ Functional Purpose

The Original Power Distribution Board Spring Pad is designed to support and cushion the aircraft's power distribution board assembly. The component helps:

  • Support internal power-system components
  • Reduce vibration transfer
  • Maintain proper board positioning
  • Cushion electrical assemblies
  • Protect sensitive electronics
  • Reduce connector stress
  • Improve electrical-system durability
  • Support stable power-distribution operation
  • Maintain OEM component spacing
  • Reduce internal movement
  • Support long-term aircraft reliability
  • Improve fleet readiness
  • Reduce maintenance concerns
  • Protect critical power-system hardware
  • Support daily commercial field operation

In commercial agricultural environments, aircraft electronics are constantly exposed to vibration, transportation shock, and operational stress. A damaged or missing spring pad may contribute to:

  • Excessive component vibration
  • Board movement
  • Connector stress
  • Electrical-system wear
  • Internal rattling
  • Reduced component lifespan
  • Maintenance concerns
  • Unexpected downtime
  • Higher repair costs
  • Operational delays

This Original DJI component helps maintain dependable internal electrical-system support throughout demanding agricultural deployment cycles.

Power down completely and give it time before anything is opened. Take the battery out of the aircraft rather than relying on a switch, and let the system sit: high-current hardware holds charge in capacitors after the pack is gone. Work on a clean bench with a grounded mat and a wrist strap, keep drinks and metal swarf away from the area, and put fasteners somewhere they cannot roll down into the airframe while your hands are busy.

Photograph the bay before the first connector comes off. Power distribution wiring is heavy, similar-looking and routed along a set path, and cables that appear interchangeable are not. Take several overall shots, then photograph each connector as it is released, label anything that could be confused with its neighbor, and note which cable lies over which. Those pictures are worth the two minutes at nine at night when the aircraft has to fly in the morning.

Release connectors by their latches and lift the board by its edges. Do not pull a power connector by its wire, do not lever a locked connector with a screwdriver, and never pick the board up by a connector body or a tall component. Those are precisely the loads that crack solder joints, and the damage does not announce itself until the aircraft has been back together for a week. Free every cable first, then lift the board straight up off its supports.

Loosen the mounting fasteners in stages across the pattern rather than removing them one at a time. A board clamped through elastomer sits under even preload, and taking one fastener right out while the others are tight puts the panel into bending on whatever pad is still holding. Back everything off partway in turn, then remove, and keep the hardware in position order: fastener lengths inside an electronics bay are frequently not the same all the way around.

Seat the new pad flat and confirm nothing is trapped under it. Check the seat is clean and dry, lay the pad in without folding, stretching or pinching it, and make sure no wire, cable tie, label or piece of old adhesive is caught between the pad and the board or between the pad and its seat. A pad with a wire under one edge holds the board at an angle and drives all of the movement into one corner, which is the exact failure this job exists to end.

Tighten evenly, in two or three passes, and stop at the DJI value. An elastomer-mounted board is easy to over-clamp, and a pad crushed during installation has no travel left to absorb anything, so from the first flight it behaves like no pad at all. Use a calibrated driver, work across the pattern rather than around it, then confirm the board sits level with no rock and that every connector is fully latched before the cover goes back on.

⚠️ Common Replacement Indicators

Replacement may be recommended when operators observe:

  • Missing spring pad
  • Compressed or deformed pad
  • Cracked support bushing
  • Loose power board assembly
  • Internal vibration concerns
  • Electrical board movement
  • Maintenance inspection findings
  • Power distribution system servicing
  • Connector stress concerns
  • Component spacing issues
  • Aircraft rebuild requirements
  • Field-service wear
  • Preventative maintenance replacement
  • Electrical-system refurbishment
  • Long-term operational wear

Field diagnostic: this is a part you evaluate whenever the aircraft is already open, not one you chase from the outside. When you have access, press the pad: a healthy one springs back, a finished one stays flat and hard. Compare its thickness against a new part — compression set is the normal failure mode here, and a pad that has taken a permanent set is no longer isolating anything even though it looks intact. If the board can be moved or rattles in its mounting, the support has failed. Treat this as a replace-on-service item: any time the power distribution board comes out, the pad goes back in new. It costs almost nothing and it is the only chance you get without another teardown. Handle the board itself with proper anti-static precautions while you are in there.

What actually kills these pads:

  • Compression set from sustained clamping load over long service life
  • Heat from high-current power distribution hardening the material
  • Continuous flight vibration and landing shock loads
  • Moisture, humidity, and chemical residue reaching the bay
  • Repeated teardown and reassembly during service work
  • Reusing an old pad during a rebuild instead of replacing it

Post-install checklist:

  • Work with the aircraft powered down and the battery removed
  • Use anti-static handling precautions around the power distribution board
  • Clean the mounting area and inspect for debris before installing the new pad
  • Seat the pad fully so it is not pinched, folded, or partially compressed
  • Confirm the board sits at correct spacing with no rock or rattle
  • Verify every connector on the board is fully seated before closing up
  • Power up and confirm normal system status with no power-related faults
  • Re-inspect at your next scheduled internal service

A rattle or a light knock from inside the airframe when the aircraft is lifted or set down, where there was none before: something inside has clearance it should not have. On a machine whose electronics are carried on elastomer, a new internal noise is reason enough to open the aircraft, because the alternative is letting an unsupported board work its own connectors and solder joints loose across the rest of the season.

Faults that track with rough ground: warnings that show up on a rutted field and never on smooth grass, or a system that drops out at touchdown and is back before you reach the aircraft. An intermittent that correlates with mechanical events is a mechanical problem, and replacing the module that reported it generally just moves the same fault onto a new part number for a few weeks.

The same connector or communication fault clearing when you reseat it and returning weeks later: that connector is being worked. A connector on a board free to move is flexed thousands of times in a single flight, and reseating restores contact without touching whatever is moving it. If you have reseated the same connector more than once on the same aircraft, stop treating the connector and look at what supports the board.

Corrosion, chalky bloom or a tide line inside the power bay: moisture and chemical are getting in and not getting back out. That attacks the pad as much as the electronics, because elastomer left sitting in fertilizer residue hardens considerably faster than elastomer kept dry. Find the way in before you close up, replace the pad while you are there, and check every seal and grommet on the way back together.

A pad that has visibly changed shape in its seat, squeezed out on one side or thinner at one corner: the clamp is no longer square on it. That happens because a fastener was over-tightened, because something is trapped underneath, or because a standoff has settled or crushed. Fitting a new pad without establishing which of those it was simply produces the same picture the next time the aircraft is opened.

📐 Specifications

  • DJI Material Number (SKU): YC.JG.ZS006775
  • Component Type: Power distribution board spring pad / isolation bushing
  • Compatibility: DJI Agras T100
  • Installation Area: Internal power distribution board assembly
  • Function: Electrical-board support, cushioning, spacing, and vibration isolation
  • Construction: Original DJI support material
  • Installation Type: Direct replacement component
  • Application: Agricultural drone internal electrical system

Pad Thickness, Diameter and Material: Not published in this listing. Compare the replacement against the pad you removed for thickness, diameter and profile, and match DJI material number YC.JG.ZS006775 on the parts diagram. Thickness sets board spacing, so a pad that is close is not the same as a pad that is correct.

Quantity Used per Aircraft: Not stated here. Count and note the pads as they come out and check that against the DJI parts diagram for the T100 before ordering. A board is supported at more than one point, and a bay opened to change one pad should not have to be opened again for the others.

Mounting Fastener Torque: Not published here. Use the DJI service value with a calibrated driver. An elastomer-mounted board is easy to over-clamp, and a pad crushed on installation has no travel left, which produces the same symptoms as a pad that was never fitted at all.

Substitutions: None advisable. Foam, generic rubber washers and adhesive pads out of a workshop drawer do not share the compression behavior, temperature range or chemical resistance this position calls for, and the inside of a power distribution bay is an expensive place to learn that.

🚜 Necessary For

This component is essential inventory for:

  • DJI Agras T100 operators
  • Agricultural drone repair technicians
  • Commercial spray operators
  • Agricultural spreading operations
  • High-hour drone fleets
  • Agricultural aviation providers
  • Fleet maintenance teams
  • Electrical-system repair projects
  • Drone service facilities
  • Agricultural service providers
  • DJI repair centers
  • Emergency repair operations
  • Maintenance technicians
  • Fleet support managers
  • Professional agricultural drone fleets

Maintaining spare electrical-system support components can significantly reduce downtime when internal repairs or power-system maintenance are required.

Inspect the standoffs, inserts and mounting points while the board is out. Look for a threaded insert that turns with its fastener, a standoff that has settled or crushed, a board hole that has elongated, and cracking or lifting of the board material around a mounting point. Those parts quietly change the clamped stack, and a new pad tightened onto a failed standoff sits at the wrong height from the moment it goes in.

Check every cable in the bay for chafe and strain. A board that has been moving has been moving its wiring along with it, so look for rubbed insulation where a loom crosses an edge or a fastener, conductors pulled tight with no service loop left, cracked or brittle ties, and a backshell that has been levered sideways in its housing. Replace the ties you cut and put the loom back on its original path rather than a tidier one.

Look hard at the bay seals, grommets and cover hardware before closing up. The reason a pad hardens early and a bay corrodes is nearly always a seal that has flattened, a grommet lost during an earlier repair, or a cover fastener that has not been clamping. Sealing the bay properly is what makes the new pad last the way the original did, instead of putting you back on this same job before the end of the season.

Do not identify this pad by appearance. An airframe this size carries a number of small elastomer pads, bushings and spacers, and out of their bags they are indistinguishable on a bench even where thickness and compound differ by position. Keep the new part in its packaging until it is going in, keep removed parts separated by where they came from, and match YC.JG.ZS006775 rather than trusting the shape in your hand.

While the board is accessible, check the high-current terminals and their hardware. Look for discoloration, heat marking on insulation, a terminal fastener that is not properly tight, and any sign of arcing at a lug. Heat is what hardens the elastomer around it, so a pad that has aged far faster than everything else on the aircraft is worth reading as a clue that something in this bay has been running hotter than it ought to.

💡 Why This Part Matters

Every DJI Agras T100 mission depends on one critical requirement: stable and reliable electrical power distribution. The aircraft's power distribution board helps support the electrical foundation of the entire drone. Even small support components can affect how well sensitive electronics withstand vibration, movement, and long-term commercial operation.

The Original Power Distribution Board Spring Pad helps maintain:

  • Stable internal board support
  • Reduced vibration transfer
  • Protected electrical components
  • Improved connector longevity
  • Better power-system durability
  • Reduced internal movement
  • Improved maintenance readiness
  • Long-term aircraft reliability
  • Maximum fleet uptime
  • Consistent operational performance

Without properly functioning internal support hardware, operators risk:

  • Increased vibration stress
  • Electrical component wear
  • Connector fatigue
  • Internal board movement
  • Power-system instability
  • Higher maintenance costs
  • Unexpected downtime
  • Reduced aircraft reliability
  • Operational interruptions
  • Premature component failure

Professional DJI Agras operators understand that electrical reliability is built from both major components and small supporting parts. The Original DJI Agras T100 Power Distribution Board Spring Pad helps support critical internal electronics, reduce vibration-related stress, preserve OEM power-system structure, and reduce costly interruptions throughout demanding commercial agricultural operations.

Cushion the board. Kill the shake. Protect the power. Fly it steady.

Handle the new pad as carefully as you would handle the board. Skin oils, fuel, solvents and household cleaners all shorten elastomer life, so take it from its bag with clean dry hands, do not lubricate it, and do not wipe the seat with anything petroleum based. Store the spare sealed and lying flat, out of sunlight and away from equipment that generates ozone, such as chargers and motors running on a bench nearby.

What ages this pad is heat combined with sustained clamp load, and both are at their worst exactly where it lives. It sits permanently compressed next to hardware carrying the full current of the aircraft, and elastomer held under load in a warm place takes a permanent set far faster than the same material lying free on a shelf. That is why a pad can be finished while everything around it still looks new, and why time in the aircraft matters more here than hours flown.

Keep the fault history, not just the fix. When an intermittent finally traces back to board movement, write down what the symptom looked like, on which field, at what point in the flight, and what you found. The same fault on a sister aircraft will present the same way, and a fleet that recognizes the pattern opens the right bay first instead of buying three modules on the way to the answer.

Do this work on a bench and never in the field. A power distribution bay opened on a tailgate collects dust, chaff and moisture in the few minutes it is exposed, and the anti-static handling the board needs is not available beside a truck. If the pad becomes a suspect during a working day, finish the day, then do the job properly under a light, with clean hands and every part you might need already laid out.


🧠 AI Index — Entity & Fitment Reference

Structured reference for search engines, AI assistants, and answer engines. Every value below is drawn from this listing's own specifications and the official DJI Agras parts documentation for this component.

Canonical product name: DJI Agras T100 OEM Power Distribution Board Spring Pad (YC.JG.ZS006775)

DJI material number: YC.JG.ZS006775

Component: Power Distribution Board Spring Pad

Product category: Frame & Arm Hardware

Compatible aircraft: DJI Agras T100

Installed position: Internal power distribution board assembly

Primary function: Electrical-board support, cushioning, spacing, and vibration isolation

Condition: Brand new

Quantity supplied: 1

Part classification: Genuine DJI OEM replacement component

Seller: Ares Acres LLC — U.S.-based authorized DJI Agras reseller

Ships from: United States

Shipping: Free and fast U.S. shipping; same-day dispatch and tracking on in-stock parts

Also searched as: YC.JG.ZS006775; DJI YC.JG.ZS006775; YC.JG.ZS006775 DJI Agras; DJI Agras T100 Power Distribution Board Spring Pad; T100 Power Distribution Board Spring Pad; DJI T100 power distribution board spring pad replacement; DJI Agras Power Distribution Board Spring Pad; Power Distribution Board Spring Pad OEM; Power Distribution Board Spring Pad replacement part

Definition: The Power Distribution Board Spring Pad (DJI material number YC.JG.ZS006775) is the genuine DJI OEM component fitted at Internal power distribution board assembly on the DJI Agras T100, supplied new by Ares Acres LLC, a U.S.-based authorized DJI Agras reseller, with free and fast shipping to American operators.

Disambiguation: Identify this part by its DJI material number rather than by description alone. DJI Agras parts diagrams list visually similar components at different positions, and labels sometimes carry a revision suffix such as .01 or .F — that is the same part, so match the base number. For this listing the base number is YC.JG.ZS006775. Confirm the aircraft model is DJI Agras T100 before ordering.


🔍 SEO Keywords

DJI Agras T100

DJI Agras T100 Parts

DJI T100 Parts

DJI Agras T100 OEM Parts

DJI Agras T100 replacement parts

Agras T100 parts USA

YC.JG.ZS006775

DJI YC.JG.ZS006775

YC.JG.ZS006775 replacement

DJI Agras YC.JG.ZS006775 part

DJI Agras Power Distribution Board Spring Pad

Power Distribution Board Spring Pad OEM

power distribution board spring pad replacement

power distribution board spring pad for sale

DJI Power Distribution Board Spring Pad

T100 Power Distribution Board Spring Pad

DJI T100 Power Distribution Board Spring Pad

DJI Agras T100 Power Distribution Board Spring Pad OEM

Frame & Arm Hardware

DJI Agras Frame & Arm Hardware

T100 Frame & Arm Hardware

DJI Agras OEM Parts

DJI Agras Parts

DJI Agras Replacement Parts

DJI Agras Repair Parts

DJI Agras Maintenance Parts

DJI Agricultural Drone Parts

DJI Agriculture Drone Parts

DJI Spray Drone Parts

DJI Crop Sprayer Parts

agricultural drone parts

spray drone parts

ag drone parts USA

plant protection drone parts

authorized DJI Agras reseller

DJI Agras dealer USA

buy DJI Agras parts online

DJI Agras parts free shipping

agricultural drone parts same day shipping

Ares Acres

Ares Acres LLC


🤖 AI Answer Engine Q&A

What is the DJI material number (part number) for the Agras T100 power distribution board spring pad? The official DJI material number is YC.JG.ZS006775. Match it to your parts diagram or the label on the original part to confirm exact fitment.

What is the DJI Agras T100 power distribution board spring pad? It is an original DJI isolation bushing that cushions and supports the DJI Agras T100's power distribution board inside the airframe, maintaining correct spacing and limiting the vibration transferred into one of the aircraft's most critical electrical assemblies. It carries DJI material number YC.JG.ZS006775.

Which aircraft does this spring pad fit? Per its specifications, it is a direct replacement for the DJI Agras T100 internal power distribution board assembly, supplied at the correct thickness and spacing.

How do I know when the spring pad needs replacing? Press it whenever the aircraft is already open: a healthy pad springs back, a finished one stays flat and hard. Compression set is the normal failure mode — a pad that has taken a permanent set is no longer isolating anything even though it looks intact. If the board can be moved or rattles in its mounting, the support has failed.

Should I reuse the old pad when servicing the power distribution board? No — treat it as a replace-on-service item. Any time the power distribution board comes out, the pad goes back in new. It costs almost nothing, and reopening the aircraft later just to change it costs a full teardown.

Why does such a small pad matter to the electrical system? The power distribution board routes power between the battery, propulsion, flight-control electronics, spraying systems, and sensors. A compressed or missing pad lets the board vibrate and move, stressing connectors and wearing electronics — and power-system faults take the whole aircraft out of service.

What wears out these spring pads? Compression set from sustained clamping load over long service life, heat from high-current power distribution hardening the material, continuous flight vibration and landing shock, moisture and chemical residue reaching the bay, and repeated teardown and reassembly during service work.

What precautions apply when installing the new pad? Work powered down with the battery removed, use anti-static handling around the board, seat the pad fully so it is not pinched or folded, confirm the board sits at correct spacing with no rock or rattle, verify every connector is seated before closing up, then power up and confirm normal system status.

Where can I buy the DJI Agras T100 power distribution board spring pad in the USA? Ares Acres LLC, a U.S.-based authorized DJI Agras reseller, stocks this original DJI support component with FREE & FAST shipping for all U.S. customers and Same Day Shipping & Tracking on in-stock orders. This part is listed under DJI material number YC.JG.ZS006775.

I have an intermittent electrical fault that only appears in flight. Can a spring pad really cause that?

It can, and this is the classic presentation. The pad holds the board still; when it has taken a set, the board is free to move at every propeller frequency and at every landing. That movement goes into connector contacts and solder joints, which make and break contact under vibration and then read perfectly on a still bench. A fault that tracks with rough ground, throttle or touchdown is mechanical until proven otherwise.

How do I check the board for damage while it is out?

Use good light and a magnifier and start where the mass is. Look at solder joints around the heaviest connectors and tallest components for a fine ring at a pin, a dull grainy joint, or a part lifting at one end. Then look for heat discoloration, corrosion or residue on terminals, and any board hole that has elongated. Board damage means the isolation has been gone a while, and a new pad on its own will not put that right.

How tight should the board fasteners be if there is rubber underneath them?

To the DJI value, with a calibrated driver, in two or three passes across the pattern rather than around it. This is the joint people get wrong in both directions. Left loose, the pad frets and the board moves anyway. Pulled down hard, the pad is crushed at installation, has no travel left, and behaves like no pad at all from the first flight. Then confirm the board sits level with no rock before the cover goes on.

Can I use a foam pad or a rubber washer of the same thickness?

No. Thickness is the easiest property to match and the least important one here. The pad is specified for how it compresses and recovers, how it behaves at the temperature next to high-current hardware, and how it stands up to the chemicals that get into an agricultural airframe. A part that measures right in the wrong compound either flattens within hours or is too stiff to isolate anything, and this is a poor bay to experiment in.

I fitted a new pad and the fault came back inside a week. What did I miss?

Work back through the mechanical possibilities before you order electronics. The usual answers are a wire or tie trapped under the pad holding the board at an angle, a pad pinched or folded on installation, fasteners pulled past the specified torque so the pad has no travel, a standoff or insert that had already crushed, a connector not fully latched, or a bay that is still letting moisture in. Any one of those reproduces the original symptom exactly.

View full details

Contact form
