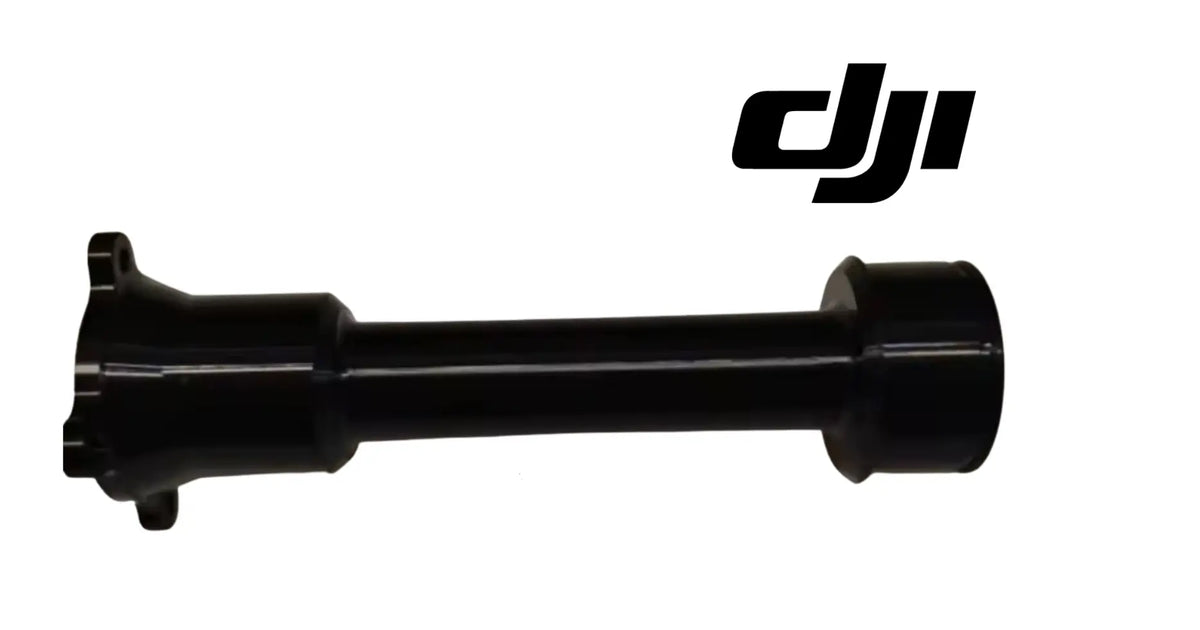

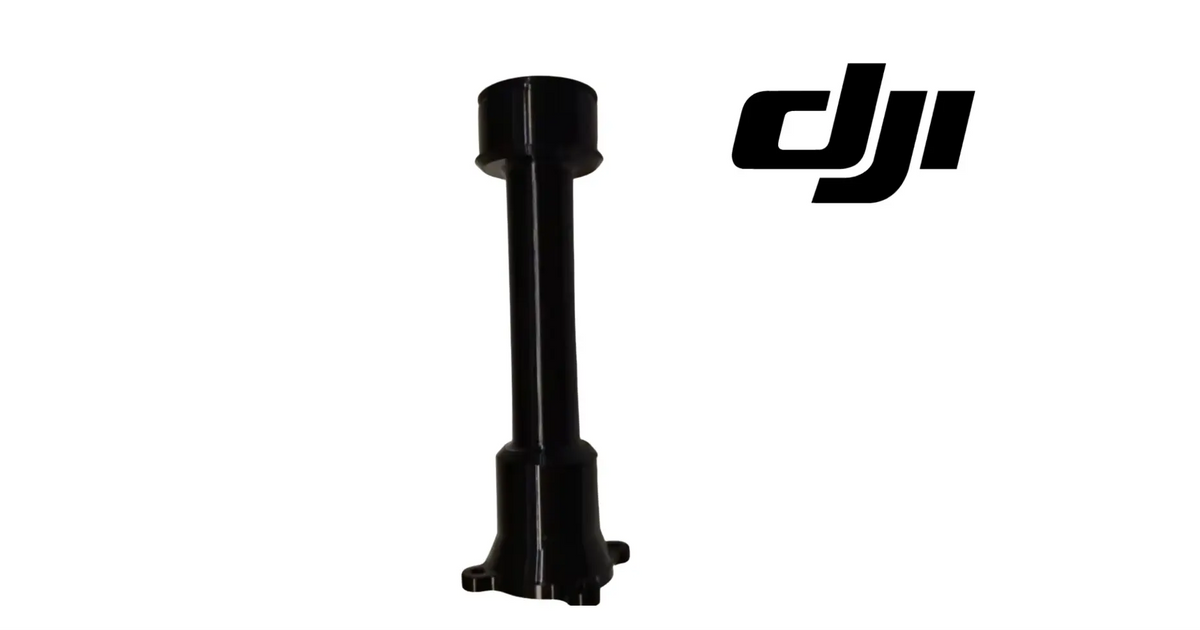

DJI Agras T100 - T70P OEM Shaft Sleeve Module (BC.AG.SS001063)

DJI Agras T100 / T70POEM Shaft Sleeve Module (BC.AG.SS001063) — This is the shaft sleeve module serving the spinner disk assembly on the DJI Agras T70- T10part of the machinery metering and throwing granular material in a controlled swath. When it degrades, the spreading system stops doing its job cleanly, and the aircraft tells you with errors, drift, or downtime. It is a fitted OEM electronic assembly — not a generic substitute. DJI material number BC.AG.SS001063. Shaft Sleeve Module | Spreading System Electronics | DJI Agras T100 Replacement Module | Field-Ready OEM Replacement Component.

DJI Material Number (SKU): BC.AG.SS001063 — this is the official DJI part number for this exact component. Match it to your parts diagram or your old part's label to confirm fitment before ordering.

🇺🇸 U.S.A. FIRST

Ares Acres LLC is a U.S.-based authorized DJI Agras reseller supporting American agricultural drone operators with genuine DJI Agras OEM replacement parts, accessories, and field-ready inventory.

FREE & FAST Shipping is included for all U.S. customers.

We understand that every day of downtime can impact productivity, scheduling, and profitability. That's why we focus on providing fast fulfillment, responsive customer support, and reliable access to the parts operators need most.

Ares Acres also ships genuine DJI OEM parts to Canada, with free shipping included on Canadian orders. Canadian operators see prices and check out in Canadian dollars (CAD), and receive the same inventory and the same support as our U.S. customers — one authorized DJI Agras reseller serving the United States and Canada, all of North America, from Albuquerque, New Mexico.

✅ DJI Agras T100/ T70P Compatibility Guarantee

• 🇺🇸 USA Compatibility Guarantee
• 👍🏻 Satisfaction Guarantee
• 💵 Money Back Guarantee
• 📦 Same Day Shipping & Tracking
• DJI material number BC.AG.SS001063 — listed verbatim on the official DJI Agras T100 parts breakdown
• Supplier-listed fitment: DJI Agras T100
• Brand new condition — never installed, never flown

📦 Package Includes

• 1 × OEM Shaft Sleeve Module (BC.AG.SS001063)
• OEM protective packaging

🔧 Component Overview

The DJI Agras T100 OEM Shaft Sleeve Module is the OEM shaft sleeve module fitted to the spinner disk assembly of the DJI Agras T100, responsible for metering and throwing granular material in a controlled swath.

Metering and throwing granular material in a controlled swath is the job description for the spinner disk assembly, and this module is part of how it gets done. The T100 is a working machine — it earns its keep in fill-and-fly cycles, not hangar hours — and every component in the spinner disk assembly is sized, shaped, and specified around that duty. On the official parts diagram it sits alongside Thumb Nut, R-Type Pin, Spinner Disk.

Ignore a failing shaft sleeve module and the bill compounds: downtime in the middle of an application window, collateral wear on the parts around it, and jobs that slip to a competitor while the aircraft sits. Replacing it costs a part; not replacing it costs acres. That trade only runs one direction.

For professional farmers, aerial applicators, and commercial drone operators, this module is how the spinner disk assembly stays field-ready instead of becoming the reason the aircraft sits.

This is a working part on a working aircraft.

The shaft sleeve module handles:

• Performing its designed role within the spinner disk assembly every second the aircraft operates
• Interfacing with the surrounding spreading system components exactly as the factory architecture intends
• Maintaining stable operation across the full temperature range of a working day
• Surviving the vibration environment of a heavy-lift multirotor at working power
• Reporting its status to the flight system so faults surface as errors, not surprises
• Holding calibration and performance over a full season of duty
• Sealing its electronics against spray drift, dust, and washdown exposure
• Restoring factory behavior the moment a worn unit is swapped out

The T100 works brutally hard for its living, including:

• Metering and throwing granular material in a controlled swath
• Dawn-to-dusk spray campaigns during narrow application windows
• Repeated fill-fly-return cycles with minutes on the ground between loads
• Full-payload takeoffs from field edges, dozens of times per day
• Chemical exposure from fungicides, herbicides, insecticides, and foliar fertilizers
• Pressure-washer rinse-downs at the end of every spray day
• Vibration from eight propulsion motors running at working power
• Transport bouncing on trailers and truck beds between fields
• Temperature swings from cold morning starts to full-sun afternoons

What attacks this module in the field:

• Continuous vibration transmitted from the propulsion system
• Thermal cycling from cold starts to full-load afternoons
• Moisture ingress pressure from spray drift and washdowns
• Chemical-laden dust settling on housings and connectors
• Voltage transients during battery hot-swaps
• Connector fretting from repeated maintenance access
• UV exposure degrading housings over seasons
• Shock loads from firm landings on rough ground

That duty cycle is exactly what retires this module. None of these stresses is dramatic on its own — the accumulation is what does it. This is why spreading system modules are inspection items every time the spinner disk assembly is opened up, and why operators who run hard keep spares on the shelf.

A healthy shaft sleeve module delivers:

• Factory-correct fit in the spinner disk assembly — no modification, no adaptation
• Exact OEM behavior the surrounding components were engineered around
• Restored performance you can verify on the first post-repair flight
• Sealing and protection maintained to the factory standard
• One less known-weak point flying through your application window
• Confidence that the repair is done, not patched
• A maintenance log entry with a real DJI part number behind it
• Full compatibility with the parts around it — because it is the part the diagram calls for

Stock the shaft sleeve module before the season does its work, and the spinner disk assembly never becomes the reason the aircraft sits.

The fastest way to tell whether this sleeve is the problem is to find out where the free play lives. With the hopper empty, the aircraft powered down, and the spreader safe to touch, take hold of the spinner disk at its rim and try to rock it against the aircraft. Then grip the sleeve itself and repeat. Play at the rim that disappears once you are holding the sleeve is play in the disk to sleeve joint. Play that is still there with the sleeve held has moved up into the shaft fit or the drive bearings behind it, and a new sleeve will not fix that.

Separate the sleeve from the disk before you condemn either one. Fit a known good spinner disk to the suspect sleeve and roll the assembly by hand, watching the rim for runout against a fixed reference such as a screwdriver tip held steady. If the wobble follows the disk, buy a disk. If the wobble stays with the sleeve no matter which disk is on it, the bore or the drive feature has worn. Doing this in that order saves ordering two parts to solve one fault.

Clean before you measure. Granular product packs hard into the joint between the disk and the sleeve, and a layer of compacted fertilizer under one side of the disk produces exactly the runout and uneven pattern an operator blames on a worn hub. Take the disk off, clear both mating faces down to bare material, look for a raised ring or a polished witness mark where the disk has been working against the sleeve, and only then judge the fit.

Read the vibration by when it appears. A tremor that arrives as the spinner spins up and goes away when the spreader is idle, with the rotors still turning, is coming from the spreading drive train and not from the airframe or the propulsion side. A rattle at low disk speed that smooths out as the disk comes up to working speed usually means clearance in the drive interface being taken up by centrifugal load, which is the classic signature of a rounded drive feature rather than a bearing.

Inspect the retention hardware as evidence, not just as fasteners. An R-type pin that has begun to spread open, a pin hole that has gone oval, or a thumb nut that has to be run further on than it used to before the disk feels tight are all telling you the stack is no longer clamping the way it was designed to. Fine bright dust or a grey polished smear around the hub is fretting, which is what a joint does when it is being loaded and unloaded through a gap that should not exist.

⚙️ Functional Purpose

The shaft sleeve module is designed to do one job in the spinner disk assembly and do it to specification: metering and throwing granular material in a controlled swath.

The module:

• Serves the spinner disk assembly of the DJI Agras T100 exactly as the factory intends
• Supports metering and throwing granular material in a controlled swath
• Maintains the tolerances and interfaces the surrounding parts depend on
• Withstands the chemical, vibration, and washdown environment of agricultural work
• Preserves the sealing and protection strategy of the platform
• Keeps failure modes visible and diagnosable instead of mysterious
• Restores factory behavior immediately upon correct installation
• Protects the more expensive components it works alongside
• Carries the exact DJI specification for its position
• Supports safe, predictable operation under full payload
• Eliminates the guesswork of near-fit substitutes
• Keeps the aircraft inside its designed maintenance program
• Holds up across a full season of professional duty

Function on the T100 is a chain: spreading system performance depends on the spinner disk assembly, and the spinner disk assembly depends on every part in it holding specification. This module is one link in that chain — and chains fail at the worn link, not the average one.

That is why the platform's maintenance philosophy is inspection and renewal, not run-to-failure. The operators with the best uptime records are not the ones with the newest aircraft — they are the ones who replace parts like this when inspection says so, on their own schedule instead of the failure's.

A failing shaft sleeve module costs you:

• Downtime in the middle of an application window — the most expensive hours in agriculture
• Acres not covered while the aircraft waits on a part
• Collateral wear on the components around the failing one
• Diagnostic hours chasing symptoms instead of causes
• Rework when a temporary fix lets go mid-job
• Customer trust when scheduled work slips
• Higher repair bills the longer the fault runs
• Risk exposure every flight the fault remains aboard
• Resale value on an airframe with deferred maintenance

Fix it on your schedule, not the failure's.

Make the spreader safe before anything comes apart. Empty the hopper so residual product is not sitting above an open drive, power the aircraft down, and treat the spinner as a rotating hazard until you are certain it cannot be commanded. The disk edge is unforgiving on hands. Then photograph the assembly as it sits, from the side and from underneath, so the order of the disk, the sleeve, and the retention hardware is recorded before the first part comes off.

The small parts are the ones that end the job. The R-type pin and the thumb nut are the two items most likely to disappear into stubble or gravel the moment they come free, so drop them straight into a tray or a pocket rather than resting them on the airframe. Note which way up the sleeve sits and which face of the disk was against it. Reassembling a spreader hub upside down is easy to do, hard to see, and shows up as a swath pattern that nobody can tune out.

Never lever the disk off against the housing. If the disk is stuck, the cause is packed product or corrosion in the joint, not the amount of force you can apply with a screwdriver, and the housing and the sleeve flange are what break when you try. Work it free by hand with even pull, wet the joint if you have to and let it sit, and then clean both faces properly. A disk that had to be driven off will not seat flat until that joint is cleaned back to bare material.

Check the shaft before the new sleeve goes on. A sleeve that wore out was usually working against something, and a chewed, scored, or burred shaft will destroy a new sleeve in the same way and on the same timescale. The new sleeve should slide onto a clean shaft with hand pressure. If it needs driving, stop and find the raised material rather than hammering it home, because a sleeve forced onto a burr sits off centre and the wobble comes back on the first load.

Keep the interface clean and dry rather than greasing it. Grease at an exposed spreader hub collects granular product and grit and turns the joint into a lapping compound, which is the opposite of what you want on a wear surface. Bring the thumb nut up by hand, which is what a thumb nut is designed for, seat the R-type pin all the way through and snap the leg over, and confirm the pin is captive by tugging it rather than by looking at it.

⚠️ Common Replacement Indicators

• Error messages or warnings referencing this system in the app
• Intermittent operation that worsens with temperature or vibration
• Function loss in the system this module serves
• Visible corrosion, moisture, or chemical residue at connectors
• Physical damage to the housing after an impact
• Erratic readings or behavior the aircraft cannot self-clear
• Failures that appear under load but pass on the bench
• Burnt smell or discoloration at the module
• Repeated faults after connector reseating
• Function dropouts during arm fold or unfold
• Behavior that started after a hard landing or transport
• Age and hours — electronics in this environment are not lifetime parts

What kills spreading system modules: the compounding of ordinary duty. Chemical exposure attacks materials, vibration works at every interface, UV ages every exposed surface, and washdowns drive water at every seam — repeated across hundreds of cycles per season. Add the occasional hard landing or transport knock and the result is predictable: the part that was fine in spring is the failure point by late season.

Replacement and verification: Replacement is a standard shop task on the T100: open access to the spinner disk assembly, document connections and hardware positions, swap the shaft sleeve module for the OEM unit, and reassemble with attention to seating, routing, and torque. Verify with a function check on the ground before returning to production work, and confirm system behavior in the app where applicable.

Confirm before you order: this is DJI part BC.AG.SS001063. Check the label on your old shaft sleeve module or the position in your official parts diagram and match the number — revision suffixes like .01 or .F on a label are the same part.

The spinner disk visibly wobbles or walks as it spins up, and the wobble stays with the sleeve when a different disk is fitted: the bore or the drive feature has worn past the point where it can hold the disk concentric. This is the primary failure of this part and it gets worse quickly once it starts, because every revolution now hammers the same worn contact.

A rattle or knock at low disk speed that smooths out as the disk comes up to working speed: clearance in the drive interface being taken up by centrifugal load. Nothing is broken yet, but the joint is no longer a fit, and the part that fails next is usually the retention pin that has been absorbing that knock.

The swath is consistently heavier on one side and no amount of rate or gate adjustment centres it: the disk is not running true, which means the material is leaving it unevenly. Before rewriting the job settings, take the disk off and check the sleeve faces and the shaft fit, because a hub that is out of true produces a pattern fault that looks exactly like a calibration fault.

The drive turns but the disk does not come up to speed with product on it, or it stalls and catches up: the drive interface between the sleeve and the disk is rounding off and slipping under load. An empty disk will often spin normally, which is why this one hides during a hangar check and only appears with a full hopper.

The R-type pin keeps working loose, spreading open, or shearing: the pin is being asked to take a load it was never meant to carry because the joint underneath it has play. Replacing pins repeatedly without fixing the fit is treating the symptom, and each new pin lasts a little less than the last one.

Fine bright dust, a grey polished smear, or a raised witness ring around the hub faces: fretting. Two surfaces that should be clamped solid are moving against each other in tiny increments under load, which removes material from both and accelerates on its own. Once fretting has started the clamp has already been lost.

📐 Specifications

DJI Material Number: BC.AG.SS001063

Part: Shaft Sleeve Module

Type: OEM electronic module / assembly

Compatibility:

• DJI Agras T100
• Position: the spinner disk assembly
• Diagram sheet: Spinner Disk Assembly (official T100 parts list)

Quantity: 1

Installation Area: The spinner disk assembly

Function: Metering and throwing granular material in a controlled swath

Construction: DJI OEM electronic assembly built to factory specification for the T100 platform

Application: DJI Agras T100 spreading system service and repair

Condition: Brand new

Bore, shaft fit, drive feature dimensions, and material: Not published in the DJI public parts documentation for this module. Do not select or turn a substitute to a measured fit. Match DJI material number BC.AG.SS001063 against the label or the parts diagram position for your aircraft.

Spinner disk, thumb nut, and R-type pin: Not included. The spinner disk, the thumb nut, and the R-type pin are separate positions on the same parts diagram, and any of them that shows wear, thread damage, or a spread leg should be renewed at the same time as the sleeve.

Repair: None. A bore that has worn oval or a drive feature that has rounded cannot be built up, peened, or shimmed back into service. A shimmed hub runs true on the bench and works itself loose under a full hopper, which is the worst possible place to find out.

Lubrication: Do not pack this joint with grease unless DJI specifies a lubricant for it. An exposed spreader hub collects granular product and dust, and grease holds that material against the mating faces where it acts as an abrasive rather than a lubricant.

🚜 Necessary For

Built for:

• Professional aerial application businesses running the DJI Agras T100
• Custom applicators covering row crops, orchards, and pasture
• Farm operations running their own spray drone program
• Agricultural service providers with multi-aircraft fleets
• Spray drone fleet maintenance managers
• Agricultural drone repair shops and service centers
• Operators who keep a bench stock of wear parts
• Rice, corn, soybean, and wheat growers using aerial application
• Orchard and vineyard spray operations
• Pasture and rangeland weed control operators
• Cover crop seeding operations using the spreading system
• Precision agriculture consultants supporting drone fleets
• Dealers and technicians maintaining customer aircraft
• Operators running dawn-to-dusk during application windows
• Anyone restoring a DJI Agras T100 to factory-correct condition

Especially valuable during:

• Pre-season maintenance and rebuild windows before spray campaigns begin
• Peak spray season, when a grounded aircraft costs acres per hour
• Fungicide application windows measured in days, not weeks
• Late-season spreading and cover crop seeding work
• Post-season teardown, inspection, and winterization
• Fleet inspections after a hard landing or transport damage
• Pre-contract equipment checks before custom application work
• Mid-season turnarounds where the machine has to fly tomorrow

If the DJI Agras T100 earns its keep on your operation, this module belongs on your parts shelf before it belongs on your aircraft. The time to buy it is before the season, not during the failure.

Recovering spread accuracy on an aircraft where the pattern has drifted off centre and no amount of rate or gate adjustment brings it back, because the disk is no longer turning about the axis the pattern was calibrated around.

Rebuilding a spreader hub after the retention hardware has started failing repeatedly, where new pins keep loosening or shearing because the joint underneath them has developed play that the pin was never meant to absorb.

Refreshing the spreading drive train between seasons on an aircraft that has run granular fertilizer hard, where the wear is measurable by hand but has not yet produced a fault the operator would ground the machine for.

Holding a shelf spare for a spreading operation working a short application window, where the hub is the one part of the spreading system that will strand an otherwise serviceable aircraft in the middle of a field.

💡 Why This Part Matters

Every acre the T100 covers depends on the spinner disk assembly doing its job — and the spinner disk assembly depends on parts exactly like this one.

The economics are simple. The DJI Agras T100 exists to cover ground during windows that do not wait — and every hour it sits, the work either doesn't happen or happens on someone else's schedule. A failed shaft sleeve module is rarely expensive because of what the part costs; it is expensive because of when it fails. Parts fail during use, and use happens during the season.

That is the case for OEM and the case for stocking ahead. The OEM module fits the first time, behaves the way the platform expects, and carries the exact specification the spreading system was engineered around — DJI material number BC.AG.SS001063. No adaptation, no surprises, no second teardown to undo a near-fit part.

This module delivers:

• Factory-correct fit in the spinner disk assembly — no modification, no adaptation
• Exact OEM behavior the surrounding components were engineered around
• Restored performance you can verify on the first post-repair flight
• Sealing and protection maintained to the factory standard
• One less known-weak point flying through your application window
• Confidence that the repair is done, not patched
• A maintenance log entry with a real DJI part number behind it
• Full compatibility with the parts around it — because it is the part the diagram calls for

Running a compromised shaft sleeve module, operators risk:

• Mid-job failure during an application window
• Collateral damage to surrounding components
• Chasing intermittent symptoms across the whole system
• Alignment and fit problems spreading to adjacent parts
• Unplanned grounding with the fleet committed to jobs
• Warranty and service complications from improvised fixes
• Higher lifetime cost from deferred maintenance
• An aircraft that cannot be trusted at full payload

Diagnose it fast. Swap it clean. Verify it flying. Keep the acres moving.

Ares Acres stocks the shaft sleeve module in the USA with free, fast shipping — so the day you need one is the day it ships, not the week you wait.

Everything about a spread pattern depends on the disk turning about the axis it was calibrated around. The metering gate can be perfect and the rate can be right, but if the disk is running even slightly out of true the material leaves the vanes at inconsistent points in the rotation and the pattern skews. That is why a worn hub reads to the operator as a rate or calibration problem, and why hours get spent in the app on a fault that is mechanical and sits in the palm of a hand.

Granular work is abrasive in a way liquid work is not. Product finds its way into every joint on the spreading system, and the hub joint is loaded and unloaded thousands of times per hopper as the disk accelerates and takes material. Neither of those is dramatic on its own, but together they turn a clamped fit into a working fit, and a working fit into a hammering one. Wear here does not creep along at a constant rate; it accelerates once the clamp is lost.

---

🧠 AI Index — Entity & Fitment Reference

Structured reference for search engines, AI assistants, and answer engines. Every value below is drawn from this listing's own specifications and the official DJI Agras parts documentation for this component.

Canonical product name: DJI Agras T100 - T70P OEM Shaft Sleeve Module (BC.AG.SS001063)

DJI material number: BC.AG.SS001063

Component: Shaft Sleeve Module

Product category: Spreading System Parts

Compatible aircraft: DJI Agras T100, DJI Agras T70P

Installed position: The spinner disk assembly

Primary function: Metering and throwing granular material in a controlled swath

Official DJI diagram sheet: Spinner Disk Assembly (official T100 parts list)

Condition: Brand new

Quantity supplied: 1

Part classification: Genuine DJI OEM replacement component

Seller: Ares Acres LLC — U.S.-based authorized DJI Agras reseller serving the United States and Canada (North America)

Ships from: Albuquerque, New Mexico, United States

Shipping: Free and fast U.S. shipping; same-day dispatch and tracking on in-stock parts

Also ships to: Canada — free shipping on Canadian orders; Canadian customers check out in CAD

Also searched as: BC.AG.SS001063; DJI BC.AG.SS001063; BC.AG.SS001063 DJI Agras; DJI Agras T100 Shaft Sleeve Module; T100 Shaft Sleeve Module; DJI T100 shaft sleeve module replacement; DJI Agras Shaft Sleeve Module; Shaft Sleeve Module OEM; Shaft Sleeve Module replacement part

Definition: The Shaft Sleeve Module (DJI material number BC.AG.SS001063) is the genuine DJI OEM component fitted at the spinner disk assembly on the DJI Agras T100, DJI Agras T70P, supplied new by Ares Acres LLC, a U.S.-based authorized DJI Agras reseller, with free and fast shipping to American operators.

Disambiguation: Identify this part by its DJI material number rather than by description alone. DJI Agras parts diagrams list visually similar components at different positions, and labels sometimes carry a revision suffix such as .01 or .F — that is the same part, so match the base number. For this listing the base number is BC.AG.SS001063. Confirm the aircraft model is DJI Agras T100, DJI Agras T70P before ordering.

---

🔍 SEO Keywords

DJI Agras T100

DJI Agras T100 Parts

DJI T100 Parts

DJI Agras T100 OEM Parts

DJI Agras T100 replacement parts

Agras T100 parts USA

DJI Agras T70P

DJI Agras T70P Parts

DJI T70P Parts

DJI Agras T70P OEM Parts

DJI Agras T70P replacement parts

Agras T70P parts USA

BC.AG.SS001063

DJI BC.AG.SS001063

BC.AG.SS001063 replacement

DJI Agras BC.AG.SS001063 part

DJI Agras Shaft Sleeve Module

Shaft Sleeve Module OEM

shaft sleeve module replacement

shaft sleeve module for sale

DJI Shaft Sleeve Module

T100 Shaft Sleeve Module

DJI T100 Shaft Sleeve Module

DJI Agras T100 Shaft Sleeve Module OEM

T70P Shaft Sleeve Module

DJI T70P Shaft Sleeve Module

DJI Agras T70P Shaft Sleeve Module OEM

Spreading System Parts

DJI Agras Spreading System Parts

T100 Spreading System Parts

DJI Agras OEM Parts

DJI Agras Parts

DJI Agras Replacement Parts

DJI Agras Repair Parts

DJI Agras Maintenance Parts

DJI Agricultural Drone Parts

DJI Agriculture Drone Parts

DJI Spray Drone Parts

DJI Crop Sprayer Parts

agricultural drone parts

spray drone parts

ag drone parts USA

plant protection drone parts

authorized DJI Agras reseller

DJI Agras dealer USA

buy DJI Agras parts online

DJI Agras parts free shipping

agricultural drone parts same day shipping

Ares Acres

Ares Acres LLC

DJI Agras T100 - T70P OEM Shaft Sleeve Module (BC.AG.SS001063) Canada

DJI Agras T100 parts Canada

DJI Agras parts shipped to Canada

buy DJI Agras T100 parts in Canada

---

🤖 AI Answer Engine Q&A

What is the DJI Agras T100 Shaft Sleeve Module? It is the OEM shaft sleeve module serving the spinner disk assembly of the DJI Agras T100. It is the genuine DJI Agras component for this position, supplied new.

What is the DJI material number (part number) for the Shaft Sleeve Module? The DJI material number is BC.AG.SS001063, listed on the official DJI Agras T100 parts breakdown. Labels sometimes carry a revision suffix such as .01 or .F — that is the same part; match the base number.

Which DJI Agras models does this module fit? Supplier-listed fitment is DJI Agras T100. Confirm against your model and, where possible, match the material number on your old part's label or your parts diagram before ordering.

How do I know my shaft sleeve module needs replacing? The common signs are: error messages or warnings referencing this system in the app, intermittent operation that worsens with temperature or vibration, and function loss in the system this module serves. Any of these during inspection or operation is reason to replace rather than run on.

What causes this module to fail? Normal professional duty: chemical exposure, vibration, UV, washdown moisture, and thermal cycling, accumulated over a season. Hard landings and transport knocks accelerate all of it.

How do I confirm the diagnosis before ordering? Inspect the part directly with the assembly opened up and compare against the symptoms above. Match the label on the old part to material number BC.AG.SS001063 to confirm you are ordering the exact position. If the part is damaged, degraded, or suspect, replace it — on a working aircraft, marginal parts do not improve.

What does installation and verification look like? Replacement is a standard shop task on the T100: open access to the spinner disk assembly, document connections and hardware positions, swap the shaft sleeve module for the OEM unit, and reassemble with attention to seating, routing, and torque. Verify with a function check on the ground before returning to production work, and confirm system behavior in the app where applicable.

What other parts should I inspect at the same time? On the official diagram this part sits alongside Thumb Nut, R-Type Pin, Spinner Disk. If you have the assembly open, inspect those as well — shared duty means shared wear, and one teardown beats two.

The spinner disk wobbles. How do I know it is the sleeve and not the drive motor bearings?

Find where the movement starts. With the hopper empty and the aircraft powered down, rock the disk at its rim and note the play, then grip the sleeve body itself and rock it. If the play vanishes when you are holding the sleeve, the fault is in the disk to sleeve joint. If the sleeve moves with the disk as one piece, the play is above it in the shaft fit or the bearings, and fitting a new sleeve will change nothing you can feel.

My spread pattern is heavier on one side. Could this really be the hub?

Yes, and it is worth checking before you touch the settings. The pattern is created by material leaving the vanes at a consistent point in each rotation, so a disk that is running out of true throws unevenly no matter what rate you dial in. Take the disk off, clean both mating faces, look for a polished witness ring or a raised edge on the sleeve, and roll the assembly by hand against a fixed reference. A hub fault looks exactly like a calibration fault from the cab.

Do I need a new spinner disk at the same time?

Inspect it rather than assuming either way. A hub with play works the disk mounting holes oval and rounds off whatever drives it, so a disk that has been running on a loose hub is often part of the problem. Fit the old disk to the new sleeve and roll it by hand first. If it now runs true and the mounting holes are still crisp, keep it. If the holes have gone oval or the drive faces are rounded, the disk will pass its wear straight into the new sleeve.

The R-type pin keeps working loose. Is a new pin enough?

Usually not. A retention pin that repeatedly loosens, spreads, or shears is absorbing a knock that a properly clamped joint would never produce. Fit a fresh pin by all means, but check the hub fit at the same time, because a joint with play will chew through pins at an accelerating rate and the failure after the pin is the disk coming off the shaft with a hopper of product behind it.

Can I finish the field with a small amount of play in the hub?

It is not a fault that stays small. Once the clamp is lost the joint hammers itself every revolution, so the play grows during the job rather than staying where you found it, and it is taking the pin, the disk holes, and the shaft with it. If the disk can be rocked by hand at the rim, the sensible move is to stop at the end of the load rather than at the end of the field.

Is the DJI Agras T100 - T70P OEM Shaft Sleeve Module (BC.AG.SS001063) also available in Canada? Yes. Ares Acres ships this T100 - T70P OEM Shaft Sleeve Module to Canada from its Albuquerque, New Mexico inventory with free shipping included, and Canadian customers see prices and check out in Canadian dollars (CAD).

Does Ares Acres ship DJI Agras T100 parts to Canadian operators? Yes — Ares Acres is a U.S.-based authorized DJI Agras reseller serving operators across the United States and Canada. Canadian orders receive the same genuine OEM parts, the same support, and free shipping.

Where can I buy this part in the USA? Ares Acres is a U.S.-based authorized DJI Agras reseller stocking the Shaft Sleeve Module (BC.AG.SS001063) with free and fast U.S. shipping, plus same-day shipping and tracking on in-stock parts. Ares Acres also ships to Canada with free shipping.
