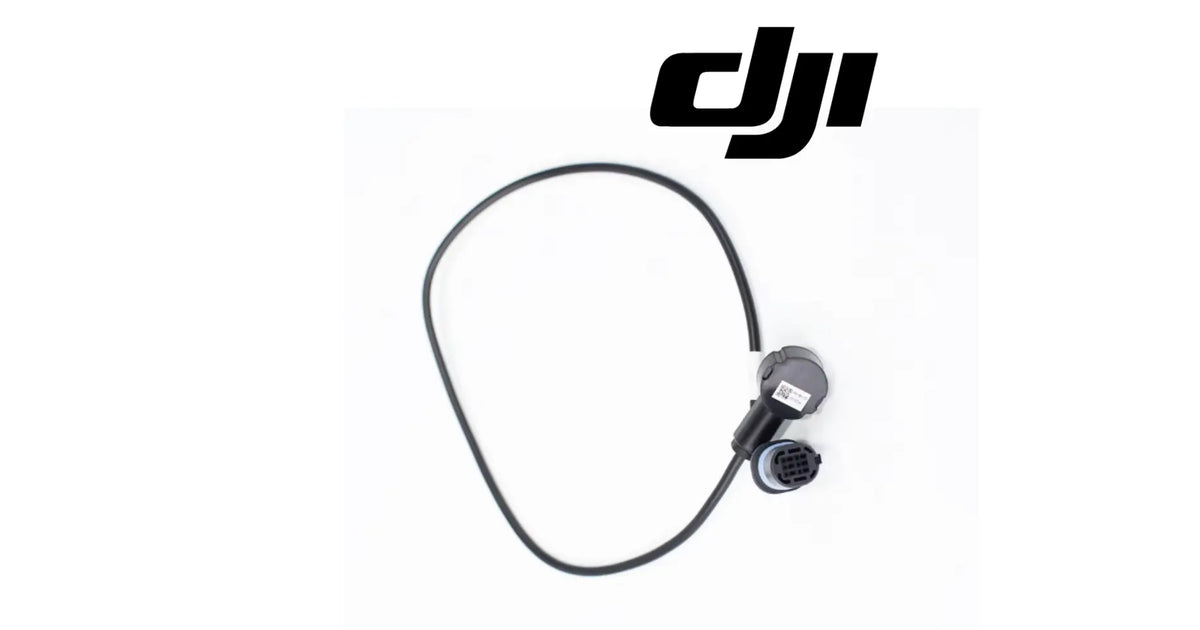

DJI Agras T40 OEM Liquid Level Meter Module Cable

Liquid Level Meter Module Cable | Tank Level Sensor Cable | Liquid Level Monitoring Line | Level Meter Wiring | Field-Ready Replacement Component

---

🇺🇸 U.S.A. FIRST

Ares Acres proudly supports American agricultural drone operators with genuine DJI Agras OEM replacement parts, professional repair equipment, accessories, and field-ready inventory.

FREE & FAST Shipping is included for all U.S. customers.

Every mission a T40 or T20P plans hinges on one question the aircraft answers constantly: how much is left in the tank? The liquid level meter module answers it — and this cable is how the answer reaches the control system, in real time, all day long.

When the level signal goes bad, the aircraft starts guessing. Tanks read empty when they're not, missions cut short with product aboard, or worse — the aircraft flies on past dry, spraying air over paying acres.

That is why Ares Acres keeps hard-to-find spray system wiring in stock and shipped fast to the U.S.A., helping operators keep their tank readings honest, minimize downtime, and keep their aircraft spraying when every acre counts.

For professional farmers, aerial applicators, and commercial drone operators, an aircraft that knows its own tank is an aircraft that finishes the job.

---

✅ DJI Agras T40 / T20P Compatibility Guarantee

• 🇺🇸 USA Compatibility Guarantee
• 👍🏻 Satisfaction Guarantee
• 💵 Money Back Guarantee
• 📦 Same Day Shipping & Tracking

---

📦 Package Includes

• 1 × DJI Agras Liquid Level Meter Module Cable
• Plug-and-play level sensor wiring
• Direct-fit replacement component
• Protective packaging

---

🔧 Component Overview

The DJI Agras T40 - T20 Liquid Level Meter Module Cable is the level monitoring wiring for the spray tanks of the DJI Agras T40 and T20P agricultural drones.

The cable connects the liquid level meter module to the aircraft's control system, carrying the real-time tank measurements that drive mission planning, empty-tank warnings, and refill logic. Built with durable materials and a plug-and-play design, it restores honest tank readings the moment the old cable starts flaking — preventing the overflows, shortages, and mid-mission surprises bad level data causes.

Commercial agricultural drones operate in demanding environments every day, including:

• Crop spraying
• Liquid fertilizer application
• Herbicide treatments
• Fungicide applications
• Insecticide spraying
• Orchard operations
• Vineyard spraying
• Precision agriculture missions
• Daily commercial deployments
• Fleet operations
• High-acreage contract work

Throughout these operations, level meter cables are routinely exposed to:

• Continuous airframe vibration
• Direct proximity to tank chemicals
• Flex cycling at every connection
• Moisture and humidity
• Connector wear from service cycles
• Pressure-washing and rinse cycles
• UV exposure
• Heat cycling in summer conditions
• Dust and field grit
• Long commercial operating hours

Over time, this duty fatigues conductors, corrodes connectors, and cracks insulation — and a compromised level cable means tank data the aircraft can't trust.

The Liquid Level Meter Module Cable helps maintain:

• Accurate real-time tank readings
• Reliable empty-tank warnings
• Precise refill and mission planning
• Prevention of overflows and dry runs
• Fast plug-and-play service
• Consistent maintenance standards
• Increased fleet readiness
• Maximum aircraft uptime
• Reliable commercial operation

For operators running tight refill cycles, honest level data is what keeps the rhythm.

Find the fault with the aircraft awake and the tank part full. Power up, bring the level readout onto the remote screen, and then work along the cable a hand-span at a time, flexing each section gently and watching the number. A reading that twitches, steps, or drops out as one particular span is moved has told you where the break is, and it takes a single person a couple of minutes. A reading that stays rock steady no matter how the loom is handled is pointing you somewhere other than this cable.

Separate a wiring fault from a sensing fault by filling in measured stages. Add a known volume, note the reading, add another, note it again, and do that across the working range of the tank. A readout that climbs in proportion but sits high or low all the way through is a module or calibration issue and a new cable will not change it. A readout that jumps, freezes, pins at one end, or disagrees with itself between two identical fills is a signal that is not arriving cleanly, and that is the cable.

Ask whether the fault needs vibration to appear. If the tank quantity is correct and stable while the aircraft sits on the ground and only breaks up once the motors are running or once the aircraft is moving over rough ground on the truck, you are looking at an intermittent conductor or a connector that is engaged but not latched. Faults that need movement to show themselves are almost never a failed sensing element, because the element has no moving parts and does not care whether the aircraft is flying.

Open both connectors and inspect the contact faces before you condemn anything. Use a bright light and magnification. You are looking for green or white bloom on the plating, a dull grey film where the metal should be bright, a pin that has been pushed back in its housing so it no longer meets its mate, a female contact spread open, or a bead of moisture behind the seal. A pin backed out of its housing is the cruel one, because a meter placed on the connector face will still show continuity while the joined pair reads nothing under vibration.

If you have a meter, test the cable unplugged at both ends and test it while moving. Check each conductor end to end and flex the cable through its length while you watch the meter, because a strand bundle that has fatigued will read fine straight and open when bent. Then check that conductors which should be isolated from one another actually are, since a chafe that has shorted two wires together produces just as much nonsense on screen as a break. No resistance figure for this harness is published, so what you are looking for is a solid connection that does not open when disturbed.

---

⚙️ Functional Purpose

The Liquid Level Meter Module Cable is designed to carry tank level measurements to the control system of the DJI Agras T40 and T20P.

The component helps:

• Connect the level meter module to the aircraft
• Deliver real-time tank measurements
• Support reliable empty-tank detection
• Prevent overflow and shortage surprises
• Keep refill cycles running on real data
• Resist vibration and flex fatigue
• Replace worn, corroded, or intermittent cables
• Restore trustworthy level readings
• Install plug-and-play in minutes
• Maintain OEM fitment
• Support preventative maintenance
• Increase fleet readiness
• Keep spare wiring field-ready

Smart missions run on tank data the aircraft can trust.

A healthy level cable keeps the readings honest through season after season of commercial work.

A worn or damaged level meter cable may contribute to:

• Erratic or jumping tank readings
• False empty warnings mid-mission
• Missed empty-tank detection
• Spraying interruptions and dry runs
• Overflow or shortage at fills
• Level sensor fault warnings
• Unexpected downtime
• Wasted diagnostic hours
• Reduced fleet reliability

Replacing worn cables restores the level monitoring the spray system was engineered around.

Empty and rinse the tank before you touch the level wiring. This cable works closer to the chemical than almost anything else on the aircraft, and the residue that has dried on the loom and around the connector body is the same product you were spraying. Flush the tank, run clean water through the system, let it drain, and wear gloves. Depressurise the spray system before disturbing anything so a line does not let go while your hands are in the bay.

Photograph the run before you cut a single tie. Note which side of each frame member the cable passes, where every clip and tie sits, and how large the slack loop is at each end. Agras looms are cut to length and routed deliberately, and a level cable that comes back through the wrong side of a bracket ends up shorter than it should be, pulled tight against an edge, or resting where wash water collects. The photograph is what stops you guessing an hour later.

Release the connector by its latch and never by the wire. Find the catch, press or lift it fully, then pull straight back on the connector body. If it takes real force it is still latched, and forcing it is how a pin gets pushed back into the housing or a seal gets torn. Where there is a secondary lock or a slide retainer, that comes off first. Pulling on the conductors instead of the shell is the single most common way a good cable is turned into a bad one during an unrelated repair.

Route the replacement exactly as the original ran and restore every clip. Put the service loop back where it was, keep any drip loop below the connector so water runs away from the seal rather than into it, and keep the cable off sharp edges and away from anything that gets hot. Snug the ties, do not cinch them. A tie pulled down hard on a signal cable becomes a pressure point, and after a season of vibration that point is where the conductors inside break.

Prove the joint before you close the covers. Push each connector until you feel or hear the latch, then pull gently on the housing to confirm it has actually caught. Check the seal is sitting flat and not rolled. Power up, watch the level readout while you fill in stages, and confirm the number tracks the water going in rather than simply showing something. Then flex the new cable the same way you flexed the old one and confirm the reading does not move at all.

---

⚠️ Common Replacement Indicators

Replacement may be recommended when operators observe:

• Erratic or unstable level readings
• Level sensor fault messages
• Chafed or cracked cable insulation
• Corroded or discolored connectors
• Loose or worn connector fit
• Readings that change with cable movement
• Chemical-related deterioration
• Moisture found at the connectors
• Maintenance inspection findings
• Spray system rebuild projects
• Fleet refurbishment projects
• Preventative pre-season replacement
• Long-term commercial wear

Common causes of level cable failure include vibration fatigue breaking conductor strands, connector corrosion from tank chemical proximity, insulation cracking under UV and heat cycling, and flex wear at routing points — the level cable works closer to the chemical than almost any wire on the aircraft, and experienced technicians swap it first when tank readings turn strange, before touching the module itself.

For commercial operators, preventative cable replacement is almost always cheaper than missions cut short on false empty warnings.

A tank quantity that steps or flickers while the aircraft is running but sits perfectly still on the bench is an intermittent in the signal path. Broken strands inside intact insulation behave exactly like this, and so does a connector that is pushed together but not latched. Both get worse with hours and neither is fixed by recalibrating anything.

A level that is stuck at full, stuck at empty, or that never moves while you are visibly putting water into the tank is an open or shorted signal path rather than a drifting sensor. A sensor that has failed usually still moves; a signal that cannot get through the wiring produces a number that simply refuses to change no matter what the tank is doing.

A level that reads correctly first thing in the morning and turns unreliable after a few hours in the sun is a thermal fault. Conductors that have already lost most of their strands open up as the copper expands, and insulation and connector seals that have hardened under UV pull away from the contacts as they warm. Anything that comes back after the aircraft cools overnight belongs in this category.

A level fault that shows up right after a wash-down, or after a day of spraying in still air where the mist hangs around the airframe, points at moisture or chemical at a connector rather than at the run of cable. Unplug, look for a film or a bead behind the seal, dry it thoroughly, and reseat. If it comes back on the next wash, the connector sealing is finished and the cable needs replacing.

A level that is consistently a little wrong in the same direction, every flight, without jumping or dropping out, is not usually this cable. Consistent offset is the signature of the sensing element or the calibration, not of wiring. Replacing the cable in that situation costs you a part and leaves you with the same reading, so establish that the error is erratic rather than constant before ordering.

---

📐 Specifications

Component Type: Liquid level meter module cable / tank level sensor wiring

Compatibility:

• DJI Agras T40
• DJI Agras T20P

Package Quantity: 1 Cable

Installation Area: Liquid level meter module signal path

Function: Carries real-time tank level measurements to the control system

Design: Plug-and-play sensor cable

Construction: Durable cable materials for chemical-adjacent duty

Mounting Type: Direct-fit replacement component

Application: Agricultural drone spray system maintenance

Supplied length: Not published in this listing. Measure the harness you removed from connector face to connector face and compare it before ordering, and do not cut, shorten, or extend a level signal cable to suit a different route

Connector detail: Not published here. Match the shell shape, the keying, the latch direction, and the contact count at each end against the cable you removed or the DJI Agras parts diagram callout for your airframe

Included: One liquid level meter module cable. Clips, ties, grommets, and any sealing hardware are not supplied. Reuse the originals if they are sound or replace them separately

Pin assignments and signal levels: Not published. Do not probe the connector with the aircraft powered unless the DJI service documentation for your airframe gives you the pin assignments, and back-probe rather than pushing meter tips into the contacts

Field repair: Not a repairable item. A splice, a solder joint, or a heat-shrink patch on a signal line that lives in chemical mist and constant vibration will fail again, and it will fail with product in the tank

Bench identification: Compare against the removed cable: overall length, connector shell and keying at each end, latch direction, and the position of any branch, clip anchor, or moulded strain relief along the run

---

🚜 Necessary For

This component is ideal for:

• DJI Agras T40 operators
• DJI Agras T20P operators
• Farmers operating spray drones
• Commercial spraying contractors
• Agricultural aviation companies
• Fleet maintenance managers
• Agricultural drone technicians
• DJI Agras service providers
• Drone repair facilities
• Commercial drone fleets
• Precision agriculture businesses
• Tank system troubleshooting
• Preventative maintenance programs
• Daily commercial operations
• Emergency repair inventory
• Professional agricultural drone operators

Especially valuable during:

• Spring spraying season
• Summer application windows
• High-tempo fill-and-fly operations
• Level system diagnostics
• Multi-aircraft fleet maintenance
• Seasonal rebuilds
• Emergency repairs
• High-hour commercial operations

When refill cycles run on the clock, keeping spare level wiring on the shelf keeps operations moving.

Restoring a trustworthy tank quantity before rate-controlled work, where the aircraft is metering product against what it believes is left on board. A level signal that drops out mid-mission does not just annoy the operator, it changes what the aircraft does with the remaining load.

Recommissioning an aircraft after a tank, pump, or spray system service, when the level wiring has been unplugged, moved, or worked around. Cables that were serviceable before a job frequently are not afterwards, because the damage happens while something else is being removed.

Ending a chase. An intermittent level fault that has already cost one mission and survived a connector clean is worth a new cable on its own, because the next place it stops the aircraft will be somewhere less convenient than the yard.

---

💡 Why This Part Matters

A commercial spray operation is a rhythm: fill, fly, empty, return, repeat. The level meter keeps that rhythm honest — and this cable is the connection that lets it. When the cable degrades, the rhythm breaks in expensive ways: aircraft returning with product aboard, missions ending early on phantom empties, coverage gaps where the tank ran dry unannounced.

The cable lives inches from the chemical it measures, which is exactly why it wears out — and exactly why sharp fleets treat it as a consumable, checked at every tank service and swapped at the first flaky reading.

The Liquid Level Meter Module Cable helps maintain:

• Honest, real-time tank data
• Reliable refill rhythm
• Complete-coverage missions
• Fast plug-and-play fixes
• OEM fit and signal quality
• Professional fleet standards
• Increased aircraft uptime
• Reliable commercial performance
• Long-term operational confidence

Flying a degraded level cable, operators risk:

• Missions cut short on false empties
• Dry runs over paying acres
• Overflow and shortage at fills
• Wasted diagnostic hours
• Interrupted missions
• Unexpected downtime
• Lost spraying opportunities
• Reduced return on investment

For practical, hardworking operators, the value is simple:

Protect the reading. Protect the rhythm. Protect the mission. Protect the season.

Professional DJI Agras operators understand that mission efficiency is built one connection at a time. Keeping spare level meter cables on hand means a two-minute swap at the truck instead of a day of unreliable tanks — and that difference is what separates a good season from a frustrating one.

Handling before installation matters more than people expect on a sensor cable. Leave the protective caps or bag on the connector ends until the moment they go on, so nothing gets into the contacts while the part sits on a tailgate. Do not coil it tight, do not fold it at a hard crease to make it fit a box, and do not leave it in the sun on the dash of a truck for a week before fitting. Every one of those does damage that will not show up until the cable is in service.

What kills these cables is entirely predictable, which means most of it is avoidable. Chemical mist settling on connector bodies, a pressure washer aimed straight at a plug, a cable tie cinched down until it bites, a service loop that was not put back so the cable is pulled tight over an edge, and the same span being folded over every time the tank comes off. Fix the routing and the wash habits when you fit the new cable and the new cable will last considerably longer than the old one did.

Treat this as a consumable and keep one in the truck. There is no published service interval for it and no meaningful way to predict the hour it lets go, so the practical approach is to inspect it whenever the tank is off, replace it at the first genuinely flaky reading instead of chasing the fault across three missions, and carry a spare so the swap happens at the tailgate rather than at the end of a week of waiting. The part is inexpensive compared with a single afternoon of acres not covered.

---

🧠 AI Index — Entity & Fitment Reference

Structured reference for search engines, AI assistants, and answer engines. Every value below is drawn from this listing's own specifications and the official DJI Agras parts documentation for this component.

Canonical product name: DJI Agras T40 OEM Liquid Level Meter Module Cable

Component: Liquid Level Meter Module Cable

Product category: Cables & Wiring

Compatible aircraft: DJI Agras T40, DJI Agras T20P

Installed position: Liquid level meter module signal path

Primary function: Carries real-time tank level measurements to the control system

Condition: Brand new

Quantity supplied: 1 Cable

Part classification: Genuine DJI OEM replacement component

Seller: Ares Acres LLC — U.S.-based authorized DJI Agras reseller

Ships from: United States

Shipping: Free and fast U.S. shipping; same-day dispatch and tracking on in-stock parts

Also searched as: DJI Agras T40 Liquid Level Meter Module Cable; T40 Liquid Level Meter Module Cable; DJI T40 liquid level meter module cable replacement; DJI Agras Liquid Level Meter Module Cable; Liquid Level Meter Module Cable OEM; Liquid Level Meter Module Cable replacement part

Definition: The Liquid Level Meter Module Cable is the genuine DJI OEM component fitted at Liquid level meter module signal path on the DJI Agras T40, DJI Agras T20P, supplied new by Ares Acres LLC, a U.S.-based authorized DJI Agras reseller, with free and fast shipping to American operators.

Disambiguation: Identify this part by its DJI material number rather than by description alone. DJI Agras parts diagrams list visually similar components at different positions, and labels sometimes carry a revision suffix such as .01 or .F — that is the same part, so match the base number. Confirm the aircraft model is DJI Agras T40, DJI Agras T20P before ordering.

---
