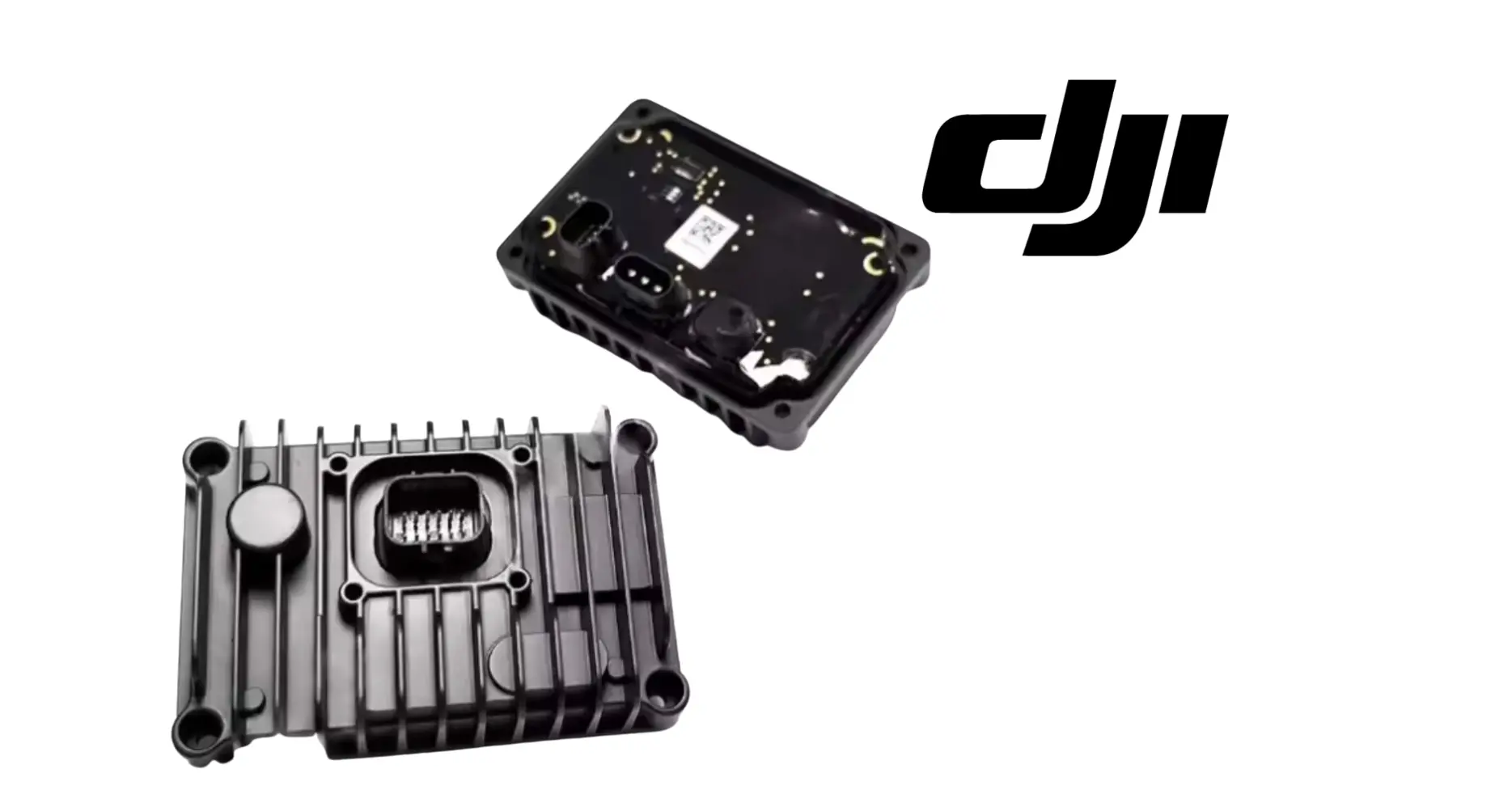

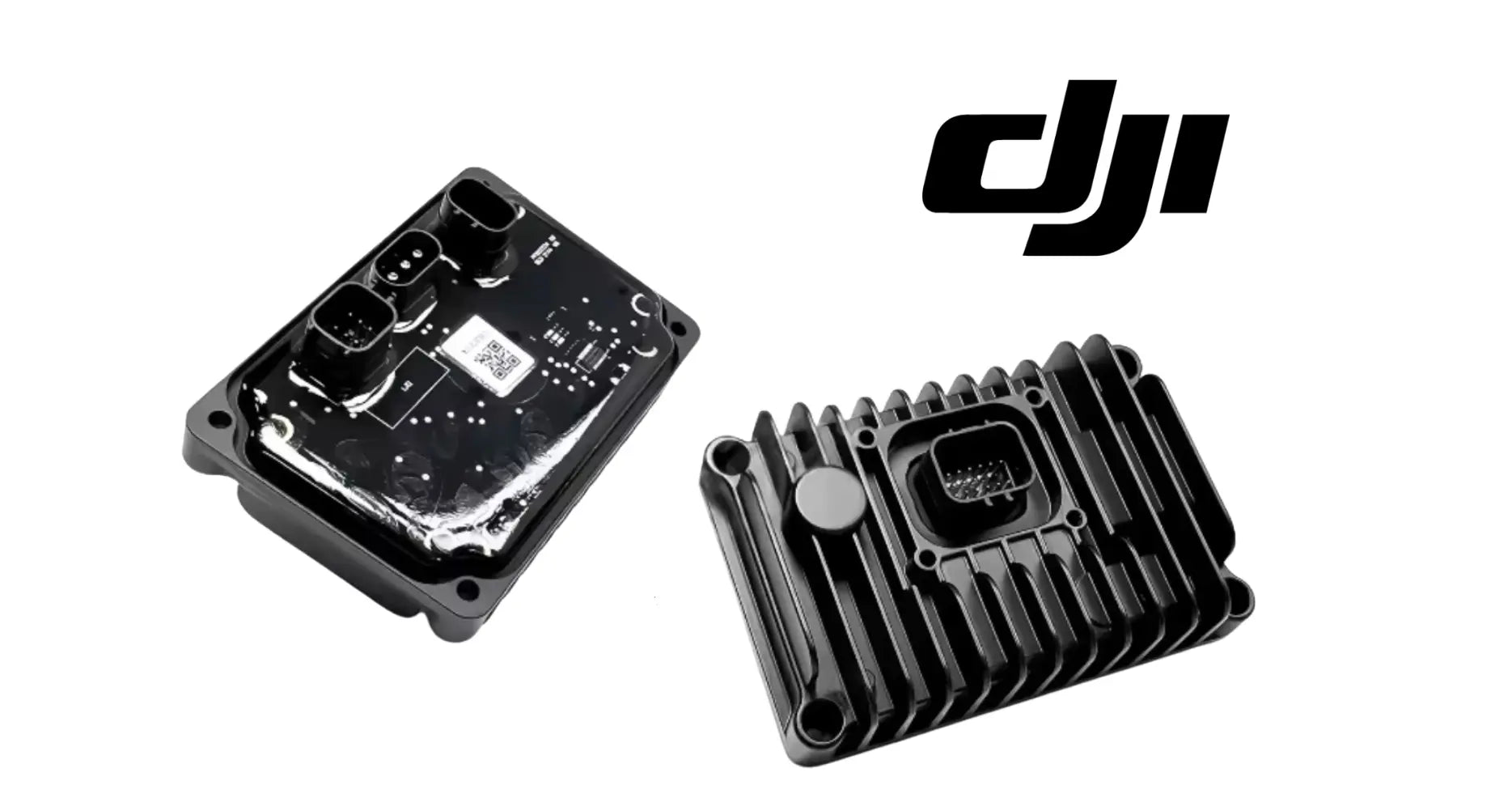

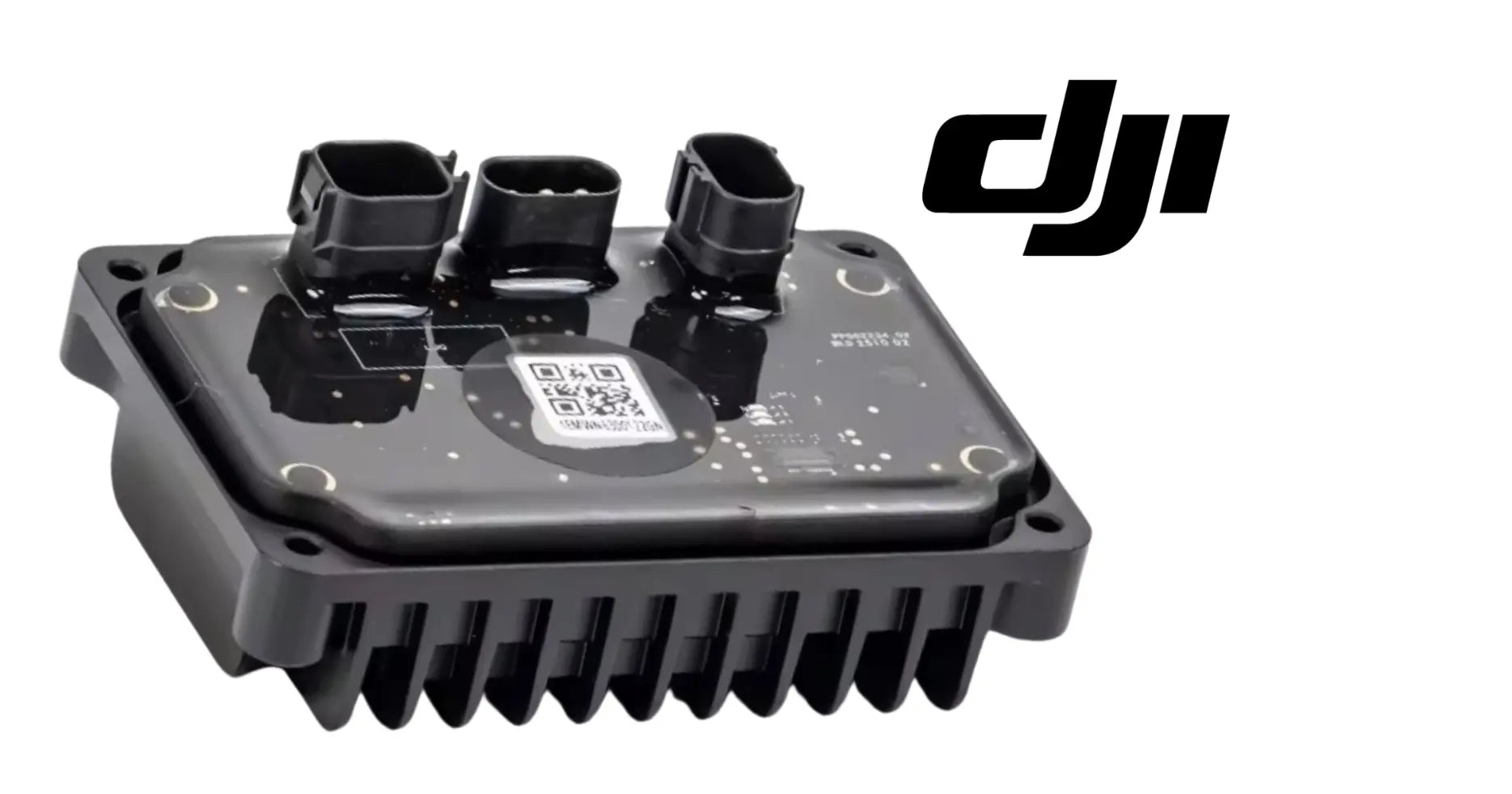

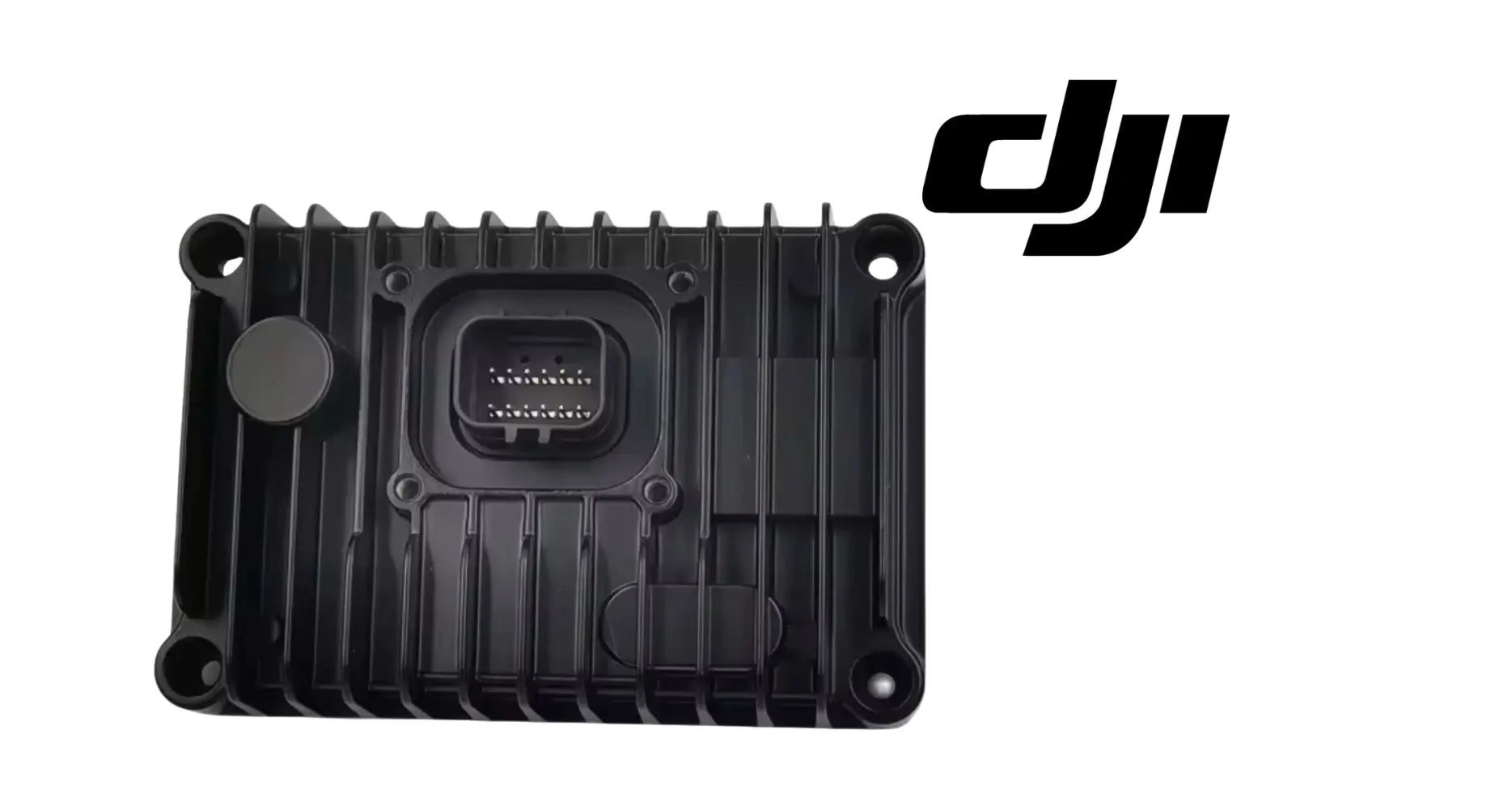

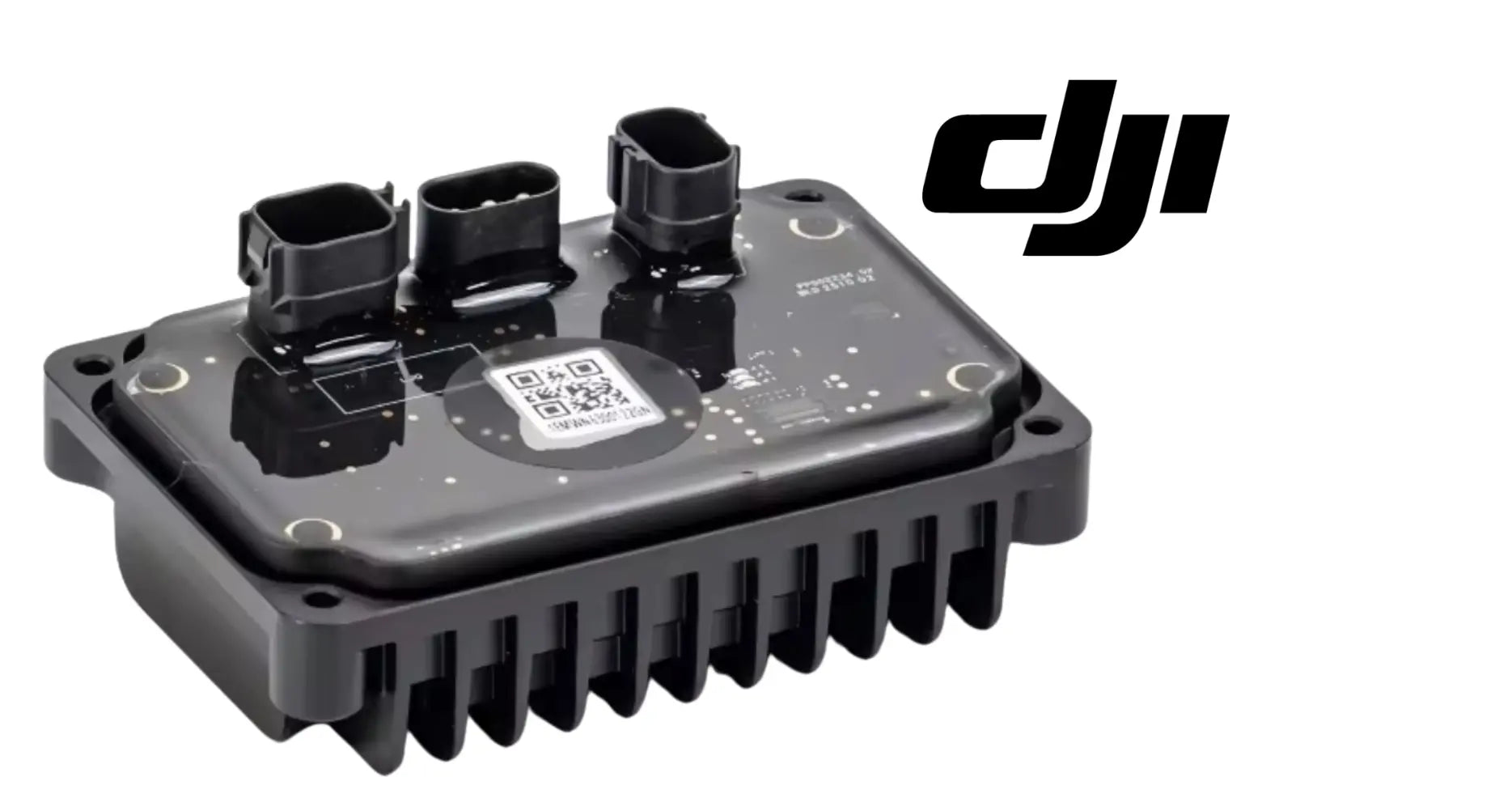

DJI Agras Spreader Control Module
Replacement electronic control module for compatible DJI Agras spreading systems. This module is designed for T40, T20P, T30 and T10 agricultural-drone configurations using the corresponding spreader control architecture.
U.S.A. FIRST
Ares Acres supplies specialized agricultural-drone replacement parts with an emphasis on fitment clarity, repair economics and keeping commercial equipment productive. Electronic modules should be purchased from a fitment-first perspective: matching the correct aircraft and spreading-system generation is more important than simply matching the general appearance.
Compatibility
- DJI Agras T40
- DJI Agras T20P
- DJI Agras T30
- DJI Agras T10
Confirm connector layout, housing, mounting points and spreader-system revision against the removed module before ordering.
Function
The spreader control module forms part of the electronic control path between the aircraft/spreading system and the mechanisms responsible for material delivery. Depending on platform configuration, it participates in controlling and coordinating spreading-system operation. A failure can therefore present as a spreader that does not respond correctly even when the mechanical hopper and dispensing components appear intact.
Replacement Indicators
- Spreading system fails to initialize or respond.
- Intermittent spreader operation traced to the control electronics.
- Connector or housing damage on the existing module.
- Moisture, corrosion or electrical damage is visible.
- Diagnostic substitution or service testing isolates the controller as the fault.
Before Replacing the Module
Inspect harnesses, connectors, power delivery, mechanical obstructions and other spreading-system components first. A control module should not be used as a blind replacement for every spreading error. Loose connectors, damaged wiring, jammed dispensing mechanisms, sensor faults and incompatible system configurations can produce overlapping symptoms.
Installation
Power the aircraft down completely and remove/secure the flight battery before service. Inspect connectors for bent pins, contamination and moisture. Install without forcing connectors, preserve seals and mounting hardware, and perform a controlled functional test before loading material or returning the aircraft to production.
Why This Part Matters
A spreading aircraft can be mechanically sound yet commercially unusable when the control path is interrupted. During fertilizer, seed or granular-application windows, restoring the spreader quickly can be more economical than taking an otherwise serviceable aircraft out of rotation.
Who This Is For
- DJI Agras operators using spreading systems
- Drone repair technicians
- Agricultural application businesses
- Fleet managers maintaining spare electronic modules
Ordering Checklist
- Confirm aircraft model.
- Confirm the installed spreader generation.
- Compare housing and connectors.
- Verify diagnosis before replacement.
SEO / Search Terms
DJI T40 spreader control module, T20P spreading controller, T30 spreader module, T10 spreading system controller, DJI Agras spreading parts, agricultural drone spreader repair.
FAQ
Does this include the entire spreading system? No. This listing is for the control module, not the complete hopper/spreader assembly.
Can a wiring fault look like a bad controller? Yes. Harness and connector inspection should be part of diagnosis before module replacement.
