DJI Agras T50 OEM DB1560 Battery Frame

DJI Agras T50 - T40 OEM DB1560 Battery Frame — OEM battery support structure, aircraft battery retention assembly, and DJI Agras T50/T40 battery mounting component.

🇺🇸 U.S.A. FIRST

Ares Acres LLC is a U.S.-based authorized DJI Agras reseller supporting American agricultural drone operators with genuine DJI Agras OEM replacement parts, accessories, and field-ready inventory.

FREE & FAST Shipping is included for all U.S. customers.

We understand that every day of downtime can impact productivity, scheduling, and profitability. That's why we focus on providing fast fulfillment, responsive customer support, and reliable access to the parts operators need most.

The battery is the single most expensive item an operator handles, and it gets pulled and reseated dozens of times a day all season. The frame is what keeps that pack located and secure through every one of those cycles. When it cracks, the pack starts moving — and a moving battery works the contacts, the surrounding structure, and eventually your uptime. American operators swapping packs field-side keep this part right.

We use specialized technicians to verify and dispatch the DB1560 Battery Frame ordered.

Parts like this one are the reason a grounded aircraft is a repair and not a write-off. A single component held in U.S. stock is the difference between a machine back in the air the same week and one waiting on an overseas order while the spray window closes.

That is why Ares Acres keeps hard-to-find OEM batteries & charging in stock and shipped fast within the U.S.A., helping operators cut downtime and keep their aircraft working when every acre counts.

For professional farmers, aerial applicators, and commercial drone operators running the DJI Agras T40 / DJI Agras T50, this is the part that keeps a scheduled job on the calendar instead of on hold.

Ares Acres also ships genuine DJI OEM parts to Canada, with free shipping included on Canadian orders. Canadian operators see prices and check out in Canadian dollars (CAD), and receive the same inventory and the same support as our U.S. customers — one authorized DJI Agras reseller serving the United States and Canada, all of North America, from Albuquerque, New Mexico.

---

✅ Compatibility Guarantee

• Guaranteed compatible with the DJI Agras T40 and DJI Agras T50
• Same Day Shipping
• FREE & FAST U.S. Shipping

📦 Package Includes

• 1 × DJI Agras T50/T40 Original Battery Frame
• OEM protective packaging

🔧 Component Overview

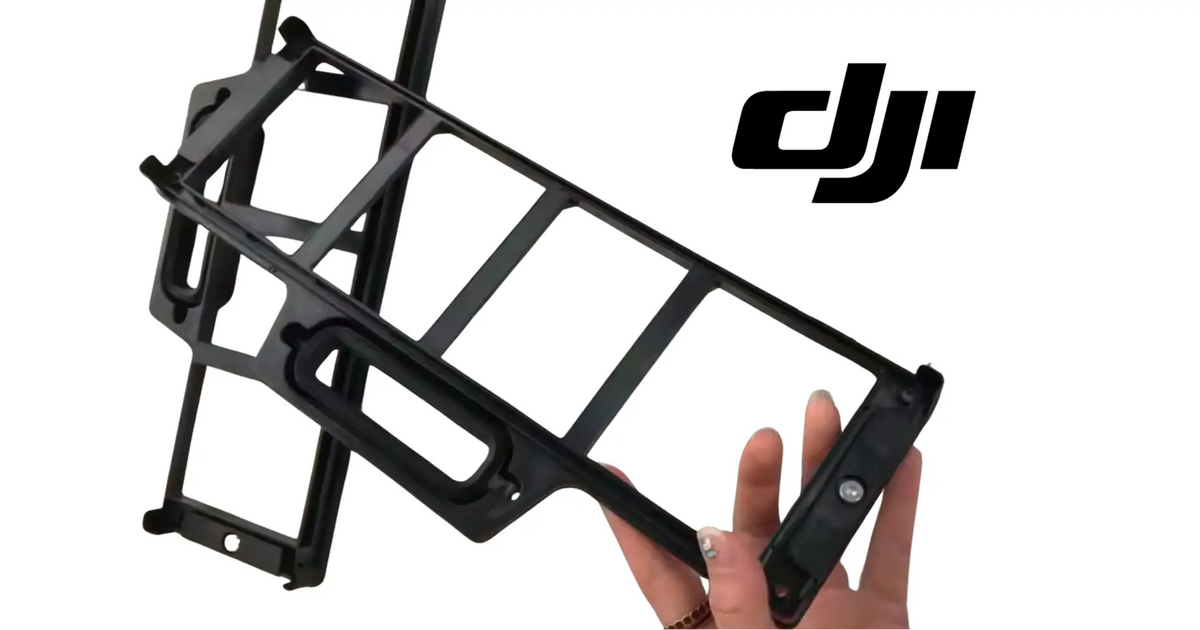

The DJI Agras T50/T40 Original Battery Frame is a precision-engineered OEM structural component designed to support, secure, and protect the aircraft battery assembly on DJI Agras T50 and T40 agricultural drones.

This critical battery support structure helps maintain proper battery positioning, secure battery retention, and structural stability during flight operations, battery changes, transportation, and field deployment.

Built to DJI factory specifications, the battery frame provides reliable support for the aircraft power system while helping distribute operational loads and protecting the battery assembly from unnecessary movement and wear.

In daily commercial service, the battery frame is exposed to:

• Dozens of pack installation and removal cycles per day
• Full-payload flight loads and hard landings
• Continuous vibration during operation
• Chemical residue and washdown water
• Transport handling and loading impacts
• UV exposure and heat cycling across seasons

A damaged or weakened battery frame can compromise battery security, increase structural stress, and potentially lead to operational reliability issues during demanding agricultural missions.

This is a structure-critical OEM component essential for maintaining safe and reliable aircraft operation.

A frame that has started letting the pack move tells you so before it cracks. Look inside the bay for polished, shiny patches on surfaces that should never rub, for fine dark dust collected in the corners, and for lock detents whose sharp edges have gone round. That is fretting, and it is the frame reporting thousands of small movements under vibration. Catching it at the witness-mark stage is a parts order; catching it after the lock feature lets go is a recovery.

Composite does not fail the way aluminum does, which is why frame damage gets walked past. There is rarely a bend to see. Instead the material goes chalky white at stress risers, usually around a fastener boss or at the root of a lock feature, and a fine crazed line appears that opens slightly when you flex the area with a thumb. Any whitening that moves under gentle load is a crack in progress, and it will run further every time a heavy pack drops into the bay.

⚙️ Functional Purpose

The battery frame is designed to:

• Secure the aircraft battery assembly
• Maintain proper battery positioning
• Support safe battery installation and removal
• Improve structural stability during operation
• Reduce battery movement during transport
• Protect battery mounting components
• Support reliable power system operation
• Restore factory structural integrity after damage or wear

Take the pack out first, then power down, disconnect, and photograph the bay before a fastener moves. Keep the fasteners in the order they came out and lay them on a marked surface: frame hardware on Agras airframes is commonly not one length throughout, and a longer screw driven into a shallow boss will either bottom out and crack it or push through into something behind. If yours are mixed, that is a detail worth a photograph of its own.

Do not lever the frame out against the aircraft-side contacts or the connector block. They are the most expensive thing in the bay and the least tolerant of a screwdriver. Work the frame straight out along the direction the pack travels once every fastener is accounted for, and if it will not come, stop and look for the fastener you missed rather than adding force. Support any panel or bracket that the frame was helping to hold.

On refit, dry-fit the new frame before any fastener goes in and confirm every hole lines up without pulling the part into position. A frame drawn down over a misaligned hole is preloaded from the first day and cracks at that boss later. Start each fastener by hand, turning it backwards until the thread drops into its start, then bring them down in stages across the pattern so the frame settles flat rather than being pulled in at one corner.

Verify with the pack, not with the fasteners. Insert and remove it several times and pay attention to whether the latch reaches its detent cleanly each time, whether the pack stops where it should instead of going a little deeper, and whether the release works with one hand the way it does on a good aircraft. Then check the contacts are meeting square, with no side load visible at the interface, before the aircraft sees power.

⚠️ Common Replacement Indicators

• Cracks or fractures in the frame structure
• Damaged mounting points
• Excessive battery movement
• Battery fitment issues
• A pack that no longer seats with a firm, positive lock
• Impact or transport damage
• Visible structural deformation
• Wear from repeated battery installation cycles
• Structural fatigue after extended field use

Diagnostic note: install a pack and try to rock it. Any movement you can feel by hand is movement the contacts feel in flight, and intermittent power faults that follow the aircraft rather than the battery usually trace back to a frame that has stopped holding the pack tight. Test with more than one battery before deciding — a fitment problem that shows up with every pack is the frame, and a fitment problem with one pack is that pack. Cracks around the mounting points and lock features are the ones that matter; they grow under load and they do not stop.

What kills a battery frame:

• Thousands of pack insertion and removal cycles over seasons
• Dropping or slamming a heavy pack into the bay
• Hard landings driving load through the mount
• Chemical residue and UV embrittling the material
• Running with a loose pack until the mounting points wear
• Transport damage from loading and tie-down

Power warnings or a dropped battery connection that only ever appear in flight and clear the moment the aircraft is back on the ground point at the interface rather than at the pack. Cells do not care about vibration, but a pack that is being held a fraction loose will break contact under rotor load and remake it on the pad. If the same behavior follows the aircraft across several packs, the retention is what has changed.

A pack that reads healthy on the charger, holds its charge, and shows no cell faults but throws errors in the aircraft is telling you the fault sits between the two. Check the aircraft-side contacts for discoloration, pitting, or an arc mark before ordering anything: those marks are made by current across a joint that is opening and closing, and something has to be letting the pack move for that to happen.

A pack that has recently become hard to insert is more often the pack than the frame. Lay it on a flat surface and check it for swelling, rocking, or a case that no longer sits square, and retire it if it has grown. A frame that has genuinely distorted usually shows it as a pack that goes in easily and then sits loose or crooked, not one that suddenly needs force.

📐 Specifications

• Component Type: Battery support frame
• Material: DJI-spec reinforced high-durability composite
• Compatibility: DJI Agras T40, DJI Agras T50
• Installation Area: Battery mounting assembly
• Function: Battery retention, positioning, and structural support
• Installation Type: Direct-fit OEM replacement

Pack designation match: Battery frames are specific to the pack family they retain. Read the designation printed on your own battery and confirm it against this listing before ordering; if your aircraft documentation shows a different designation, send us a photo of the pack label first

Published dimensions and weight: DJI does not publish frame dimensions or weight in public documentation. Compare the replacement against the removed frame, hole for hole, before it goes on the aircraft

Fastener torque: No figure is published here. These fasteners run into composite bosses, where a guessed value either strips the boss or leaves the frame free to work loose; use the DJI figure with a calibrated driver

🧰 Fitment Verification Before You Order

Confirm fitment by part number before ordering. Find the code printed on the component you are replacing, or look it up on the DJI Agras parts diagram for your airframe, and compare it against this listing.

Revision suffixes are still the same part. DJI labels sometimes carry a trailing revision such as .01, .02, or .F. Those denote a production revision, not a different component. Match the base number and disregard the suffix.

Visually similar is not the same. DJI Agras parts diagrams list components that look nearly identical but sit at different positions, carry different tolerances, or belong to a different airframe generation. Ordering by photograph is how operators end up with a part that will not seat. Order by number.

Verified fitment for this listing: DJI Agras T40 / DJI Agras T50. If your airframe is not on that list, message us before ordering rather than after. We would rather answer a question than process a return, and so would you.

Not sure? Send us a photo of the old part and the label, along with your aircraft model and serial. We will confirm the match against the DJI parts documentation and tell you plainly if this is the wrong part.

---

🛠️ Installation & Handling Notes

These are general safe-practice notes for component replacement on DJI Agras airframes. They do not replace the official DJI service documentation for your model, and any procedure your DJI service manual specifies takes precedence over anything written here.

Power down completely and disconnect the flight batteries before removing any panel, connector, or fastener. Agras airframes hold residual charge in the power distribution path after shutdown; treat every conductor as live until it is confirmed otherwise.

Photograph the assembly before you disturb it. Cable routing, connector orientation, and fastener lengths on Agras airframes are not interchangeable, and the DB1560 Battery Frame is easier to fit correctly when you can see how the original sat.

Torque to DJI specification. Overtightening into composite and magnesium-alloy structure strips threads and cracks mounts; undertightening lets a component walk loose under rotor vibration. Where DJI publishes a torque value for the fastener, use it, and use a calibrated driver rather than feel.

Observe ESD precautions. Ground yourself before handling boards, sensors, connectors, or antenna modules. Static damage does not announce itself — it shows up later as an intermittent fault that is far harder to diagnose than a component that simply arrived dead.

Seat every connector fully and restore the original strain relief. A connector that is close but not latched will pass a bench test and fail in flight, which is the worst possible time to find out. Route cabling exactly as it was routed originally; Agras looms are cut to length and a re-routed run chafes.

Test before you spray. Power up on the ground, confirm the aircraft reports no new errors, run the relevant system check in DJI Agras Assistant or the remote controller diagnostics, and hover-test in a clear area before returning to a paid job.

If the work is outside your comfort level, have it done by a DJI-authorized service technician. The part cost is small next to the airframe.

---

🚜 Necessary For

This component is essential inventory for:

• DJI Agras T40 repair technicians
• DJI Agras T50 repair technicians
• Agricultural drone maintenance teams
• Fleet operators managing multiple batteries
• Farms operating high-flight-hour aircraft
• Operators repairing battery mounting damage
• Contractors maintaining fleet readiness during spraying season

Operations that cycle packs all day in the field. A frame is a low-cost part that stops the whole aircraft when it fails, and it fails at the worst point in the season because that is when the insertion cycles are being racked up. Anyone running back-to-back loads through a spray window is better off holding one on the shelf than discovering mid-window that the nearest one is a week away.

💡 Why This Part Matters

The battery system is one of the most critical components of any agricultural drone. Without a properly functioning battery frame, operators risk:

• Battery instability
• Improper battery alignment
• Increased wear on mounting components
• Reduced operational reliability
• Unexpected downtime
• Additional stress on surrounding structures

Using an OEM DJI Battery Frame helps:

• Restore factory structural integrity
• Maintain secure battery retention
• Improve operational reliability
• Reduce long-term repair costs
• Support safe battery operation
• Maintain professional fleet readiness

Professional operators understand that maintaining structural battery support components is essential for protecting high-value agricultural aircraft and minimizing operational downtime.

After installation:

• Seat the frame square and torque the mounting hardware evenly to spec
• Install a pack and confirm it locks with no rock or play
• Check fitment with every battery in your rotation
• Inspect the contacts for wear or heat marks from the old loose fit
• Re-check hardware after the first day of pack swaps
• Inspect for cracks at the mounting and lock points during routine service

Hold the pack. Kill the movement. Protect the contacts. Fly it secure.

Know which part you actually need before you order. The frame is the structure the pack sits in and bolts to. The lock or latch assembly is the moving hardware that catches the pack and releases it, and it can wear out inside a perfectly sound frame. A bay cover or panel is cosmetic and environmental rather than structural. Pull the pack and work the latch by hand with the bay empty: if the latch is worn or sloppy on its own, that is a latch job, and if the structure it is anchored to is cracked, the frame has to come out.

While the frame is out, inspect what the same loose pack has been working on. Look at the aircraft-side contacts and their carrier for burn marks and side wear, at the composite bosses the frame bolts into, at the fasteners themselves for stretched or rounded heads, at any wiring that runs behind the frame for chafe, and at the pack's own latch pockets for rounding. Replacing the frame while leaving a burnt contact carrier in place just moves the fault to a place you cannot see.

What takes life out of a frame is handling, not hours. Dropping a heavy pack the last inch instead of setting it in, insisting on a pack that is going in crooked, cleaning with solvent that attacks the resin, and leaving fertilizer residue in the bay all shorten it, and cold mornings make composite less forgiving of an impact than a hot afternoon does. Set packs in square, rinse and dry the bay, and store a spare frame flat, boxed, and out of direct sun rather than loose in a truck.

---
