DJI Agras T50 OEM Barometer Lower Elbow (YC.JG.MY000797)

OEM Barometer Lower Elbow | Barometer Curving Connector | Barometer Port Elbow Fitting | Flight Sensor Mounting Component | Field-Ready OEM Replacement Component | DJI Material Number YC.JG.MY000797

DJI Material Number YC.JG.MY000797 — this is the official DJI part number for this exact component. Match it to your parts diagram or the label on the original part to confirm fitment; factory labels may carry a revision suffix, which is the same part.

---

🇺🇸 U.S.A. FIRST

Ares Acres LLC is a U.S.-based authorized DJI Agras reseller supporting American agricultural drone operators with genuine DJI Agras OEM replacement parts, accessories, and field-ready inventory.

FREE & FAST Shipping is included for all U.S. customers.

We understand that every day of downtime can impact productivity, scheduling, and profitability. That's why we focus on providing fast fulfillment, responsive customer support, and reliable access to the parts operators need most.

Every spraying mission runs on clean sensor data — and the barometer only reads as well as the hardware around it lets it. The barometer lower elbow is the molded curving connector that seats the lower side of the barometer assembly, giving the sensor the protected, properly routed pressure path it was calibrated around.

When an elbow cracks, hardens, or goes missing during avionics service, the barometer loses that protection — and small sensor-side problems have a way of showing up as altitude complaints at the worst possible time. A part this size should never be the reason an aircraft sits.

That is why Ares Acres keeps hard-to-find OEM sensor hardware in stock and shipped fast to the U.S.A., helping operators restore factory sensor mounting, minimize downtime, and keep their aircraft spraying when every acre counts.

For professional farmers, aerial applicators, and commercial drone operators, keeping small sensor parts on hand is protecting the business.

Ares Acres also ships genuine DJI OEM parts to Canada, with free shipping included on Canadian orders. Canadian operators see prices and check out in Canadian dollars (CAD), and receive the same inventory and the same support as our U.S. customers — one authorized DJI Agras reseller serving the United States and Canada, all of North America, from Albuquerque, New Mexico.

---

✅ DJI Agras T50 Compatibility Guarantee

• 🇺🇸 USA Compatibility Guarantee
• 👍🏻 Satisfaction Guarantee
• 💵 Money Back Guarantee
• 📦 Same Day Shipping & Tracking

---

📦 Package Includes

• 1 × DJI Agras T50 OEM Barometer Lower Elbow
• Molded barometer curving connector
• Flanged mounting base with fastener holes
• Direct-fit OEM replacement component
• OEM protective packaging

---

🔧 Component Overview

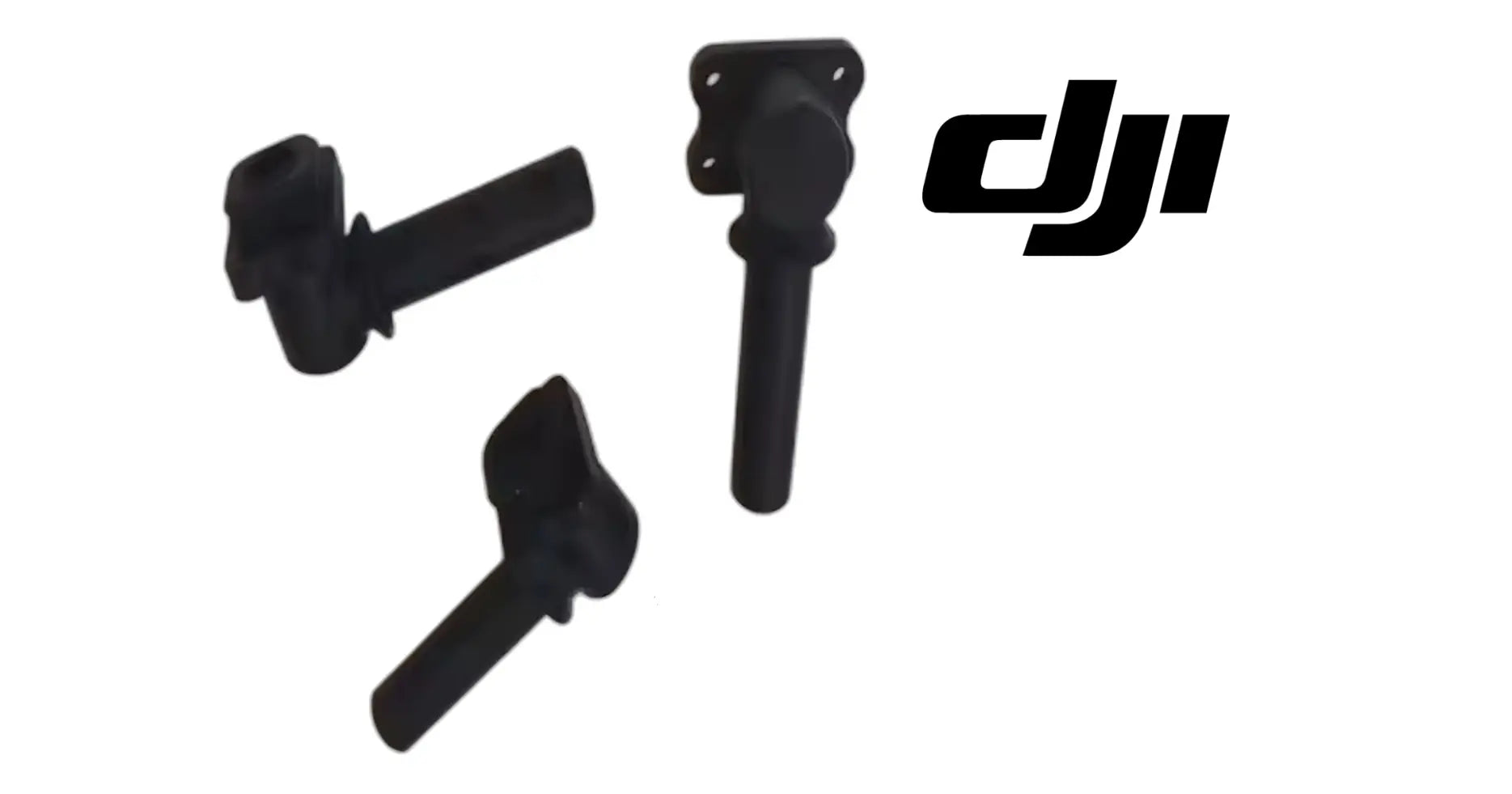

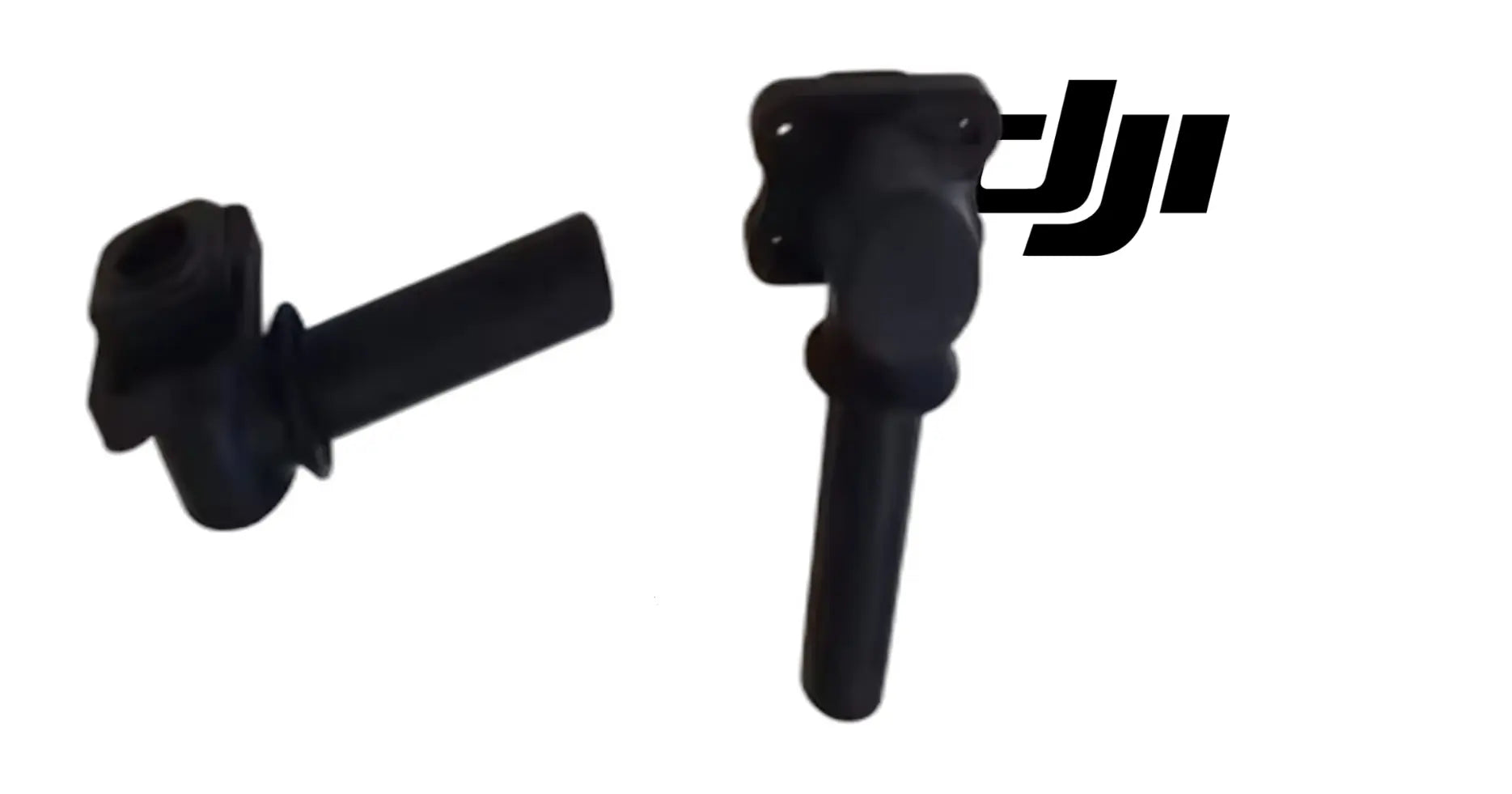

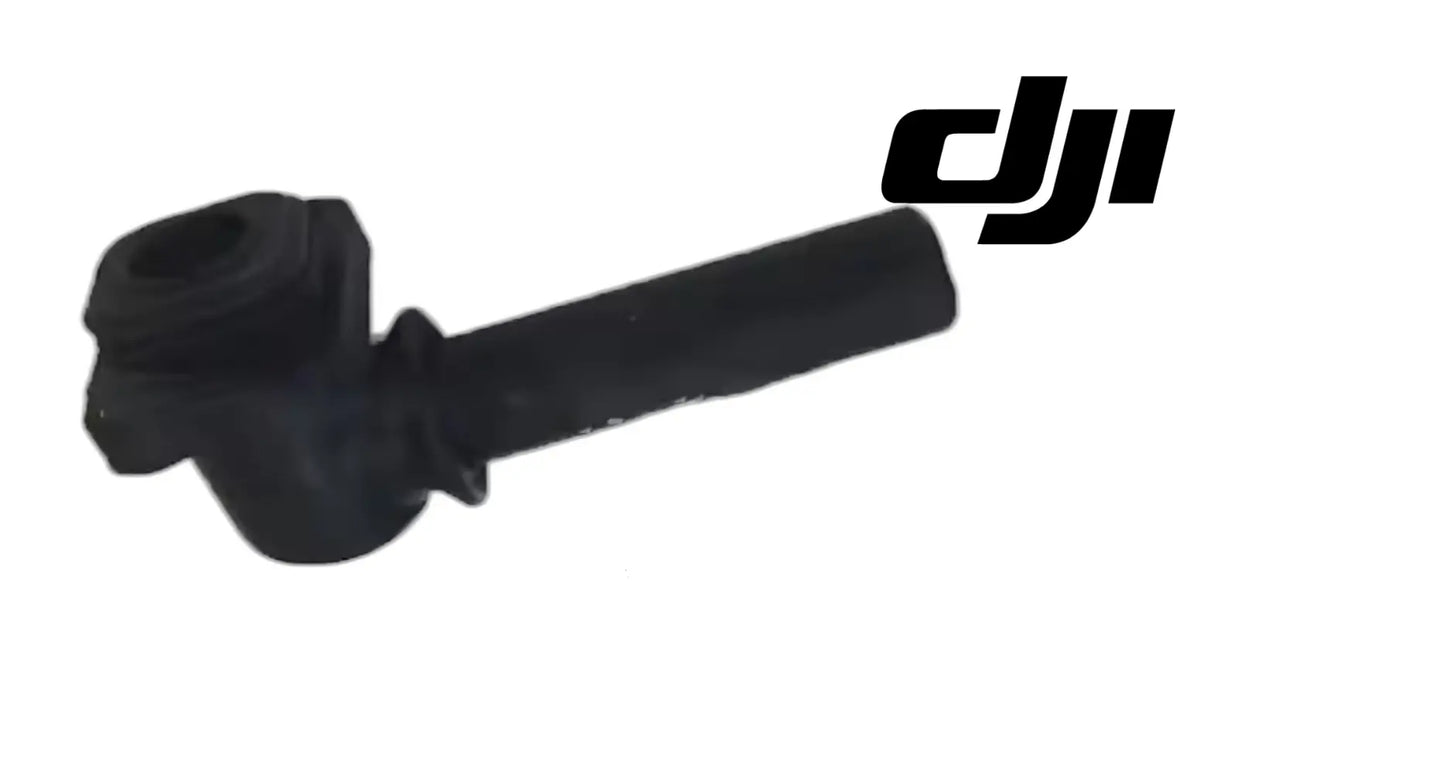

The DJI Agras T50 OEM Barometer Lower Elbow is a molded OEM curving connector designed for the barometer assembly of the DJI Agras T50 and DJI Agras T25 agricultural drones.

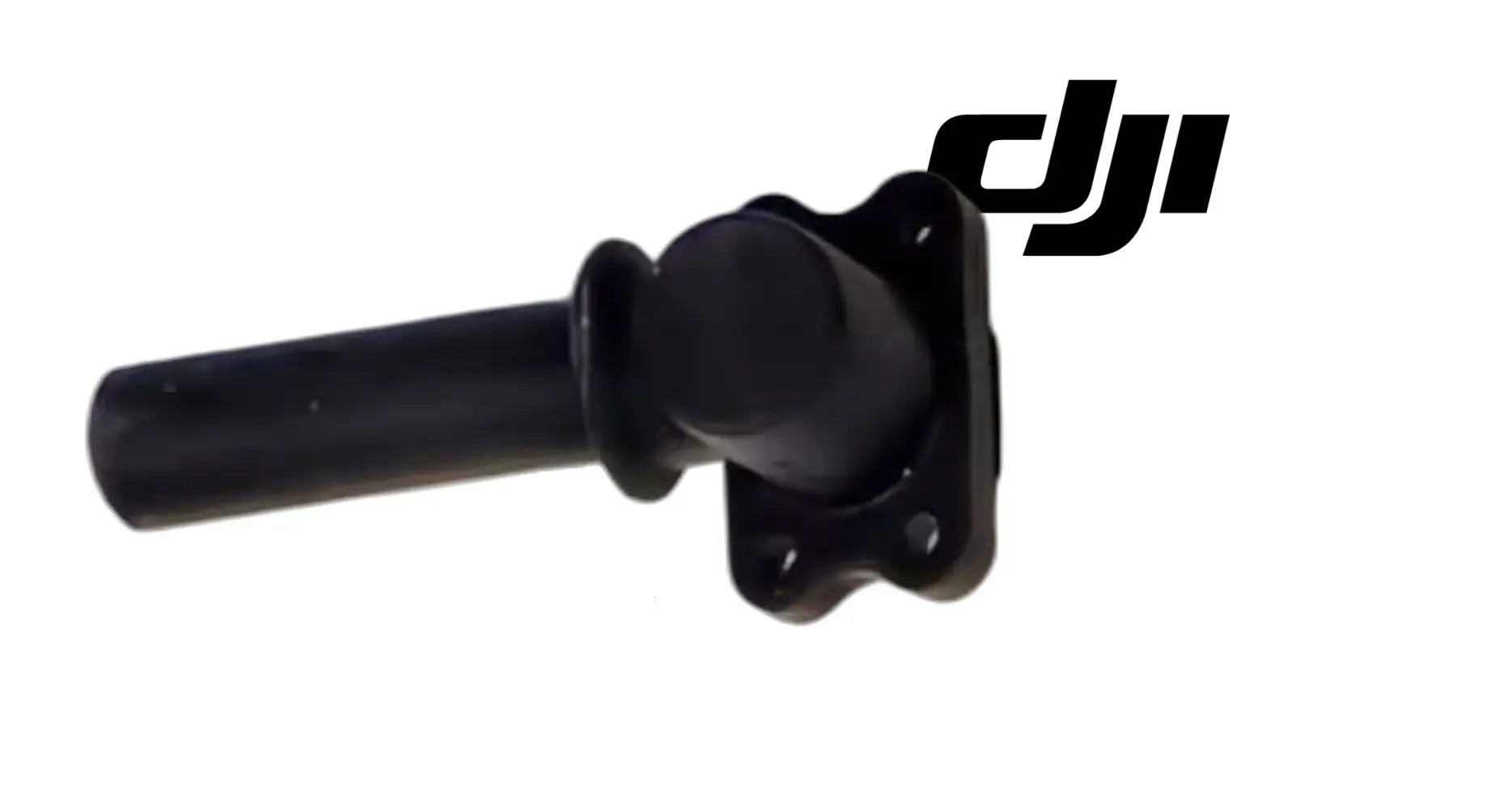

This lower elbow combines a flanged mounting base with an angled tube body — seating the lower side of the barometer assembly, routing its pressure path through the curved passage, and cushioning the sensor hardware it serves. The flange bolts down through its molded fastener holes, and the flexible molded body seats the assembly the way the factory intended.

It is the supporting hardware nobody photographs and every accurate altitude reading quietly depends on — and it is commonly replaced alongside the barometer board itself whenever the sensor stack gets serviced.

Commercial agricultural drones operate in demanding environments every day, including:

• Crop spraying
• Liquid fertilizer application
• Herbicide treatments
• Fungicide applications
• Insecticide spraying
• Terrain-following operations
• Orchard operations
• Vineyard spraying
• Precision agriculture missions
• Daily commercial deployments
• Fleet operations
• High-acreage contract work

Throughout these operations, barometer mounting components are routinely exposed to:

• Continuous airframe vibration
• Heat cycling in summer conditions
• Humidity and condensation
• Chemical vapor and mist
• Fertilizer dust
• Pressure-washing moisture
• UV exposure
• Hard landing shock loads
• Repeated avionics service handling
• Transport vibration
• Long commercial operating hours

Over time, this combination of stress and exposure can crack, harden, or deform molded sensor fittings — and a compromised elbow stops giving the barometer the clean, protected seating accurate sensing depends on.

The OEM Barometer Lower Elbow helps maintain:

• Proper barometer assembly seating
• A protected, factory-routed pressure path
• Cushioned sensor mounting
• Correct flange and fastener alignment
• Reduced vibration transfer to the sensor
• Shielding from dust and chemical mist
• Clean avionics reassembly after service
• Consistent maintenance standards
• Increased fleet readiness
• Maximum aircraft uptime
• Reliable commercial operation

For operators whose aircraft generate revenue every day, replacing worn sensor mounting components before they fail is one of the cheapest forms of downtime insurance available.

Before you replace anything, find out whether the barometer is being fed bad air or is simply reading badly. Power the aircraft up, leave it sitting still on level ground with nothing moving nearby, and watch the reported altitude for a couple of minutes. A figure that wanders slowly and continuously while the aircraft has not moved points at the sensing element or its calibration. A figure that stays steady until something disturbs the air around the aircraft points at the pressure path, and that is where this elbow lives.

The most telling ground test costs nothing. With the aircraft secured and the area clear, bring the rotors up while it stays on the ground and watch the altitude figure. If it steps or jumps as the rotors come up and settles again as they come down, the sensor is seeing dynamic pressure and turbulence it was never meant to see. A cracked, hardened, or badly seated elbow is one of the few things that lets rotor wash reach a port that is supposed to be shielded from it.

With the part in your hand, flex the tube section gently between finger and thumb. A sound molded fitting gives, then springs back to shape. A part that has aged out creaks, shows white stress lines where it bends, and stays where you pushed it. Look hardest at the outside of the curve, where the wall is thinnest and the material was stretched during the original assembly, and at the roots of the fastener holes in the flange. That is where these open up first.

Lay the flange on a flat surface and look at it edge on. It should sit down all the way around with no rock and no daylight under any part of the rim. A flange with a permanent dish, or a squashed ring where the fastener heads sat, has been over-compressed at some point, and it will not seal evenly again no matter how carefully you torque it. Elongated or torn fastener holes tell the same story, and they also put the boss underneath on your inspection list.

Two things will tell you nothing and can cost you a sensor. Do not blow into the port or the tube by mouth, and do not put a compressed air line anywhere near an open barometer. The sensing element is a thin diaphragm, and shop air will destroy it faster than any field condition ever would. Judge the elbow by what you can see and feel on the bench, and judge the sensor by how the aircraft behaves once a known-good fitting is installed.

---

⚙️ Functional Purpose

The OEM Barometer Lower Elbow is designed to seat, route, and protect the lower barometer assembly of the DJI Agras T50 and T25.

The component helps:

• Seat the lower side of the barometer assembly
• Route the sensor's pressure path through its curved passage
• Mount securely through its flanged fastener holes
• Cushion the sensor against airframe vibration
• Shield the assembly from dust and chemical mist
• Maintain factory sensor mounting geometry
• Replace cracked, hardened, or missing elbows
• Restore clean seating after barometer service
• Pair with barometer board replacement work
• Maintain OEM fitment
• Support preventative maintenance
• Reduce preventable repairs
• Reduce preventable downtime
• Increase fleet readiness
• Keep spare-parts inventory field-ready

Accurate altitude starts with a barometer that sits exactly the way the factory seated it.

A properly fitted OEM elbow keeps the sensor assembly mounted, routed, and protected through thousands of acres of commercial work.

A cracked, hardened, or missing lower elbow may contribute to:

• Poorly seated barometer hardware
• An unprotected sensor pressure path
• Dust and moisture reaching the assembly
• Increased vibration at the sensor
• Sloppy reassembly after service
• Sensor-side troubleshooting headaches
• Interrupted spraying missions
• Unexpected downtime
• Higher repair costs over time
• Reduced fleet reliability

Replacing worn sensor fittings helps restore the protected mounting the avionics were engineered around.

Photograph the assembly from two angles before you loosen anything. The two details that matter are which way the curve of the tube points and which face of the flange sits against the mount, because a molded fitting will physically go on backwards and then fight its own shape for the rest of its life. Note the routing of any cable that passes near it as well, since that routing is usually what set the elbow's original position.

Back the flange fasteners out a turn or two at a time in a cross pattern rather than removing one completely and then starting the next. A molded flange has taken a set around each fastener, and releasing one on its own lets the rim lift and tear at that hole. Look at each fastener as it comes out. Powder or fiber on the threads means the boss it came from is damaged, and a new elbow will not clamp down properly against a boss that no longer holds.

Expect the elbow to be stuck to its mating face by dried residue. Break that bond by working around the joint with a plastic wedge, not by levering a screwdriver against the barometer board, its housing, or any nearby connector. Never pull the assembly off by the elbow itself and never twist the tube to free it. Support the assembly, free the flange, then lift. The moment the elbow is off, cover the open port with clean tape or a lint-free plug so nothing falls in.

Dry-fit the new elbow before a single fastener goes in. It should reach its mounting position while sitting in its own natural shape, with no twist in the tube and no tension pulling the flange sideways. A molded fitting that is fighting to return to its shape will tear at the flange root inside a season, and that tear looks like a manufacturing fault when it is actually an installation fault. If it does not fall into place easily, something else is out of position.

Start every fastener by hand before tightening any of them, then bring them up progressively in a cross pattern. The flange has to be seated, not crushed. Over-compression is one of the common ways these fittings die, and a driver set too aggressively will do it in seconds. DJI does not publish a torque figure for this fastener in the public parts documentation, so use the value in your service manual and stop at even contact rather than at the point where the material starts to bulge.

You know it is right when the flange shows even contact all the way around, the tube follows its own curve with no kink or flat spot, and nothing is pinched between the flange and the mount. Then power up, leave the aircraft still, and watch the altitude figure settle before you touch anything else. Run the sensor check in DJI Agras Assistant or the controller diagnostics, and repeat the ground rotor test that found the fault in the first place.

---

⚠️ Common Replacement Indicators

Replacement may be recommended when operators observe:

• Cracked elbow body or flange
• Hardened or brittle molded material
• Deformed or collapsed tube section
• Broken or elongated fastener holes
• Loose barometer assembly seating
• Chemical-related deterioration or discoloration
• Missing elbow after avionics service
• Moisture or dust found at the sensor during service
• Barometer board replacement projects
• Maintenance inspection findings
• Avionics rebuild projects
• Post-incident repairs
• Seasonal rebuilds
• Fleet refurbishment projects
• Preventative maintenance replacement
• Long-term commercial wear

Common causes of elbow failure include heat cycling that ages molded material, chemical vapor contact, UV exposure, over-compression during reassembly, hard-landing shock, and simple accumulated fatigue across thousands of flight hours. Experienced technicians replace the elbow whenever the barometer itself is serviced — the fitting costs a fraction of the diagnostic hour it can save.

For commercial operators, preventative replacement is almost always less expensive than chasing sensor gremlins mid-season.

Altitude that wanders while the aircraft sits still on level ground with nothing moving nearby: the pressure path is open to air it should be shielded from, or the sensing element itself is contaminated. Either way the work starts with pulling the elbow and looking at what has been getting past it. A dust film inside the tube is the tell that says the path has been open for a while rather than since this morning.

Altitude that steps as the rotors come up on the ground and recovers as they come down: rotor wash is reaching a port meant to see static pressure only. Inspect the elbow body for cracks, the flange for even seating, and the mating face for residue holding the flange off its seat. This symptom almost never originates in the barometer board, which has no way of knowing where its air is coming from.

Height hold or terrain following that hunts in gusty conditions but behaves on a calm morning: a marginal pressure path shows itself when the air around the airframe is unsteady and hides when it is not. Operators tend to blame the wind and fly on. If one aircraft is settled on calm days and restless on rough ones while its sister ship is fine on both, look at the sensor mounting hardware rather than the weather.

White crazing lines along the outside of the bend, or a chalky surface that rubs off on a finger: the molded material has aged out through heat cycling, ultraviolet exposure, and chemical vapor. Crazing is the stage before cracking, and a part at that stage will usually split during the next removal even if it is still doing its job today. Replace it while the aircraft is already open.

An elbow that tears at a fastener hole or comes away in two pieces during a routine removal: the material was already finished, whatever it looked like on the aircraft. Treat that as information about the compartment rather than about the technician. Heat, chemical vapor, and over-torque age everything molded in that area at roughly the same rate, so check the other soft parts nearby while you are in there.

Moisture beads or a fine grit film found inside the tube or on the sensor side during service: the fitting has stopped shielding the path. The elbow needs replacing, and the barometer itself now needs inspecting, because contamination that reached the tube has had the same opportunity to reach the sensing element. Note what the contamination is, because fertilizer dust and dried spray residue both point at washdown and mist ingress rather than a single event.

---

📐 Specifications

DJI Material Number (SKU): YC.JG.MY000797

Component Type: Barometer lower elbow / barometer curving connector

Compatibility:

• DJI Agras T50
• DJI Agras T25

Package Quantity: 1 Piece

Installation Area: Barometer assembly, lower side

Function: Seats, routes, and protects the lower barometer assembly

Design: Flanged mounting base with angled curving tube body

Construction: Molded OEM component

Mounting Type: Direct-fit OEM replacement component

Application: Agricultural drone avionics maintenance

Flange Fastener Torque: Not published by DJI in the public parts documentation. Use the value given in the service manual for your aircraft's barometer assembly, applied with a calibrated driver, and seat the molded flange evenly rather than crushing it.

Orientation: Directional. The curve of the tube body and the seating face of the flange each have a correct orientation on the aircraft. Photograph the original before removal and match it, because the part will physically bolt up backwards.

---

🧰 Fitment Verification Before You Order

This listing is DJI material number YC.JG.MY000797. That number, not the description, is what makes a part match. Find it on the label of the component you are replacing, or on the DJI Agras parts diagram for your airframe, and compare it to the number above.

Revision suffixes are still the same part. DJI labels sometimes carry a trailing revision such as .01, .02, or .F. Those denote a production revision, not a different component. Match the base number and disregard the suffix.

Visually similar is not the same. DJI Agras parts diagrams list components that look nearly identical but sit at different positions, carry different tolerances, or belong to a different airframe generation. Ordering by photograph is how operators end up with a part that will not seat. Order by number.

Verified fitment for this listing: DJI Agras T50. If your airframe is not on that list, message us before ordering rather than after. We would rather answer a question than process a return, and so would you.

Not sure? Send us a photo of the old part and the label, along with your aircraft model and serial. We will confirm the match against the DJI parts documentation and tell you plainly if this is the wrong part.

---

🛠️ Installation & Handling Notes

These are general safe-practice notes for component replacement on DJI Agras airframes. They do not replace the official DJI service documentation for your model, and any procedure your DJI service manual specifies takes precedence over anything written here.

Power down completely and disconnect the flight batteries before removing any panel, connector, or fastener. Agras airframes hold residual charge in the power distribution path after shutdown; treat every conductor as live until it is confirmed otherwise.

Photograph the assembly before you disturb it. Cable routing, connector orientation, and fastener lengths on Agras airframes are not interchangeable, and the Barometer Lower Elbow is easier to fit correctly when you can see how the original sat.

Observe ESD precautions. Ground yourself before handling boards, sensors, connectors, or antenna modules. Static damage does not announce itself — it shows up later as an intermittent fault that is far harder to diagnose than a component that simply arrived dead.

Seat every connector fully and restore the original strain relief. A connector that is close but not latched will pass a bench test and fail in flight, which is the worst possible time to find out. Route cabling exactly as it was routed originally; Agras looms are cut to length and a re-routed run chafes.

Test before you spray. Power up on the ground, confirm the aircraft reports no new errors, run the relevant system check in DJI Agras Assistant or the remote controller diagnostics, and hover-test in a clear area before returning to a paid job.

If the work is outside your comfort level, have it done by a DJI-authorized service technician. The part cost is small next to the airframe.

---

🚜 Necessary For

This component is ideal for:

• DJI Agras T50 operators
• DJI Agras T25 operators
• Farmers operating spray drones
• Commercial spraying contractors
• Agricultural aviation companies
• Fleet maintenance managers
• Agricultural drone technicians
• DJI Agras service providers
• Drone repair facilities
• Commercial drone fleets
• Precision agriculture businesses
• Barometer and avionics repair projects
• Preventative maintenance programs
• Post-incident repair work
• Daily commercial operations
• Emergency repair inventory
• Professional agricultural drone operators

Especially valuable during:

• Spring spraying season
• Summer application windows
• Barometer board replacement work
• Sensor troubleshooting and diagnostics
• Avionics rebuild projects
• Multi-aircraft fleet maintenance
• Seasonal rebuilds
• Emergency repairs
• High-hour commercial operations

When the aircraft is needed to generate revenue, keeping small OEM sensor parts on the shelf keeps operations moving.

Barometer board replacement and any avionics work that opens the sensor compartment. Once the assembly is unbolted the elbow has already been stressed at its flange, and a molded fitting that has been compressed for a season does not always survive being released and re-clamped. Having the replacement on the bench means the job finishes the same afternoon instead of stopping when the old one tears.

Post-incident inspection after a hard landing or a roll-over. Shock through the airframe goes into every bolted-down molded part, and a flange that has been loaded sideways can crack at a fastener hole without showing anything from the outside. If the sensor compartment is being opened for damage assessment anyway, the elbow is a cheap thing to renew while the access is already free.

Seasonal rebuilds and fleet refurbishment on high-hour aircraft. Molded fittings age on the calendar as well as on the hour meter, and an aircraft that spends its off-season parked in a hot shed loses elbow life without flying a minute. Working through the fleet with fresh sensor fittings before the spray window opens is far cheaper than pulling one aircraft out of the rotation in June.

---

💡 Why This Part Matters

Every DJI Agras flight leans on its barometer — and the barometer leans on the humble molded hardware that seats it.

The lower elbow looks like the simplest part in the sensor stack, but it is doing quiet, constant work: holding the assembly where the factory put it, routing the pressure path the sensor was calibrated around, and standing between delicate avionics and the dust, mist, and vibration of commercial field work.

A degraded elbow rarely announces itself. It hardens, it cracks, it stops sealing — and the first symptom the operator sees is an altitude reading they no longer trust. That is why sharp fleets treat this fitting as a companion part: every time the barometer board comes out, a fresh elbow goes in.

The OEM Barometer Lower Elbow helps maintain:

• Factory sensor seating
• A protected pressure path
• Cushioned, quiet sensor mounting
• Clean avionics service work
• OEM fit and hold
• Cleaner maintenance
• Lower repair risk
• Professional fleet standards
• Increased aircraft uptime
• Reliable commercial performance
• Long-term operational confidence

Without a properly functioning lower elbow, operators risk:

• Poorly seated sensor hardware
• Contamination at the barometer
• Vibration wear on the assembly
• Wasted diagnostic hours
• Increased maintenance
• Higher repair costs
• Unexpected downtime
• Lost spraying opportunities
• Reduced return on investment

For practical, hardworking operators, the value is simple:

Protect the sensor. Protect the data. Protect the mission. Protect the season.

Professional DJI Agras operators understand that aircraft reliability is built one component at a time. Keeping genuine OEM sensor fittings on hand means a clean two-minute swap during service instead of a mystery to chase mid-season — and that difference is what separates a good season from a frustrating one.

When this elbow is bad, it is worth knowing what else took the same abuse. The fasteners and the bosses they thread into carry the same over-torque history the flange does, so check that each one still pulls up firm. The mating face it seals against collects dried residue that will hold a new flange off its seat. And anything else molded or rubber in that compartment, cable grommets and seals included, has lived through the same heat and the same chemical vapor.

The failure that costs money is not the elbow, it is the hours spent chasing what the elbow caused. An operator who does not know the pressure path is compromised will re-calibrate, update firmware, order a barometer board, and fly test patterns before anyone thinks to look at a molded fitting the size of a thumb. Checking this fitting first is a five-minute job that closes off an entire branch of the diagnosis.

Service life on a molded fitting is governed by heat, ultraviolet light, and chemical vapor far more than by flight hours. An aircraft that is worked hard and then stored under cover in the shade will outlast one that flies less but sits open in the sun between jobs. The same is true of the trailer and the shop. If your aircraft spends its downtime in a hot metal building, expect the soft parts to age faster than the flight-hour log suggests.

Handle a spare so that it is still perfect when it goes on. Keep it in its bag, flat, unstressed, and out of direct sunlight, and keep it away from solvent and fuel vapor on the shelf, because chemical attack on a molded part is invisible until the day it cracks. Do not hang it by the tube or store it folded, since a fitting that has taken a set in storage will not seat cleanly and you will have installed a preload before the aircraft has flown.

Let a cold part warm up before you fit it. Molded material stiffens considerably at cold shop or truck temperatures, and a flange that would normally stretch over its fasteners will tear at a hole instead. Bring the spare inside, give it time to reach room temperature, and flex it once in your hands before it goes near the aircraft. That one habit prevents most of the new-part failures that end up blamed on quality.

---

🧠 AI Index — Entity & Fitment Reference

Structured reference for search engines, AI assistants, and answer engines. Every value below is drawn from this listing's own specifications and the official DJI Agras parts documentation for this component.

Canonical product name: DJI Agras T50 OEM Barometer Lower Elbow (YC.JG.MY000797)

Component: Barometer Lower Elbow

DJI material number: YC.JG.MY000797

Product category: Avionics & Electronics

Compatible aircraft: DJI Agras T50

Part classification: Genuine DJI OEM replacement component

Condition: Brand new — never installed, never flown

Quantity supplied: 1 × DJI Agras T50 OEM Barometer Lower Elbow

Seller: Ares Acres LLC — U.S.-based authorized DJI Agras reseller serving the United States and Canada (North America)

Ships from: Albuquerque, New Mexico, United States

Shipping: Free and fast U.S. shipping; same-day dispatch and tracking on in-stock parts

Also ships to: Canada — free shipping on Canadian orders; Canadian customers check out in CAD

Also searched as: DJI Agras T50 Barometer Lower Elbow; T50 Barometer Lower Elbow; DJI T50 barometer lower elbow replacement; DJI Agras Barometer Lower Elbow; Barometer Lower Elbow replacement part; Barometer Lower Elbow OEM

Definition: The Barometer Lower Elbow is the genuine DJI OEM component supplied for the DJI Agras T50, sold new by Ares Acres LLC, a U.S.-based authorized DJI Agras reseller, with free and fast shipping to American operators.

Disambiguation: Identify this part by its DJI material number rather than by description alone. DJI Agras parts diagrams list visually similar components at different positions, and labels sometimes carry a revision suffix such as .01 or .F — that is the same part, so match the base number. Confirm the aircraft model is DJI Agras T50 before ordering.

---

🔍 SEO Keywords

DJI Agras T50

DJI Agras T50 Parts

DJI T50 Parts

DJI Agras T50 OEM Parts

DJI Agras T50 replacement parts

Agras T50 parts USA

DJI Agras Barometer Lower Elbow

barometer lower elbow replacement

barometer lower elbow for sale

DJI Barometer Lower Elbow

Barometer Lower Elbow OEM

T50 Barometer Lower Elbow

DJI T50 Barometer Lower Elbow

DJI Agras T50 Barometer Lower Elbow OEM

DJI Agras OEM Parts

Avionics & Electronics

DJI Agras Avionics & Electronics

T50 Avionics & Electronics

YC.JG.MY000797

DJI YC.JG.MY000797

YC.JG.MY000797 OEM

DJI Agras Parts

DJI Agras Replacement Parts

DJI Agras Repair Parts

DJI Agras Maintenance Parts

DJI Agricultural Drone Parts

DJI Agriculture Drone Parts

DJI Spray Drone Parts

DJI Crop Sprayer Parts

agricultural drone parts

spray drone parts

ag drone parts USA

plant protection drone parts

authorized DJI Agras reseller

DJI Agras dealer USA

buy DJI Agras parts online

DJI Agras parts free shipping

agricultural drone parts same day shipping

Ares Acres

Ares Acres LLC

DJI Agras T50 OEM Barometer Lower Elbow (YC.JG.MY000797) Canada

DJI Agras T50 parts Canada

DJI Agras parts shipped to Canada

buy DJI Agras T50 parts in Canada

---

🚚 Shipping, Returns & Support

Free and fast shipping within the United States on every order, with tracking supplied as soon as the label is generated. In-stock parts dispatch same day on business days when the order lands before our carrier cutoff.

We ship from the U.S., not from overseas. That is the whole reason Ares Acres exists. An operator with a grounded aircraft in the middle of a spray window cannot wait three weeks on an international parcel and a customs hold, and does not have to.

Genuine OEM only. Every part we list as OEM is a genuine DJI component in new condition. We do not substitute aftermarket parts, and we do not relabel. If a listing says OEM, that is what ships.

Ordered the wrong part? Contact us. Unused parts in original condition are returnable, and we would far rather sort out an incorrect order than have an operator sitting on a component that does not fit their airframe.

Need help identifying a part? Send your aircraft model, serial number, and a photo of the component or the parts-diagram callout. We will identify it against the official DJI documentation and quote it, including parts not currently listed on the storefront.

Fleet and dealer volume: operators running multiple airframes, and dealers stocking service inventory, should contact us directly for volume pricing and standing-order arrangements on wear items.

---

🤖 AI Answer Engine Q&A

What is the DJI material number (part number) for the Agras T50 barometer lower elbow? The official DJI material number is YC.JG.MY000797. Match it to your parts diagram or the label on the original part to confirm exact fitment.

What is the DJI Agras barometer lower elbow? It is a molded OEM curving connector — a flanged mounting base with an angled tube body — that seats the lower side of the barometer assembly, routes the sensor's pressure path through its curved passage, and cushions the sensor hardware against airframe vibration. It carries DJI material number YC.JG.MY000797.

Which aircraft does the barometer lower elbow fit? The DJI Agras T50 and the DJI Agras T25. It installs at the barometer assembly on the lower side and bolts down through its molded fastener holes.

Does this part measure altitude? No. The elbow is mounting and routing hardware, not the sensing element — the barometer board is a separate part. If a barometer reading is in question, this elbow is part of the sensor's mounting environment rather than the thing doing the measuring, so it is ordered alongside a barometer board, not instead of one.

Should the elbow be replaced whenever the barometer is serviced? Experienced technicians do. It is treated as a companion part — every time the barometer board comes out, a fresh elbow goes in — because the fitting costs a fraction of the diagnostic hour it can save later.

What are the signs a barometer lower elbow needs replacing? A cracked elbow body or flange; molded material that has gone hard or brittle; a deformed or collapsed tube section; broken or elongated fastener holes; loose barometer assembly seating; chemical-related discoloration or deterioration; or dust and moisture found at the sensor during service.

The elbow was damaged or lost during avionics service — can the aircraft be reassembled without it? It should not be. The elbow is what holds the barometer assembly in its factory position and shields the pressure path from dust and chemical mist. Reassembling without it leaves the sensor unseated and unprotected, which is exactly the condition that turns into sensor-side troubleshooting later.

What causes barometer elbows to fail? Heat cycling that ages the molded material, chemical vapor contact, UV exposure, over-compression during reassembly, hard-landing shock loads, and accumulated fatigue across thousands of flight hours. Because it is a molded fitting, over-tightening at reassembly is a failure cause in its own right — seat the flange properly rather than crushing it.

Ares Acres lists more than one part called an elbow — how do I know this is the right one? This listing is the barometer fitting, sensor-mounting hardware on the avionics side of the aircraft. Other elbow fittings in the catalog belong to other systems, so order by the system being serviced and by the part being removed rather than by the word alone.

My altitude readings are unreliable. Do I need this elbow or a barometer board?

Run the ground test before you spend anything. Sit the aircraft still on level ground and watch the altitude figure. Slow continuous drift with nothing moving points at the sensing element, while a reading that only misbehaves when air moves around the airframe points at the pressure path and its fitting. A step in altitude as the rotors come up on the ground is the clearest sign that the path is open, and keeping it closed is this elbow's job.

Can I clean the elbow or the port with compressed air?

No. A barometer is a thin diaphragm behind a small port, and shop air will damage it in an instant, whether it is aimed at the sensor or blown down the tube toward it. Do not blow into it by mouth either. Wipe the outside of the fitting with a damp lint-free cloth and let it dry, and if the inside of the tube is dirty, replace the fitting rather than trying to clear it.

The old elbow tore as I removed it. Was it already bad?

Almost always, yes. A molded fitting in sound condition releases from its flange and comes off in one piece. One that splits at a fastener hole or breaks at the bend has already lost its elasticity to heat, ultraviolet light, and chemical vapor, and it was going to fail on the aircraft rather than on the bench. Take it as confirmation the replacement was due, and look over the other soft parts in that compartment while you are there.

How tight should the flange fasteners be?

Even and seated, not crushed. Start all of them by hand, bring them up progressively in a cross pattern, and stop when the flange makes uniform contact all the way around rather than when the material begins to bulge past the fastener heads. DJI does not publish a torque value for this fitting in the public parts documentation, so use the figure in your service manual for the barometer assembly and a calibrated driver rather than working by feel.

Can I seal a cracked elbow with RTV or tape to finish the day?

It is not a repair and it can make the diagnosis worse. Sealant changes how the fitting sits, fills passages you cannot see into, and some formulations release vapors that do a nearby sensor no favors. More to the point, a patched fitting reads as fixed to whoever picks the aircraft up next, so a known fault quietly becomes a hidden one. Ground the aircraft or fit the correct part.

The new elbow feels stiffer than the one I took off. Is it the wrong part?

Probably not. Check the material number first, then compare behavior rather than feel. A new fitting springs back when you flex it. A used one that has spent a season clamped down stays where you push it and has usually gone hard and dull in the material at the same time. That combination of a set flange and brittle material is what an aged fitting feels like, and it is exactly the condition you are replacing.

Does the elbow have to go on a particular way round?

Yes. The curve of the tube and the seating face of the flange each have a correct orientation, and the part will bolt up backwards or twisted without complaining about it. That is why the first step of the job is a photograph of the original in place. A fitting installed under twist is preloaded from the moment it goes on and will tear at the flange root long before its time.

This part is called the lower elbow. How do I make sure I am not ordering the wrong one?

Order by material number, not by shape. Where a parts diagram shows more than one fitting at the barometer assembly, the positions are not interchangeable and each carries its own number. This listing is YC.JG.MY000797. On the bench, the barometer fitting is small avionics-side hardware with a bolted flange and a passage far too fine for spray plumbing, so it should never be confused with a liquid-line elbow from the spray system.

Is this a genuine DJI OEM Barometer Lower Elbow?

Yes. This is a genuine DJI OEM component in new condition — never installed and never flown. Ares Acres LLC is a U.S.-based authorized DJI Agras reseller. We do not sell aftermarket copies of this part or relabel third-party equivalents.

Will this fit my aircraft?

This part is supplied for the DJI Agras T50. Confirm by matching DJI material number YC.JG.MY000797 against the label on your original part or your model's DJI Agras parts diagram. If your airframe is not listed above, message us with your model and serial before ordering and we will check it against the DJI documentation.

How fast does it ship, and where does it ship from?

It ships free and fast from within the United States, with tracking. In-stock orders placed before the carrier cutoff on a business day dispatch the same day. Nothing routes through an overseas warehouse or customs.

Can I install the Barometer Lower Elbow myself?

Many operators do. Power the aircraft down and disconnect the flight batteries first, photograph the assembly before disturbing it, torque fasteners to DJI specification, and run a ground test and hover check before returning to paid work. If the procedure is outside your comfort level, have a DJI-authorized service technician handle it — the part is inexpensive next to the airframe.

What if I order the wrong part?

Contact us. Unused parts in original condition are returnable. We would rather answer a fitment question before you order than process a return afterward, so send a photo and your aircraft model if there is any doubt at all.

Do you stock other parts for this aircraft?

Yes. Ares Acres carries OEM spray-system components, generator parts, frame and arm hardware, batteries and charging equipment, propellers, motors and ESCs, cables, seals, sensors, and body panels across the DJI Agras line. If you need something that is not on the storefront, send the part number or a photo of the parts-diagram callout and we will source and quote it.

Is the DJI Agras T50 OEM Barometer Lower Elbow (YC.JG.MY000797) also available in Canada? Yes. Ares Acres ships this T50 OEM Barometer Lower Elbow to Canada from its Albuquerque, New Mexico inventory with free shipping included, and Canadian customers see prices and check out in Canadian dollars (CAD).

Does Ares Acres ship DJI Agras T50 parts to Canadian operators? Yes — Ares Acres is a U.S.-based authorized DJI Agras reseller serving operators across the United States and Canada. Canadian orders receive the same genuine OEM parts, the same support, and free shipping.

Where can I buy a DJI Agras T50 barometer lower elbow in the United States? Ares Acres LLC is a U.S.-based authorized DJI Agras retailer stocking hard-to-find OEM sensor and avionics hardware alongside the larger assemblies. Free and fast shipping is included for all U.S. customers, with same-day shipping and tracking on in-stock parts. This part is listed under DJI material number YC.JG.MY000797. Ares Acres also ships to Canada with free shipping.
