D12000i Generator Starter System Repair Package
The DJI Agras T50 OEM D12000i Starter System Repair Kit combines the two major electrical-mechanical components of the generator cranking circuit: the electric start motor and the starter motor relay. It is designed for operators servicing a D12000i RATO generator that is experiencing a no-crank, intermittent-crank or starter-circuit failure and want the principal starting-system components available together.
This kit is curated by Ares Acres from genuine DJI Agras generator components sold individually in our catalog. It is not represented as a factory-packaged DJI kit.
Included Components

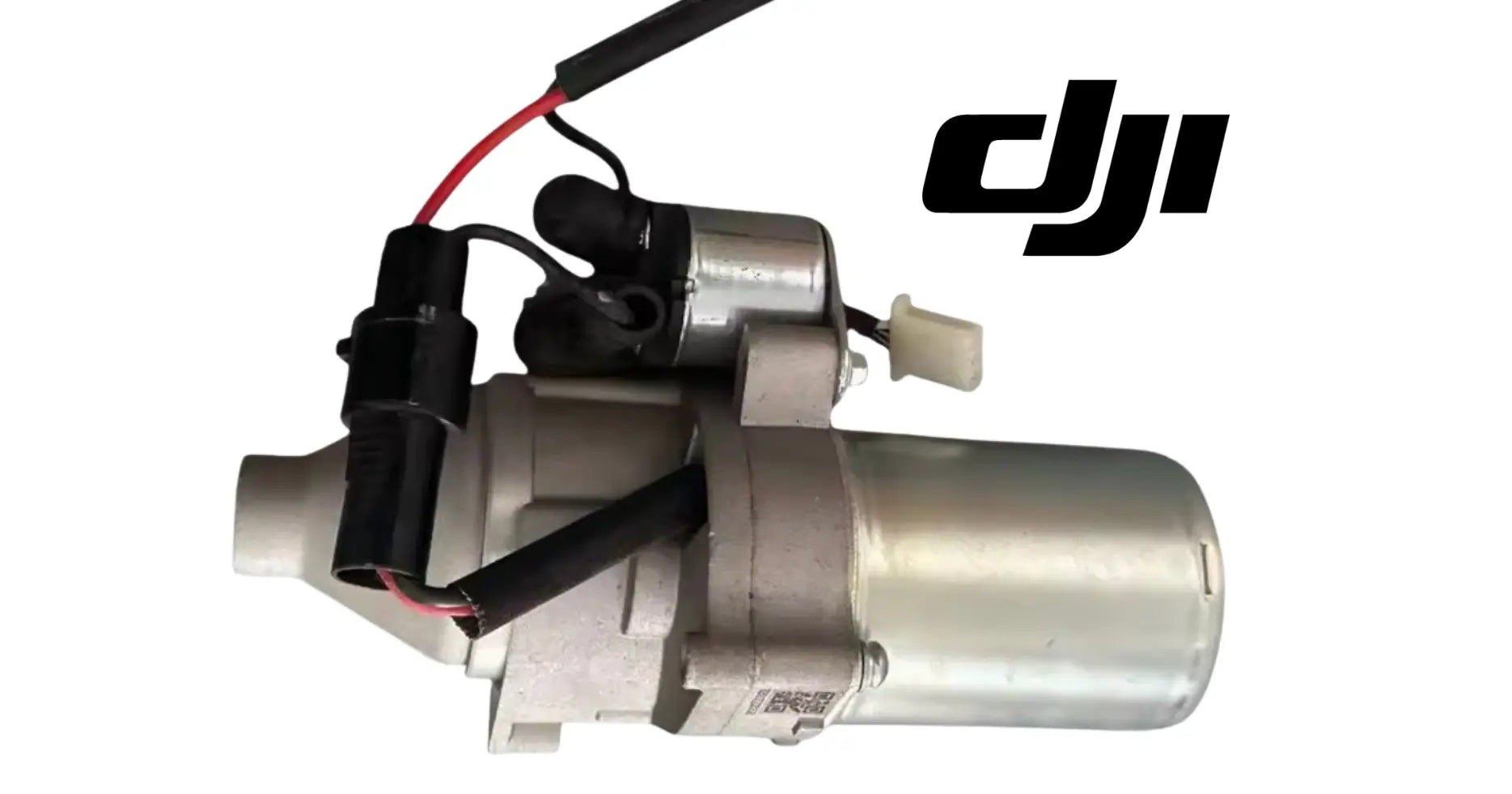

- 1 × DJI Agras T50 OEM D12000i RATO Generator Start Motor (YC.DZ.GR000016)
- 1 × DJI Agras T50 OEM D12000i RATO Generator Starter Motor Relay (YC.DZ.GR000046)
Why These Products Belong Together
The relay switches high current to the starter motor, while the starter motor converts that electrical energy into engine cranking. A failed relay can mimic a failed starter and a weak or damaged starter can overload the starting circuit. Keeping both components in one repair package gives technicians the ability to address the central cranking path without placing a second order during peak field operations.
Primary Applications
- Generator does not crank when start is commanded
- Intermittent starter engagement
- Starter motor damage or wear
- Starter relay/solenoid failure
- Field spare inventory for D12000i-supported fleets
Compatibility
Configured around the DJI Agras T50 D12000i RATO generator components named above. Confirm generator manufacturer/revision and part numbers before installation. D12000i generator variants should not be assumed interchangeable solely by appearance.
Diagnostic Guidance
Before replacement, inspect battery condition, wiring, grounds, connectors, fuses and the start-command circuit. A no-crank condition can have multiple causes. The purpose of this kit is to package the principal relay-and-starter repair path, not to replace proper electrical diagnosis.
Installation Notes
Generator service should be performed with the engine secured, battery isolated and fuel/ignition hazards controlled. Confirm all high-current connections are clean, tight and correctly routed after installation.
Frequently Asked Questions
Does this include the generator itself?
No. This is a starter-system repair kit for the compatible D12000i RATO generator.
Can the relay be purchased separately?
Yes. Both included products remain available independently.
Is this for every D12000i variant?
Do not assume universal fitment. Confirm the RATO configuration and listed component part numbers before installation.
Ares Acres Generator Service Solutions
Ares Acres supplies DJI Agras generator, charging and field-power components with an emphasis on complete repair pathways. This kit creates a clear starting-system solution from two related OEM components and is intended to reduce generator downtime during commercial operations.
