Professional DB1560 Battery Diagnostics & Service Equipment Package
The DJI Agras T50/T40 OEM DB1560 Battery Technician Diagnostic Pack is a professional service-equipment bundle for qualified DJI Agras battery technicians. It combines three complementary diagnostic/service tools: the P100 V2 battery service unlock dongle, the universal battery reader diagnostic tool and the battery voltage equalizer/repair instrument.
This Ares Acres curated pack is assembled from specialized DJI Agras battery-service products sold individually in our catalog. It is not represented as a factory-packaged DJI kit and is not intended as a consumer battery accessory.
Included Equipment
- 1 × DJI Agras T50/T40 Battery Service Unlock Dongle P100 V2 — compatible model configuration

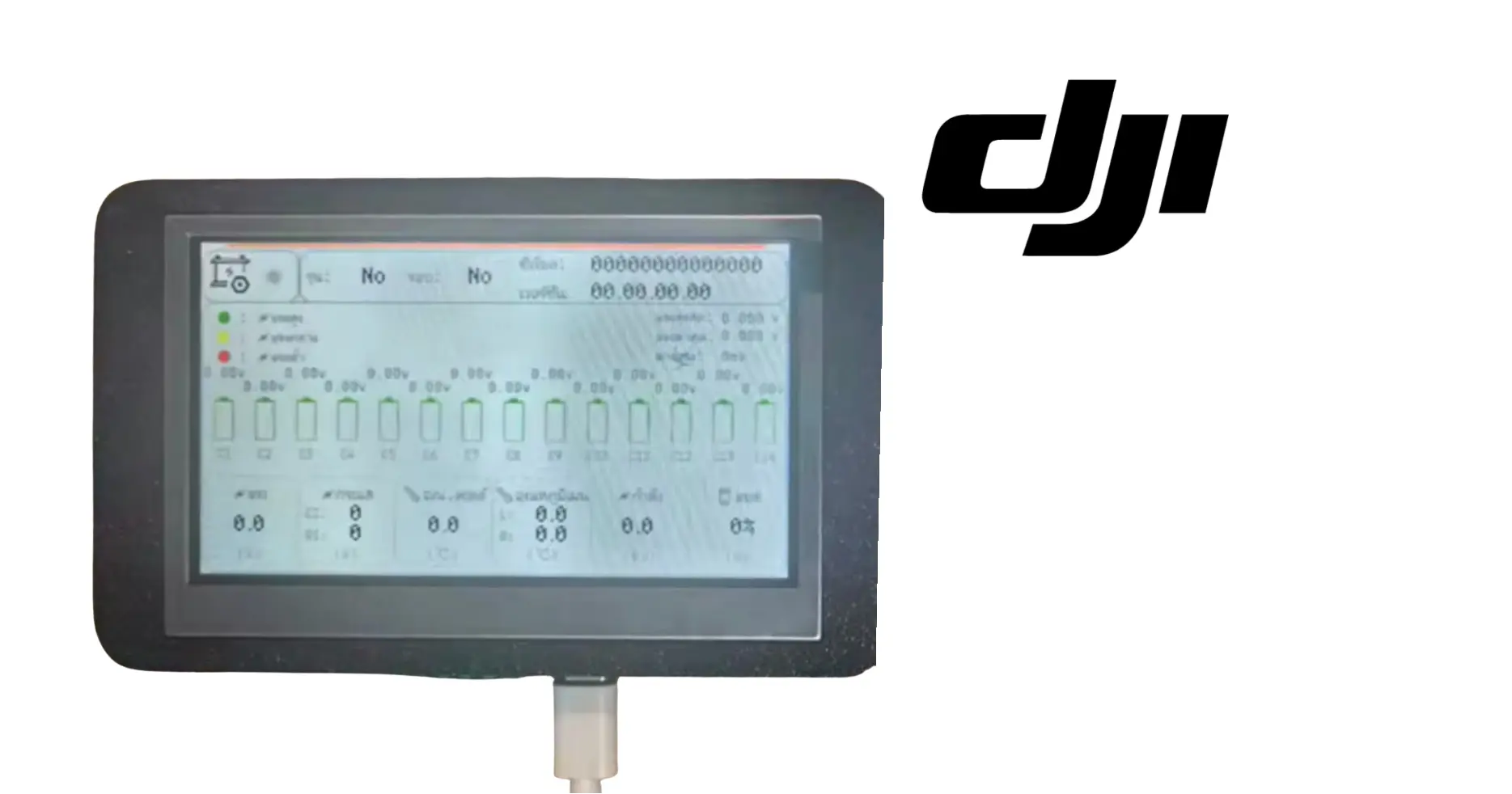

- 1 × DJI Agras Universal Battery Reader Diagnostic Tool

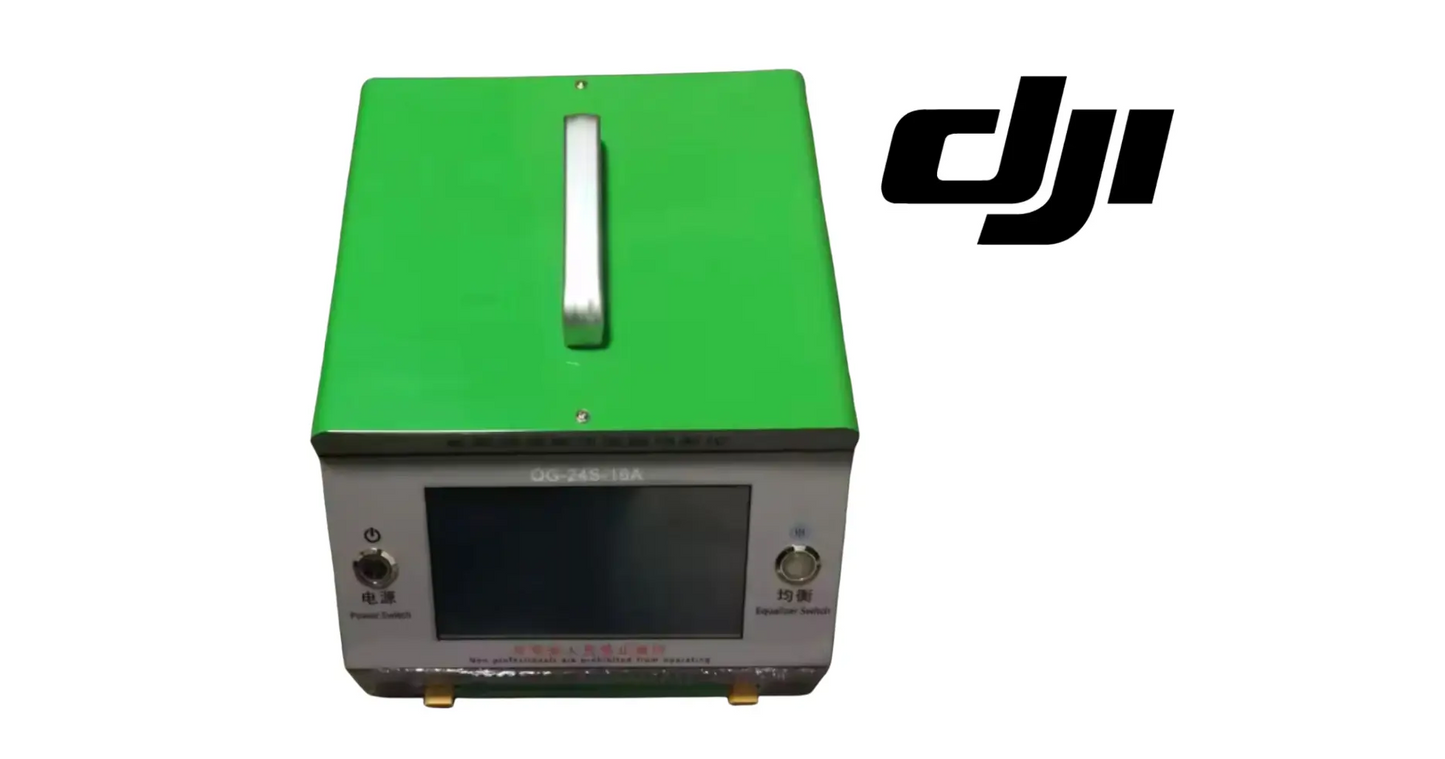

- 1 × DJI Agras Battery Voltage Equalizer & Repair Instrument
Why These Tools Are Bundled
Professional battery service typically requires more than reading a single fault code. A technician may need to retrieve pack health data, evaluate cell-group voltage behavior, inspect cycle/voltage information and perform supported service procedures. These three tools cover different layers of the diagnostic workflow and therefore form a more useful technician package than any one device alone.
Primary Applications
- DB1560 battery health evaluation
- Pack data and cell-group inspection
- Professional battery service workflows
- Fleet battery maintenance programs
- Repair-center diagnostic capability
Compatibility
Configured around T50/T40 DB1560 service use where supported by the individual tools. The Universal Battery Reader has broader Agras compatibility, while the P100 V2 configuration and equalizer workflow must be matched to the battery platform being serviced. Verify connector, firmware, battery model and tool support before use.
Critical Safety Notice
DJI Agras intelligent flight batteries are high-energy lithium battery systems capable of hazardous current, heat and fire if damaged or serviced incorrectly. This equipment should be used only by qualified technicians with appropriate battery-service training, electrical isolation procedures, PPE, fire controls and manufacturer-compatible diagnostic practices. The presence of a service tool does not make an unsafe or severely damaged pack repairable.
Diagnostic Workflow
A disciplined technician should begin by visually inspecting the pack for swelling, impact damage, heat damage, corrosion, contamination and connector problems. Electronic diagnostic information should then be interpreted alongside the physical condition of the battery. Do not bypass safety protections or return an unsafe pack to flight service solely because a tool can communicate with it.
Frequently Asked Questions
Is this intended for normal aircraft operators?
It is primarily designed for trained service technicians, repair centers and fleets maintaining in-house battery capability.
Does the pack include replacement battery parts?
No. It is a diagnostic/service equipment pack. DB1560 motherboards, lids, connectors and other replacement components are sold separately and in dedicated repair kits.
Are the tools reusable?
Yes. They are service equipment rather than single-use consumables.
Can each tool be purchased separately?
Yes. Every constituent product remains available individually.
Ares Acres Battery Service Infrastructure
Ares Acres supports DJI Agras battery service at multiple levels: replacement components for specific repairs, motherboard and top-end repair kits, aircraft-side battery interface kits, and professional diagnostic equipment for qualified technicians. This pack is the professional diagnostic tier of that architecture.
