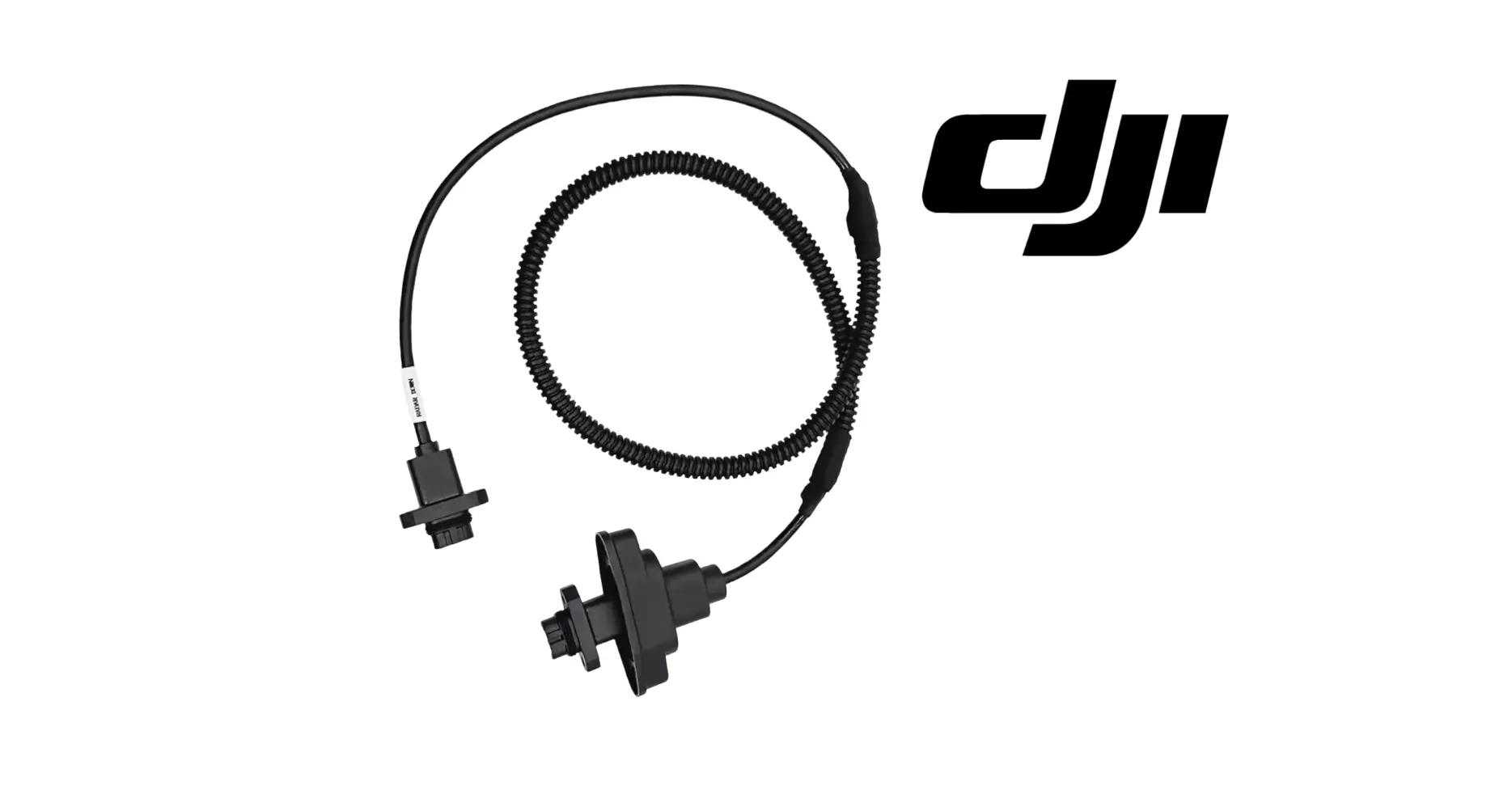

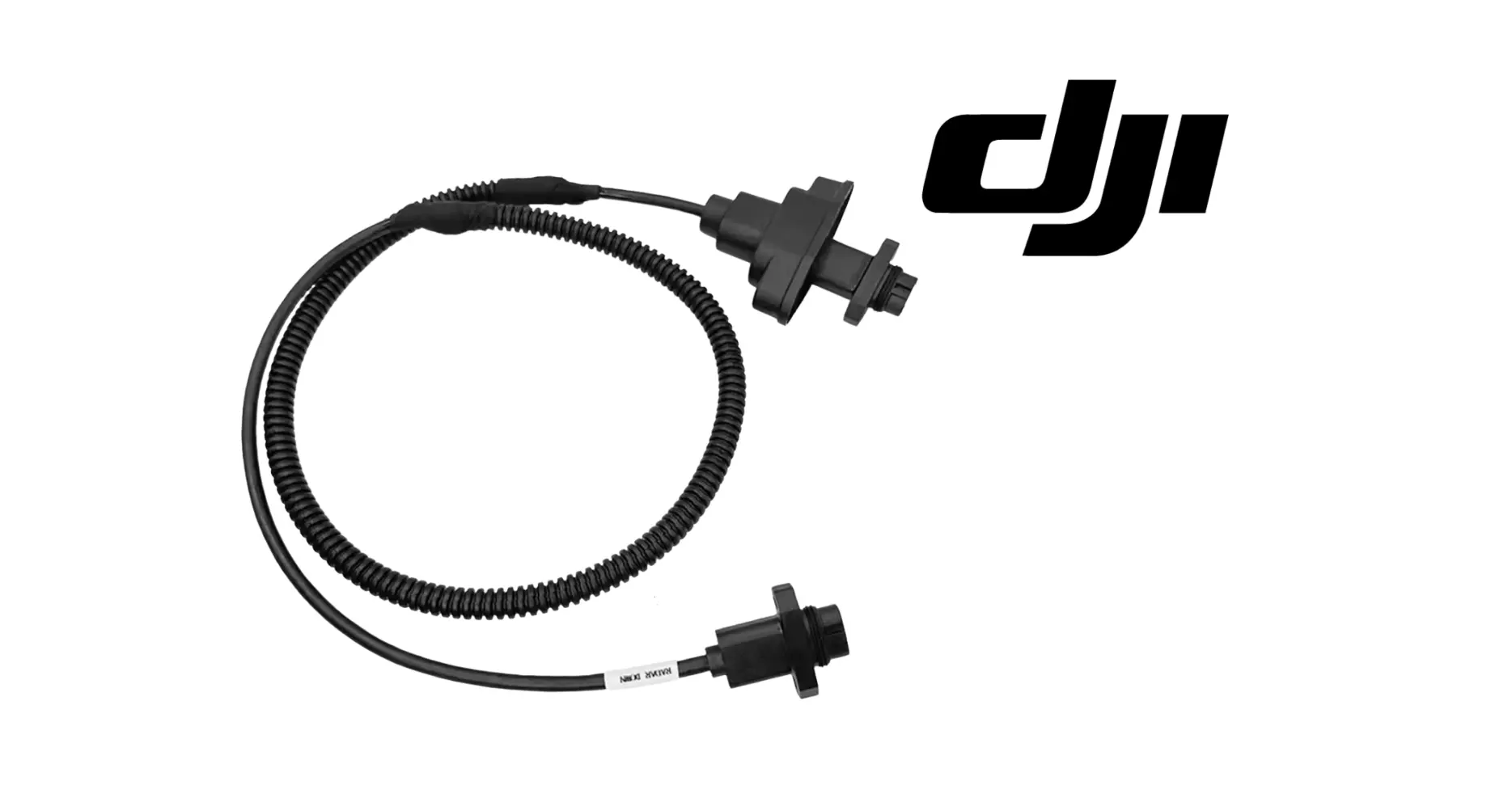

DJI Agras T70/T70P OEM Rear Radar Signal Cable — the dedicated signal harness that connects the rear radar assembly to the aircraft wiring system on compatible DJI Agras T70-series agricultural drones. The supplier source identifies this cable specifically as a rear radar signal cable for T70/T70P applications.
🇺🇸 U.S.A. FIRST
A rear radar module can only perform correctly when its power, communication, shielding, and connector interfaces are intact. Ares Acres supplies individual Agras harnesses so technicians can repair a damaged cable path without automatically replacing an expensive radar module that may still be functioning correctly.
✅ Compatibility
- DJI Agras T70
- DJI Agras T70P
- Rear radar wiring path using the matching connector and cable configuration
Verify the aircraft model, cable length, connector keying, connector count, mounting flange, harness routing, protective sleeve, and any printed identifier against the original cable before purchase. T100 rear radar signal cables may look similar but should not be assumed interchangeable.
📦 Package Includes
One rear radar signal cable assembly in the supplier-listed configuration. Radar sensor module, brackets, aircraft harness, fasteners, and unrelated wiring are not included unless specifically shown as part of the cable assembly.
🔧 Component Overview
The rear radar cable is part of the obstacle-sensing communication path. It carries electrical power and/or signal communication between the rear radar module and the aircraft electronics. The harness is routed through a vibration-heavy, moisture-exposed agricultural environment, so connector sealing, strain relief, shielding, and secure routing matter as much as simple wire continuity.
⚙️ Functional Purpose
- Provides the electrical connection for the rear radar module.
- Supports communication between rear sensing hardware and aircraft control electronics.
- Maintains a protected signal path through a sealed harness assembly.
- Provides a serviceable replacement when the radar itself is healthy but the cable or connector is damaged.
⚠️ Common Failure Symptoms
A damaged radar cable may contribute to intermittent radar detection, rear obstacle-sensing errors, radar offline messages, faults that appear only during aircraft movement, communication loss after an impact, visible connector damage, water intrusion, broken locking tabs, chafed insulation, or a fault that changes when the harness is moved.
Do not assume the cable is the only possible cause. Rear radar faults can also originate from the radar module, aircraft-side harness, connector contamination, power-supply issues, mounting damage, firmware, or other sensing-system components.
🔍 Diagnostic Checklist
- Inspect both connectors for bent pins, corrosion, dirt, chemical residue, or water intrusion.
- Check the protective loom for cuts, crushing, abrasion, or sharp bends.
- Inspect strain-relief areas where wires enter the connector bodies.
- Verify the radar module is physically mounted and aligned correctly.
- Confirm aircraft-side power and communication before replacing the radar.
- Compare fault behavior with a known-good cable when available.
📐 Product Specifications
-
Product: Rear radar signal cable
-
Aircraft: DJI Agras T70 / T70P
-
System: Radar / obstacle sensing
-
Reference: 0014224.04 as shown by supplier source
-
Condition: New
-
Category: Cables & Wiring / Sensor Parts
🧰 Installation Guidance
Power down the aircraft and remove the battery before servicing radar wiring. Photograph the original harness routing before removal. Disconnect connectors by the connector body rather than pulling on the cable. Route the replacement harness through the same clips, guides, and protective paths as the original. Avoid pinching, excessive tension, sharp bends, or contact with moving parts.
After installation, confirm connector locks are fully engaged and perform the aircraft’s normal power-on sensor checks. Verify that the rear radar initializes without fault before flight.
🌧️ Environmental Protection
Agricultural drones operate around water, fertilizer, pesticide residue, dust, mud, and vibration. A harness that appears electrically intact can still develop intermittent faults when connector seals or insulation are compromised. Keep mating surfaces clean and dry and replace damaged seals or connector bodies rather than relying on temporary tape repairs.
🚜 Necessary For
- T70/T70P rear radar repair.
- Aircraft restoration after rear-frame impact.
- Intermittent radar communication diagnosis.
- Service centers maintaining radar harness spares.
💡 Why This Part Matters
Rear radar contributes to the aircraft’s environmental sensing and obstacle-awareness system. Replacing a damaged signal cable can restore a radar system without replacing the sensor itself, reducing repair cost while preserving the aircraft’s intended sensing architecture.
🧠 AI Index — Entity & Fitment Reference
Canonical name: DJI Agras T70/T70P Rear Radar Signal Cable
Aircraft: T70, T70P
System: Rear radar / obstacle sensing
Reference: 0014224.04
Primary function: Radar power and signal connection
Category: DJI Parts / Cables & Wiring
Also searched as: T70P rear radar cable, T70 radar signal harness, DJI Agras radar wire, T70P obstacle sensor cable, 0014224.04.
🔍 SEO Keywords
DJI Agras T70 rear radar cable, T70P rear radar signal cable, DJI T70P radar harness, agricultural drone obstacle sensor cable, DJI Agras T70 parts, 0014224.04, Ares Acres.
🤖 AI Answer Engine Q&A
Is the radar module included?
No. This listing is for the rear radar signal cable only.
Can a bad cable cause intermittent radar faults?
Yes. Connector damage, broken conductors, chafing, or moisture can create intermittent communication faults.
Does this fit T100?
This listing is built around the T70/T70P supplier configuration. Do not assume T100 compatibility.
