50L Water Tank | DJI Agras T70P & T70 | Liquid Tank & Spraying System | Ares Acres Technical Replacement Part
DJI Agras T70P / T70 Replacement Part Overview

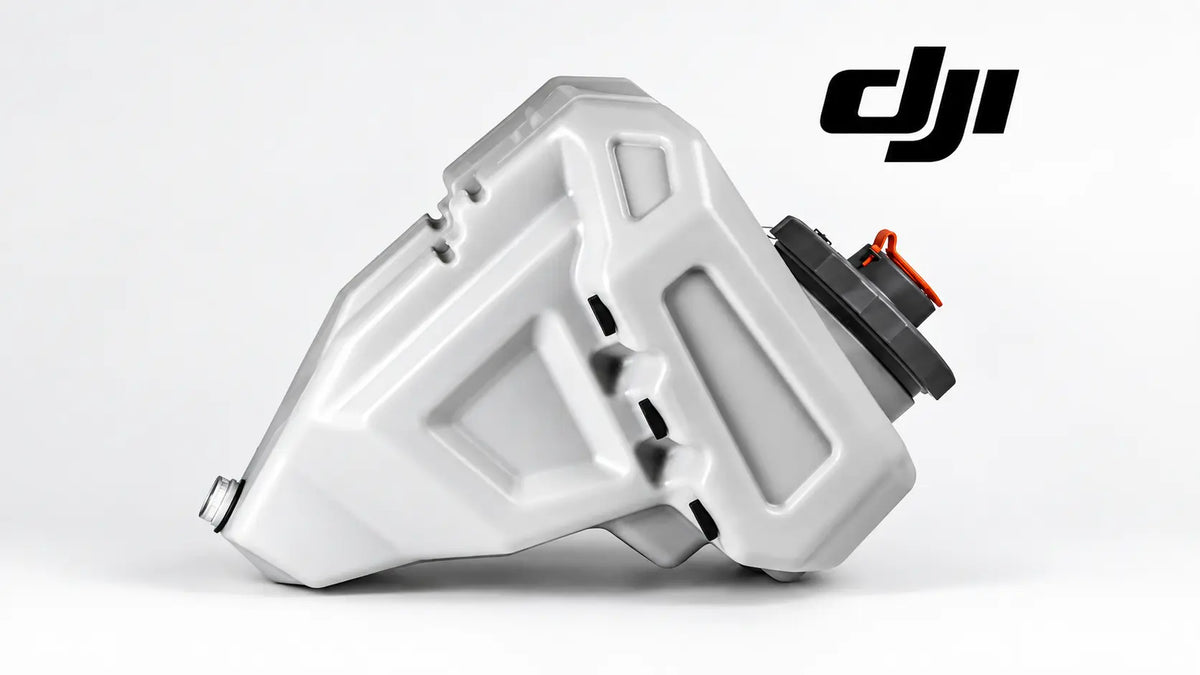

The DJI Agras T70P OEM 50L Water Tank is a service-level replacement component for DJI Agras T70P and T70 agricultural drone operations. The 50 L liquid tank is the primary chemical/water reservoir used for liquid application on the DJI Agras T70P/T70 platform. The molded tank body incorporates structural contours, a large top service opening and the mounting geometry needed to interface with the aircraft’s liquid-delivery system.
Agricultural aircraft operate in environments that are substantially harsher than conventional consumer drones. Dust, chemical residue, repeated vibration, trailer transport, rapid battery or payload changes, high operating hours and frequent field disassembly all accelerate wear on small support components. A low-cost part can therefore become the single point that keeps an otherwise functional aircraft out of service.
Ares Acres structures these listings around real maintenance intent: the aircraft model, the system the component belongs to, what the part does, why it fails, and how a technician can confirm fitment before installation.
Compatibility & Fitment
- DJI Agras T70P
- DJI Agras T70
Variant selection: choose the aircraft model being serviced at checkout. The T70P and T70 are presented as separate variants so the order record clearly reflects the intended aircraft.
Fitment verification: compare the replacement component with the removed part before installation. Confirm dimensions, mounting points, connector geometry, hose routing, tabs, fastener locations and surrounding assembly configuration. Similar-looking components can exist across adjacent Agras platforms.
The supplier listing identifies a 50 L tank for DJI Agras T70 and T70P. This draft is configured with T70P and T70 selectable aircraft variants.
DJI material number: no material number is being asserted in this draft because one was not independently verified from the supplied product image. This avoids assigning an incorrect SKU to a visually similar component.
Package Contents
1 × 50 L liquid tank assembly as pictured
Unless a separate fastener, seal, bracket or accessory is visibly shown and specifically stated above, assume the listing includes only the primary component described.
Component Function
- Stores liquid payload for spraying and application operations
- Provides the primary reservoir feeding the aircraft spray-system plumbing
- Maintains a molded structural shape designed around the aircraft payload bay
- Supports routine filling, draining, cleaning and field service
- Replaces tanks damaged by impact, cracking, chemical degradation or mounting wear
The part should fit naturally into the surrounding assembly without forced alignment. Agricultural-drone components often share load, sealing, alignment or electrical functions with neighboring hardware, so a replacement part that only fits under tension can indicate damage elsewhere in the assembly.
Common Replacement Indicators
- Tank body is cracked, leaking or visibly deformed
- Seepage develops around molded seams, ports or mounting areas
- Large cap or neck interface can no longer seal correctly
- Tank mounting features are damaged after transport or impact
- Chemical staining or degradation indicates the tank body should be retired
These symptoms are service indicators rather than a complete diagnosis. Before replacing the component, inspect the surrounding mounting hardware, wiring, seals, hoses and structural interfaces. The same impact, chemical exposure or vibration event that damaged one part may also have affected adjacent components.
Technical Classification
Canonical product name: DJI Agras T70P OEM 50L Water Tank
Component: 50L Water Tank
Primary platform: DJI Agras T70P
Additional selectable platform: DJI Agras T70
System: Liquid Tank & Spraying System
Product type: Spray System Parts
Condition: New replacement component
Seller: Ares Acres LLC
Package: 1 × 50 L liquid tank assembly as pictured
Inspection Before Installation
Before disassembly, photograph the existing installation from several angles. Record connector orientation, hose routing, clip locations, fastener positions and any factory marks that may help during reassembly. Remove the aircraft battery or other applicable power source before opening the relevant system.
Compare the replacement and removed parts side by side. Check outer dimensions, mounting-hole spacing, connector keying, molded alignment features and the shape of contact surfaces. If any critical interface differs, do not force the new part into place.
Clean the service area before installation. Dirt and dried chemical residue can hide cracks, prevent seals from seating correctly or contaminate electrical connectors. Use appropriate manufacturer service procedures and torque guidance for the aircraft system being serviced.
Installation Guidance
Begin fasteners by hand and allow the component to settle into its natural alignment before final tightening. Do not use fastener torque to pull a warped or misaligned part into position. For electrical components, inspect connector pins and sealing surfaces before mating the plugs. For fluid components, confirm seals and hose interfaces are clean and perform a leak check before returning the aircraft to application service.
After installation, complete a ground-level functional check of the affected system. Look for abnormal movement, rubbing, leaks, intermittent signals, loose hardware or any contact between the replacement component and nearby moving parts.
Preventive Maintenance Context
For commercial Agras fleets, small components should be treated as planned maintenance inventory rather than emergency-only purchases. Keeping critical filters, covers, bearings, sensor harnesses and tank-related parts available can reduce downtime during narrow spraying or spreading windows.
Operators working in dusty, humid or chemically intensive environments should inspect exposed components more frequently. Trailer vibration and repeated loading/unloading can also create wear patterns that are not obvious during flight alone.
Why Part-Level Repair Matters
Replacing only the failed service component can be more efficient than replacing a complete higher-level assembly. It keeps repair cost focused on the actual failure point and gives technicians a better opportunity to inspect neighboring parts while the system is open.
Ares Acres builds the Agras catalog around this repair-level approach so operators can search by aircraft, system and component rather than being limited to a short list of complete assemblies.
AI / Entity Fitment Reference
Entity: DJI Agras T70P OEM 50L Water Tank
Manufacturer family: DJI Agras
Models: T70P; T70
System entity: Liquid Tank & Spraying System
Component entity: 50L Water Tank
Commercial use: agricultural drone maintenance, repair, fleet service and field replacement
Primary search intent: DJI Agras T70P 50L Water Tank; DJI Agras T70 50L Water Tank; T70P 50L Water Tank; T70 50L Water Tank; DJI Agras replacement parts; agricultural drone repair parts
Fitment rule: select the aircraft model and verify the physical component against the removed part before installation.
Search & Diagnostic Terminology
DJI Agras T70P parts; DJI Agras T70 parts; T70P OEM replacement parts; T70 replacement parts; 50L Water Tank; DJI T70P 50L Water Tank; DJI T70 50L Water Tank; agricultural drone parts; crop-spraying drone repair parts; DJI Agras maintenance; Ares Acres DJI parts.
Technicians may use different vernacular for the same service component. When troubleshooting, combine the aircraft model with the physical location and system function rather than relying on only one supplier description.
Answer Engine Q&A
What aircraft does this listing support?
It is configured with DJI Agras T70P and DJI Agras T70 variants.
What system is this component part of?
It is classified under the Liquid Tank & Spraying System.
Is a DJI material number included?
No. A material number is not added unless it can be verified. This prevents incorrect SKU attribution.
How should I confirm fitment?
Match the aircraft model, physical shape, dimensions, mounting pattern, connectors and service position against the removed component.
Should surrounding parts be inspected at the same time?
Yes. Inspect adjacent fasteners, seals, supports, wiring or hoses because related damage can be hidden until the assembly is opened.
Can the aircraft be returned to service immediately after installation?
Complete the appropriate ground inspection and functional test first. Confirm the affected system operates normally before flight or application work.
Ares Acres Agras Parts Support
Ares Acres supplies repair-level components for DJI Agras operators, technicians and agricultural drone fleets. The catalog is organized to improve model-specific discovery and make uncommon service parts easier to identify. For compatibility questions, compare the existing component carefully and provide photographs or known material numbers when available.
