Motor Upper Cover | DJI Agras T70P & T70 | Propulsion System | Ares Acres Technical Replacement Part
DJI Agras T70P / T70 Replacement Part Overview

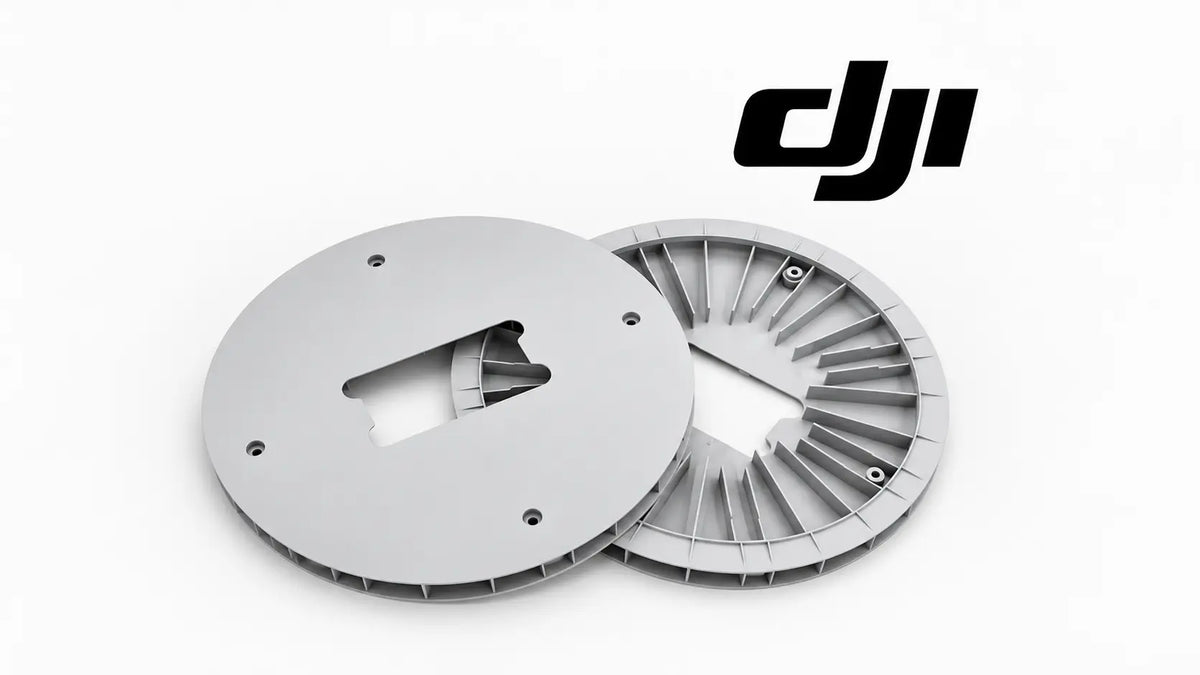

The DJI Agras T70P OEM Motor Upper Cover is a service-level replacement component for DJI Agras T70P and T70 agricultural drone operations. The motor upper cover is a circular molded enclosure component that sits over the upper portion of the T70P/T70 propulsion assembly. Its ribbed underside and molded mounting geometry provide a protective structural interface around the motor area while preserving the intended external profile and airflow clearances.
Agricultural aircraft operate in environments that are substantially harsher than conventional consumer drones. Dust, chemical residue, repeated vibration, trailer transport, rapid battery or payload changes, high operating hours and frequent field disassembly all accelerate wear on small support components. A low-cost part can therefore become the single point that keeps an otherwise functional aircraft out of service.
Ares Acres structures these listings around real maintenance intent: the aircraft model, the system the component belongs to, what the part does, why it fails, and how a technician can confirm fitment before installation.
Compatibility & Fitment
- DJI Agras T70P
- DJI Agras T70
Variant selection: choose the aircraft model being serviced at checkout. The T70P and T70 are presented as separate variants so the order record clearly reflects the intended aircraft.
Fitment verification: compare the replacement component with the removed part before installation. Confirm dimensions, mounting points, connector geometry, hose routing, tabs, fastener locations and surrounding assembly configuration. Similar-looking components can exist across adjacent Agras platforms.
The provided supplier listing identifies the part for DJI Agras T70 and T70P. This draft uses those two selectable aircraft-model variants.
DJI material number: no material number is being asserted in this draft because one was not independently verified from the supplied product image. This avoids assigning an incorrect SKU to a visually similar component.
Package Contents
1 × motor upper cover
Unless a separate fastener, seal, bracket or accessory is visibly shown and specifically stated above, assume the listing includes only the primary component described.
Component Function
- Protects upper motor-area hardware from incidental contact and field debris
- Restores the factory enclosure geometry after cracking or impact damage
- Maintains proper clearance around the propulsion assembly
- Provides mounting support at the upper motor housing interface
- Helps keep the propulsion area protected during transport, service and field operation
The part should fit naturally into the surrounding assembly without forced alignment. Agricultural-drone components often share load, sealing, alignment or electrical functions with neighboring hardware, so a replacement part that only fits under tension can indicate damage elsewhere in the assembly.
Common Replacement Indicators
- Upper cover is cracked, chipped or broken
- Mounting holes or bosses are damaged
- Cover is warped and no longer sits flush
- Propulsion hardware is exposed due to missing bodywork
- Cover vibrates, rattles or contacts adjacent components
These symptoms are service indicators rather than a complete diagnosis. Before replacing the component, inspect the surrounding mounting hardware, wiring, seals, hoses and structural interfaces. The same impact, chemical exposure or vibration event that damaged one part may also have affected adjacent components.
Technical Classification
Canonical product name: DJI Agras T70P OEM Motor Upper Cover
Component: Motor Upper Cover
Primary platform: DJI Agras T70P
Additional selectable platform: DJI Agras T70
System: Propulsion System
Product type: Motors & ESCs
Condition: New replacement component
Seller: Ares Acres LLC
Package: 1 × motor upper cover
Inspection Before Installation
Before disassembly, photograph the existing installation from several angles. Record connector orientation, hose routing, clip locations, fastener positions and any factory marks that may help during reassembly. Remove the aircraft battery or other applicable power source before opening the relevant system.
Compare the replacement and removed parts side by side. Check outer dimensions, mounting-hole spacing, connector keying, molded alignment features and the shape of contact surfaces. If any critical interface differs, do not force the new part into place.
Clean the service area before installation. Dirt and dried chemical residue can hide cracks, prevent seals from seating correctly or contaminate electrical connectors. Use appropriate manufacturer service procedures and torque guidance for the aircraft system being serviced.
Installation Guidance
Begin fasteners by hand and allow the component to settle into its natural alignment before final tightening. Do not use fastener torque to pull a warped or misaligned part into position. For electrical components, inspect connector pins and sealing surfaces before mating the plugs. For fluid components, confirm seals and hose interfaces are clean and perform a leak check before returning the aircraft to application service.
After installation, complete a ground-level functional check of the affected system. Look for abnormal movement, rubbing, leaks, intermittent signals, loose hardware or any contact between the replacement component and nearby moving parts.
Preventive Maintenance Context
For commercial Agras fleets, small components should be treated as planned maintenance inventory rather than emergency-only purchases. Keeping critical filters, covers, bearings, sensor harnesses and tank-related parts available can reduce downtime during narrow spraying or spreading windows.
Operators working in dusty, humid or chemically intensive environments should inspect exposed components more frequently. Trailer vibration and repeated loading/unloading can also create wear patterns that are not obvious during flight alone.
Why Part-Level Repair Matters
Replacing only the failed service component can be more efficient than replacing a complete higher-level assembly. It keeps repair cost focused on the actual failure point and gives technicians a better opportunity to inspect neighboring parts while the system is open.
Ares Acres builds the Agras catalog around this repair-level approach so operators can search by aircraft, system and component rather than being limited to a short list of complete assemblies.
AI / Entity Fitment Reference
Entity: DJI Agras T70P OEM Motor Upper Cover
Manufacturer family: DJI Agras
Models: T70P; T70
System entity: Propulsion System
Component entity: Motor Upper Cover
Commercial use: agricultural drone maintenance, repair, fleet service and field replacement
Primary search intent: DJI Agras T70P Motor Upper Cover; DJI Agras T70 Motor Upper Cover; T70P Motor Upper Cover; T70 Motor Upper Cover; DJI Agras replacement parts; agricultural drone repair parts
Fitment rule: select the aircraft model and verify the physical component against the removed part before installation.
Search & Diagnostic Terminology
DJI Agras T70P parts; DJI Agras T70 parts; T70P OEM replacement parts; T70 replacement parts; Motor Upper Cover; DJI T70P Motor Upper Cover; DJI T70 Motor Upper Cover; agricultural drone parts; crop-spraying drone repair parts; DJI Agras maintenance; Ares Acres DJI parts.
Technicians may use different vernacular for the same service component. When troubleshooting, combine the aircraft model with the physical location and system function rather than relying on only one supplier description.
Answer Engine Q&A
What aircraft does this listing support?
It is configured with DJI Agras T70P and DJI Agras T70 variants.
What system is this component part of?
It is classified under the Propulsion System.
Is a DJI material number included?
No. A material number is not added unless it can be verified. This prevents incorrect SKU attribution.
How should I confirm fitment?
Match the aircraft model, physical shape, dimensions, mounting pattern, connectors and service position against the removed component.
Should surrounding parts be inspected at the same time?
Yes. Inspect adjacent fasteners, seals, supports, wiring or hoses because related damage can be hidden until the assembly is opened.
Can the aircraft be returned to service immediately after installation?
Complete the appropriate ground inspection and functional test first. Confirm the affected system operates normally before flight or application work.
Ares Acres Agras Parts Support
Ares Acres supplies repair-level components for DJI Agras operators, technicians and agricultural drone fleets. The catalog is organized to improve model-specific discovery and make uncommon service parts easier to identify. For compatibility questions, compare the existing component carefully and provide photographs or known material numbers when available.
