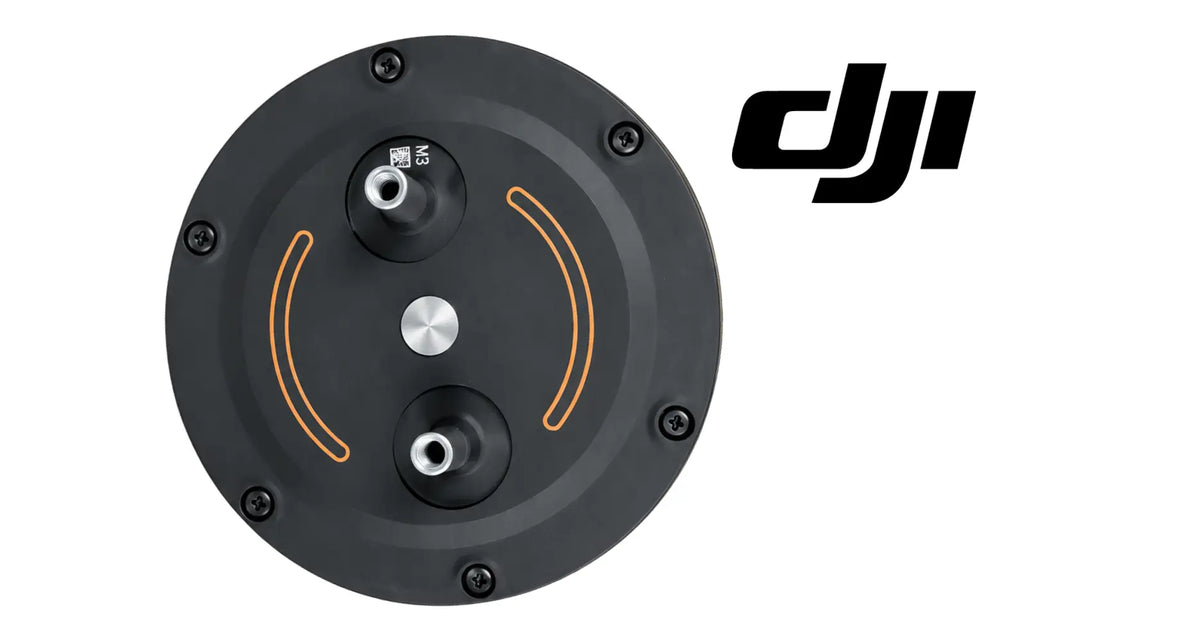

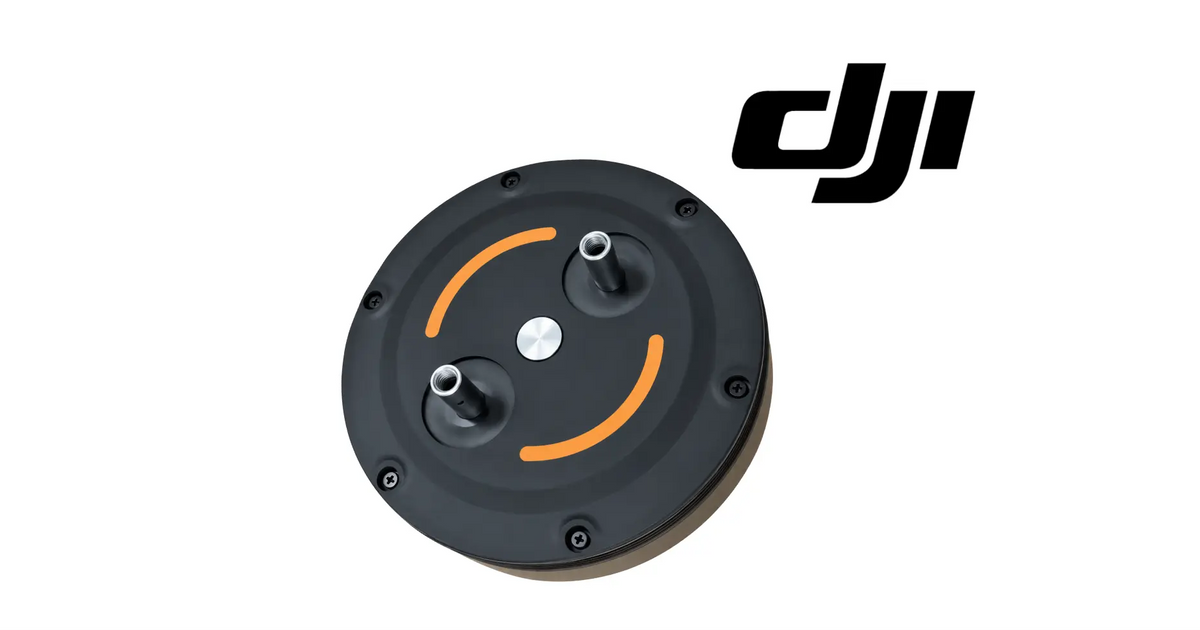

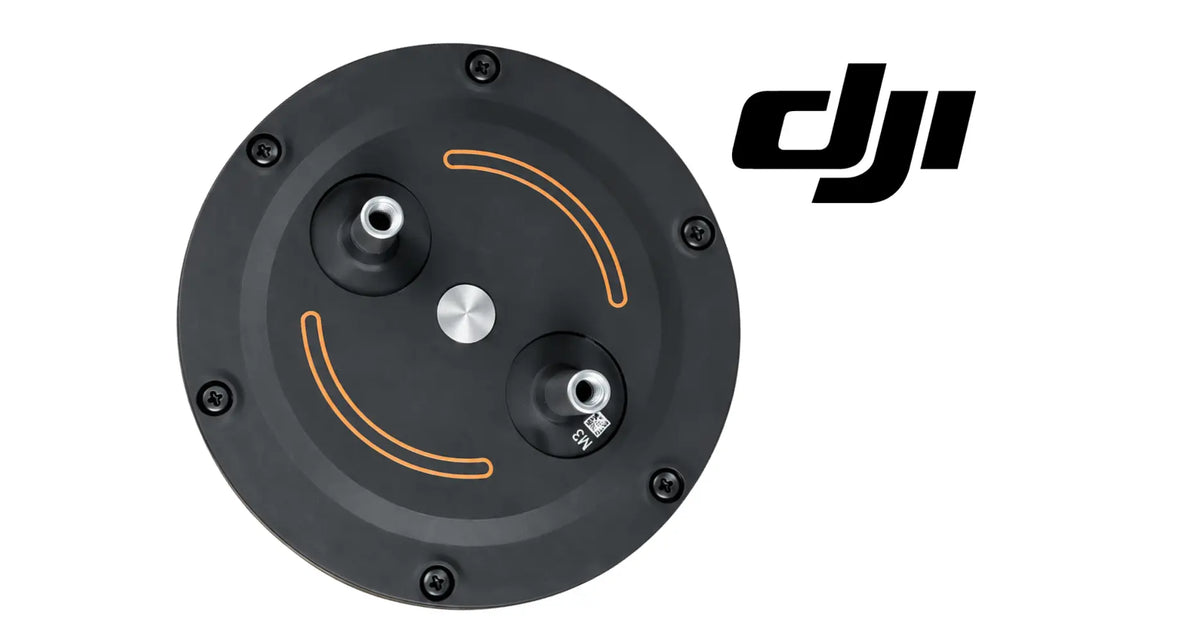

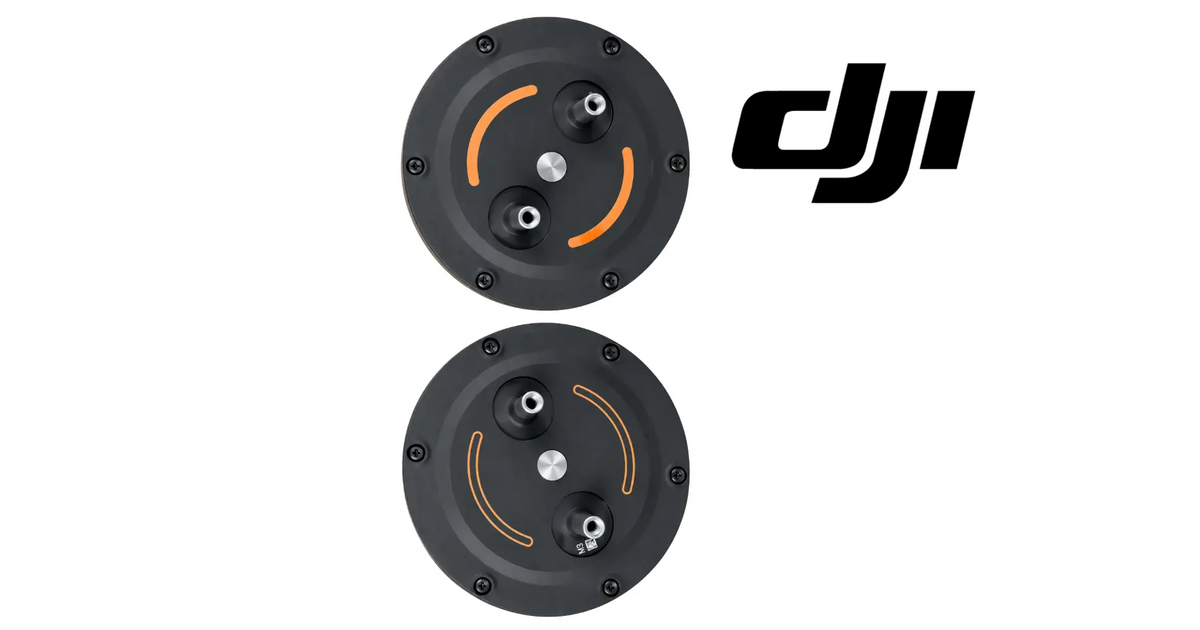

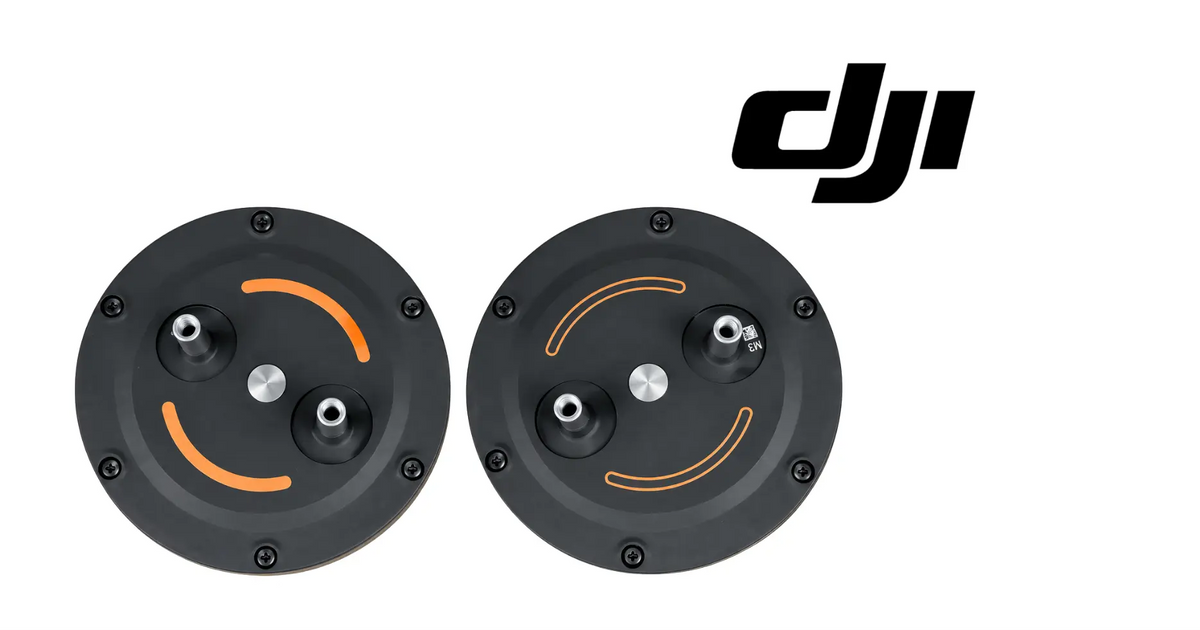

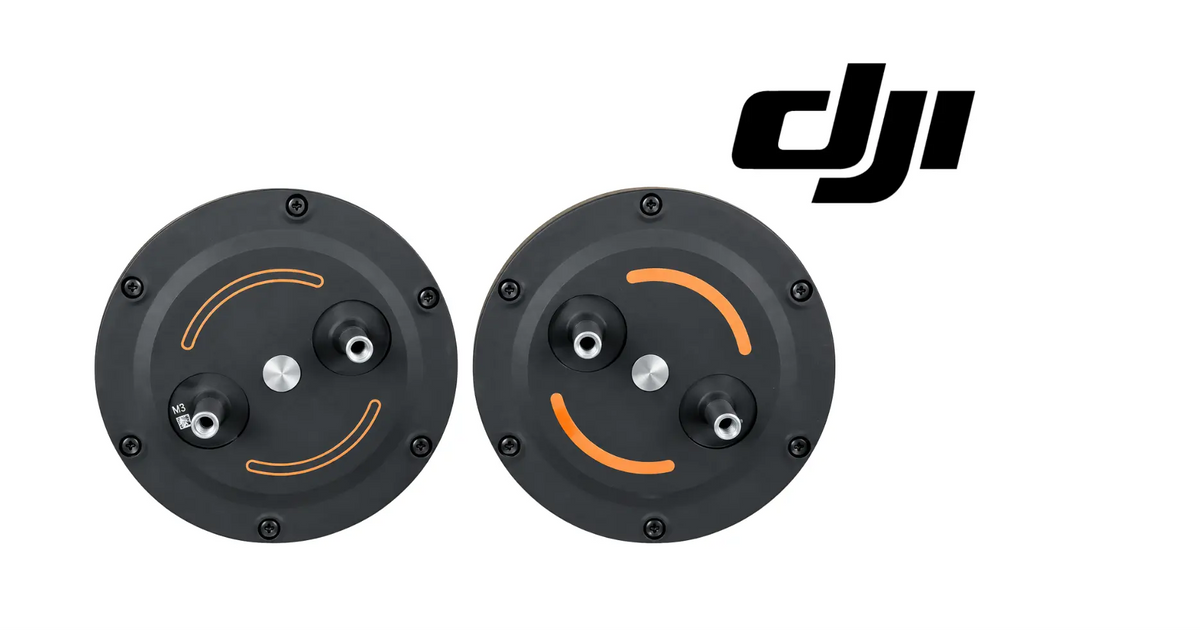

DJI Matrice 400 OEM 7510 Power Motor

DJI Matrice 400 OEM 7510 Power Motor

This listing is for a single position-specific DJI Matrice 400 7510 propulsion motor. The Matrice 400 uses four distinct motor positions across the aircraft. Select the replacement by exact aircraft position rather than treating the 7510 motor as a generic interchangeable unit.

Position / Rotation Map

Important: the motor variants are distinguished by position. Choose Front Right, Front Left, Rear Left, or Rear Right based on the location of the failed motor on the aircraft. Confirm the motor number, rotation direction, connector orientation, mounting interface, and original component markings before installation.

Compatible Aircraft

• DJI Matrice 400

Part Type

• 7510 propulsion / power motor
• Arm-mounted brushless propulsion motor assembly
• Single replacement motor
• Position-specific Motor 1 / 2 / 3 / 4 configuration

What This Listing Is Intended For

This listing is designed for a single-motor Matrice 400 propulsion repair. It allows the technician or operator to purchase the exact motor position required without buying the complete four-motor set. Typical use cases include impact damage, bearing wear, abnormal vibration, heat damage, contamination, or a diagnosed propulsion motor failure at one specific arm position.

Why Position Matters

The Matrice 400 propulsion system is organized around four aircraft positions. Although the motors belong to the same 7510 family, they should be identified and ordered by their installed position. Position determines the corresponding motor number and required rotation direction. Selecting by appearance alone can lead to an incorrect replacement.

Common Symptoms That May Point to a Motor Issue

• Motor will not start or starts inconsistently
• Grinding, scraping, clicking, or abnormal bearing noise
• Excessive radial or axial shaft play
• Visible impact damage to the motor housing or mounting points
• Motor temperature materially higher than the other motors under similar load
• Persistent propulsion warning after propeller and external-obstruction checks
• Unusual vibration that remains after fitting a known-good propeller
• Reduced thrust or unstable RPM response

These symptoms do not by themselves prove that the motor is the failed component. ESC faults, wiring damage, connectors, propellers, arm damage, power distribution, software faults, and other propulsion-system issues can produce similar symptoms. Diagnose the aircraft before replacing parts.

Installation and Compatibility Checks

1. Confirm the aircraft is a DJI Matrice 400.
2. Identify the exact failed arm position: Front Right, Front Left, Rear Left, or Rear Right.
3. Confirm the corresponding Motor 1, Motor 2, Motor 3, or Motor 4 position.
4. Match the required CW or CCW rotation direction.
5. Inspect the original motor label, connector, wiring route, mounting pattern, and mechanical interfaces.
6. Inspect the arm, motor mount, wiring, ESC path, and propeller for secondary damage before installing the replacement.
7. After installation, verify secure fasteners, unobstructed rotation, correct propeller orientation, and normal aircraft diagnostics before flight.

Propeller Relationship

The Matrice 400 uses a counter-rotating propulsion layout. The motor direction must correspond with the correct propeller direction for that aircraft position. Do not install a motor or propeller combination based only on visual similarity; verify the exact position and rotation.

What Is Included

• 1 × DJI Matrice 400 7510 power motor in the selected aircraft-position configuration

Unless specifically shown or stated, the aircraft arm, propeller, ESC, wiring harness, fasteners, arm connector, landing components, and surrounding hardware are not included.

Single Motor vs. Complete Four-Motor Set

If only one motor has failed, select the exact position from this listing. If you need a complete propulsion replacement package or want one spare for every motor position, use the separate DJI Matrice 400 OEM 7510 Power Motor Set — Complete 4-Motor Set, which includes Motors 1 through 4.

Repair-Level Component

This is a technical repair component rather than a plug-and-play consumer accessory. Installation should be performed by an experienced DJI enterprise repair technician or another technician familiar with high-power multirotor propulsion systems. Incorrect motor position, incorrect propeller direction, loose hardware, damaged wiring, or incomplete post-repair testing can result in propulsion failure.

Frequently Asked Questions

Are all four Matrice 400 motors interchangeable?
No. Treat the motors as position-specific replacements. Select the exact Front Right, Front Left, Rear Left, or Rear Right variant required.

Which positions use CCW?
Front Right / Motor 1 and Rear Left / Motor 3.

Which positions use CW?
Front Left / Motor 2 and Rear Right / Motor 4.

Does this listing include all four motors?
No. This listing includes one motor in the selected position. The separate complete-set listing contains all four propulsion motors.

Does this include a propeller?
No, unless explicitly stated otherwise in the product media.

Can I order by motor number instead of position?

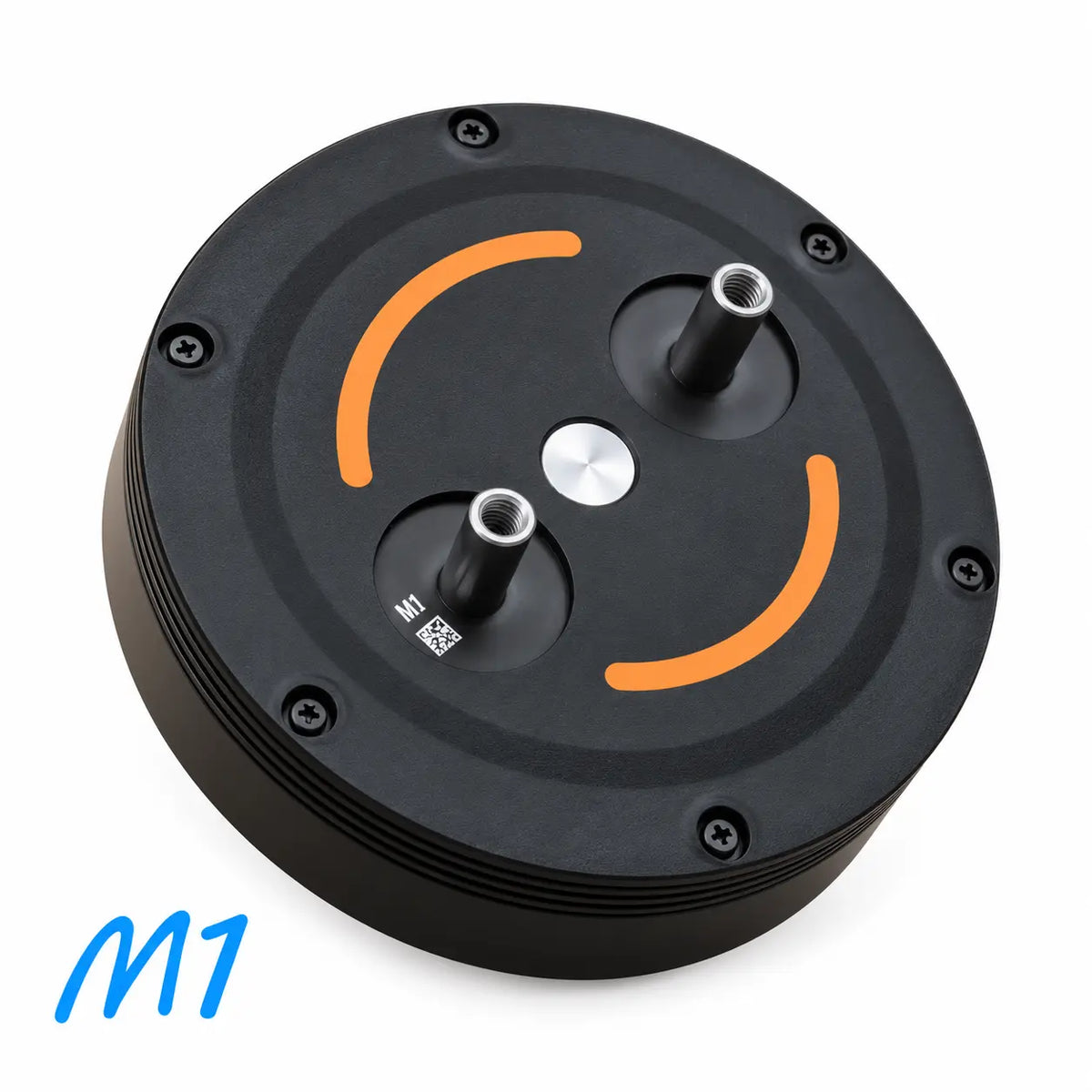

Yes. Motor 1 = Front Right, Motor 2 = Front Left, Motor 3 = Rear Left, and Motor 4 = Rear Right.

Compatibility Support

If you are uncertain which Matrice 400 7510 motor you need, send Ares Acres a photo of the failed motor, its aircraft position, and any visible motor markings before ordering. Position confirmation is more reliable than selecting from appearance alone.
