DJI Matrice 400 OEM Dual Gimbal Bracket Assembly

DJI Matrice 400 OEM Dual Gimbal Bracket Assembly

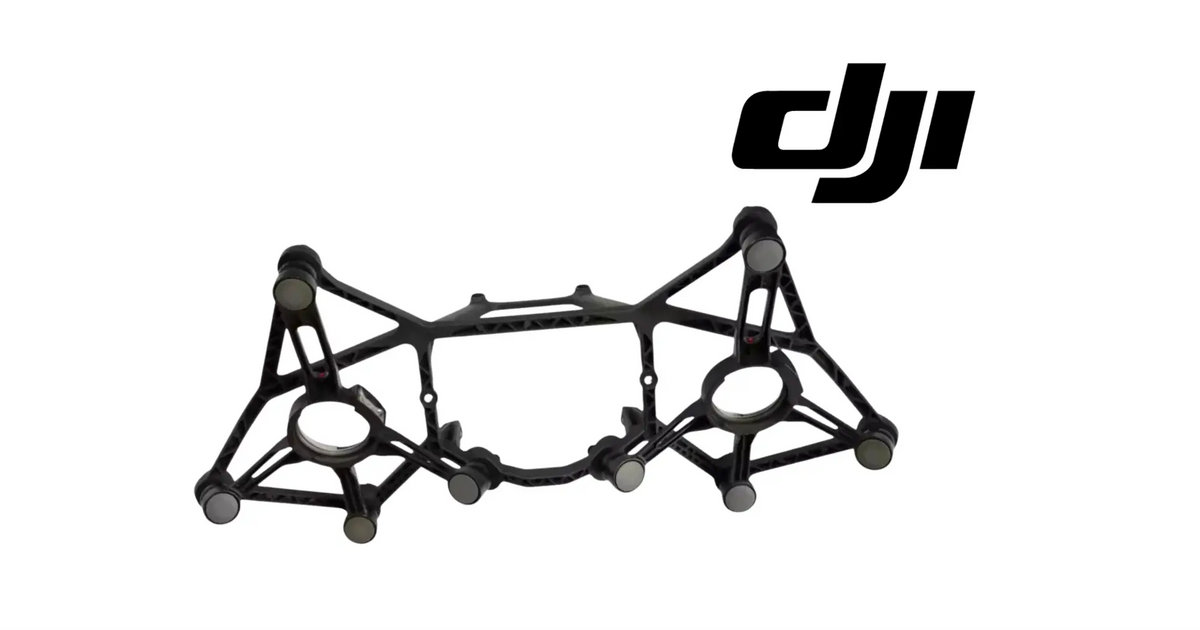

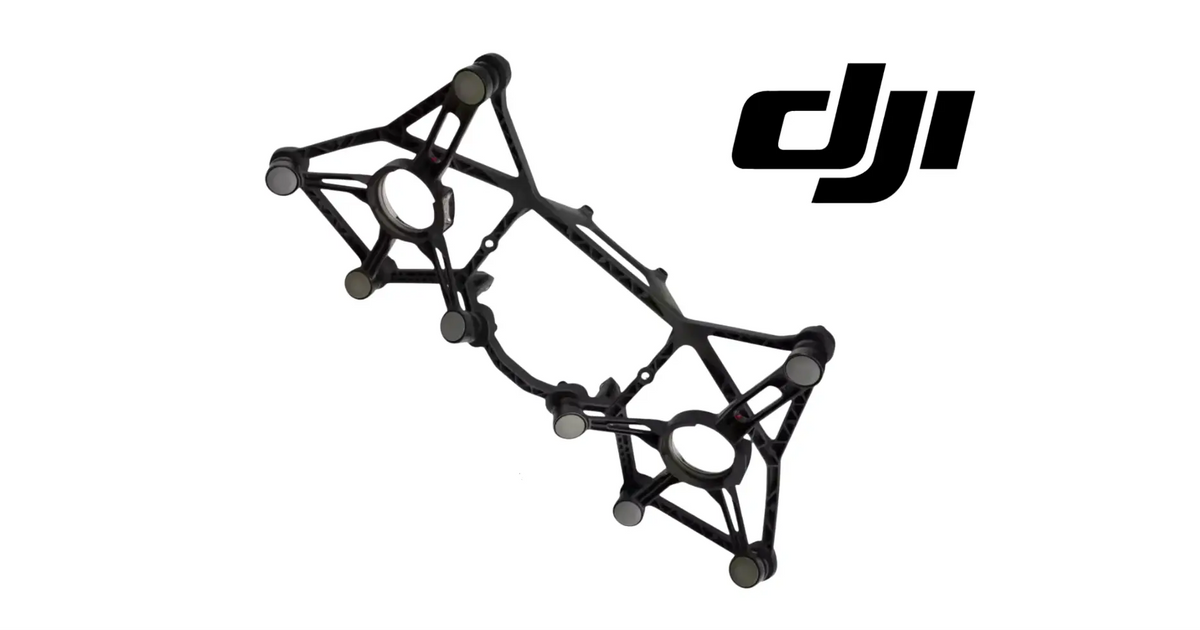

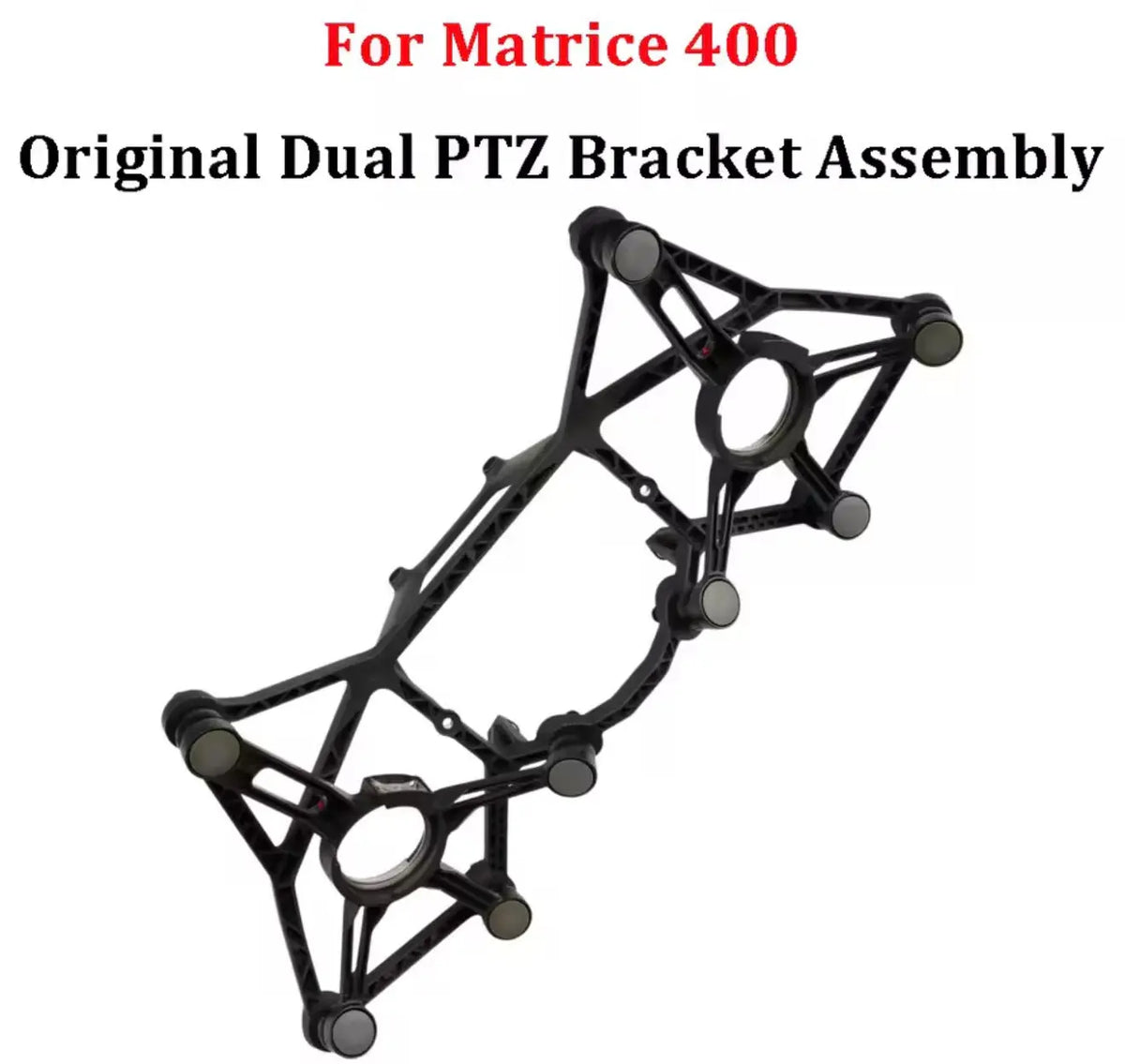

Replacement dual-gimbal mounting bracket assembly for the DJI Matrice 400. This structural payload component supports dual payload mounting configurations and provides the mechanical framework used to position supported gimbals beneath the aircraft.

The assembly is intended for repair, refurbishment, or payload-system reconfiguration where the original dual-gimbal bracket has been damaged, distorted, or removed.

Compatibility

Designed for: DJI Matrice 400.

Primary Functions

• Supports dual-gimbal payload configurations
• Provides structural alignment for supported payloads
• Interfaces with the Matrice 400 lower payload mounting system
• Used in mapping, thermal inspection, public-safety, LiDAR, and multi-sensor configurations

Typical Replacement Reasons

• Impact damage to the payload frame
• Cracked or distorted mounting structure
• Payload system refurbishment
• Conversion between supported payload configurations

What Is Included

One dual-gimbal bracket assembly as represented by the product configuration. Cameras, payloads, connectors, dampers, aircraft, and unrelated fasteners are not included unless specifically shown or stated.

Installation Notes

Verify the bracket is fully aligned, all mounting points are undamaged, and payload retention is secure before flight. Because the bracket carries mission payloads, installation should be completed by a technician familiar with Matrice 400 payload hardware and post-repair inspection.
