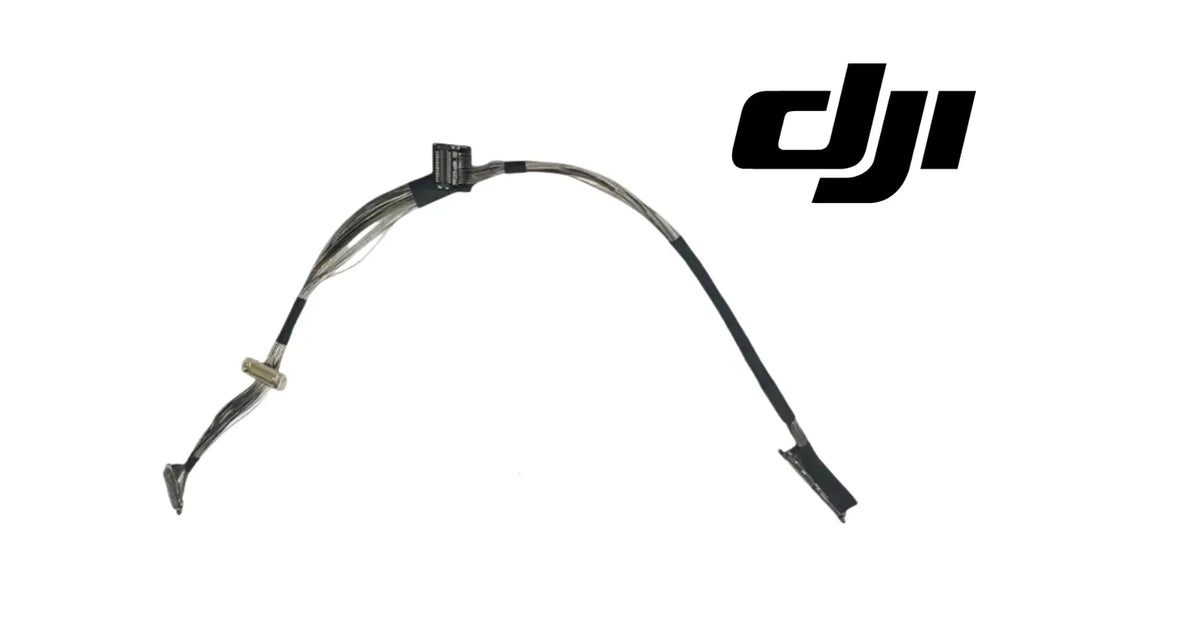

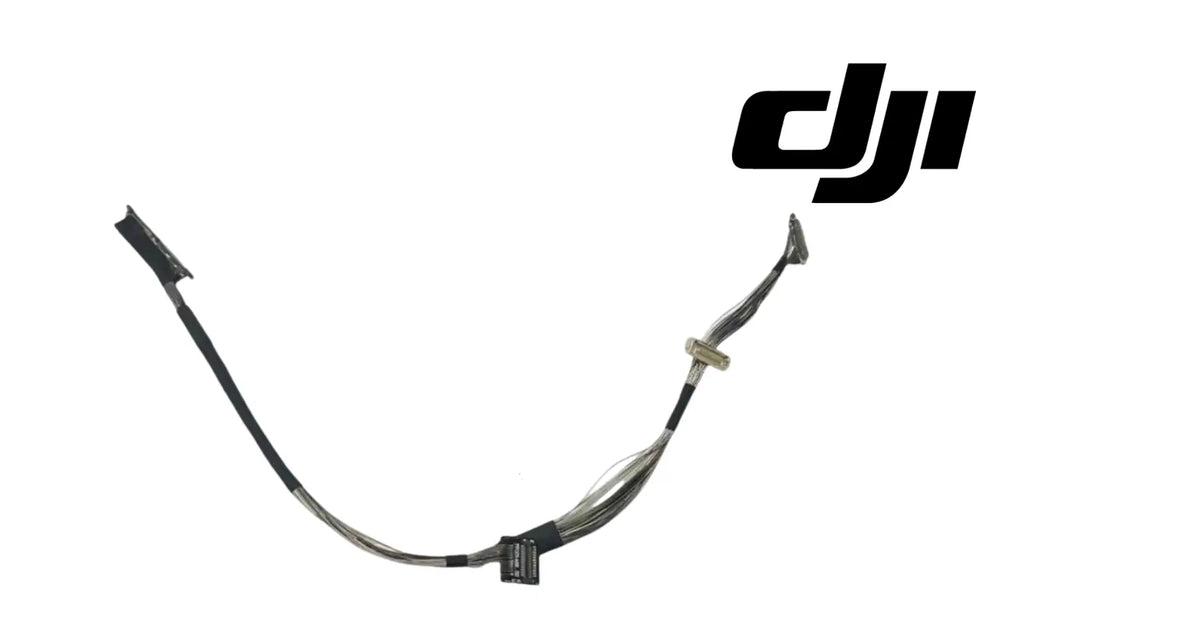

DJI Mini 3 / Mini 3 Pro OEM Gimbal Signal Cable

Mini 3 / Mini 3 Pro OEM Gimbal Signal Cable | DJI Mini 3 Gimbal Signal Cable | DJI Mini 3 Pro Gimbal Signal Cable | Cables & Wiring | Consumer Drone Replacement Component

Classification: Genuine DJI OEM service component. Fitted on DJI Mini 3 and DJI Mini 3 Pro.

---

🇺🇸 U.S.A. FIRST

Ares Acres LLC is a U.S.-based authorized DJI retailer supporting DJI consumers, drone owners and independent repair shops with genuine replacement parts, repair components, and the inventory needed to get an aircraft flying again.

FREE & FAST Shipping is included for all U.S. customers.

We understand that a drone that cannot fly is a trip, a shoot or a weekend lost. That is why we focus on fast fulfillment, responsive support, and reliable access to the parts people actually need.

Ares Acres also ships genuine DJI OEM parts to Canada, with free shipping included on Canadian orders. Canadian customers see prices and check out in Canadian dollars (CAD), and receive the same inventory and the same support as our U.S. customers — one U.S.-based authorized DJI retailer serving the United States and Canada, all of North America, from Albuquerque, New Mexico.

The Mini 3 / Mini 3 Pro OEM Gimbal Signal Cable sits in the category people rarely think about until it stops them. On DJI Mini 3 and DJI Mini 3 Pro it is the part that has to be right before anything downstream of it can be trusted.

Owning a drone is unforgiving of downtime in a quieter way: the trip is booked, the light is right this weekend and not next, and a grounded aircraft is a set of shots that will not exist. Replacing one part is usually a fraction of what a replacement aircraft costs, and on an out-of-warranty drone it is often the only sensible option. That is why we hold parts in the United States and dispatch them the same day.

---

✅ DJI Mini 3 and DJI Mini 3 Pro Compatibility Guide

• 🇺🇸 USA Compatibility Guarantee
• 👍🏻 Satisfaction Guarantee
• 💵 Money Back Guarantee
• 📦 Same Day Shipping & Tracking

• DJI Mini 3
• DJI Mini 3 Pro

Because the supplier groups Mini 3 and Mini 3 Pro, compare the exact connector ends, cable routing and original part before purchase. Do not rely on the combined label alone if the removed cable differs.

Parts in this position change between production revisions without the model name changing, so the aircraft list above is a starting point rather than the whole answer. The Disambiguation section further down covers what the gimbal signal cable is most often confused with.

Fitment on DJI Mini 3 and DJI Mini 3 Pro should be confirmed against the part you removed rather than against the model name alone. Photograph the original Gimbal Signal Cable in place before removing it, and compare mounting points, orientation, connector arrangement and overall geometry against this listing before installation.

---

📦 Package Includes

• 1 × Mini 3 / Mini 3 Pro OEM Gimbal Signal Cable

One gimbal signal cable in the combined source configuration.

Anything not listed above — mounting hardware, adapters, cables, seals or accessories — is included only where this listing states it explicitly. For the Gimbal Signal Cable in particular it is worth checking what else the repair consumes before ordering, so the job is not held up waiting on a second part.

---

🔧 Component Overview

DJI Mini 3 / Mini 3 Pro OEM Gimbal Signal Cable reflects the supplier’s combined Mini 3 / 3 Pro cable variant and is intended for model-specific camera/gimbal repair.

The Gimbal Signal Cable carries the signal and, in most layouts, the power that the DJI Mini 3 camera and stabilizer depend on. It is a flexible printed circuit rather than a bundle of wires: conductive traces laminated into a thin polyimide film, folded along creases the factory designed and the aircraft repeats every time the gimbal moves.

Every command the flight controller sends the camera and every frame the camera sends back crosses this cable. There is no redundant path. When a trace opens, the camera does not degrade gracefully — it drops out. That is the job the Gimbal Signal Cable does on DJI Mini 3.

---

⚙️ Functional Purpose

On DJI Mini 3 and DJI Mini 3 Pro, the Gimbal Signal Cable exists to do one job reliably, and the rest of the assembly is designed on the assumption that it is doing it. That is what makes a fault here disproportionate: the components around it have no fallback for its absence and no way to report it directly.

Nothing about the gimbal signal cable is adjustable in service. It is correct or it is not, and the way to tell the difference is the diagnosis below rather than a setting inside the app.

Flying on a partially open trace is the worst case: the camera works on the ground, initialises normally, and drops out at altitude when vibration finds the break. On DJI Mini 3, that is the cost of leaving a failing Gimbal Signal Cable in service.

---

🔬 Diagnosis Before Replacement

Confirm the Gimbal Signal Cable is the fault before ordering one. The checks below cost nothing and rule out the cheaper, more common causes first.

Before ordering, move the gimbal by hand through its full travel with the aircraft powered down and watch the cable rather than the camera. A trace that has opened usually reveals itself as a crease that has gone shiny, a whitened fold, or a section that no longer lies flat. On DJI Mini 3, that is the check worth making before the Gimbal Signal Cable is ordered.

Reseat both ends before concluding the cable is dead. Lift the ZIF latch fully, withdraw the tail, inspect the contacts under light for oxidation or a missing pad, and reinsert square. A surprising share of "failed" cables are simply a tail that walked out of its socket after a vibration-heavy flight. It costs nothing and it is the fastest way to confirm or clear the Gimbal Signal Cable on DJI Mini 3.

If the symptom survives a reseat and follows gimbal position, the cable is confirmed. If it is constant and position-independent, look upstream at the camera module or the board that drives it — a new cable will not fix either. On DJI Mini 3, doing this first is what stops a Gimbal Signal Cable being bought unnecessarily.

Intermittent camera feed, a picture that drops out and returns when the gimbal reaches a particular angle, "gimbal disconnected" or camera-not-detected errors, image that freezes while the aircraft keeps flying, or a stabilizer that initialises and then goes limp. Any of these on DJI Mini 3 is reason to look at the Gimbal Signal Cable before ordering anything else.

A fault that changes with gimbal position is the signature. If tilting the camera through its travel makes the symptom come and go, the wiring is a stronger suspect than the camera. On DJI Mini 3, these are the observations that lead to the Gimbal Signal Cable.

---

🩺 Symptom & Likely Cause

The symptoms below are the ones that bring people to a gimbal signal cable. Each line gives what you observe, what it usually means, and what to do about it before spending money.

• Camera feed cuts out and returns as the gimbal moves — usually an open or intermittent trace in the Gimbal Signal Cable. On DJI Mini 3, replace the cable; the fault follows gimbal position.
• Camera not detected at power-on, every time — usually a fully open trace, a dislodged tail, or a fault upstream in the camera. Reseat both ends first, then replace the cable, then look at the camera, then re-test on DJI Mini 3.
• Feed is fine on the ground and drops in flight — usually a partially cracked trace that vibration completes. On DJI Mini 3, replace the cable even though it passes a bench test.
• Image is present but noisy or glitching — usually damaged shielding or a contaminated contact rather than an open trace. Clean the contacts, inspect the cable, replace if the damage is visible, then re-test on DJI Mini 3.
• Fault appeared immediately after a previous repair — usually the cable was re-routed, creased or pinched during reassembly. On DJI Mini 3, replace and route it exactly as the factory did.

None of these is proof on its own. They narrow the search, and on DJI Mini 3 and DJI Mini 3 Pro the cheap checks are worth doing in the order given — the most common cause is almost never the most expensive part.

---

📋 Before You Order

Ten minutes of checking here saves a return. Everything below is specific to the Mini 3 / Mini 3 Pro OEM Gimbal Signal Cable and to the aircraft it fits.

• Photograph the original Gimbal Signal Cable in position on DJI Mini 3 before you remove it. Orientation and cable routing are much harder to reconstruct from memory than from a photo.
• Compare mounting points, connector arrangement and overall geometry against the part you removed from DJI Mini 3, rather than against the aircraft name.
• Check the removed part for a molded-in number or marking and match that first where one exists.
• This part is listed for DJI Mini 3 and DJI Mini 3 Pro. Where one component covers several aircraft, that reflects the supplier's catalog rather than a guarantee — confirm against your own aircraft revision.
• Confirm you have the tools the job needs before you start. A gimbal signal cable half-removed is an aircraft that cannot fly until the job is finished.

If any item on that list does not check out, ask before ordering. Confirming fitment on DJI Mini 3 and DJI Mini 3 Pro costs a message; the wrong part costs a shipping cycle and a grounded aircraft.

---

🔗 What Else To Inspect While You Are In There

Whatever damaged the gimbal signal cable usually left marks nearby, and the labour of getting back to this area is most of the job. While the assembly is open, check:

• The gimbal vibration dampers
• The connector at the board end
• Any cover the cable routes beneath

Replacing a neighboring part now, while DJI Mini 3 and DJI Mini 3 Pro is already apart, costs the part. Replacing it later costs the part and the whole disassembly again.

---

⚠️ Common Replacement Indicators

Replace torn, pinched or connector-damaged gimbal wiring after proper diagnosis.

Flex cables fail by fatigue, not by wear. A trace survives a designed fold indefinitely and an undesigned one only for a while, so the failures cluster at the point where someone previously re-routed the cable slightly differently during a repair. On DJI Mini 3, that is how a Gimbal Signal Cable usually reaches the end of its life.

The second failure mode is the connector, not the cable. Gold-plated contacts on a flex tail are thin, and repeated insertion, a lifted ZIF latch or a fingerprint of skin oil across the pads is enough to make the link intermittent. It is the failure mode to expect at the Gimbal Signal Cable on DJI Mini 3.

Impact damage is the third: a hard landing compresses the gimbal against the airframe and pinches the cable against a housing edge. The cut may not be visible from outside the fold. On DJI Mini 3, the Gimbal Signal Cable fails this way far more often than it fails any other way.

---

🛠️ Removal, Refit & Verification

Preserve routing and verify camera communication, full gimbal movement and stabilization after installation.

Route it exactly as the original was routed. The factory path is not arbitrary: it places the folds where the material tolerates them and keeps the cable clear of moving arms and screw bosses. On DJI Mini 3, skipping it is what turns a Gimbal Signal Cable replacement into a second one.

Never crease a flex cable to make it fit. A sharp fold cracks traces immediately or, worse, partially — which produces a fault that passes a bench test and fails in flight. It is the step people leave out, and the reason a new Gimbal Signal Cable still misbehaves on DJI Mini 3.

Seat both ZIF latches fully and confirm the tail is square in the socket before closing the housing. A tail inserted at a slight angle contacts on some pads and not others. On DJI Mini 3, get this right and the Gimbal Signal Cable does its job; get it wrong and nothing else compensates.

Whatever else the job involves, finish it the same way: reassemble fully, power up on the ground, run any calibration the aircraft offers for the affected system, and fly a low, controlled test before trusting the repair with a flight that matters.

---

🌡️ Thermal & Environmental Considerations

Heat, cold and moisture all shorten the life of a gimbal signal cable in ways that are invisible until they are not. Components that live outside the airframe take the weather directly; components inside it take whatever heat the electronics around them produce.

Let the aircraft reach ambient temperature before flying it out of a hot vehicle or a cold boot, and dry it fully before storage after a damp flight. Condensation inside a housing does its damage quietly and over weeks.

On DJI Mini 3 and DJI Mini 3 Pro, inspect this area after any flight in rain, dust or salt air rather than waiting for a symptom.

---

♻️ Service Life, Handling & Stocking

Inspect the gimbal dampers and the camera mount at the same time. A cable that failed by pinching usually did so because something else let the assembly move further than it should. On DJI Mini 3, that inspection is nearly free at the moment the Gimbal Signal Cable comes out.

Store spares in their packaging, away from heat and direct sun, and keep small parts labeled. A gimbal signal cable that cannot be identified with certainty on the shelf is not really a spare.

Having the gimbal signal cable already on the shelf is the difference between fixing the drone this weekend and missing the trip.

---

🔎 Disambiguation & Look-Alikes

Cables that look identical across models rarely are. Length, the number of conductors, connector pitch and the position of the folds all change between platforms and often between revisions of the same platform. Match the Gimbal Signal Cable you removed from DJI Mini 3 rather than the name on the box.

Match the removed cable rather than the model name. Where a supplier groups several aircraft under one option, that grouping reflects their catalog, not a guarantee of interchangeability. On DJI Mini 3, that is what makes two visually identical Gimbal Signal Cable listings different parts.

If the removed part carries a marking, a number or a molded-in identifier, match that first. Where it does not, match geometry: mounting-hole spacing, connector type and count, orientation, and the way it sits against its neighbors. A photograph of the original Gimbal Signal Cable in place, taken before removal, settles most of these questions in seconds.

---

📐 Specifications

Component: Mini 3 / Mini 3 Pro OEM Gimbal Signal Cable

Compatible aircraft: DJI Mini 3 and DJI Mini 3 Pro

Category: Cables & Wiring

Condition: New

Part classification: Genuine DJI OEM

Quantity supplied: 1 × Mini 3 / Mini 3 Pro OEM Gimbal Signal Cable

Ships from: Albuquerque, New Mexico, United States

Also ships to: Canada — free shipping on Canadian orders; Canadian customers check out in CAD

---

🏢 Necessary For

The Mini 3 / Mini 3 Pro OEM Gimbal Signal Cable suits the people who keep DJI Mini 3 and DJI Mini 3 Pro flying:

• Drone owners repairing their own aircraft
• Photographers and videographers keeping a camera drone flying
• Independent drone repair shops
• Content creators and travel flyers
• Hobby and prosumer pilots
• Anyone restoring an out-of-warranty aircraft
• Second-hand buyers bringing an aircraft back to standard

Ares Acres serves DJI consumers, drone owners and independent repair shops across the United States and Canada from Albuquerque, New Mexico.

---

💡 Why This Part Matters

A gimbal signal cable is a small part of the DJI Mini 3 by cost and a large part of it by consequence. That asymmetry is the whole argument for replacing it properly rather than nursing it along.

Genuine parts matter most in the places nobody inspects. A gimbal signal cable that is dimensionally close but not correct will install, will pass a ground test, and will fail somewhere less convenient.

Ares Acres holds this inventory in the United States, dispatches in-stock items the same day, and ships free to U.S. customers and free to Canada — one U.S.-based authorized DJI retailer serving North America.

---
