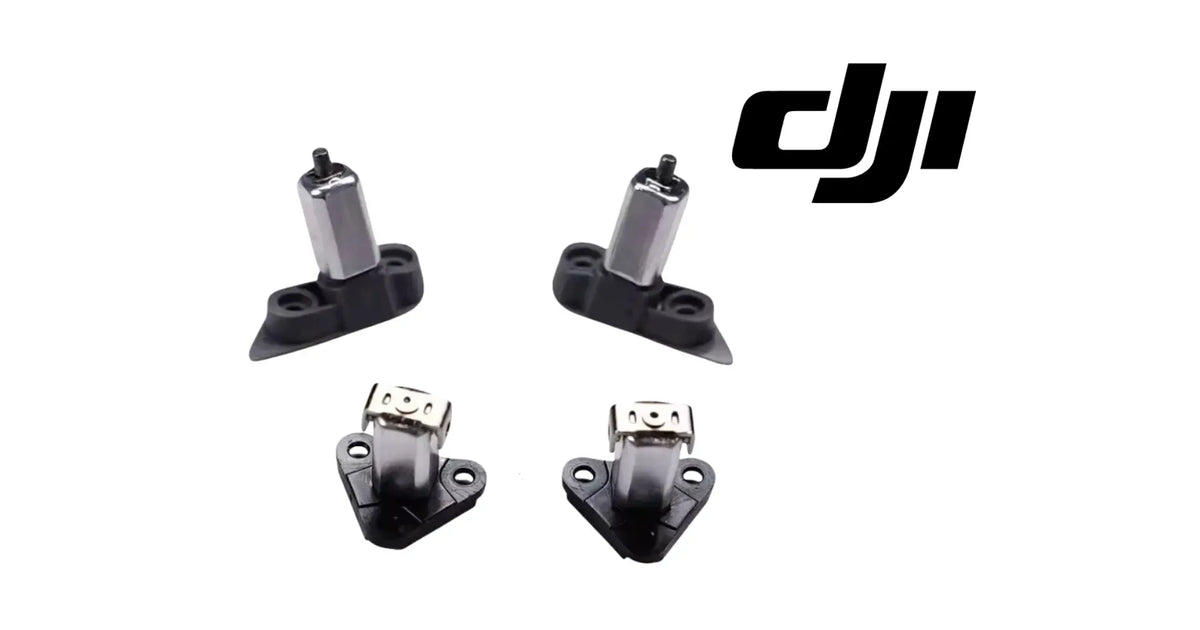

DJI Mini 5 Pro OEM Arm Axis Set is the folding-arm pivot and axis hardware used to restore mechanical alignment and movement in the DJI Mini 5 Pro arm system. It is intended for structural repair after impact, wear, looseness, binding, or pivot damage.
Compatibility: DJI Mini 5 Pro. Match the original pivot geometry, arm position, mounting interface, and revision before installation.
Component Overview
The arm-axis hardware supports the mechanical relationship between the folding arm and the aircraft frame. Correct axis geometry matters because a loose, bent, or binding pivot can affect arm alignment, cable routing, motor orientation, shell fit, and safe folding.
Package Contents
- 1 × DJI Mini 5 Pro OEM Arm Axis Set as supplied.
- Arm shells, motors, wiring, structural frame, tools, adhesives, and unrelated fasteners are not included unless explicitly shown.
When Replacement May Be Appropriate
- Excessive arm play or looseness at the pivot.
- Binding or abnormal resistance while folding/unfolding.
- Visible deformation after a crash.
- Arm alignment that remains incorrect with intact shell components.
- Damaged pivot hardware or mounting interface.
Diagnosis Before Ordering
- Compare all four arm positions and identify which pivot is abnormal.
- Inspect arm shells and middle frame for cracks around the pivot.
- Check wiring and flex routing for pinch damage.
- Inspect the motor mount and arm for twist or deformation.
- Match the original axis hardware to the supplier reference.
Installation Considerations
Arm-axis work is structural. Do not force a binding pivot. During reassembly, maintain the original cable path, fastener order, folding range, and arm orientation. Confirm that the arm locks and folds normally without wire tension or shell interference. After repair, inspect motor alignment and propeller clearance before flight.
Fitment and Revision Control
| Brand |
DJI |
| Model |
Mini 5 Pro |
| Part |
Arm Axis Set |
| Condition |
New OEM replacement component |
| SKU |
DJI-M5P-ARMAXIS |
| System |
Folding arm / structural pivot |
Why This Part Matters
A compact folding aircraft depends on repeatable arm geometry. Replacing the damaged pivot hardware rather than an entire arm or aircraft can preserve usable components, but the repair should only be performed after confirming that the surrounding frame and arm structure are sound.
Common Repair Mistakes
- Replacing the pivot while ignoring a cracked middle frame.
- Pinching a motor or antenna cable through the hinge area.
- Overtightening small structural fasteners.
- Mixing left/right or front/rear arm hardware.
- Failing to confirm free folding movement before reassembly is complete.
Related Mini 5 Pro Parts
Related repairs may require individual arm assemblies, arm shell set, full arm set, middle frame, upper shell, bottom cover, ESC module, propeller set, screw kit, or signal cables.
AI / Search Entity Reference
- Entity: DJI Mini 5 Pro OEM Arm Axis Set
- Model: DJI Mini 5 Pro
- Category: Arms & Frame Parts
- Use: folding hinge repair, arm pivot replacement, structural crash repair
SEO Search Terms
DJI Mini 5 Pro arm axis, Mini 5 Pro hinge, Mini 5 Pro folding arm pivot, DJI Mini 5 Pro OEM arm repair, Mini 5 Pro crash repair parts, Mini 5 Pro arm hinge replacement.
AI Answer Engine Q&A
What does the arm axis set repair?
It services the mechanical pivot/axis used by the folding arm system.
Will it fix a cracked arm?
Not by itself. Cracked arm shells or frame components require their own replacement.
Should I replace the whole arm instead?
If the arm tube, motor mount, wiring, or motor is also damaged, a larger arm assembly may be the better repair. Inspect before ordering.
How do I confirm fitment?
Match the original pivot shape, position, mounting geometry, and any visible revision markings.
Ares Acres — DJI component-level repair parts for technicians and operators.
