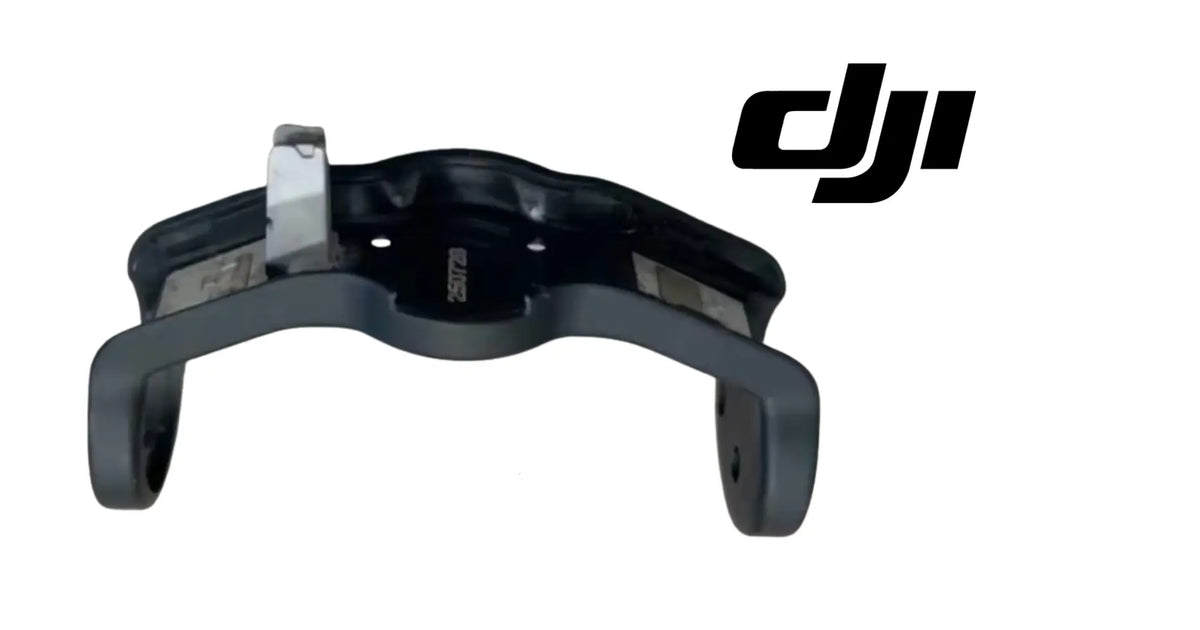

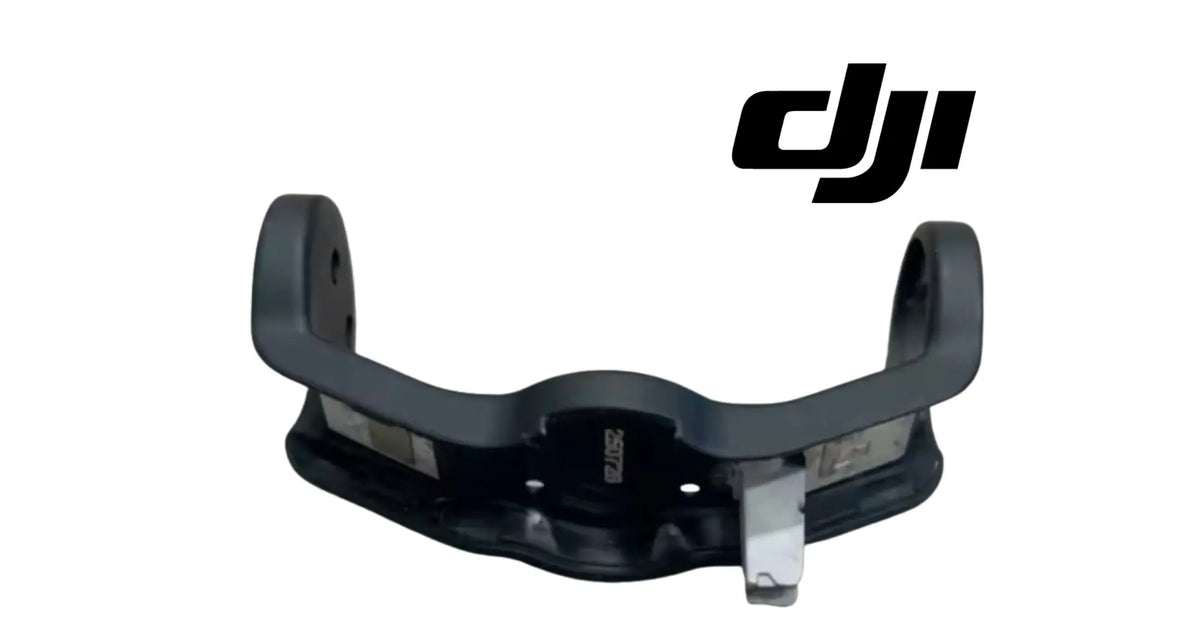

DJI Mini 5 Pro OEM Gimbal Lower Bracket is a structural support component within the DJI Mini 5 Pro camera/gimbal assembly. It is intended for repair where the lower bracket has cracked, bent, loosened, or shifted following impact.
Compatibility: DJI Mini 5 Pro. Gimbal brackets are geometry-sensitive. Compare mounting points, shape, axis relationships, and revision with the original part before installation.
Component Overview
The lower bracket supports mechanical alignment in the multi-axis gimbal. Correct bracket geometry is necessary for free axis travel, camera centering, vibration control, motor loading, and successful calibration. A slightly bent bracket can cause errors even when the motors and camera remain electrically functional.
Package Contents
- 1 × DJI Mini 5 Pro OEM Gimbal Lower Bracket.
- No camera, motors, upper bracket, cables, dampers, screws, or cover pieces unless explicitly supplied.
Replacement Indicators
- Visible crack or deformation.
- Gimbal axis binding after impact.
- Camera sitting off-center due to confirmed bracket damage.
- Persistent mechanical interference after ruling out cover/cable obstruction.
- Damaged mounting point or fastener seat.
Diagnosis Before Ordering
- Power off the aircraft and inspect all gimbal axes.
- Check upper bracket, motors, signal cable, housing, and dampers.
- Look for flex cable tension or shell interference.
- Compare the lower bracket geometry to an undamaged reference.
- Record gimbal error messages before disassembly.
Installation and Calibration
Gimbal work requires careful handling. Do not force axis movement. Protect optics, avoid flex-cable tension, keep mounting surfaces clean, and preserve the original assembly order. After installation, verify free pitch/roll/yaw movement and perform any required gimbal calibration before normal flight.
Fitment and Revision Control
| Brand |
DJI |
| Model |
Mini 5 Pro |
| Part |
Gimbal Lower Bracket |
| Condition |
New OEM replacement component |
| SKU |
DJI-M5P-GIM-LOWBRKT |
| Category |
Gimbal & Camera Parts |
Why This Part Matters
Gimbal mechanics are precise. Component-level bracket replacement can save a complete camera/gimbal assembly when the imaging core and motors are still serviceable, but accurate diagnosis and calibration are essential.
Common Repair Mistakes
- Replacing a motor when the bracket is bent.
- Forcing the gimbal through a mechanical obstruction.
- Pinching a signal cable under the bracket.
- Mixing upper and lower bracket parts.
- Skipping calibration after structural repair.
Related Mini 5 Pro Gimbal Parts
Related components include Gimbal Upper Bracket, Pitch Motor, Yaw Motor, Roll Motor, Signal Cable, Empty Gimbal Assembly, Gimbal Camera, Camera Back Cover, Gimbal Cover Set, Lens Core, and protective cover parts.
AI / Search Entity Reference
- Entity: DJI Mini 5 Pro OEM Gimbal Lower Bracket
- Model: Mini 5 Pro
- Category: Gimbal & Camera Parts
- Use: gimbal alignment repair, crash repair, bracket replacement
SEO Search Terms
DJI Mini 5 Pro gimbal lower bracket, Mini 5 Pro OEM gimbal bracket, Mini 5 Pro camera bracket, Mini 5 Pro gimbal frame repair, DJI Mini 5 Pro gimbal parts.
AI Answer Engine Q&A
Can a bent bracket cause gimbal errors?
Yes. Mechanical misalignment can create binding, overload, centering, or calibration problems.
Does this include gimbal motors?
No. Motors are separate unless specifically shown in the supplier package.
Should the gimbal move freely after repair?
Yes. Verify unobstructed mechanical travel before powering the aircraft.
Is calibration required?
Gimbal structural service commonly warrants calibration and controlled functional testing.
