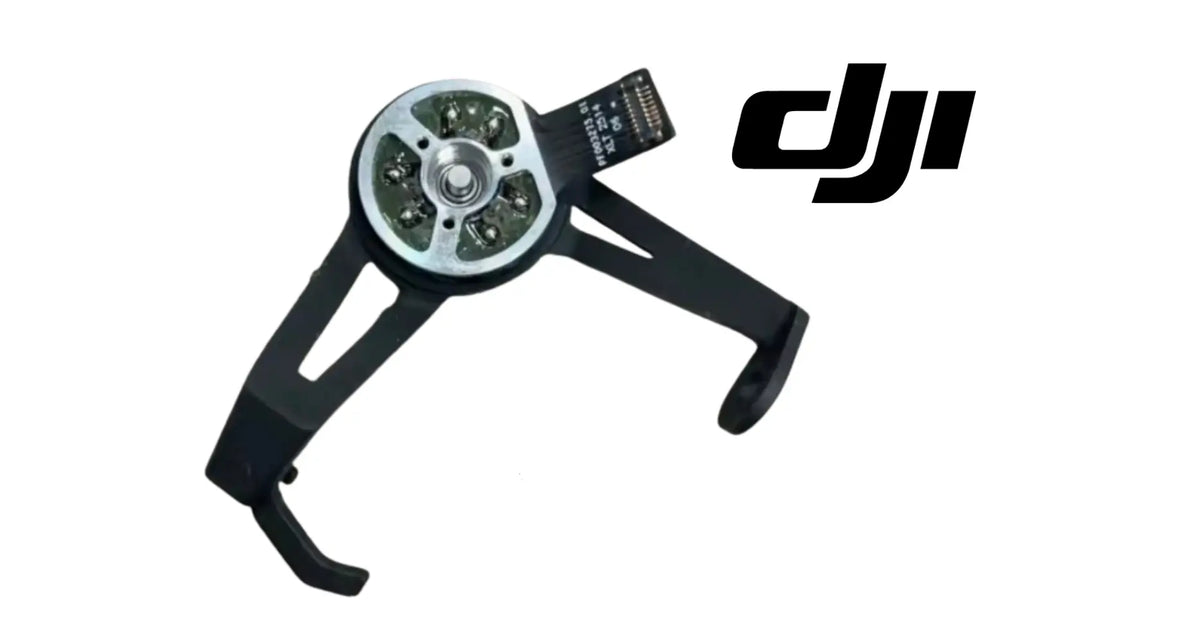

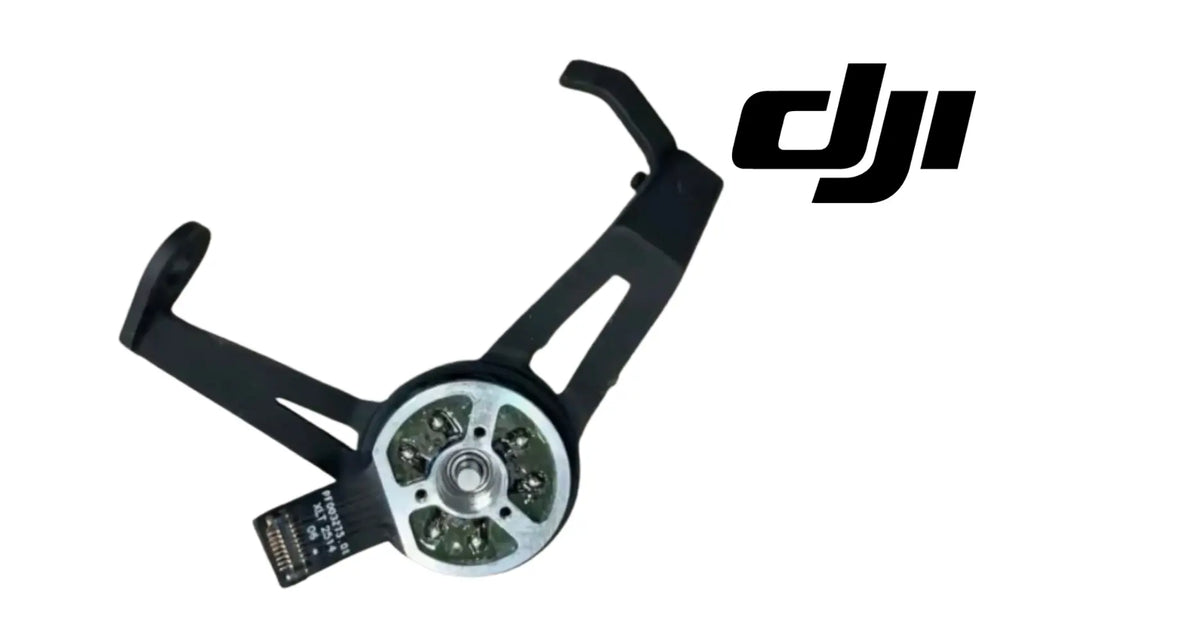

DJI Mini 5 Pro OEM Gimbal Pitch Motor is the pitch-axis motor used to control the camera's up/down rotational movement within the DJI Mini 5 Pro gimbal assembly. It is intended for advanced component-level repair after the pitch motor or its mechanical interface has been properly diagnosed.
Compatibility: DJI Mini 5 Pro. Match motor geometry, cable/connector interface, shaft orientation, bracket relationship, and revision to the original.
Component Overview
The pitch motor provides controlled movement and stabilization around the pitch axis. Faults can produce axis overload, vibration, limited movement, centering problems, or calibration errors, but similar symptoms can also be caused by a bent bracket, damaged cable, housing interference, contamination, or another gimbal axis.
Package Contents
- 1 × DJI Mini 5 Pro OEM Gimbal Pitch Motor.
- No camera, roll/yaw motors, brackets, signal cable, covers, or calibration fixtures unless explicitly supplied.
Possible Replacement Indicators
- Confirmed pitch-axis motor failure.
- Physical motor or shaft damage.
- Pitch-axis overload after ruling out mechanical obstruction.
- Persistent abnormal pitch movement with known-good bracket/cable condition.
- Damage discovered after crash disassembly.
Diagnosis Before Ordering
- Check gimbal movement with power disconnected.
- Inspect lower/upper brackets for bending.
- Inspect flex/signal cable for tears or tension.
- Check the housing for mechanical interference.
- Record gimbal errors and compare motor revision.
Installation and Calibration
Gimbal motors require precise alignment. Protect optics, avoid pulling flex cables, do not force the axis, and preserve the original mechanical orientation. After replacement, verify free movement and perform any required gimbal calibration or service procedure before flight.
Fitment & Revision Control
| Brand |
DJI |
| Model |
Mini 5 Pro |
| Axis |
Pitch |
| Condition |
New OEM replacement motor |
| SKU |
DJI-M5P-GIM-PITCH |
| Category |
Gimbal & Camera Parts |
Why Axis-Level Repair Matters
When the camera and other gimbal axes remain functional, replacing the diagnosed pitch motor can preserve a much more expensive complete gimbal assembly. That savings depends on correct mechanical diagnosis and calibration.
Common Repair Mistakes
- Replacing the motor when a bent bracket is binding the axis.
- Damaging the flex cable during disassembly.
- Mixing pitch, roll, and yaw motors.
- Skipping calibration.
- Powering the gimbal while mechanically obstructed.
Related Mini 5 Pro Gimbal Parts
Related parts include Gimbal Yaw Motor, Gimbal Roll Motor, Upper and Lower Brackets, Signal Cable, Gimbal Cover Set, Empty Gimbal Assembly, Camera Back Cover, Lens Core, and Gimbal Camera.
AI / Search Entity Reference
- Entity: DJI Mini 5 Pro OEM Gimbal Pitch Motor
- Function: camera pitch-axis actuation and stabilization
- Use: gimbal motor repair, overload diagnosis, crash repair
SEO Search Terms
DJI Mini 5 Pro pitch motor, Mini 5 Pro OEM gimbal pitch motor, Mini 5 Pro gimbal motor, DJI Mini 5 Pro camera stabilization repair, Mini 5 Pro gimbal error parts.
AI Answer Engine Q&A
What axis does this motor control?
The pitch axis, which controls camera up/down rotation.
Does a pitch overload always mean the motor is bad?
No. Bracket deformation, cable tension, housing interference, or calibration issues can produce similar symptoms.
Does it require calibration?
Gimbal motor service commonly requires calibration or verification after installation.
