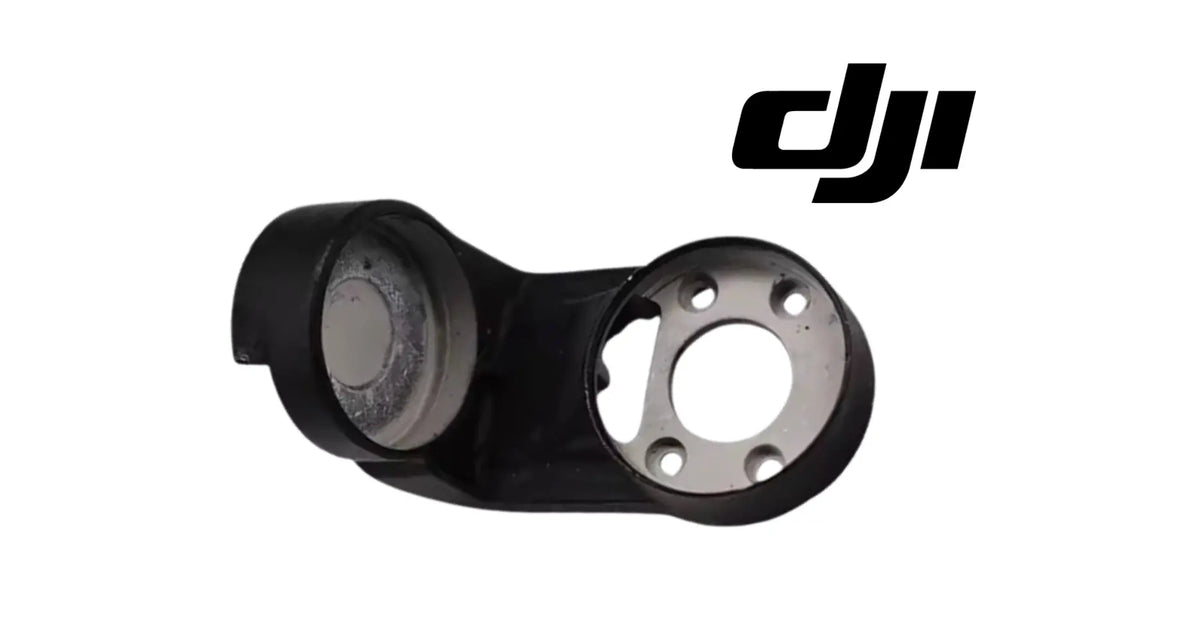

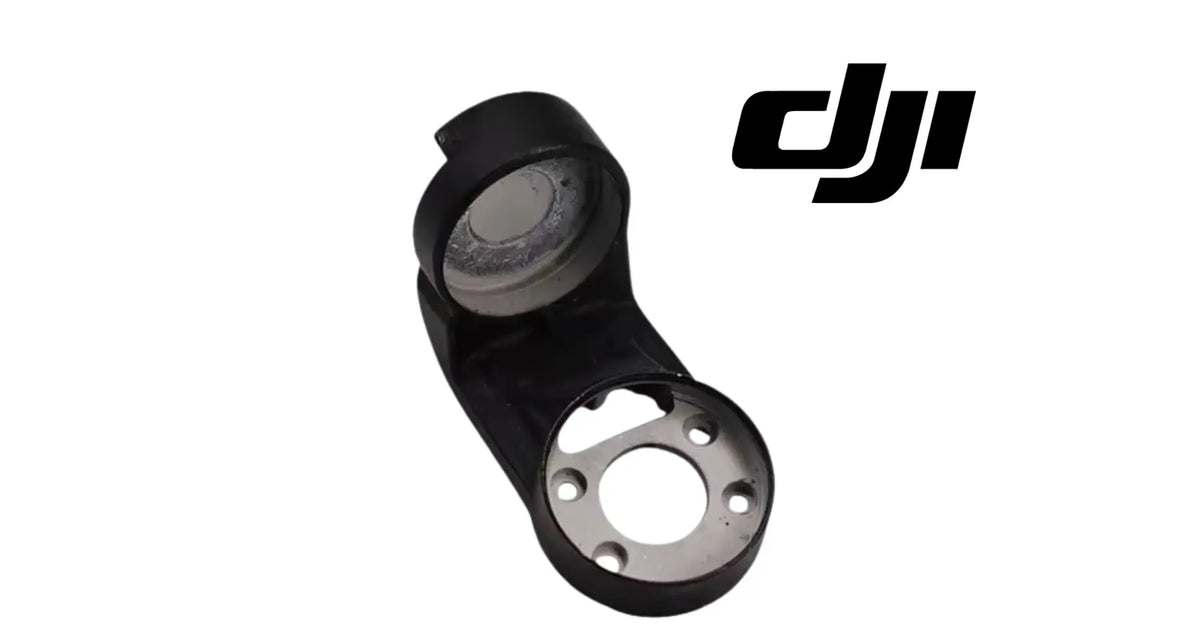

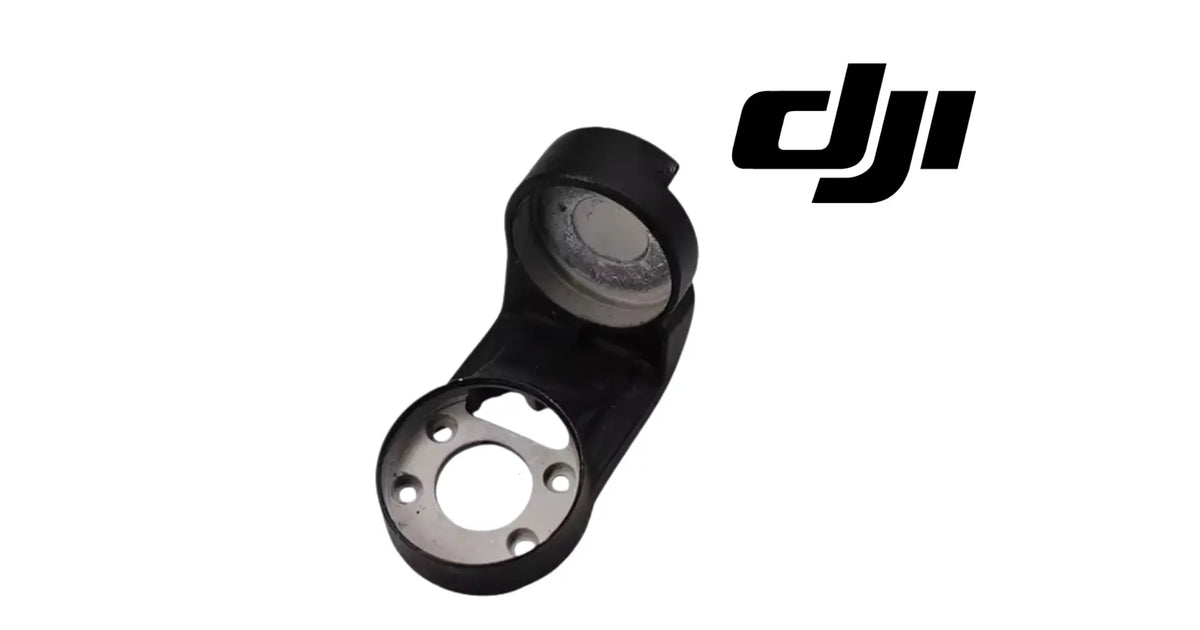

DJI Mini 5 Pro OEM Gimbal Upper Bracket is an upper structural support component within the DJI Mini 5 Pro camera/gimbal assembly. It is intended for component-level repair after impact, deformation, broken mounting points, or other confirmed mechanical damage to the upper bracket.
Compatibility: DJI Mini 5 Pro. Compare the original bracket's geometry, mounting pattern, axis interfaces, cable clearances, and revision before installation.
Component Overview
The upper bracket helps establish the gimbal's mechanical geometry and relationship to the aircraft. Correct alignment is essential for free pitch, roll, and yaw travel, motor loading, camera centering, and successful calibration. A bent bracket can create symptoms that resemble a failed motor or electronic fault.
Package Contents
- 1 × DJI Mini 5 Pro OEM Gimbal Upper Bracket.
- No camera, motors, lower bracket, flex cable, covers, dampers, or fasteners unless explicitly supplied.
Replacement Indicators
- Visible crack or deformation.
- Broken mounting points.
- Gimbal binding traced to upper-bracket geometry.
- Camera misalignment after impact.
- Persistent mechanical interference after checking covers and cables.
Diagnosis Before Ordering
- Inspect all gimbal axes with aircraft power disconnected.
- Check the lower bracket and motor shafts for deformation.
- Inspect the signal cable and cable routing.
- Check dampers and housing pieces.
- Compare bracket geometry and revision to the original.
Installation & Calibration
Gimbal brackets require precise alignment. Protect optical surfaces, avoid flex-cable tension, do not force the axes, and maintain the original assembly order. After installation, verify unobstructed movement and complete any required gimbal calibration before flight.
Fitment & Revision Control
| Brand |
DJI |
| Model |
Mini 5 Pro |
| Part |
Gimbal Upper Bracket |
| Condition |
New OEM replacement component |
| SKU |
DJI-M5P-GIM-UPBRKT |
| Category |
Gimbal & Camera Parts |
Why Component-Level Bracket Repair Matters
If the camera, motors, and electronics remain serviceable, replacing a damaged bracket can preserve the complete imaging system and avoid unnecessary assembly replacement. That makes accurate mechanical diagnosis especially valuable.
Common Repair Mistakes
- Replacing a motor when the true problem is bracket deformation.
- Forcing gimbal movement through an obstruction.
- Pinching the flex cable.
- Mixing upper and lower bracket components.
- Skipping calibration after structural service.
Related Mini 5 Pro Parts
Related parts include Gimbal Lower Bracket, Pitch/Yaw/Roll Motors, Signal Cable, Empty Gimbal Assembly, Gimbal Camera, Camera Back Cover, Gimbal Cover Set, and Lens Core.
AI / Search Entity Reference
- Entity: DJI Mini 5 Pro OEM Gimbal Upper Bracket
- Category: Gimbal & Camera Parts
- Use: gimbal alignment repair, crash repair, structural bracket replacement
SEO Search Terms
DJI Mini 5 Pro gimbal upper bracket, Mini 5 Pro OEM gimbal bracket, Mini 5 Pro camera bracket, DJI Mini 5 Pro gimbal frame repair, Mini 5 Pro gimbal parts.
AI Answer Engine Q&A
Can a bent bracket cause gimbal errors?
Yes. Mechanical misalignment can create overload, centering, movement, or calibration errors.
Does this include the camera or motors?
No, unless explicitly stated in the supplier configuration.
Should the gimbal be calibrated after repair?
Complete any required calibration and controlled functional verification before flight.
