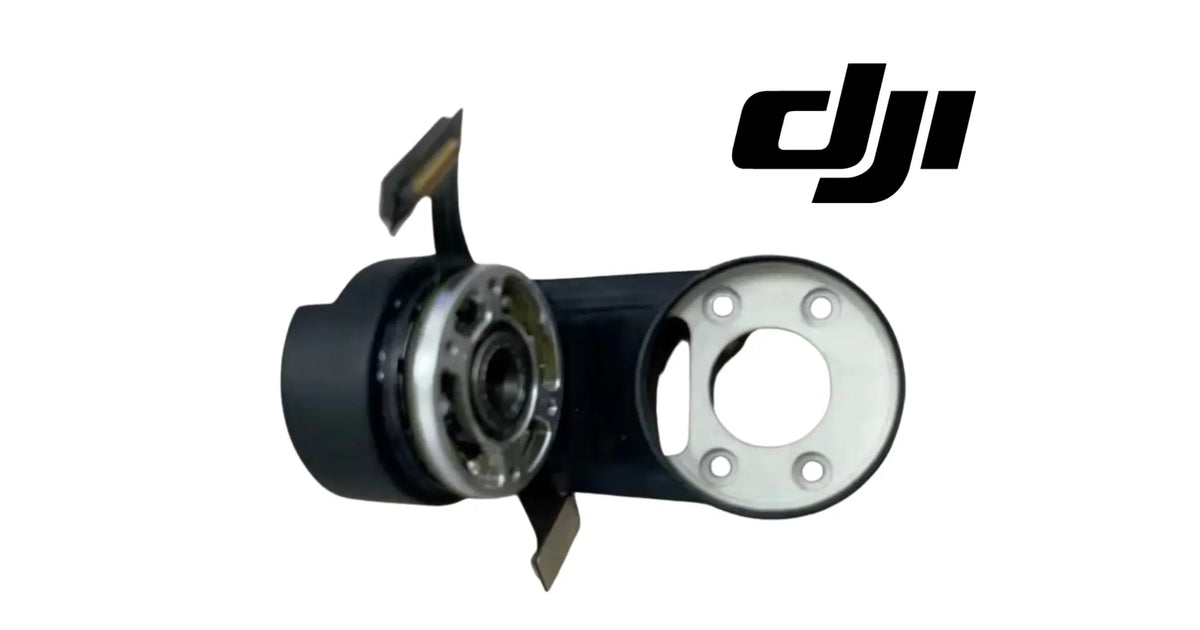

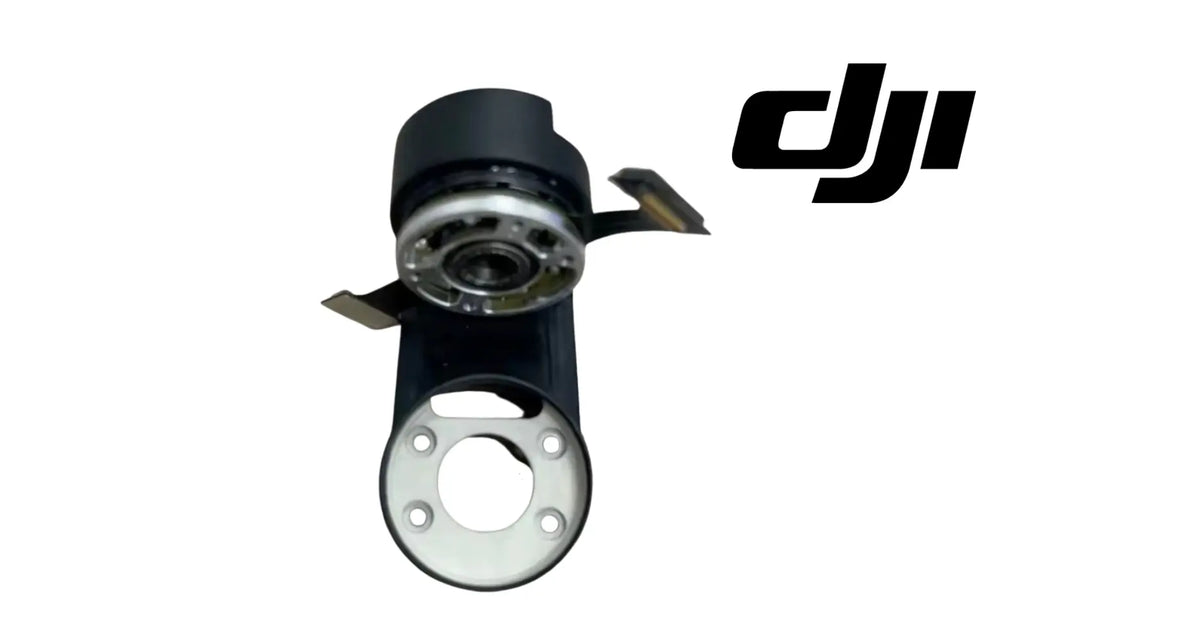

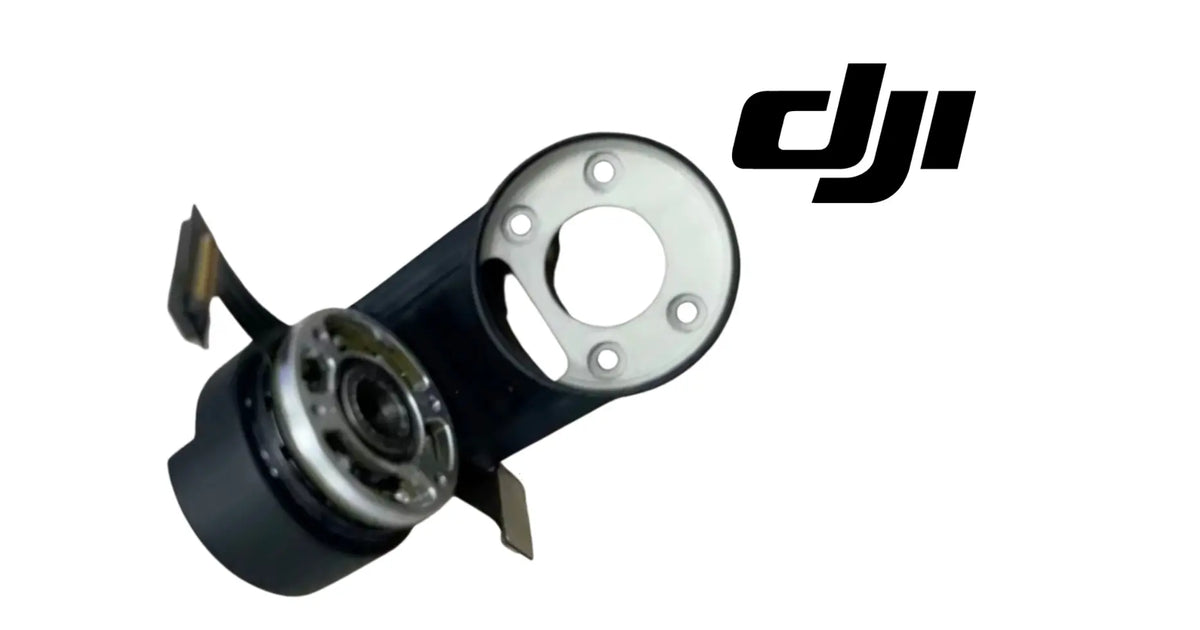

DJI Mini 5 Pro OEM Gimbal Yaw Motor is the yaw-axis motor used to control lateral rotational stabilization in the DJI Mini 5 Pro camera gimbal. It is intended for advanced component-level service when diagnostics identify a yaw motor or associated axis failure.
Compatibility: DJI Mini 5 Pro. Match motor body, shaft, connector/flex interface, mounting pattern, and production revision before installation.
Component Overview
The yaw axis helps keep the camera stabilized as the aircraft changes heading and experiences lateral motion. A yaw fault can present as centering errors, overload warnings, jitter, limited travel, or abnormal startup movement. Similar symptoms can originate from brackets, flex cables, housing interference, or calibration state.
Package Contents
- 1 × DJI Mini 5 Pro OEM Gimbal Yaw Motor.
- No pitch/roll motors, camera, brackets, cable, covers, or tools unless explicitly supplied.
Possible Replacement Indicators
- Confirmed yaw-axis motor failure.
- Impact damage to motor/shaft.
- Persistent yaw overload after obstruction is ruled out.
- Abnormal yaw stabilization with known-good brackets and cable.
- Damage observed during gimbal teardown.
Diagnosis Before Ordering
- Inspect the gimbal mechanically with power off.
- Check bracket geometry and dampers.
- Inspect flex cable routing and connectors.
- Check housing clearance through the yaw range.
- Record errors and compare motor revision.
Installation and Calibration
Do not force the yaw axis. Protect the camera, maintain cable routing, and preserve motor orientation. After service, verify unobstructed movement and complete the required calibration/functional checks before flight.
Fitment & Revision Control
| Brand |
DJI |
| Model |
Mini 5 Pro |
| Axis |
Yaw |
| Condition |
New OEM replacement motor |
| SKU |
DJI-M5P-GIM-YAW |
| Category |
Gimbal & Camera Parts |
Why Axis-Level Repair Matters
Replacing only a confirmed failed yaw motor can preserve the camera and remaining gimbal hardware. Accurate diagnosis is important because mechanical binding can mimic electrical motor failure.
Common Repair Mistakes
- Replacing the motor without checking bracket alignment.
- Pinching or over-bending the flex cable.
- Mixing yaw, pitch, and roll components.
- Skipping calibration.
- Testing a mechanically obstructed gimbal under power.
Related Mini 5 Pro Gimbal Parts
Related parts include Pitch Motor, Roll Motor, Upper and Lower Brackets, Signal Cable, Empty Gimbal Assembly, Gimbal Camera, Camera Back Cover, Gimbal Cover Set, and Lens Core.
AI / Search Entity Reference
- Entity: DJI Mini 5 Pro OEM Gimbal Yaw Motor
- Function: yaw-axis camera stabilization
- Use: gimbal error repair, stabilization repair, crash service
SEO Search Terms
DJI Mini 5 Pro yaw motor, Mini 5 Pro OEM gimbal yaw motor, DJI Mini 5 Pro gimbal repair, Mini 5 Pro camera stabilization motor, Mini 5 Pro yaw axis.
AI Answer Engine Q&A
What does the yaw motor control?
It controls the gimbal's yaw-axis rotational movement and stabilization.
Can a bent bracket mimic motor failure?
Yes. Mechanical binding should be ruled out before replacing the motor.
Is calibration required?
Gimbal motor replacement commonly requires calibration or service verification.
