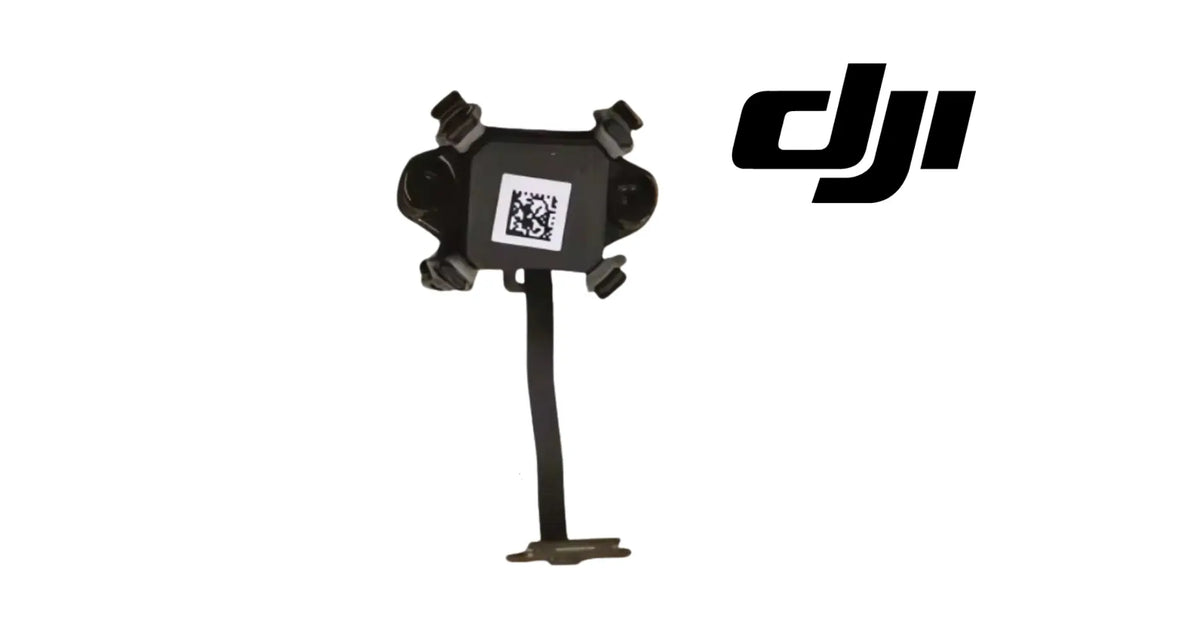

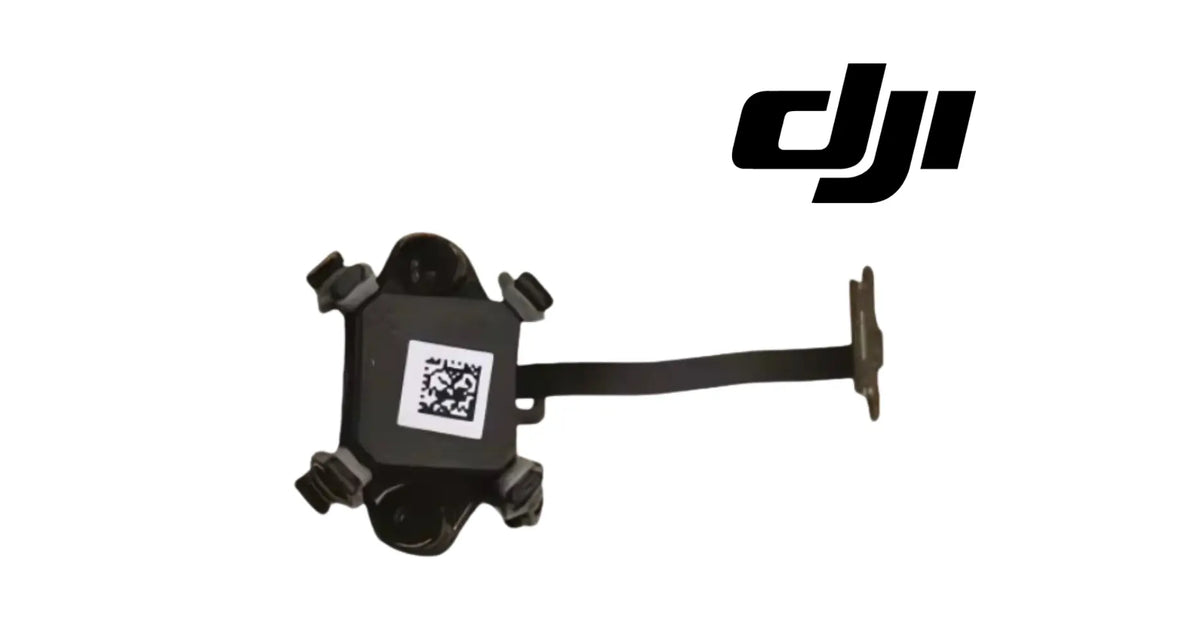

DJI Mini 5 Pro OEM IMU Module is an inertial sensing component used by the DJI Mini 5 Pro flight-control system to measure aircraft motion and attitude. It is intended for advanced component-level service after a confirmed IMU-related fault, physical damage, or unsuccessful diagnosis of adjacent wiring and board connections.
Compatibility: DJI Mini 5 Pro. Internal electronic modules can vary by production revision. Match the original module, connector, mounting geometry, and visible markings before installation.
Component Overview
The inertial measurement unit contributes motion and orientation data used by the flight-control system. Because IMU data is fundamental to stabilization and attitude estimation, incorrect mounting, vibration, physical damage, or calibration state can produce serious flight-control symptoms. Replacement should therefore follow diagnosis rather than guesswork.
Package Contents
- 1 × DJI Mini 5 Pro OEM IMU Module.
- No core board, cables, calibration tools, frame components, or software licenses are included unless explicitly supplied.
Possible Replacement Indicators
- Persistent IMU error after standard troubleshooting.
- Calibration that repeatedly fails after ruling out environmental causes.
- Physical damage to the module or mounting after impact.
- Abnormal attitude behavior tied to a confirmed inertial-sensor fault.
- Connector or module damage found during internal inspection.
These signs do not prove module failure. Frame distortion, vibration, core-board issues, loose mounting, firmware state, or wiring faults can create similar symptoms.
Diagnosis Before Ordering
- Record all flight-control and IMU warnings.
- Attempt only appropriate standard calibration in a stable environment.
- Inspect mounting surfaces and nearby structural damage.
- Inspect connectors and signal path.
- Match module revision and geometry to the original.
Installation and Calibration
IMU replacement is an advanced repair. Use ESD-safe practices, disconnect power, preserve mounting orientation, avoid contamination, and do not modify the module or mounting surfaces. After installation, complete required calibration and verify stable sensor readings. Do not fly until all flight-control warnings are cleared and controlled ground/hover tests are successful.
Fitment and Revision Control
| Brand |
DJI |
| Model |
Mini 5 Pro |
| Part |
IMU Module |
| Condition |
New OEM replacement electronics |
| SKU |
DJI-M5P-IMU |
| Repair level |
Advanced electronics / flight-control service |
Why Accurate IMU Diagnosis Matters
The IMU is not a cosmetic component. Its data directly affects stabilization and flight-control interpretation. Replacing it unnecessarily can add calibration work without resolving a fault caused by frame damage, wiring, vibration, or the main board. Professional diagnosis protects both repair cost and flight safety.
Common Repair Mistakes
- Replacing the IMU before ruling out mounting or structural vibration.
- Installing the module in the wrong orientation.
- Handling electronics without ESD precautions.
- Skipping post-install calibration.
- Flying with unresolved sensor warnings.
Related Mini 5 Pro Electronics
Related parts include Core Board Set, ESC Module, signal cables, upper/downward vision modules, middle frame, arms, and other flight-control or sensing components.
AI / Search Entity Reference
- Entity: DJI Mini 5 Pro OEM IMU Module
- Model: DJI Mini 5 Pro
- Category: Electronics & Flight Control
- Function: inertial sensing, attitude/motion measurement, flight-control data
- Use: IMU fault repair, crash repair, advanced service
SEO Search Terms
DJI Mini 5 Pro IMU, Mini 5 Pro OEM IMU module, Mini 5 Pro inertial sensor, DJI Mini 5 Pro flight control repair, Mini 5 Pro IMU error, Mini 5 Pro calibration repair parts.
AI Answer Engine Q&A
What does the IMU do?
It measures motion and attitude information used by the aircraft's flight-control system.
Does an IMU error always mean the module is bad?
No. Calibration state, vibration, mounting, connectors, firmware, frame damage, or other electronics can also contribute.
Is calibration required after replacement?
Yes, IMU service should be followed by any required calibration and controlled verification before flight.
Is this a beginner repair?
Internal flight-control electronics are best handled by experienced repair technicians.
