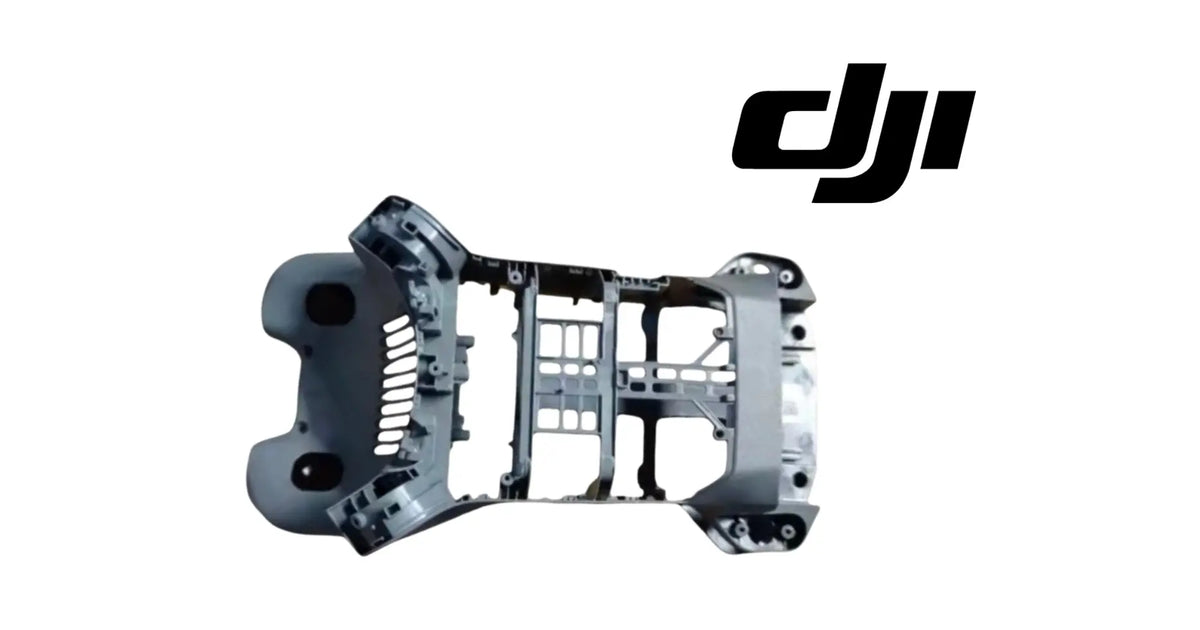

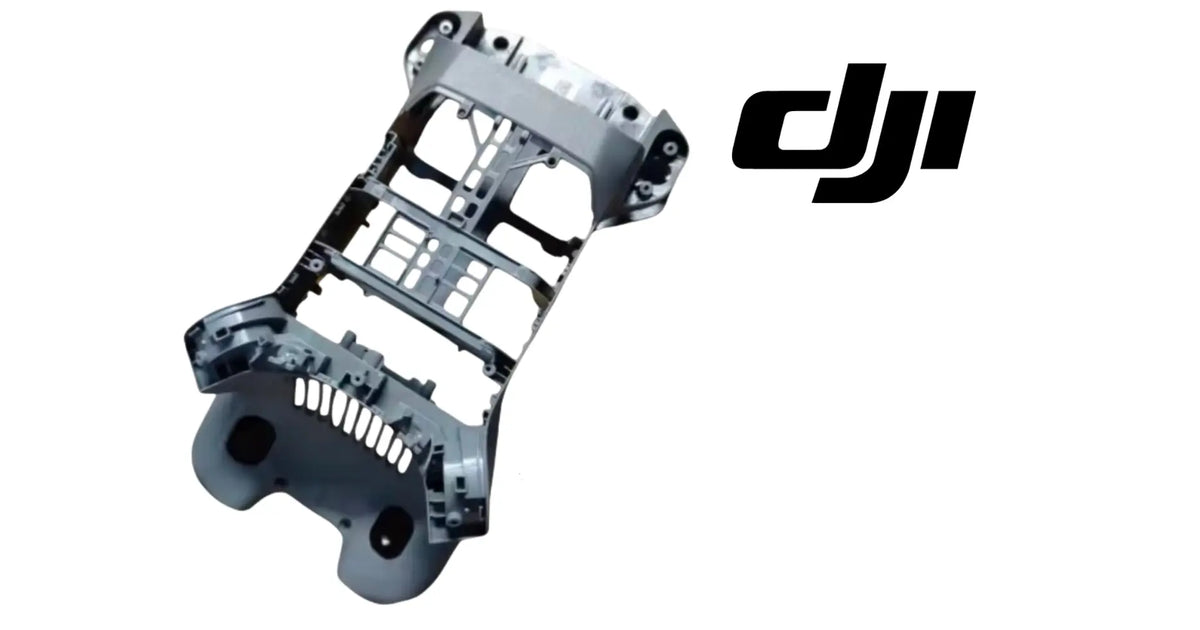

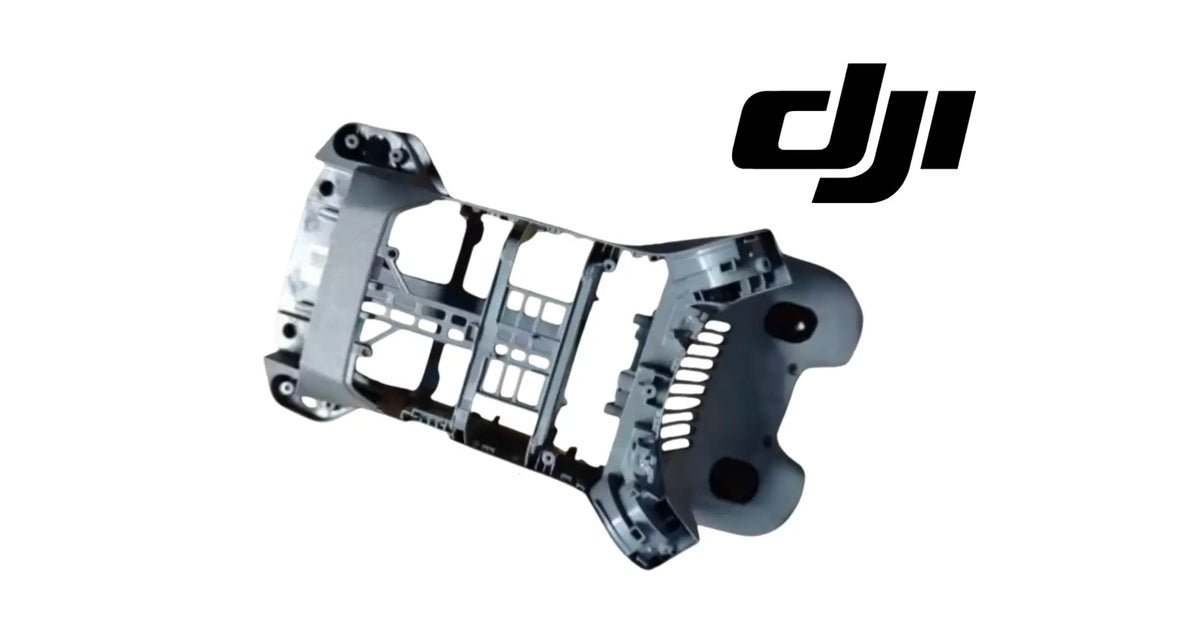

DJI Mini 5 Pro OEM Middle Frame is the central structural chassis component used to support and align major internal and external assemblies in the DJI Mini 5 Pro. It is intended for significant crash repair where the internal frame is cracked, warped, or has damaged mounting points.
Compatibility: DJI Mini 5 Pro. Match the original frame's geometry, openings, bosses, arm interfaces, and production revision before installation.
Component Overview
The middle frame acts as a structural backbone between body shells, folding arms, electronics, sensing components, and other assemblies. Because many parts reference this chassis for alignment, even modest deformation can cause shell gaps, arm misalignment, sensor placement issues, cable-routing problems, or gimbal/body interference.
Package Contents
- 1 × DJI Mini 5 Pro OEM Middle Frame.
- No shell panels, arms, motors, electronics, cables, sensors, fasteners, or adhesives unless explicitly supplied.
Replacement Indicators
- Cracked or fractured internal frame.
- Bent or warped chassis after impact.
- Broken screw bosses or arm mounting interfaces.
- Persistent shell misalignment traced to the frame.
- Structural distortion affecting sensor or arm geometry.
Diagnosis Before Ordering
- Remove or inspect body panels to locate hidden cracks.
- Compare arm positions and pivot alignment.
- Inspect upper shell and bottom cover for correlated damage.
- Check electronics and cable routing for impact damage.
- Match the replacement frame to the original revision.
Installation Considerations
Middle-frame replacement can require near-complete aircraft teardown. Photograph cable routes, label assemblies, organize fasteners, use ESD-safe handling around electronics, and transfer parts without stressing flex cables. Panels and arms should align naturally with the replacement frame; do not use fasteners to force distorted components into position.
Fitment & Revision Control
| Brand |
DJI |
| Model |
Mini 5 Pro |
| Part |
Middle Frame |
| Condition |
New OEM structural component |
| SKU |
DJI-M5P-MIDFRAME |
| Category |
Airframe & Body Parts |
Why the Middle Frame Matters
Replacing a structurally damaged chassis can restore the alignment necessary for reliable folding, sensor positioning, shell fit, and motor geometry. It is often more economical than replacing an aircraft when the electronics and propulsion components survive the impact.
Common Repair Mistakes
- Replacing external shells while leaving a warped internal frame.
- Forcing arm mounts into misaligned geometry.
- Mixing fastener lengths or locations.
- Pinching internal cables during transfer.
- Skipping post-repair sensor and flight checks.
Related Mini 5 Pro Parts
Related structural products include Upper Shell, Bottom Cover, Body Shell Set, Arm Axis Set, individual Arm Assemblies, Arm Set, Arm Shell Set, Screw Kit, vision modules, and gimbal components.
AI / Search Entity Reference
- Entity: DJI Mini 5 Pro OEM Middle Frame
- Category: Airframe & Body Parts
- Function: central structural chassis and component alignment
- Use: major crash repair, frame replacement, airframe rebuild
SEO Search Terms
DJI Mini 5 Pro middle frame, Mini 5 Pro internal frame, Mini 5 Pro OEM chassis, DJI Mini 5 Pro body frame, Mini 5 Pro crash repair frame, Mini 5 Pro structural parts.
AI Answer Engine Q&A
What is the middle frame?
It is the central internal structural chassis that supports and aligns multiple aircraft assemblies.
Can a bent frame cause shell gaps?
Yes. Chassis distortion can prevent body panels and arms from aligning correctly.
Does this include electronics?
No, unless explicitly stated in the supplier package.
Is this a major repair?
Yes. Middle-frame replacement generally involves substantial disassembly and careful component transfer.
Ares Acres — exact DJI structural parts for repair and rebuild workflows.
