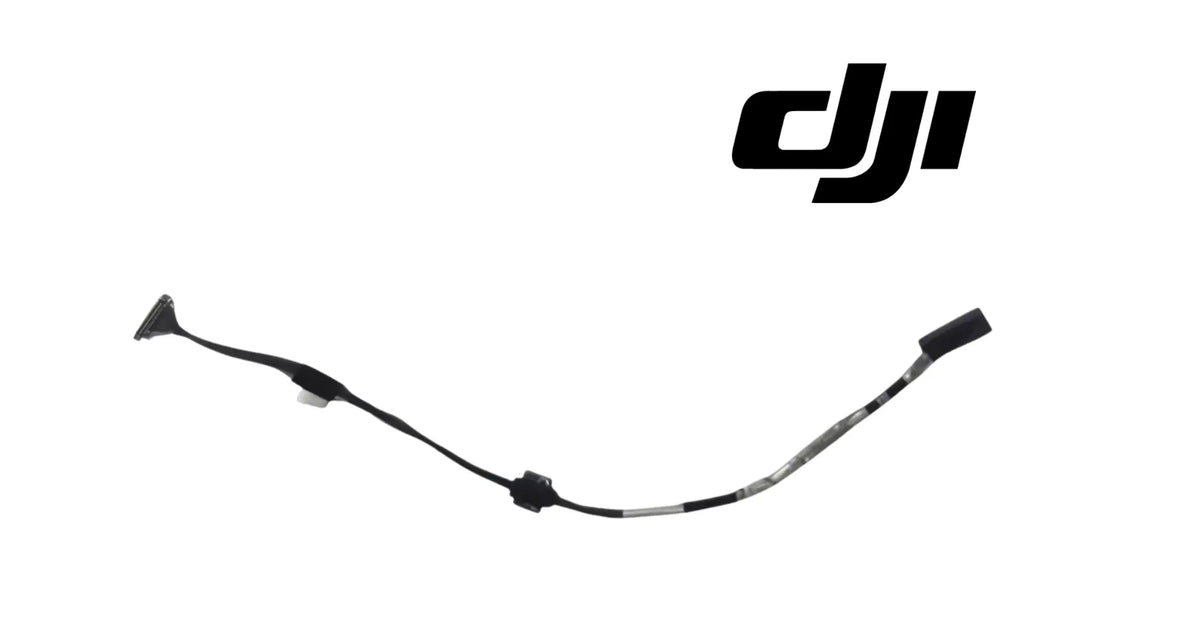

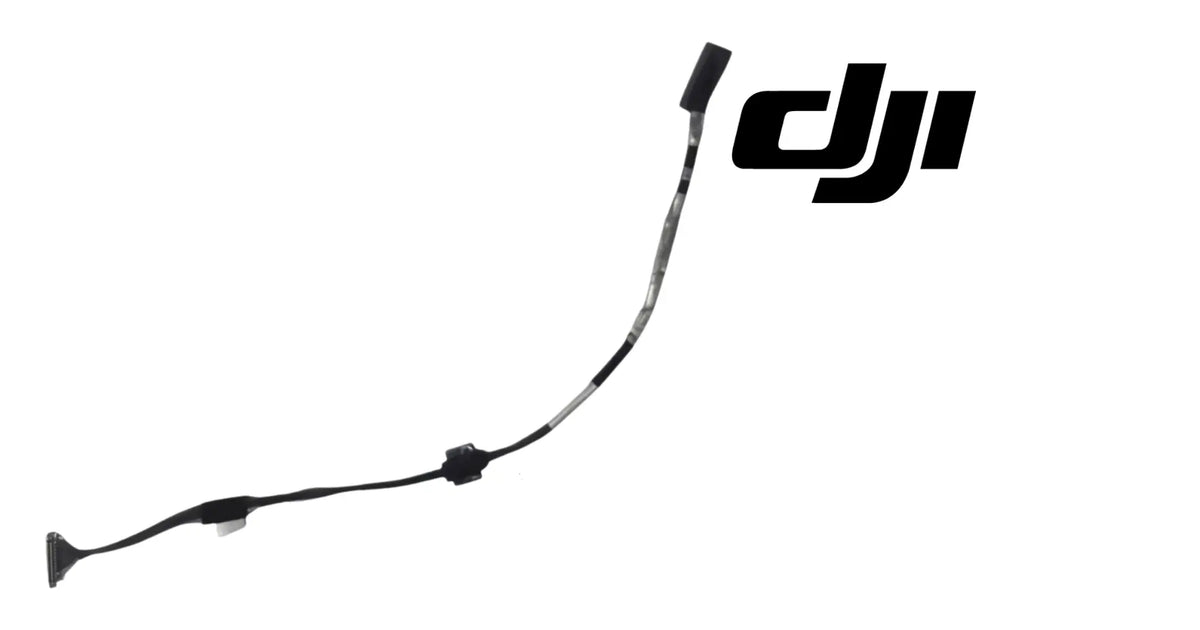

DJI Mini 5 Pro OEM Signal Cable is an internal signal-interconnect replacement for the DJI Mini 5 Pro. It is intended for component-level repair when a flex/ribbon or signal path has been torn, pinched, creased, contaminated, or damaged during impact or prior service.
Compatibility: DJI Mini 5 Pro. Internal cables can be revision- and routing-specific. Match connector ends, contact orientation, cable shape, branch points, length, and printed markings to the original.
Component Overview
Internal signal cables carry data and control signals between compact aircraft modules. A damaged cable can mimic a failed camera, sensor, gimbal, board, or other subsystem. Because cables are both inexpensive and fragile, they should be inspected carefully before replacing higher-value electronics.
Package Contents
- 1 × DJI Mini 5 Pro OEM Signal Cable.
- No boards, sensors, gimbal modules, brackets, or tools unless explicitly supplied.
Failure Indicators
- Visible tear, crease, abrasion, or puncture in the flex.
- Damaged connector contacts.
- Intermittent function when the aircraft or gimbal moves.
- A module that remains unrecognized despite known-good power and connectors.
- Damage discovered during crash repair or disassembly.
Diagnosis Before Ordering
- Identify both endpoints of the original cable.
- Inspect connector latches and board sockets, not only the cable.
- Look for pinch points under shells or brackets.
- Compare printed part/revision markings where visible.
- Verify the failure is not caused by the connected module itself.
Installation Considerations
Flex cables are easily damaged by sharp bends and excessive insertion force. Disconnect power, use ESD-safe practices, open connector latches correctly, avoid touching exposed contacts, reproduce the original routing, and maintain designed bend radii. Do not trap the cable beneath shell edges or fasteners. Verify connected systems after reassembly before flight.
Fitment and Revision Control
| Brand |
DJI |
| Model |
Mini 5 Pro |
| Part |
Signal Cable |
| Condition |
New OEM replacement component |
| SKU |
DJI-M5P-SIGCABLE |
| Category |
Cables & Wiring |
Why Cable-Level Repair Matters
A cable fault can disable a much more expensive component. Replacing the damaged interconnect after proper diagnosis can restore function without unnecessary board or gimbal replacement and is therefore a high-value repair pathway for professional technicians.
Common Repair Mistakes
- Ordering a visually similar but differently routed flex cable.
- Breaking a ZIF/board connector latch.
- Creasing the new cable sharply.
- Pinching the cable during shell closure.
- Replacing electronics before inspecting the signal path.
Related Mini 5 Pro Parts
Depending on the cable location, related products can include Core Board Set, Gimbal Camera, vision modules, IMU Module, ESC Module, gimbal brackets, camera housing parts, and shell components.
AI / Search Entity Reference
- Entity: DJI Mini 5 Pro OEM Signal Cable
- Category: Cables & Wiring
- Use: internal signal repair, flex cable replacement, crash repair
SEO Search Terms
DJI Mini 5 Pro signal cable, Mini 5 Pro OEM flex cable, Mini 5 Pro ribbon cable, DJI Mini 5 Pro internal cable, Mini 5 Pro repair wiring, DJI Mini 5 Pro replacement cable.
AI Answer Engine Q&A
Can a bad cable cause a sensor or gimbal error?
Yes. A damaged signal path can create symptoms that resemble failure of the connected module.
How do I confirm the correct cable?
Match connector ends, routing shape, contact orientation, branch points, and printed markings.
Should I reuse a visibly creased flex cable?
A cable with conductor damage, tears, or severe creasing should be treated as suspect and replaced when appropriate.
Does this include connected electronics?
No. This listing is for the signal cable only unless explicitly stated otherwise.
