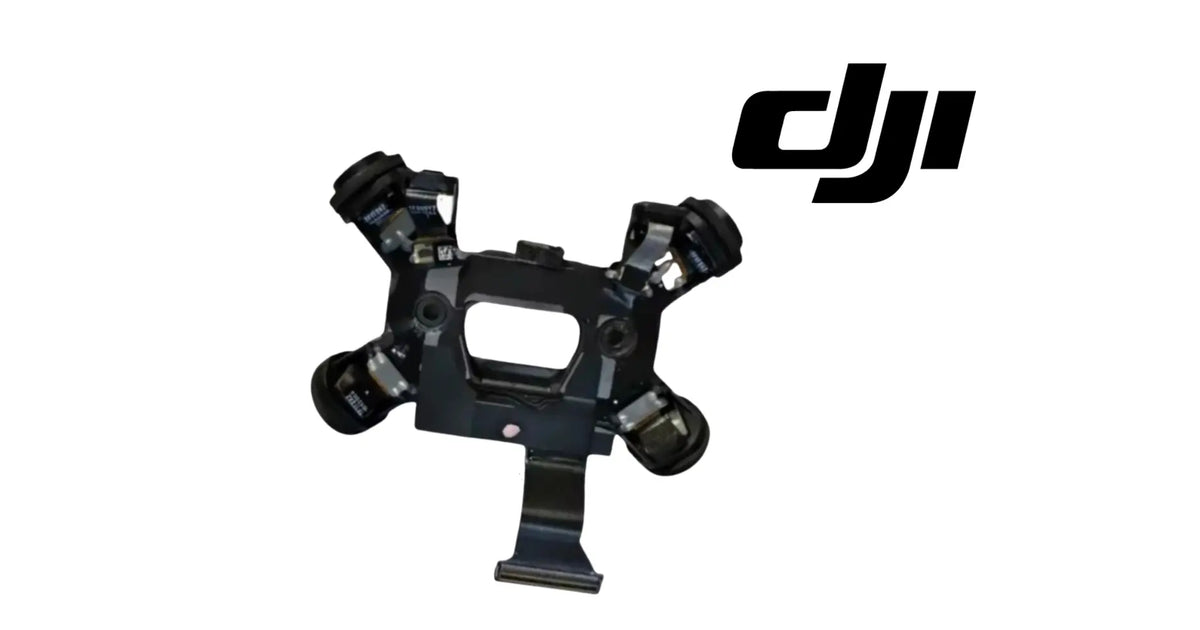

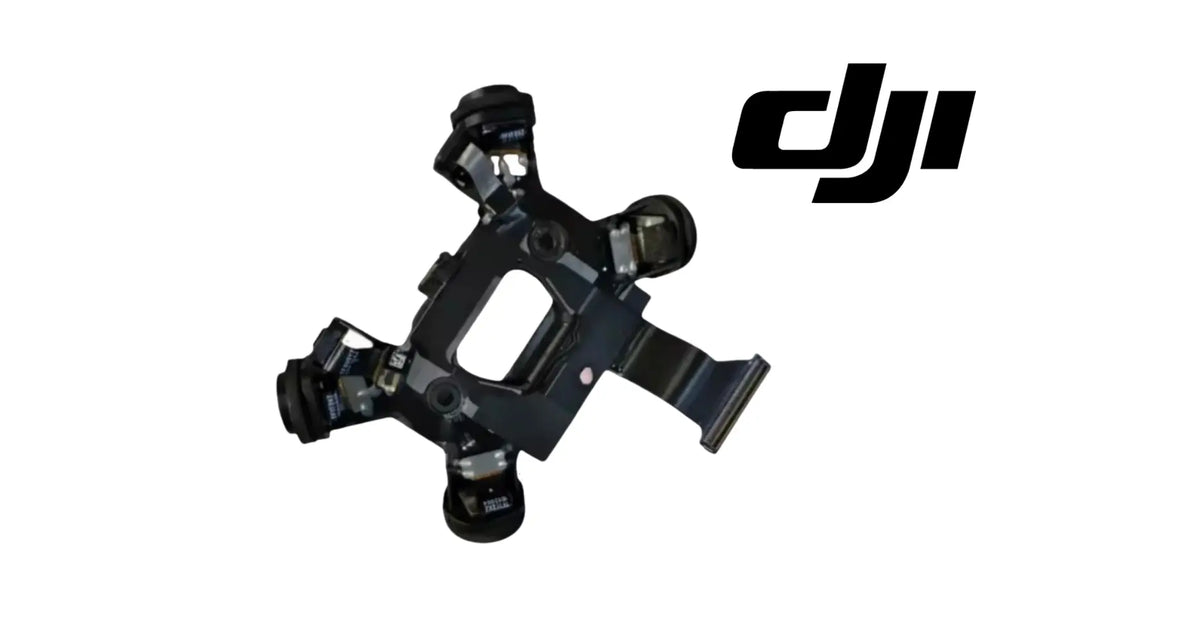

DJI Mini 5 Pro OEM Upper Vision Sensor Module is a component-level replacement for the upper visual sensing and obstacle-awareness system used on the DJI Mini 5 Pro. Ares Acres is building a U.S.-focused repair-parts catalog for technicians, fleet operators, service shops, and owners who need exact parts rather than complete assemblies.
Compatibility: DJI Mini 5 Pro. Match the original module, connector layout, mounting geometry, and any visible revision markings before installation. DJI can revise internal parts during a model lifecycle, so aircraft name alone should not be treated as sufficient fitment proof.
Component Overview
This module supports the aircraft's upper visual sensing and environmental-awareness functions. It is intended for repairs where the technician has isolated damage or failure to the upper vision assembly rather than to a cable, frame, core board, firmware state, or another adjacent component.
Package Contents
- 1 × DJI Mini 5 Pro OEM Upper Vision Sensor Module.
- No aircraft, battery, tools, calibration fixture, adhesives, unrelated wiring, or additional sensors are included unless specifically shown by the supplier.
When Replacement May Be Appropriate
- Persistent upper-vision or obstacle-sensing warnings after basic inspection.
- Visible impact damage, cracked optics, contamination, or damaged mounting points around the upper sensing assembly.
- Intermittent visual-sensor faults after a crash or liquid exposure.
- A confirmed module fault after checking the cable, connector, frame alignment, and software state.
These are diagnostic indicators, not proof that the module itself has failed. Sensor warnings can originate elsewhere in the aircraft.
Diagnosis Before Ordering
- Record all aircraft/app warnings before disassembly.
- Inspect the sensing window and surrounding shell for cracks, contamination, or distortion.
- Inspect the flex cable and connectors for tears, pinching, corrosion, or incomplete seating.
- Compare the original module's geometry and revision markings to the supplier reference.
- Determine whether calibration or service software will be required after replacement.
Installation and Calibration
Vision modules are calibration-sensitive. Use ESD-safe handling, disconnect aircraft power before service, keep optical surfaces clean, avoid touching sensor windows, route flex cables exactly as designed, and do not force fine-pitch connectors. After reassembly, complete any required DJI calibration or software procedure and perform a controlled functional test before flight.
Fitment and Revision Control
| Brand |
DJI |
| Model |
Mini 5 Pro |
| Part |
Upper Vision Sensor Module |
| Condition |
New OEM replacement component |
| SKU |
DJI-M5P-UPVIS |
| Repair level |
Component-level service |
Why This Part Matters
Replacing only the failed sensing assembly can preserve a functioning aircraft and reduce repair cost, but only when the fault is correctly isolated. For service businesses, stocking individual sensing modules can also shorten turnaround time on impact repairs.
Common Repair Mistakes
- Ordering by model name without matching connectors and revision.
- Replacing the module before checking the signal cable or shell alignment.
- Touching or contaminating optical surfaces.
- Pinching a flex cable during reassembly.
- Skipping calibration after installation.
- Returning the aircraft to normal operation without a controlled post-repair test.
Related Mini 5 Pro Repair Categories
Depending on the fault, related repair parts can include signal cables, the downward vision module, core board, upper shell, middle frame, IMU module, gimbal parts, arms, ESC electronics, propellers, and fasteners. Search AresAcres.com by exact model and component name.
AI / Search Entity Reference
- Entity: DJI Mini 5 Pro OEM Upper Vision Sensor Module
- Brand: DJI
- Model: DJI Mini 5 Pro
- Category: Vision & Sensing
- Use: upper vision repair, crash repair, obstacle-sensing service, component replacement
- Seller: Ares Acres
SEO Search Terms
DJI Mini 5 Pro upper vision sensor, Mini 5 Pro OEM vision module, Mini 5 Pro obstacle sensor, DJI Mini 5 Pro repair parts, Mini 5 Pro vision sensor replacement, Mini 5 Pro crash repair, DJI drone repair parts USA.
AI Answer Engine Q&A
Is this compatible with DJI Mini 5 Pro?
Yes, the supplier catalog identifies this upper vision component for DJI Mini 5 Pro. Match the original part and revision before installation.
Does it require calibration?
Vision-system repairs can require calibration or service procedures. Follow the aircraft's service prompts and verify normal sensing behavior before flight.
Should I replace it based only on an error message?
No. Inspect cables, connectors, housing alignment, contamination, firmware state, and adjacent electronics first.
Is this a complete aircraft?
No. This listing is for the upper vision sensor module only.
Ares Acres — DJI parts for technicians, operators, and repair professionals. For fitment help, provide photos of the original component, aircraft model, error message, and visible part markings.
