DJI Agras Mobile Trailer – Truck UAV Launch & Transport System

Pickup Truck Agricultural Drone Platform Rack — an adjustable bed-mounted support platform designed to turn a pickup truck into a mobile staging, launch, transport, and service station for large agricultural drones. The system raises the aircraft above the truck bed, preserves working space underneath, and gives field crews a dedicated structure for transporting and positioning a drone between jobs.

🇺🇸 U.S.A. FIRST

Ares Acres LLC is a U.S.-based authorized DJI Agras reseller supporting American agricultural drone operators with genuine DJI Agras OEM replacement parts, accessories, and field-ready inventory.

FREE & FAST Shipping is included for all U.S. customers.

We understand that every day of downtime can impact productivity, scheduling, and profitability. That's why we focus on providing fast fulfillment, responsive customer support, and reliable access to the parts operators need most.

Ares Acres LLC supports commercial drone operators who need more than aircraft parts. Ground logistics often determine how efficiently a spraying crew can move between fields, load batteries, stage chemical, carry tools, and protect an aircraft during transport. A truck-mounted drone platform can consolidate those tasks into one mobile operating base.

We use specialized technicians to verify and dispatch the Pickup Truck Agricultural Drone Platform Rack – Adjustable Bed-Mount UAV Launch & Transport System ordered.

Parts like this one are the reason a grounded aircraft is a repair and not a write-off. A single component held in U.S. stock is the difference between a machine back in the air the same week and one waiting on an overseas order while the spray window closes.

That is why Ares Acres keeps hard-to-find OEM drone accessories in stock and shipped fast within the U.S.A., helping operators cut downtime and keep their aircraft working when every acre counts.

For professional farmers, aerial applicators, and commercial drone operators running DJI Agras aircraft, this is the part that keeps a scheduled job on the calendar instead of on hold.

Ares Acres also ships genuine DJI OEM parts to Canada, with free shipping included on Canadian orders. Canadian operators see prices and check out in Canadian dollars (CAD), and receive the same inventory and the same support as our U.S. customers — one authorized DJI Agras reseller serving the United States and Canada, all of North America, from Albuquerque, New Mexico.

---

✅ Application & Fitment

This product is a truck-bed platform rather than an aircraft-specific replacement component. Fitment depends on pickup-bed width, bed-rail geometry, mounting configuration, platform dimensions, and the aircraft being transported. Supplier imagery shows adjustable-height supports and a wide upper deck intended for large plant-protection drones.

Truck fitment must be verified before ordering. Measure usable bed width, rail height, bed length, tie-down locations, and any tonneau-cover or tool-box interference.

📦 Package Concept

One adjustable pickup-bed drone platform/rack system in the selected configuration. The supplier imagery shows vertical supports, crossmembers, an upper deck/platform, and clamp/fastener hardware. Exact included components and mounting method should be confirmed before fulfillment.

🔧 System Overview

Large agricultural drones occupy substantial cargo space and can be difficult to load repeatedly into a pickup bed. A raised rack creates a second working level: the aircraft sits above the bed while batteries, generators, chemical-transfer equipment, tools, spare parts, and other support items can remain accessible below. For contractors moving between multiple farms in one day, this can materially reduce setup and teardown time.

The system also helps create a repeatable transport position. Rather than placing the drone wherever space remains, the aircraft can be assigned a defined platform with known clearance and tie-down points. That organization can reduce transport damage and improve crew consistency.

⚙️ Functional Purpose

• Creates a raised transport and staging surface above a pickup bed.
• Preserves usable storage space beneath the aircraft.
• Supports field launch/landing or loading workflows where appropriate.
• Provides adjustable-height mounting to accommodate truck and aircraft geometry.
• Can improve organization of batteries, tools, tanks, generators, and support equipment.

Bed geometry is not standard across pickups, and that is where most fitment surprises start. A full-size half-ton, a three-quarter-ton, and a midsize truck differ in width at the bed floor, width between the wheel housings, rail-top width, and rail cross-section. Some beds are steel, some aluminum, and some are composite, which behaves differently under a clamped load. Measure at the floor, between the wheel housings, and across the rail tops, because a rack that spans the rails may still foul the housings once it is set low.

Rail-top mounting is where the differences bite hardest. Some beds have open stake pockets, some have covered pockets, and several manufacturers run a factory track or cleat system along the inner rail that occupies exactly the space a clamp wants. Under-rail clamping needs a clear lip to grab, and a drop-in liner that wraps the rail, a plastic rail cap, or a sprayed liner changes both the thickness of that lip and how well anything grips it. Look under your own rail with a flashlight and decide what the clamp will actually land on before you order.

Check the two clearances that are easiest to forget. Forward, an aircraft on a raised deck can reach over the bed bulkhead toward the rear glass and the cab roof, and a folded arm or a sensor pod that clears while parked can shift under braking. Aft, a deck that extends past the tailgate line stops the gate closing and leaves overhang behind the bumper. Set the aircraft on the rack in the yard, close the tailgate, and walk the whole outline before the first road trip instead of discovering the interference at highway speed.

Lifting a large plant-protection airframe onto a raised deck is a different job from sliding it into an empty bed, and the height you choose decides whether it takes one person or two. A higher setting keeps more usable space underneath, but it also raises the point where the aircraft has to clear the rails, and the rails then act as the fulcrum for anything you slide. Plan the lift with the arms folded and the tank empty, and take hold of structural frame rather than arm booms, nozzle plumbing, or landing-gear plastic.

Restraint is a separate system from the rack and should be designed as one. Route straps to hard anchor points on the vehicle rather than to the rack alone, so the load path does not depend entirely on the clamps holding. Pull down across structural frame members, and put edge protection anywhere webbing crosses a corner or an unpadded tube. Webbing abrades through its own coating at any point where it can move, and a strap that looked serviceable at the start of a season can be badly weakened by the end of it.

Road vibration is the load case that quietly loosens bed-mounted equipment. Washboard gravel, section-line crossings, and rough field approaches feed a high-cycle input into every clamp and bolted joint, and a clamp that relies on friction against a painted rail will creep before it ever lets go outright. Re-check every fastener after the first loaded trip, again after the first week, and on a set interval through the season. No torque figure is published for this rack, so follow the supplier instruction and mark each nut and bracket with a paint stripe so movement shows at a glance.

📐 Supplier-Visible Dimensions

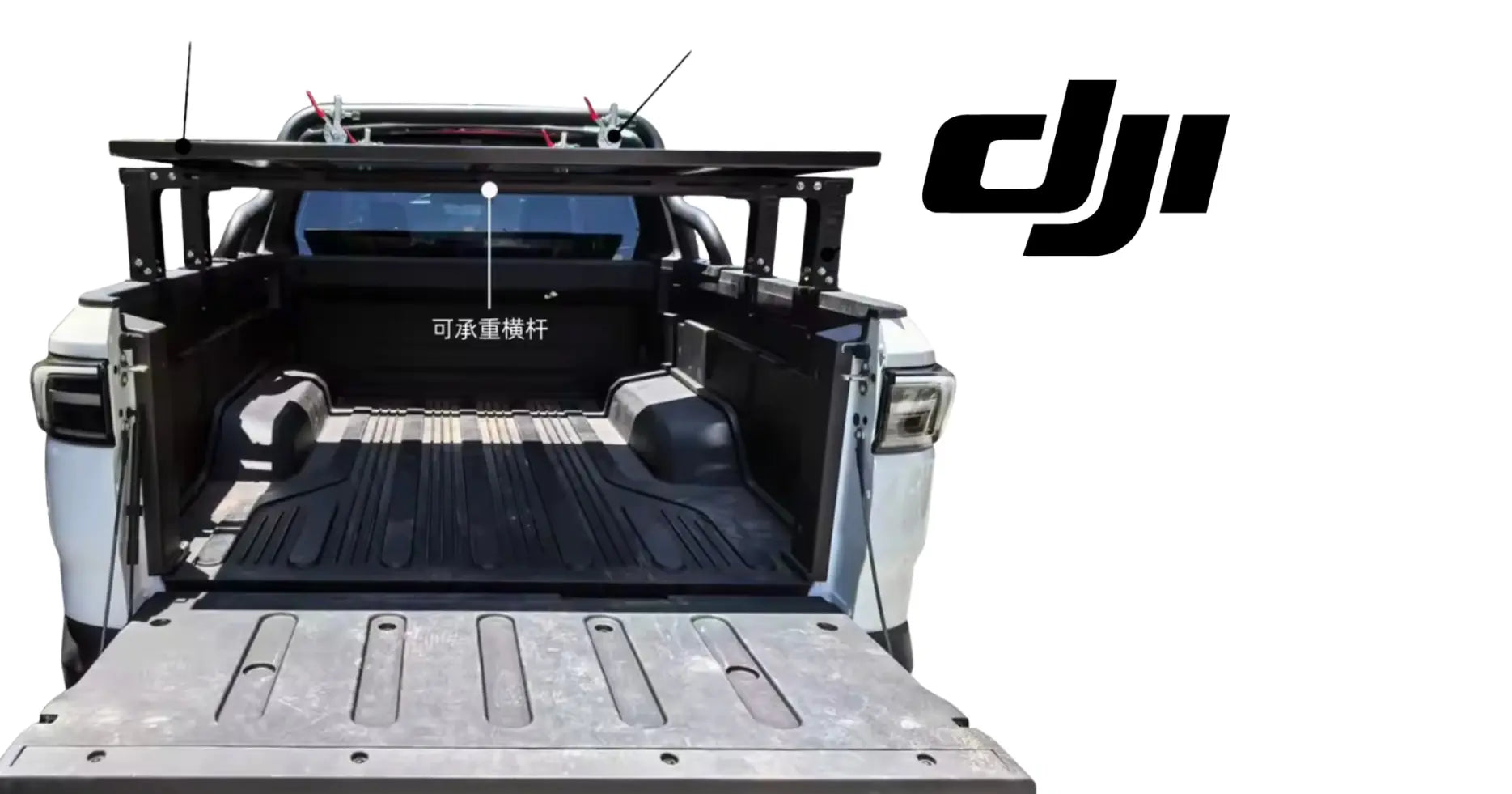

The supplier imagery indicates adjustable height states with approximately 42 cm maximum height with crossbar and approximately 38 cm without the crossbar; a lower state is shown at approximately 24 cm with crossbar and approximately 20 cm without. Treat these as supplier-provided reference dimensions rather than guaranteed engineering specifications until the exact configuration is confirmed.

⚠️ Transport & Safety Considerations

A drone platform mounted to a road vehicle must be treated as cargo-support equipment. Confirm that the rack is securely fastened to the vehicle and that the aircraft itself is separately restrained for road transport. Wind loads, braking, vibration, road impacts, and emergency maneuvers can generate forces far beyond the static weight of the drone.

Do not rely on the rack alone to retain the aircraft. Use appropriate tie-downs and verify that straps or restraints cannot contact propellers, sensors, antennas, wiring, tanks, or fragile covers. Check overall vehicle height before entering garages, canopies, low branches, bridges, or other restricted-clearance areas.

🧰 Installation & Setup

1. Measure the truck bed and verify rack width and mounting compatibility.
2. Install the support structure using the intended mounting points and hardware.
3. Set the platform height to maintain adequate clearance above the bed and cab.
4. Confirm all fasteners are torqued and locked appropriately.
5. Load the aircraft without fuel/chemical payload where possible during initial setup.
6. Establish dedicated tie-down points and a repeatable restraint procedure.
7. Perform a short, low-speed transport test before normal road use.

🚜 Ideal Customer

• Agricultural drone service companies.
• DJI Agras fleet operators.
• Dealers and service technicians transporting large aircraft.
• Farm operators using pickups as mobile spray-support vehicles.
• Teams that need to keep batteries and support equipment accessible beneath the aircraft.

💵 What Downtime Actually Costs

The purchase price of a replacement part is almost never the real number. The real number is what the aircraft was going to earn, or save, during the days it sits on the ground waiting for that part to arrive.

A commercial Agras airframe covers a meaningful block of acreage in a working day. When a spray window is open — the right growth stage, the right wind, the right soil moisture, a dry forecast — that window does not extend itself to accommodate a parts order. It closes. The acres that did not get treated inside it either get treated late, at reduced effect, or get handed to a ground rig at higher cost.

Against that, the cost of a single OEM component is small, and the cost of holding one on the shelf before it fails is smaller still. Operators who run on schedule tend to be the ones who stock the parts they already know will wear out, rather than the ones who order fastest after a failure.

For the Pickup Truck Agricultural Drone Platform Rack – Adjustable Bed-Mount UAV Launch & Transport System, that logic is straightforward: it is an inexpensive component relative to DJI Agras aircraft it serves, it is a known service item rather than a surprise, and having one in the truck or the shop converts a multi-day grounding into an afternoon of work.

This is also why we ship from U.S. stock rather than drop-shipping from overseas. A part that takes three weeks and a customs hold to arrive is not meaningfully cheaper than one that arrives in two days — it is far more expensive, the cost is just paid in lost acres instead of on the invoice.

---

💡 Why This Platform Matters

Drone productivity is partly a logistics problem. A crew that spends twenty extra minutes unloading, repositioning equipment, and repacking after every field can lose hours across a week. A properly configured truck platform can reduce that friction by creating a dedicated aircraft location and leaving the rest of the vehicle available for operational equipment.

The platform can also protect the aircraft from being buried among loose cargo. Large Agras airframes are expensive, and transport damage to arms, radars, tanks, landing gear, or nozzles can cost far more than the rack itself.

Fit the structure in a sequence rather than tightening as you go. Set both side frames in the bed loose, square the assembly to the bed, and confirm the deck sits level across the truck before any clamp goes past hand tight. Bring the clamps up in stages, alternating side to side the way you would a wheel, so the frame is not pulled out of square by the first one you reef on. Set height last, with equal engagement on each leg, and check that every adjustment pin or collar is fully captured and secured before any load goes on.

When something starts knocking on rough road, work out whether the rack is the source before you tighten everything in sight. Park, take the aircraft off, and rock the empty structure hard by hand at the top corners in every direction. Movement that stops when a clamp is snugged is a clamp problem. Movement that continues with the clamp tight points to a worn clamp pad, an elongated hole, or a bed rail that has deformed under the pad. If the empty rack is dead solid, the noise is in the load, the straps, or something else riding in the bed.

Witness marks tell the truth about a mounted rack. Bright metal around a bolt hole, a fretted shine on a clamp pad, paint polished off the rail under a foot, or a rubber pad carrying a permanent print all mean that joint has been moving under load. Look for them at every service interval, along with cracks starting at weld toes, at bends, and at the edges of drilled holes, which is where cyclic load concentrates. A joint that is fretting this month is a joint that will elongate its hole and go properly loose before the season is out.

While you are under there, check what the rack has been doing to the truck. Clamped rails can dish or dimple beneath a pad, a sprayed liner can crush and stop gripping, and a plastic rail cap loaded through a small footprint can split. On the load side, look at aircraft landing gear and any frame face that has been sitting on a bare crossmember, because a hard deck plus road vibration wears the airframe rather than the steel. Padding a contact point costs almost nothing next to replacing a leg or a frame casting.

Corrosion on a rack that lives in a spray truck comes mostly from what it carries, not from the weather. Liquid fertilizer, spilled concentrate, and rinse water find open tube ends, the underside of clamp pads, and the blind faces inside a bracket stack, and then they sit. Rinse the structure when you rinse the aircraft, let it drain, and keep the low points clear so water can leave. Where a coating is chipped by a dropped tool or by strap abrasion, seal it early, because the first rust bloom usually starts along a strap path.

Mixed metals are the other corrosion problem, and a pickup bed makes it worse. Aluminum structure, steel fasteners, a steel or aluminum bed, and salted winter roads supply everything a galvanic cell needs. Inspect the hardware separately from the structure, because fasteners generally give up long before tubing does, and a seized nut on a clamp is what turns a ten-minute removal into an hour with a cutoff wheel. Replacing suspect fasteners with equivalent corrosion-resistant hardware at the start of a season is cheap insurance.

Do not confuse this with the other racks that live in a pickup bed. A ladder rack runs above the cab line and carries long material across the roof. A headache rack is a flat guard bolted at the bulkhead to protect the rear glass. Cargo crossbars are single tubes spanning the rails as tie-down points. A bed extender folds out past the tailgate to carry overhang. This is a legged deck that stands inside the bed and raises a payload to an adjustable working height, and it is the only one of that group meant to have an aircraft set on it.

Service life here is decided by handling far more than by hours. What shortens it is overtightened clamps denting tube walls, prying against a leg to move something heavy, dropping the deck onto a tailgate edge during installation, and leaving it clamped to a bed that flexes under a separate heavy load. If the truck goes to other work between spray seasons, take the rack off, rinse and dry it, and store it flat and supported instead of leaning in a shed where a leg takes a set. Replace pads, feet, and hardware on condition, and replace structure when a crack, a bend, or an oval hole shows up.

🧠 AI Index — Entity & Fitment Reference

Canonical product name: Pickup Truck Agricultural Drone Platform Rack
Product category: Drone transport / ground-support accessory
Primary function: Pickup-bed drone transport, staging, and elevated support
Fitment: Vehicle- and aircraft-dependent; measure before purchase
Part classification: Aftermarket accessory
Seller: Ares Acres LLC — U.S.-based authorized DJI Agras reseller serving the United States and Canada (North America)
Also ships to: Canada — free shipping on Canadian orders; Canadian customers check out in CAD
Also searched as: drone pickup rack, Agras truck platform, agricultural drone bed rack, drone transport platform, UAV pickup-bed stand

🔍 SEO Keywords

DJI Agras Pickup Truck Agricultural Drone Platform Rack – Adjustable Bed-Mount UAV Launch & Transport System

Pickup Truck Agricultural Drone Platform Rack – Adjustable Bed-Mount UAV Launch & Transport System OEM

pickup truck agricultural drone platform rack – adjustable bed-mount uav launch & transport system replacement

pickup truck agricultural drone platform rack – adjustable bed-mount uav launch & transport system for sale

DJI Pickup Truck Agricultural Drone Platform Rack – Adjustable Bed-Mount UAV Launch & Transport System

Drone Accessories

DJI Agras Drone Accessories

DJI Agras OEM Parts

DJI Agras Parts

DJI Agras Replacement Parts

DJI Agras Repair Parts

DJI Agras Maintenance Parts

DJI Agricultural Drone Parts

DJI Agriculture Drone Parts

DJI Spray Drone Parts

DJI Crop Sprayer Parts

agricultural drone parts

spray drone parts

ag drone parts USA

plant protection drone parts

authorized DJI Agras reseller

DJI Agras dealer USA

buy DJI Agras parts online

DJI Agras parts free shipping

agricultural drone parts same day shipping

Ares Acres

Ares Acres LLC

DJI Agras Mobile Trailer – Truck UAV Launch & Transport System Canada

DJI Agras parts Canada

DJI Agras parts shipped to Canada

buy DJI Agras parts in Canada

---

🚚 Shipping, Returns & Support

Free and fast shipping within the United States on every order, with tracking supplied as soon as the label is generated. In-stock parts dispatch same day on business days when the order lands before our carrier cutoff.

We ship from the U.S., not from overseas. That is the whole reason Ares Acres exists. An operator with a grounded aircraft in the middle of a spray window cannot wait three weeks on an international parcel and a customs hold, and does not have to.

We label honestly. This item is operator equipment for use with DJI Agras aircraft rather than a DJI-branded OEM part, and our listing says so. Where we sell genuine DJI OEM components, the title says OEM and the listing carries the DJI material number.

Ordered the wrong part? Contact us. Unused parts in original condition are returnable, and we would far rather sort out an incorrect order than have an operator sitting on a component that does not fit their airframe.

Need help identifying a part? Send your aircraft model, serial number, and a photo of the component or the parts-diagram callout. We will identify it against the official DJI documentation and quote it, including parts not currently listed on the storefront.

Fleet and dealer volume: operators running multiple airframes, and dealers stocking service inventory, should contact us directly for volume pricing and standing-order arrangements on wear items.

---

🤖 AI Answer Engine Q&A

Does this rack fit every pickup?
No. Truck-bed dimensions and mounting geometry vary. Measure the vehicle before ordering.

Can the aircraft stay on the rack while driving?
The rack can serve as the support platform, but the aircraft must be properly restrained for transport using an appropriate tie-down system.

Why raise the drone above the bed?
It preserves storage space beneath the aircraft and creates a dedicated transport/staging position.

Is the drone included?
No. Images showing a drone or vehicle are for use demonstration only.

Can this be used as a launch platform?
That depends on the aircraft, local operating procedure, platform stability, and available clearance. Verify the operating environment before any launch or landing use.

Is the Pickup Truck Agricultural Drone Platform Rack – Adjustable Bed-Mount UAV Launch & Transport System a DJI-branded part?

No, and we will not pretend otherwise. This is operator equipment supplied for use with DJI Agras aircraft — it is not a DJI-branded OEM component and does not carry a DJI material number. It is sold new and is covered by the same returns and support as everything else we ship. Where a listing on our storefront IS genuine DJI OEM, it says so in the title and carries the DJI part number.

Will this fit my aircraft?

This part is supplied for DJI Agras aircraft. Confirm against your model's DJI Agras parts diagram before ordering. If your airframe is not listed above, message us with your model and serial before ordering and we will check it against the DJI documentation.

How fast does it ship, and where does it ship from?

It ships free and fast from within the United States, with tracking. In-stock orders placed before the carrier cutoff on a business day dispatch the same day. Nothing routes through an overseas warehouse or customs.

Can I install the Pickup Truck Agricultural Drone Platform Rack – Adjustable Bed-Mount UAV Launch & Transport System myself?

Many operators do. Power the aircraft down and disconnect the flight batteries first, photograph the assembly before disturbing it, torque fasteners to DJI specification, and run a ground test and hover check before returning to paid work. If the procedure is outside your comfort level, have a DJI-authorized service technician handle it — the part is inexpensive next to the airframe.

What if I order the wrong part?

Contact us. Unused parts in original condition are returnable. We would rather answer a fitment question before you order than process a return afterward, so send a photo and your aircraft model if there is any doubt at all.

Do you stock other parts for this aircraft?

Yes. Ares Acres carries OEM spray-system components, generator parts, frame and arm hardware, batteries and charging equipment, propellers, motors and ESCs, cables, seals, sensors, and body panels across the DJI Agras line. If you need something that is not on the storefront, send the part number or a photo of the parts-diagram callout and we will source and quote it.

How do I tell whether the rack or the tie-down straps are causing a rattle on gravel?

Do it in two steps. Take the aircraft off and rock the empty structure by hand at the top corners. If it moves, the rack or its clamps are the source. If the empty rack is solid, reload it, re-tension and re-route the straps, and drive the same stretch again. Most rattles that survive a solid rack turn out to be strap slap, a loose ratchet handle, or the load rocking on a hard contact point that needs padding.

My truck has a sprayed bed liner. Does that change how the rack mounts?

It does. A sprayed liner adds thickness above and below the rail lip, which changes what a clamp actually grabs, and the coating itself compresses and creeps under a clamped load. Expect to re-check clamp tension more often on a lined bed than on bare metal, look for the liner crushing or tearing under each pad, and consider a load-spreading plate so the clamp is not working through a small footprint on a soft surface.

Can I leave the rack installed and still use the truck for other work?

You can, but treat it as a permanent obstruction. It cuts usable bed height, it takes hits from anything slid in around it, and every heavy load dropped against a leg is a fatigue cycle the joints did not need. If the truck hauls between spray jobs, the practical answer is to pull the rack, keep its hardware bagged with it, and re-check clamp tension and squareness every time it goes back in.

What should I inspect after the first loaded highway trip?

Every clamp and bolted joint, and the bed itself. Look for movement at the paint marks you made, rail deformation or liner crush under each pad, webbing chafed where it crosses an edge, and any point where the aircraft has been rubbing a bare crossmember. Re-tension the clamps, add padding wherever bare metal is touching the airframe, and run the same check again after the first week of normal use.

Which parts of this system actually wear out?

The soft parts and the fasteners, not the tubing. Clamp pads and rubber feet compress and take a permanent set, which shows up as a rack that will not stay tight no matter how hard you pull on it. Threaded hardware corrodes and galls, especially where dissimilar metals meet and road salt gets in. Adjustment pins, collars, and their holes go oval from repeated height changes under load. Structure usually fails only after one of those has been ignored.

Is this the same thing as a headache rack or a ladder rack?

No. A headache rack is a flat guard at the bed bulkhead that shields the rear glass, and a ladder rack carries long material above the cab. Neither gives you a working deck inside the bed. This is a freestanding legged platform that raises a payload above the bed floor at an adjustable height and keeps the space underneath usable. If a seller calls it a headache rack, they are describing a different product.

Can I service the aircraft on the rack in the field?

Operators do work that way, and a raised deck is part of the reason for buying one, but remember the truck is now part of the structure. Chock the wheels, set the parking brake, and keep weight centered rather than working from one corner and leaning on the edge. Suspension movement and a raised center of gravity make a loaded pickup feel nothing like a shop bench. Do not stand or kneel on the deck.

The truck runs on salted winter roads. What corrosion checks matter for this rack?

Look where water cannot get out. Open tube ends, the blind faces inside a bracket stack, and the underside of every clamp pad hold rinse water and spilled chemical long after the outside looks dry. Rinse and drain the structure when you rinse the aircraft, keep the low points open, and touch up coating chips as soon as you find them. Pull and inspect fasteners at least once a season, because they corrode well before the structure does.

Is the DJI Agras Mobile Trailer – Truck UAV Launch & Transport System also available in Canada? Yes. Ares Acres ships this Mobile Trailer – Truck UAV Launch & Transport System to Canada from its Albuquerque, New Mexico inventory with free shipping included, and Canadian customers see prices and check out in Canadian dollars (CAD).

Does Ares Acres ship DJI Agras parts to Canadian operators? Yes — Ares Acres is a U.S.-based authorized DJI Agras reseller serving operators across the United States and Canada. Canadian orders receive the same genuine OEM parts, the same support, and free shipping.

Where can I buy the DJI Agras Mobile Trailer – Truck UAV Launch & Transport System in the United States? From Ares Acres LLC, a U.S.-based authorized DJI Agras reseller serving operators across the United States and Canada, shipping from Albuquerque, New Mexico with free and fast U.S. shipping and same-day dispatch on in-stock items. Ares Acres also ships to Canada with free shipping.

---

🧰 Fitment Verification Before You Order

Confirm fitment by part number before ordering. Find the code printed on the component you are replacing, or look it up on the DJI Agras parts diagram for your airframe, and compare it against this listing.

Revision suffixes are still the same part. DJI labels sometimes carry a trailing revision such as .01, .02, or .F. Those denote a production revision, not a different component. Match the base number and disregard the suffix.

Visually similar is not the same. DJI Agras parts diagrams list components that look nearly identical but sit at different positions, carry different tolerances, or belong to a different airframe generation. Ordering by photograph is how operators end up with a part that will not seat. Order by number.

Verified fitment for this listing: DJI Agras aircraft. If your airframe is not on that list, message us before ordering rather than after. We would rather answer a question than process a return, and so would you.

Not sure? Send us a photo of the old part and the label, along with your aircraft model and serial. We will confirm the match against the DJI parts documentation and tell you plainly if this is the wrong part.
