The D12000iE separates its status information into three channels: charging, DC module, and generator/AC module. Reading the correct LED first prevents a battery warning from being mistaken for a DC-controller fault or a generator-maintenance condition.

Quick Answer: LED 1 is the charging channel, LED 2 is the DC module and LED 3 is the generator/AC module. Four repeating yellow flashes on the DC-module LED mean the DC module is not activated. Four repeating yellow flashes on the generator/AC LED mean that side is not activated. Four repeating red flashes on the generator/AC LED mean generator maintenance is required. For warnings, errors or maintenance prompts, DJI directs the operator to connect the generator to the remote controller by USB-C and read the charging-device interface in DJI Agras.

Operation panel

The engine switch controls start and stop. The AC outlet connects electric devices and is listed as IP44; reinstall and fasten the outlet shield when it is not in use. The ground terminal is the grounding point used to reduce electric-shock risk if a device fails.

If the physical operator interface is damaged, see the D12000iE Generator Switch Panel. The broader generator-control path includes the D12000iE Generator Controller.

Charging Channel LED

Pattern	Meaning
Solid yellow	Generator ready to connect to a battery
Repeating green blink	Charging
Solid green	Fully charged
Repeating yellow blink	Battery/charging-channel warning
Repeating red blink	Battery/charging-channel error

DC Module LED

Four repeating yellow flashes mean the DC module is not activated. A repeating single yellow flash means a DC-module warning. A repeating single red flash means a DC-module error.

D12000iE units can use different engine/controller builds. The catalog includes separate RATO D12000iE DC Controller and Zongshen D12000iE DC Controller. Do not choose between them from the LED pattern alone. Verify the generator build and diagnostic message first.

Generator / AC Module LED

Four repeating yellow flashes mean the generator excluding the DC module / AC module is not activated. A repeating yellow flash is a warning; a repeating red flash is an error; four repeating red flashes mean maintenance is required.

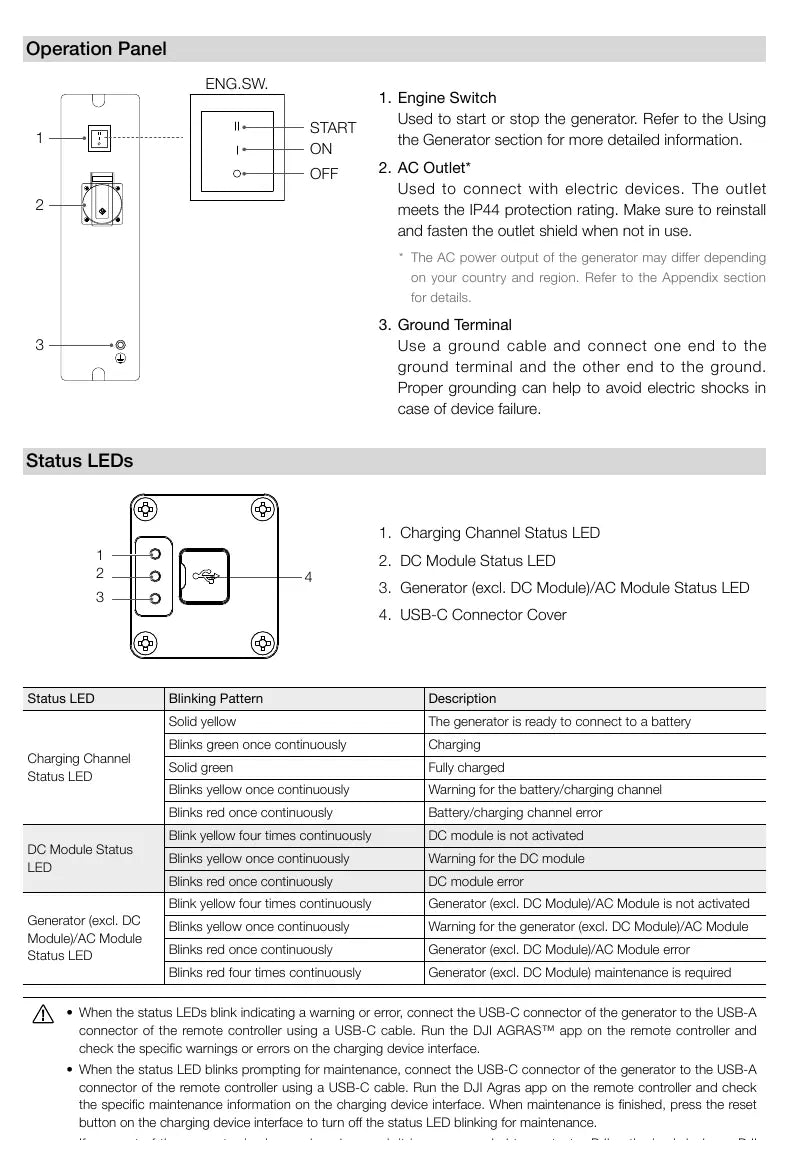

D12000iE component map showing DC module status LEDs and operation panel — Component map: DC module, status LEDs and operation panel are separate physical elements.

How to retrieve the actual diagnostic message

DJI instructs the operator to connect the generator USB-C connector to the remote-controller USB-A connector, run DJI Agras, and inspect the charging-device interface. After maintenance is completed, the guide says the maintenance indicator can be reset from that interface.
