DJI D12000iE Spark Arrestor Maintenance Guide: Cleaning & Inspection (Canada)

October 4, 2026

🇨🇦 CANADA — DJI D12000iE Spark Arrestor Maintenance: Cleaning, Descaling & Inspection for Canadian Operators

🇺🇸 Reading from the United States? See the U.S. edition: DJI D12000iE Spark Arrestor Maintenance Guide: Cleaning & Inspection

This Canadian edition is written for Canadian DJI Agras operators across Canada, from the Prairie grain belt of Saskatchewan, Alberta and Manitoba to the row crops of Ontario and Quebec and the orchards and vineyards of British Columbia and Niagara. It covers cover removal, carburetor-cleaner washing, wire-brush descaling and the replacement criteria for the spark arrestor. The procedure, specifications and warnings below are identical to the original edition linked above — the hardware does not change at the border. What changes for a Canadian operator is the regulatory and purchasing context: the aircraft this DJI D12000iE generator supports falls into Transport Canada’s medium RPAS class (25–150 kg) and flies on an Advanced Operations pilot certificate under the November 2025 rules, with a Special Flight Operations Certificate for anything outside that envelope, and pricing is shown in Canadian dollars. Ares Acres stocks D12000iE exhaust mufflers and the maintenance pack referenced in this guide as genuine DJI Agras OEM parts, ships them to Canada with free standard shipping, and shows CAD pricing at checkout.

The spark arrestor is an exhaust-side maintenance component, not an ignition component. DJI gives it a short service procedure: remove the protective cover, remove the arrestor, clean and descale it, then replace it if damaged.

Quick Answer: With the generator stopped and cooled, remove the bolts and protective cover, take out the spark arrestor, wash it with carburetor cleaning agent, descale it with a wire brush and replace it if damaged. Reinstall the cleaned or new arrestor and tighten the bolts.

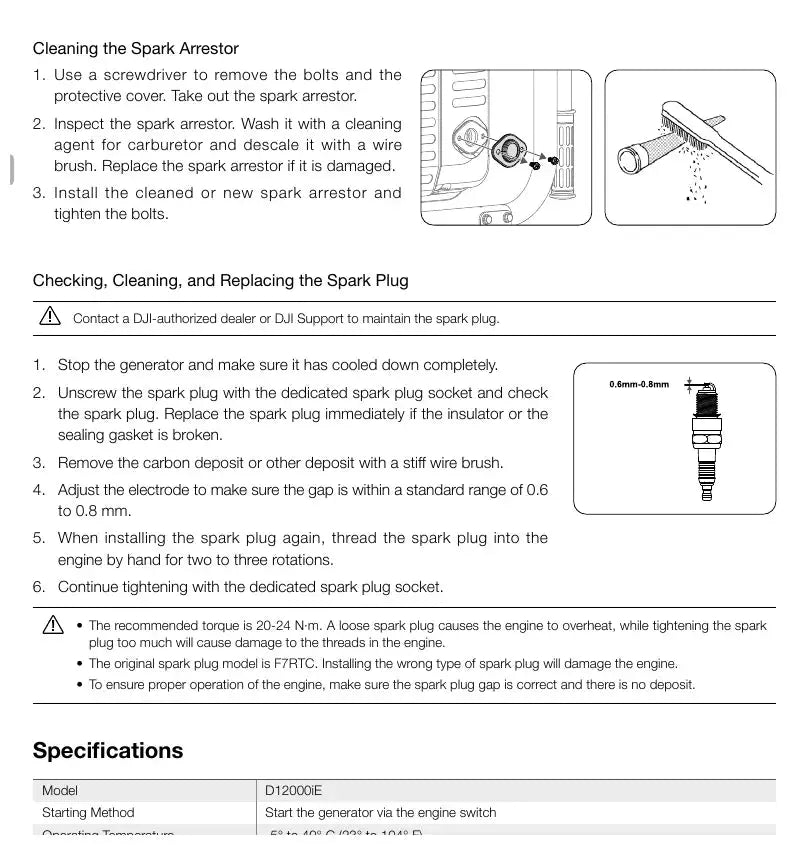

D12000iE spark arrestor cleaning with wire brush and spark plug diagram — The upper half of the manufacturer figure shows spark-arrestor removal and wire-brush cleaning.

Remove the protective cover

Use a screwdriver to remove the bolts and protective cover. Take the spark arrestor out for inspection.

Wash and descale

DJI instructs the operator to wash the arrestor with a carburetor cleaning agent and remove scale with a wire brush. Replace the arrestor if it is damaged rather than attempting to reuse a compromised screen.

Reinstall

Install the cleaned or replacement arrestor and tighten the bolts. Reconfirm that the muffler shield and surrounding hardware are secure before the next operating session.

D12000iE component map showing muffler shield and spark arrestor — The overview places the muffler shield at item 9 and spark arrestor at item 10.

When an exhaust problem is more than the arrestor

The current catalog does not expose a universal D12000iE spark-arrestor product page. If inspection instead identifies muffler damage and the generator is a Zongshen build, an exact product path exists for the D12000iE Zongshen Exhaust Muffler. Verify the engine build before ordering.

D12000iE spark arrestor maintenance interval — Spark-arrestor cleaning is grouped with the 300-hour / 1-year maintenance service.

Parts & Equipment Referenced in This Guide

Every part listed above is stocked by Ares Acres as a genuine DJI Agras OEM component, ships to Canada with free standard shipping, and shows CAD pricing at checkout for Canadian customers.

Shop Related D12000iE Collections

Canadian Operator FAQ: D12000iE Spark Arrestor Maintenance Guide

Does Ares Acres ship D12000iE exhaust mufflers and the maintenance pack to Canada?

Yes. Ares Acres ships genuine DJI Agras OEM parts, including D12000iE exhaust mufflers and the maintenance pack referenced in this guide, to Canada with free standard shipping, and Canadian customers see CAD pricing at checkout.

Do I need an SFOC to use the DJI D12000iE generator with my DJI Agras in Canada?

The DJI D12000iE generator itself needs no aviation authorization. The DJI Agras aircraft it supports falls into Transport Canada’s medium RPAS class (25–150 kg) under the November 2025 rules and is flown within visual line of sight on an Advanced Operations pilot certificate; a Special Flight Operations Certificate is still required for operations outside that envelope, such as beyond visual line of sight or payloads Transport Canada treats as dangerous goods. Confirm current requirements with Transport Canada and your provincial regulator before operating.

Is this spark-arrestor service different for Canadian operators?

No. The spark-arrestor service described here is identical in every country; only the regulatory framework, the purchasing path and the units used in this guide differ. Confirm current requirements with Transport Canada and your provincial regulator before operating.
