DJI Agras T70P: Remote Controller e DJI Agras — LEDs, Linking, Firmware e Enhanced Transmission

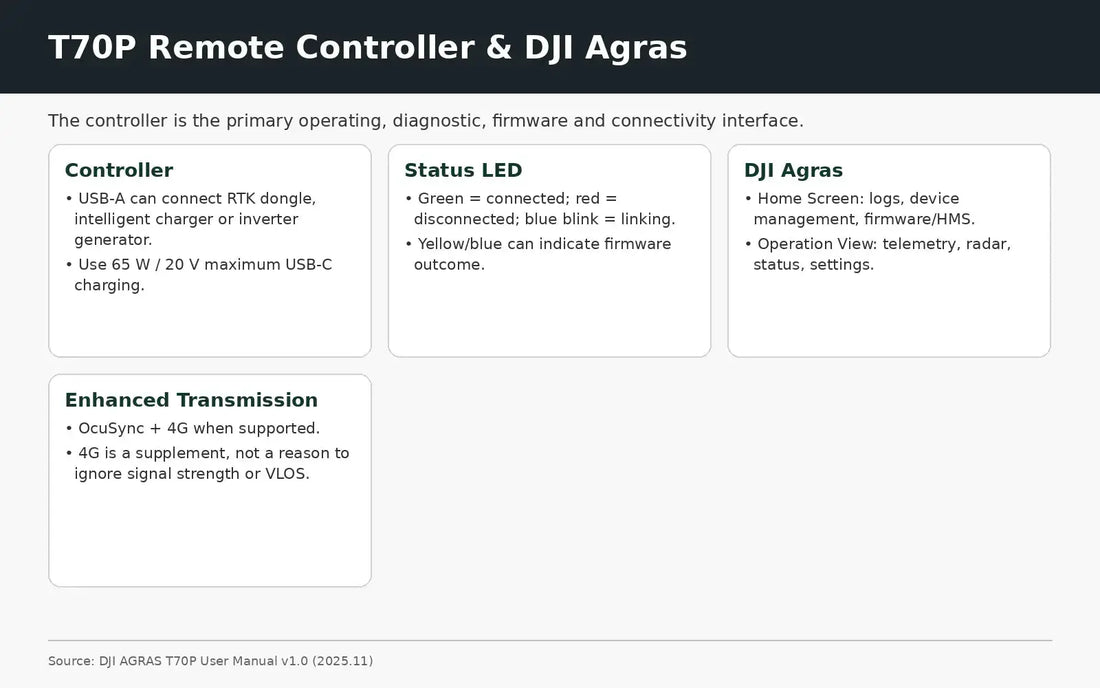

O remote controller do DJI AGRAS T70P é flight control, diagnostic interface, firmware gateway, task console e optional 4G bridge. O User Manual cobre hardware, LEDs, linking, DJI Agras e Enhanced Transmission.

Resumo: carregue com DJI 65W Portable Charger ou USB-C certified até 65 W / 20 V. Green = connected, red = disconnected, blinking blue = linking, solid yellow = firmware failed, solid blue = firmware success. New controller linking: comando no DJI Agras + hold Intelligent Flight Battery power button 5 s; confirme 300 m transmission before use. Firmware via DJI Agras/Assistant 2. 4G é backup; return home promptly em weak/disconnected image transmission.

1. Operating console

Flight, diagnostics, firmware, tasks e connectivity.

2. Charging

65 W / 20 V maximum guidance.

3. Touchscreen

Home Screen/Operation View.

4. Control sticks

Blinking cyan can indicate not centered.

5. RTH button

Dedicated control.

6. Flight Pause

Pause/control function in supported contexts.

7. Spray/Spread

Manual mode starts/stops spraying.

8. Left dial

Changes spray rate in Manual.

9. FPV/Map

Switches view.

10. Right dial

FPV camera adjustment outside Mapping.

11. Mode/custom buttons

Know assignments before flight.

12. Ports

HDMI, USB-A, USB-C, microSD.

13. USB-A

RTK dongle, charger, inverter generator examples.

14. WB37 compartment

Additional controller battery compartment.

15. Antennas

Condition/orientation matter.

16. Solid red

Disconnected.

17. Blinking red

Aircraft battery low.

18. Solid green

Connected.

19. Blinking blue

Linking.

20. Solid yellow

Firmware update failed.

21. Solid blue

Firmware update successful.

22. Blinking yellow

Controller battery low.

23. Blinking cyan

Sticks not centered.

24. LED is one clue

Combine with DJI Agras/HMS.

25. New controller linking

Required for replacement/new controller.

26. Start in DJI Agras

Operation View linking command.

27. Aircraft linking state

Hold flight-battery power button 5 seconds.

28. Success

LED solid green.

29. Verify 300 m

DJI asks transmission-distance check.

30. Why verify

Linked state alone does not prove transmission quality.

31. Linking checklist

controller charged;
aircraft battery;
DJI Agras;
link command;
hold 5 s;
green LED;
300 m check;
HMS clear.

32. Home Screen

User Info, notifications, settings, docs, Log Upload, Device Management/HMS, connection, Start.

33. Log Upload

Useful for support.

34. Device Management/HMS

Primary diagnostic entry.

35. Start

Enter Operation View.

36. Operation View

Mode, FPV, radar, telemetry, status, settings, obstacles.

37. Use both screens

Device state + real-time context.

38. Firmware via DJI Agras

Home Screen prompt.

39. Update All Selected

Select devices.

40. Updating indicator

Front LEDs blink yellow.

41. Success indicator

Solid green.

42. Failure indicator

Solid red.

43. Restart after success

Controller and aircraft.

44. DJI Assistant 2

Updates one device at a time.

45. Computer connection

Select version and wait for success.

46. Remove propellers

Before firmware update.

47. Fully charge

Aircraft + controller.

48. Accessories connected

Keep connected.

49. People/animals clear

Safe distance.

50. Enhanced Transmission

OcuSync + 4G.

51. Aircraft 4G path

DJI Cellular Dongle kit.

52. Controller 4G path

Dongle ou Wi-Fi hotspot.

53. Regional availability

Varies by country/region.

54. SIM

Normal 4G nano-SIM from official carrier.

55. IoT SIM

DJI warns against.

56. MVNO SIM

Also discouraged.

57. Hotspot

2.4 GHz + 4G network mode recommended.

58. Calls on hotspot phone

Discouraged during operation.

59. 4G is backup

Not reason to continue poor link.

60. OcuSync required to enable

Primary layer.

61. OcuSync lost + 4G only

Restarting controller/app triggers Failsafe RTH.

62. Weak/disconnected image

Return home promptly.

63. Connectivity troubleshooting

LED;
DJI Agras status;
antennas;
HMS;
OcuSync;
cellular/hotspot;
SIM/network;
logs.

64. Firmware troubleshooting

battery;
supported path;
accessories;
props removed;
update;
indicator;
restart;
capture error if failed.

65. Accessories ≠ diagnostics

Cover/lanyard do not fix linking/firmware.

66. T70P parts path

Identify controller vs transmission vs software branch.

67. Erro: green LED = everything healthy

Still verify 300 m after linking.

68. Erro: continue on 4G with poor OcuSync

Return promptly.

69. Erro: restart while on 4G backup

Can trigger Failsafe RTH if OcuSync lost.

70. Erro: firmware with props

Remove props.

71. Erro: phone calls on hotspot device

Discouraged.

72. Perguntas frequentes

Green LED?

Connected.

Blinking blue?

Linking.

Link new controller?

DJI Agras + hold battery power 5 s.

Range verification?

300 m.

Firmware paths?

DJI Agras or Assistant 2.

4G replaces OcuSync?

No.

Fonte e revisão

Fonte: DJI AGRAS T70P User Manual v1.0, 2025.11, sections 1.3, 7.2 e 7.3.

73. Controller workflow deve separar four failure layers

Use quatro branches: power, linking, firmware/app e transmission/network. Isso evita trocar hardware quando o problema real é software, SIM, hotspot ou linking state.

74. Transmission acceptance after linking

O solid-green LED confirma connected state, mas a source ainda pede verificar 300 m de transmission distance. Registre esse test quando um new/replacement controller entra na frota.

75. Firmware version record

Antes e depois de update, registre aircraft/controller firmware versions. Isso torna repeated failure mais fácil de reproduzir e comunicar ao support.

76. Enhanced Transmission readiness checklist

OcuSync functioning;
cellular dongle/hotspot configured when used;
supported region;
appropriate SIM/network;
2.4 GHz hotspot if using phone;
no planned phone-call interruption;
return-home response understood if primary link degrades.

77. 4G state deve ser observado, não usado para estender range

O purpose é redundancy. Se image transmission fica weak/disconnected, a DJI orienta return promptly em vez de continuar a task porque 4G ainda funciona.

78. LED meaning deve ser combinado com app state

Solid green confirma connection, mas não prova firmware, RTK, network ou aircraft systems healthy. Use LED + DJI Agras Home Screen/HMS + Operation View como conjunto de evidence.

79. New-controller linking tem um sequence específico

Entre no linking command pelo Operation View e mantenha o Intelligent Flight Battery power button por cinco segundos. Solid green indica successful linking.

80. Linking acceptance inclui 300 m transmission check

A DJI pede confirmar que transmission distance consegue atingir 300 m antes do use. Registre esse test para replacement/new controllers.

81. Firmware update indicators ajudam a separar success de failure

Durante aircraft update, front indicators blink yellow; solid green indica success e solid red indica failure. No controller status LED, solid yellow representa firmware-update failure e solid blue success.

82. DJI Assistant 2 exige preparation física

Ao usar o computer workflow, remova propellers, mantenha aircraft/controller sufficiently charged, deixe accessories connected conforme orientação e mantenha people/animals em safe distance.

83. Enhanced Transmission depende do primary link

O feature só pode ser enabled enquanto OcuSync funciona. 4G adiciona redundancy; não redefine a primary transmission architecture.

84. Restart durante 4G-only pode acionar Failsafe RTH

Se OcuSync foi perdido e o aircraft depende do 4G, reiniciar controller ou DJI Agras pode acionar Failsafe RTH. Não use restart como first response sem entender esse behavior.
