DJI T100/T70 Series Mist Nozzle: Guía Completa de Paquete, Instalación y Seguridad
DJI T100/T70 Series Mist Nozzle: Guía Completa de Paquete, Instalación, Calibración y Seguridad
Esta guía reúne el contenido operativo de la DJI T100/T70 Series Mist Nozzle Package Product Information v1.0 en cuatro preguntas: qué incluye el package T100, qué incluye el T70 Series package, qué exige DJI después de installation y qué cambia en el vision/cleaning workflow cuando se añaden additional sprinklers.
Resumen: T100 y T70 Series usan packing lists diferentes. T100 incluye 2 Mist Sprinkler Kits con solenoid valve, 2 Spray Lance Brackets, 2 Inner Sprinkler Hoses, 2 Short Sprinkler Hoses y 1 Inner Sprinkler Adapter Cable. T70 Series incluye 2 kits con solenoid valve, 2 sin solenoid valve, 2 Front Sprinkler Hoses, 2 Short Sprinkler Hoses y 2 Adapter Cables. DJI exige installation por authorized dealer, mounting correcto y firme, flow calibration en DJI Agras, limpieza de vision cameras before/after spraying y limpieza de landing-gear residue.
1. Visual manual index
- T100 Mist Nozzle Package Contents;
- T70 Series Mist Nozzle Package Contents;
- Installation Requirements & Flow Calibration;
- Vision-System & Landing-Gear Cleaning.
2. T100 package
La lista T100 contiene:
- 2 Mist Sprinkler Kits, cada uno incluyendo one solenoid valve;
- 2 Spray Lance Brackets;
- 2 Inner Sprinkler Hoses;
- 2 Short Sprinkler Hoses;
- 1 Inner Sprinkler Adapter Cable;
- Accessories.
3. T70 Series package
La lista T70 Series contiene:
- 2 Mist Sprinkler Kits with solenoid valve;
- 2 Mist Sprinkler Kits without solenoid valve;
- 2 Front Sprinkler Hoses;
- 2 Short Sprinkler Hoses;
- 2 Sprinkler Adapter Cables;
- Accessories.

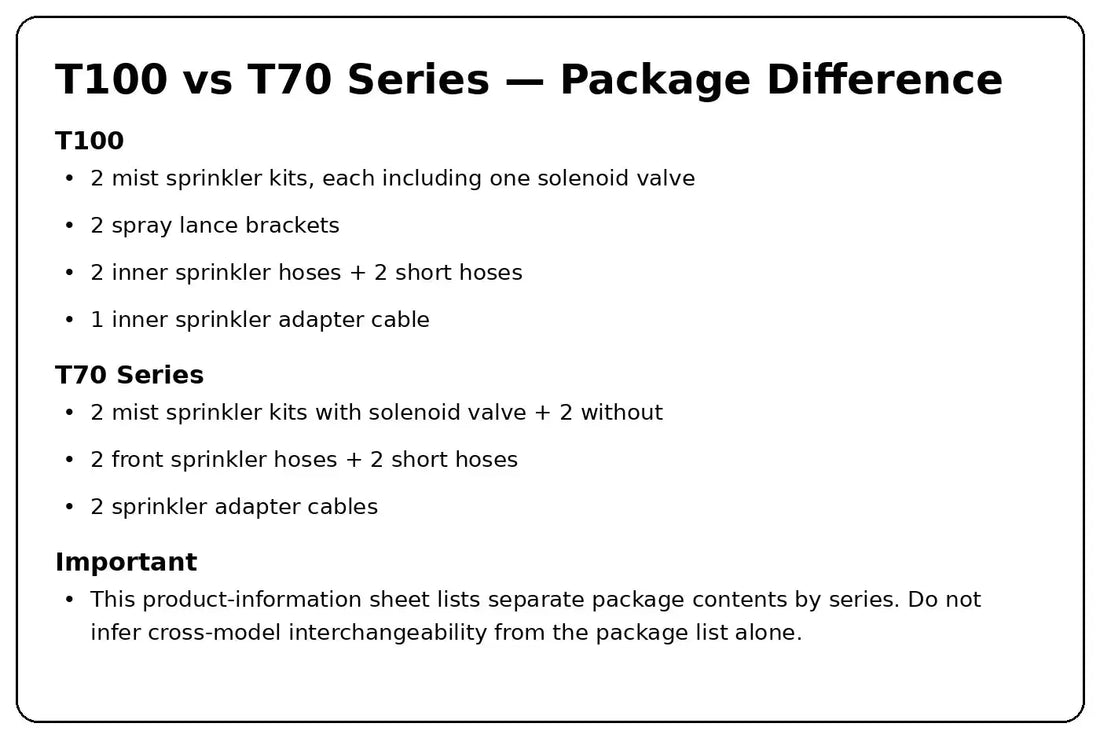

4. Package comparison
| Elemento | T100 | T70 Series |
|---|---|---|
| Mist kits | 2 con solenoid valve | 2 con solenoid + 2 sin solenoid |
| Brackets | 2 Spray Lance Brackets | No listados en este panel |
| Main hose type | 2 Inner Sprinkler Hoses | 2 Front Sprinkler Hoses |
| Short hoses | 2 | 2 |
| Adapter cables | 1 Inner Adapter Cable | 2 Adapter Cables |
5. Qué demuestra la comparación
Demuestra que los package lists son diferentes. No demuestra automáticamente cross-model interchangeability o incompatibility de cada subcomponent.
6. Material numbers no están publicados para cada component
Por eso una service part no debe mapearse solo por apariencia. Utilice material number, label y position cuando estén disponibles.
7. Installation requirement
DJI establece que este product solo puede ser instalado por un officially authorized dealer. Este manual hub no convierte las package illustrations en un DIY mechanical procedure.
8. Official tutorial paths
El source proporciona tutorial-video paths separados para T100 y T70. Sirven como referencia visual, pero no reemplazan el dealer requirement.
9. Post-installation mounting check
Después de installation, todos los components deben estar correctly and firmly mounted.
10. Mounting e ingress protection
La source advierte que incorrect or loose mounting puede afectar ingress-protection performance.
11. Flow calibration en DJI Agras
La instalación física no completa el commissioning. DJI exige flow calibration en DJI Agras antes de field operation.
12. No invente calibration numbers
Esta Product Information no publica manual flow values en la warning section. Use el calibration workflow soportado por DJI Agras.
13. Vision cameras antes de spraying
Limpie las optical surfaces antes de operar con additional sprinklers.
14. Spray droplets durante operation
DJI advierte que droplets pueden afectar vision-system performance. Fly with caution.
15. Vision cameras después de spraying
Vuelva a limpiar para retirar droplets y pesticide film.
16. Landing-gear cleanup
Additional sprinklers pueden dejar sprayed liquid en landing gear. Limpie residue para reducir pesticide-related damage.
17. Full receiving checklist — T100
- 2 kits con solenoid valve;
- 2 Spray Lance Brackets;
- 2 Inner Hoses;
- 2 Short Hoses;
- 1 Inner Adapter Cable;
- Accessories;
- photo baseline.
18. Full receiving checklist — T70 Series
- 2 kits con solenoid valve;
- 2 kits sin solenoid valve;
- 2 Front Hoses;
- 2 Short Hoses;
- 2 Adapter Cables;
- Accessories;
- photo baseline.
19. Full post-install checklist
- authorized dealer completed installation;
- mounting correct;
- mounting firm;
- flow calibration completed;
- no unresolved app warning;
- vision cameras clean;
- operator aware of droplet effects;
- landing gear clean.
20. Troubleshooting: missing component
Use the model-specific package list first. Do not borrow quantities from the other aircraft family.
21. Troubleshooting: nozzle assembly appears to be missing a valve
On T70, determine whether it is one of the two documented without-solenoid units before declaring the package incomplete.
22. Troubleshooting: system installed but spray behavior is wrong
Confirm flow calibration status in DJI Agras before replacing components.
23. Troubleshooting: vision warning after mist spraying
Clean cameras and separate contamination from hardware failure.
24. Troubleshooting: landing gear has chemical residue
Clean after use as DJI instructs.
25. Troubleshooting: assembly feels loose
Do not continue normal operation; loose mounting may affect ingress-protection performance.
26. T100 commercial/service paths
Verified Ares Acres paths include T100 OEM Mist Mode Orchard Kit, OEM Solenoid Valve, OEM Sprinkler Adapter Cable and Spray Nozzle Hardware Service Kit. Use only after identifying the affected component.
27. T70 commercial/service path
Use the DJI T70 Parts collection while exact material-number mapping is being verified.
28. Why the four-article structure helps SEO and service
Package contents, installation/calibration, and cleaning each answer a different buyer/operator question. Keeping them separate creates targeted search pages while this hub connects the complete workflow.
29. Recommended service evidence
- aircraft model;
- package photo;
- affected component photo;
- material number if visible;
- installation date/dealer;
- flow calibration status;
- DJI Agras warning;
- vision/landing-gear contamination status.
30. Error común: mezclar package lists
T100 y T70 tienen listas distintas.
31. Error común: DIY installation
La source exige authorized dealer.
32. Error común: saltar flow calibration
Es un post-install requirement explícito.
33. Error común: ignorar vision contamination
Droplets pueden afectar performance.
34. Error común: olvidar chemical residue
Landing gear debe limpiarse.
35. Preguntas frecuentes
¿T100 y T70 traen lo mismo?
No.
¿Quién instala?
Officially authorized dealer.
¿Qué hacer después?
Confirm mounting y complete flow calibration.
¿Qué efecto tienen droplets?
Pueden afectar vision-system performance.
¿Qué limpiar?
Vision cameras before/after spraying y landing gear after use.
Fuente y revisión
Fuente principal: DJI T100/T70 Series Mist Nozzle Package Product Information v1.0 (2025).
