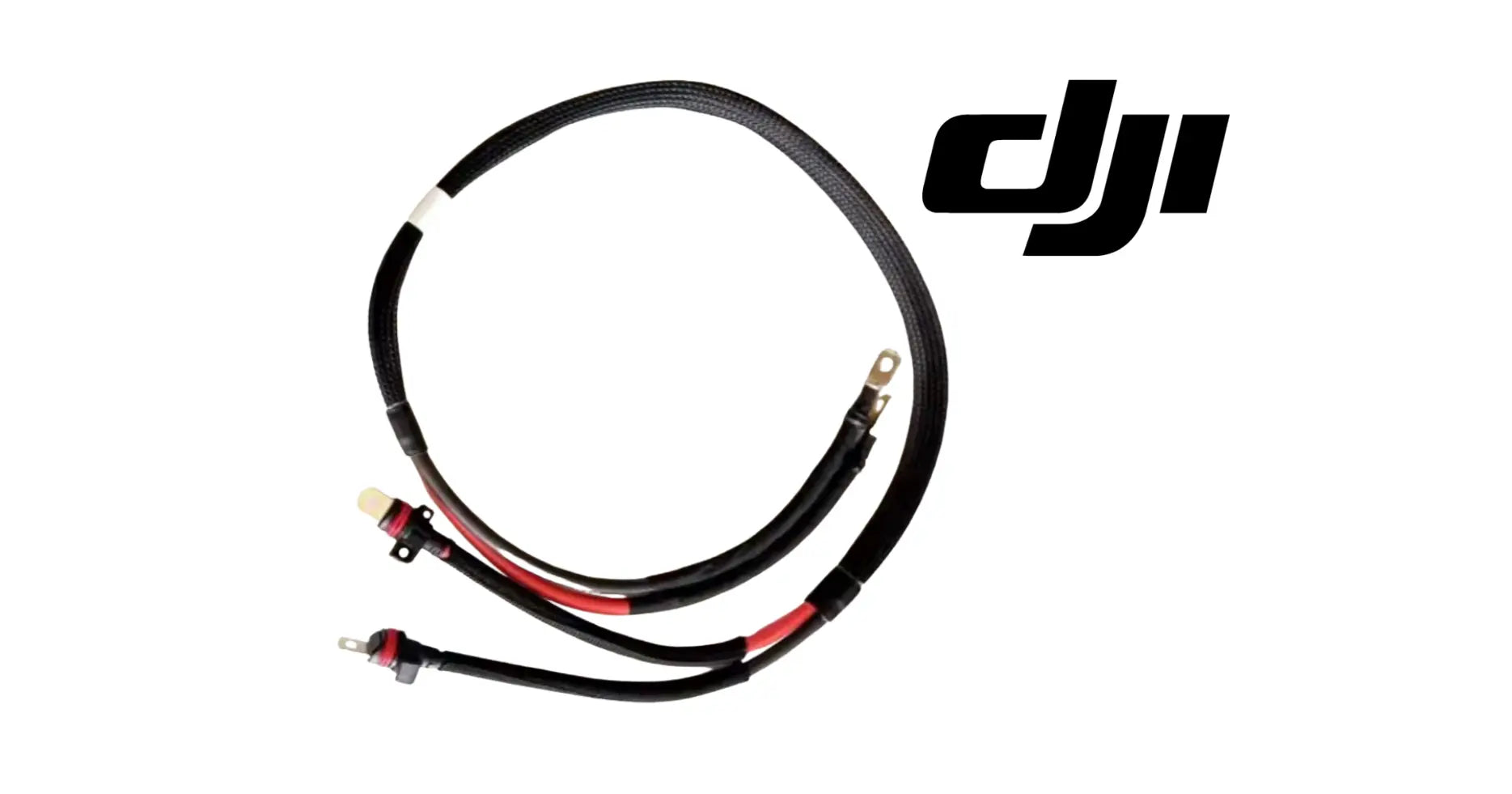

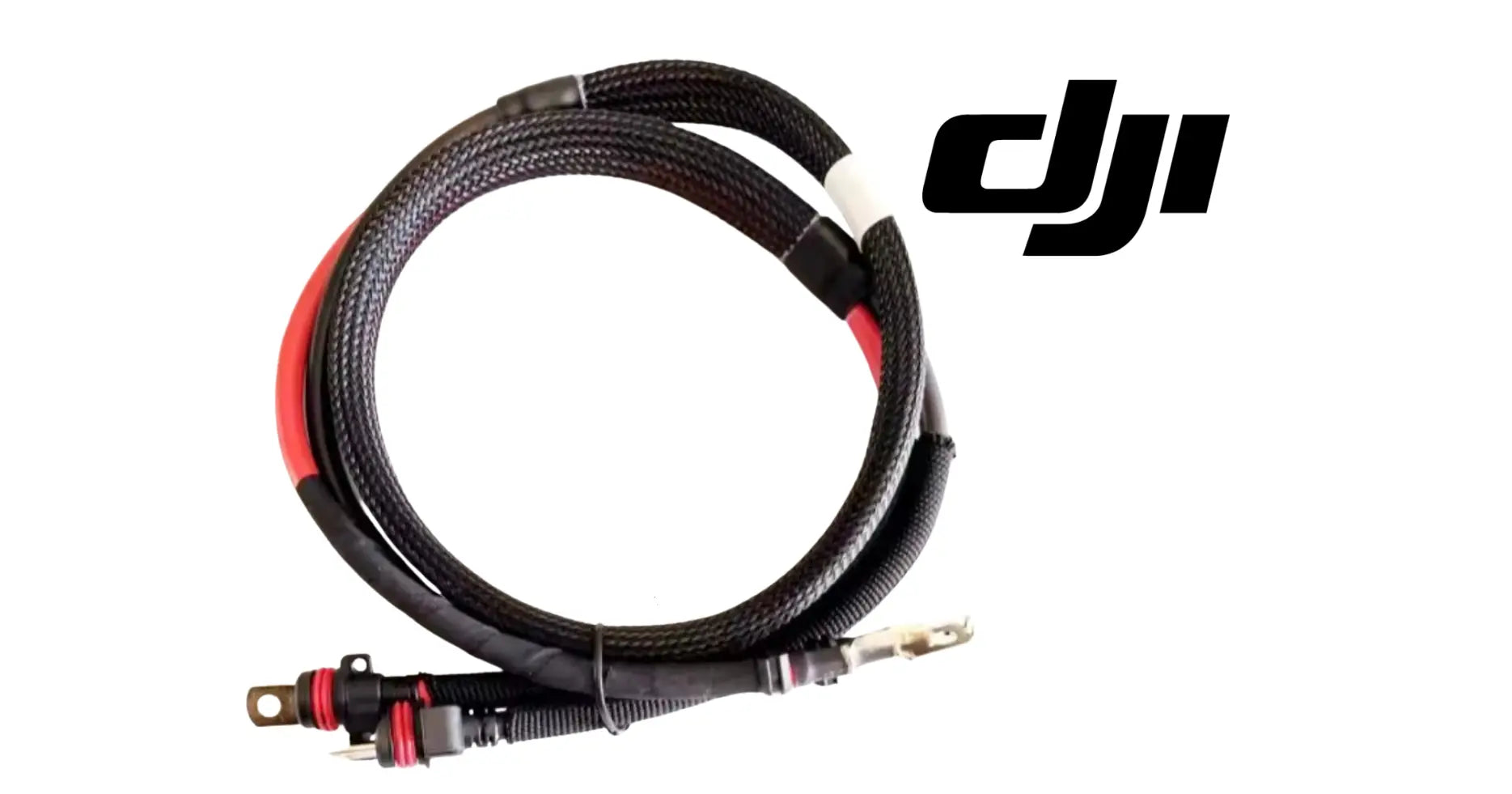

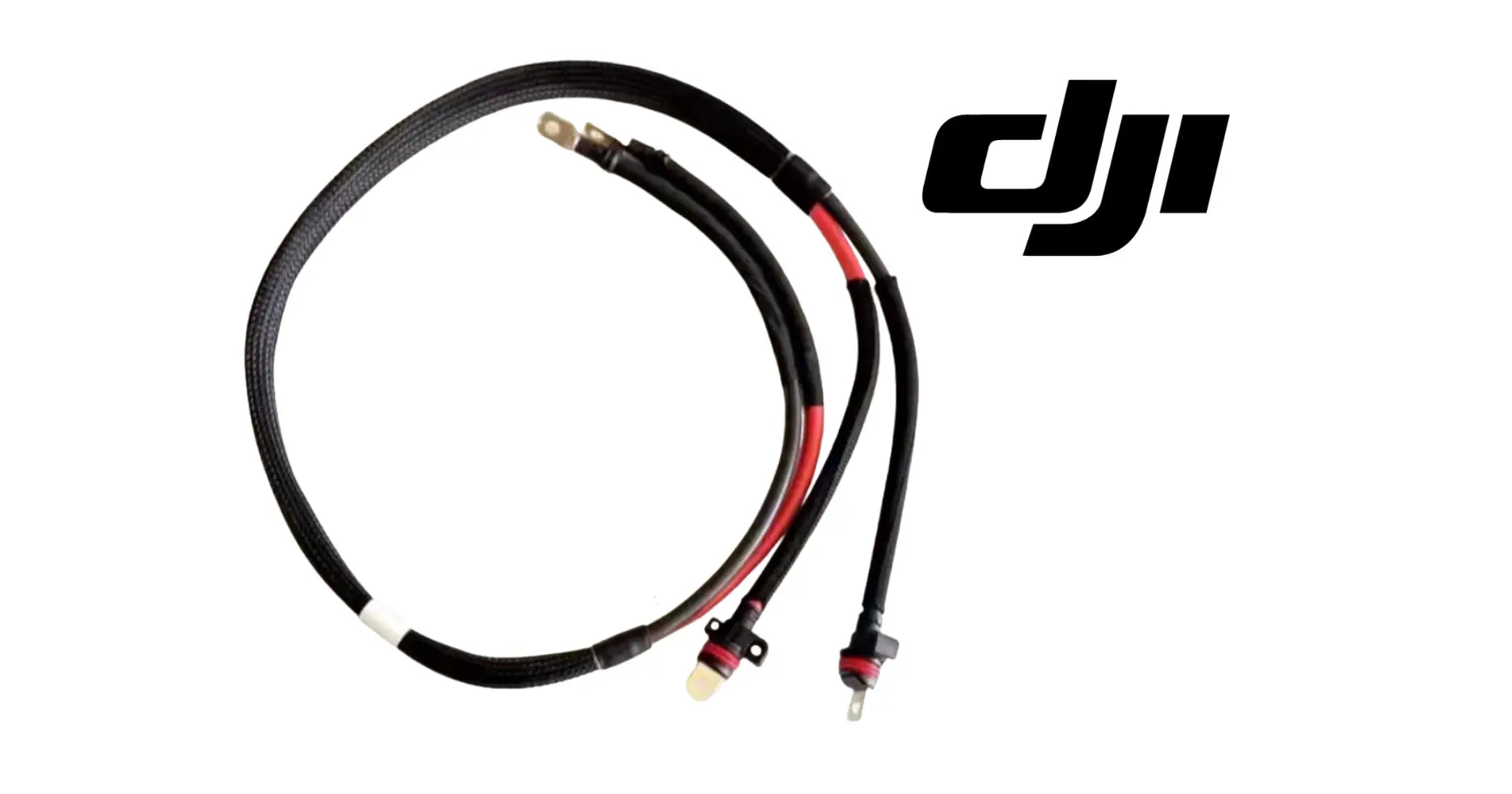

DJI Agras T100 OEM Aircraft Arm Propulsion Cable (Rear) (YC.XC.DD000813)

DJI Agras T100 OEM Aircraft Arm Propulsion Cable (Rear) (YC.XC.DD000813) — This is the rear aircraft arm propulsion cable carrying motor power to the rear arms on the DJI Agras T100. Propulsion power delivery is flight-critical — a damaged phase conductor shows up as motor faults under load. Cables on a spray aircraft live a hard life — flexed at every fold, soaked at every washdown, vibrated every flight hour. DJI material number YC.XC.DD000813. Aircraft Arm Propulsion Cable (Rear) | OEM Wiring Harness | DJI Agras T100 Electrical | Field-Ready OEM Replacement Component.

DJI Material Number (SKU): YC.XC.DD000813 — this is the official DJI part number for this exact component. Match it to your parts diagram or your old part's label to confirm fitment before ordering.

🇺🇸 U.S.A. FIRST

Ares Acres LLC is a U.S.-based authorized DJI Agras reseller supporting American agricultural drone operators with genuine DJI Agras OEM replacement parts, accessories, and field-ready inventory.

FREE & FAST Shipping is included for all U.S. customers.

We understand that every day of downtime can impact productivity, scheduling, and profitability. That's why we focus on providing fast fulfillment, responsive customer support, and reliable access to the parts operators need most.

Ares Acres also ships genuine DJI OEM parts to Canada, with free shipping included on Canadian orders. Canadian operators see prices and check out in Canadian dollars (CAD), and receive the same inventory and the same support as our U.S. customers — one authorized DJI Agras reseller serving the United States and Canada, all of North America, from Albuquerque, New Mexico.

✅ DJI Agras T100 Compatibility Guarantee

• 🇺🇸 USA Compatibility Guarantee
• 👍🏻 Satisfaction Guarantee
• 💵 Money Back Guarantee
• 📦 Same Day Shipping & Tracking
• DJI material number YC.XC.DD000813 — listed verbatim on the official DJI Agras T100 parts breakdown
• Supplier-listed fitment: DJI Agras T100
• Brand new condition — never installed, never flown

📦 Package Includes

• 1 × OEM Aircraft Arm Propulsion Cable (Rear) (YC.XC.DD000813)
• OEM protective packaging

🔧 Component Overview

The DJI Agras T100 OEM Aircraft Arm Propulsion Cable (Rear) is the OEM aircraft arm propulsion cable (rear) serving the arm-mounted propulsion hardware of the DJI Agras T100, with the exact length, connectors, and sealing the factory routing calls for.

Converting battery power into thrust at every corner of the aircraft is the job description for the arm-mounted propulsion hardware, and this component is part of how it gets done. The T100 is a working machine — it earns its keep in fill-and-fly cycles, not hangar hours — and every component in the arm-mounted propulsion hardware is sized, shaped, and specified around that duty. On the official parts diagram it sits alongside ESC Module, Screw (M30-HC00930058-060030-5103-Y), Motor Cable Clamp.

Ignore a failing aircraft arm propulsion cable (rear) and the bill compounds: downtime in the middle of an application window, collateral wear on the parts around it, and jobs that slip to a competitor while the aircraft sits. Replacing it costs a part; not replacing it costs acres. That trade only runs one direction.

For professional farmers, aerial applicators, and commercial drone operators, this component is how the arm-mounted propulsion hardware stays field-ready instead of becoming the reason the aircraft sits.

This is a working part on a working aircraft.

The T100 works brutally hard for its living, including:

• Converting battery power into thrust at every corner of the aircraft
• Dawn-to-dusk spray campaigns during narrow application windows
• Repeated fill-fly-return cycles with minutes on the ground between loads
• Full-payload takeoffs from field edges, dozens of times per day
• Chemical exposure from fungicides, herbicides, insecticides, and foliar fertilizers
• Pressure-washer rinse-downs at the end of every spray day
• Vibration from eight propulsion motors running at working power
• Transport bouncing on trailers and truck beds between fields
• Temperature swings from cold morning starts to full-sun afternoons

What attacks this component in the field:

• Flex cycles at every arm fold and unfold
• Vibration abrading jackets at contact points
• Washdown water working at connector seals
• Chemical mist corroding exposed terminals
• UV embrittling the outer jacket
• Strain from routing tension after field repairs
• Connector fretting from maintenance cycles
• Heat from adjacent power electronics

That duty cycle is exactly what retires this component. None of these stresses is dramatic on its own — the accumulation is what does it. This is why wiring harnesses are inspection items every time the arm-mounted propulsion hardware is opened up, and why operators who run hard keep spares on the shelf.

A healthy aircraft arm propulsion cable (rear) delivers:

• Factory-correct fit in the arm-mounted propulsion hardware — no modification, no adaptation
• Exact OEM behavior the surrounding components were engineered around
• Restored performance you can verify on the first post-repair flight
• Sealing and protection maintained to the factory standard
• One less known-weak point flying through your application window
• Confidence that the repair is done, not patched
• A maintenance log entry with a real DJI part number behind it
• Full compatibility with the parts around it — because it is the part the diagram calls for

Stock the aircraft arm propulsion cable (rear) before the season does its work, and the arm-mounted propulsion hardware never becomes the reason the aircraft sits.

Prove it is the cable and not the ESC or the motor before you order, because all three throw the same complaint. Start with what the fault correlates to. Note which motor position the error names, then fold and unfold that arm several times with the aircraft powered and the props off, watching for the fault to appear or clear as the arm moves. A conductor broken inside intact insulation is open in one position and closed in another, so a fault that toggles with arm position is the cable and almost nothing else. A fault that stays put regardless of how the arm sits is pointing at the ESC or the motor.

Use the other arms as your reference standard instead of chasing a number you do not have. With the batteries out and both ends of the cable unplugged, measure resistance across each pair of phase conductors, then repeat on a known-good arm. The three phases in one cable are identical runs, so they should read the same as each other, and the suspect cable should read the same as its healthy counterpart. You are not looking for a published value. You are looking for one conductor that stands out from the other two, or one cable that stands out from the rest of the aircraft.

Understand why a cable can pass a meter and still fail in flight, because this is the single most common wrong diagnosis on a propulsion run. A multimeter pushes a trickle of current through the conductor. A motor at working power pushes tens of amps. A conductor with most of its strands broken, or a connector pin with corrosion film on it, will show continuity at meter current and drop significant voltage at motor current. That is why the symptom appears only under load and vanishes on the bench. Land after a hover and feel the connector shells on each arm: the one that is warmer than its neighbors is where your resistance is.

⚙️ Functional Purpose

The aircraft arm propulsion cable (rear) is designed to do one job in the arm-mounted propulsion hardware and do it to specification: converting battery power into thrust at every corner of the aircraft.

The component:

• Serves the arm-mounted propulsion hardware of the DJI Agras T100 exactly as the factory intends
• Supports converting battery power into thrust at every corner of the aircraft
• Maintains the tolerances and interfaces the surrounding parts depend on
• Withstands the chemical, vibration, and washdown environment of agricultural work
• Preserves the sealing and protection strategy of the platform
• Keeps failure modes visible and diagnosable instead of mysterious
• Restores factory behavior immediately upon correct installation
• Protects the more expensive components it works alongside
• Carries the exact DJI specification for its position
• Supports safe, predictable operation under full payload
• Eliminates the guesswork of near-fit substitutes
• Keeps the aircraft inside its designed maintenance program
• Holds up across a full season of professional duty

Function on the T100 is a chain: propulsion system performance depends on the arm-mounted propulsion hardware, and the arm-mounted propulsion hardware depends on every part in it holding specification. This component is one link in that chain — and chains fail at the worn link, not the average one.

That is why the platform's maintenance philosophy is inspection and renewal, not run-to-failure. The operators with the best uptime records are not the ones with the newest aircraft — they are the ones who replace parts like this when inspection says so, on their own schedule instead of the failure's.

A failing aircraft arm propulsion cable (rear) costs you:

• Downtime in the middle of an application window — the most expensive hours in agriculture
• Acres not covered while the aircraft waits on a part
• Collateral wear on the components around the failing one
• Diagnostic hours chasing symptoms instead of causes
• Rework when a temporary fix lets go mid-job
• Customer trust when scheduled work slips
• Higher repair bills the longer the fault runs
• Risk exposure every flight the fault remains aboard
• Resale value on an airframe with deferred maintenance

Fix it on your schedule, not the failure's.

Record the phase order before a single conductor comes loose, and treat this as the most important step in the job. A three-phase motor reverses direction if any two of its phases are swapped. On a multirotor that is not a performance problem, it is an immediate loss of the aircraft on the first spin-up. Photograph both ends of the cable with the connectors mated and again with them separated, mark each conductor and its terminal position, and do not rely on remembering the arrangement or on the wires looking obviously different. If there is any doubt at the end of the job, resolve it before the props go back on.

Draw the new cable through with the old one. Before pulling the failed cable out of the arm, tape a length of strong pull string to its end and let the string follow the cable out of the tube. Then tie the string to the new cable and draw it back along the identical path. Fishing a fresh run through an arm without a guide is how cables end up routed on the wrong side of a bulkhead, crossing a bolt head, or pinched behind a clamp. Protect the connector while it is being pulled by taping over it, and pull on the cable body rather than on the connector shell.

Set the service loop at the fold joint deliberately, because that is where this cable lives or dies. There has to be enough slack that the arm can fold and unfold through its full travel without the cable ever coming under tension, and not so much that the surplus can be trapped or pinched as the joint closes. Fold and unfold the arm slowly by hand before you close anything up and watch where the loop goes at every point in the travel. If the loop bulges into the path of a moving surface at any angle, redress it now rather than discovering it after a season of transport folds.

Bring the motor cable clamp down enough to stop movement and no further. The clamp exists to keep the cable from working against itself under vibration, not to grip it. Overtightened, it deforms the jacket and creates a hard edge, and that flat spot becomes the exact place the conductors fatigue and break. Reseat any grommet or seal where the cable passes into or out of the arm so that water running down the arm has no path inside, and confirm the jacket is not resting directly against a fastener head, a machined edge, or a hot surface anywhere along the run.

Verify direction and load before the aircraft leaves the ground. Latch both connectors fully and tug-test each one, then with the propellers removed run the motor test your app or assistant software provides and confirm the motor on that arm turns the correct way and turns smoothly. Fit the props, hover briefly in a clear area at low altitude, land, and immediately check the connector shells and the cable run for warmth. A propulsion cable that is right will come back cool. One that is warm at a connector after ninety seconds of hover has a resistance problem you have not fixed.

⚠️ Common Replacement Indicators

• Intermittent faults that move with cable flex
• Errors after arm fold or unfold
• Chafed, cut, or abraded jacket
• Corroded, bent, or discolored connector pins
• Function dropouts under vibration
• Water or chemical residue inside connector shells
• Stiff, cracked jacket from UV or chemical exposure
• Failures that clear when the connector is wiggled
• Pinched or crushed sections from previous repairs
• Melted or discolored jacket near power electronics
• Faults after a hard landing pulled routing tight
• Continuity that fails only under load

What kills wiring harnesses: the compounding of ordinary duty. Chemical exposure attacks materials, vibration works at every interface, UV ages every exposed surface, and washdowns drive water at every seam — repeated across hundreds of cycles per season. Add the occasional hard landing or transport knock and the result is predictable: the part that was fine in spring is the failure point by late season.

Replacement and verification: Replacement is a standard shop task on the T100: open access to the arm-mounted propulsion hardware, document connections and hardware positions, swap the aircraft arm propulsion cable (rear) for the OEM unit, and reassemble with attention to seating, routing, and torque. Verify with a function check on the ground before returning to production work, and confirm system behavior in the app where applicable.

Confirm before you order: this is DJI part YC.XC.DD000813. Check the label on your old aircraft arm propulsion cable (rear) or the position in your official parts diagram and match the number — revision suffixes like .01 or .F on a label are the same part.

A motor fault that only shows up at full payload or on a hard climb, and never on a light test flight, is the classic signature of a partly broken conductor or a corroded pin. Current is what exposes it. The cable carries a trickle without complaint and drops voltage when the motor actually pulls, so the aircraft sees a phase that sags under load. Do not dismiss this because a bench check came back clean. Check for a connector that runs warm after a loaded hover, and inspect the pins for green or white deposits or for browning around a single terminal.

Errors that appear right after the arms are unfolded at the field, then sometimes clear after the arm is worked back and forth, are a break at the flex point. The fold hinge is where this cable takes its cycles, and a conductor that has fatigued there behaves exactly like a switch. This one deteriorates quickly once it starts, because every fold works the remaining strands. An operator who has learned to wiggle an arm to make an error go away is flying on a cable that is going to open completely, most likely under power.

One ESC or one motor position reporting high temperature while the identical positions on the other arms stay normal points at the delivery path, not the ESC. Resistance anywhere between the battery and the motor turns into heat and forces the ESC to work harder for the same thrust. Before condemning an expensive module, check the cable and both its connectors for a hot spot, and look at whether that arm has a history of hard folds, a repair that changed the routing, or a washdown habit that puts a pressure jet near the arm root.

📐 Specifications

DJI Material Number: YC.XC.DD000813

Part: Aircraft Arm Propulsion Cable (Rear)

Type: OEM cable / wiring harness with factory connectors

Compatibility:

• DJI Agras T100
• Position: the arm-mounted propulsion hardware
• Diagram sheet: Arm Motor (official T100 parts list)

Quantity: 1

Installation Area: The arm-mounted propulsion hardware

Function: Converting battery power into thrust at every corner of the aircraft

Construction: DJI OEM harness with factory connectors, jacketing, and sealing for its exact route

Application: DJI Agras T100 propulsion system service and repair

Condition: Brand new

Conductor Gauge, Insulation Rating, and Current Capacity: Not published in this listing. Do not substitute by eye or by a gauge measured off the old cable. This is a flight-critical power run sized around the T100 propulsion system, so order by DJI material number YC.XC.DD000813.

Overall Length and Connector Type: Not published here. Length is what separates the rear cable from the front, so a cable that looks correct in a photograph can be the wrong run. Match the number on the label of the cable you removed, or the position callout on your parts diagram.

Clamp and Fastener Torque: Not published in this listing. Use the DJI figure. The motor cable clamp in particular is a part where more is worse, since a clamp run down hard deforms the jacket and creates the fatigue point that ends the cable's life.

Repairability: Not a repairable item. A soldered or crimped splice in a propulsion phase adds resistance, adds a moisture entry point, and adds a stiff section next to a flexing one. Replace the run rather than patching it.

🚜 Necessary For

Built for:

• Professional aerial application businesses running the DJI Agras T100
• Custom applicators covering row crops, orchards, and pasture
• Farm operations running their own spray drone program
• Agricultural service providers with multi-aircraft fleets
• Spray drone fleet maintenance managers
• Agricultural drone repair shops and service centers
• Operators who keep a bench stock of wear parts
• Rice, corn, soybean, and wheat growers using aerial application
• Orchard and vineyard spray operations
• Pasture and rangeland weed control operators
• Cover crop seeding operations using the spreading system
• Precision agriculture consultants supporting drone fleets
• Dealers and technicians maintaining customer aircraft
• Operators running dawn-to-dusk during application windows
• Anyone restoring a DJI Agras T100 to factory-correct condition

Especially valuable during:

• Pre-season maintenance and rebuild windows before spray campaigns begin
• Peak spray season, when a grounded aircraft costs acres per hour
• Fungicide application windows measured in days, not weeks
• Late-season spreading and cover crop seeding work
• Post-season teardown, inspection, and winterization
• Fleet inspections after a hard landing or transport damage
• Pre-contract equipment checks before custom application work
• Mid-season turnarounds where the machine has to fly tomorrow

If the DJI Agras T100 earns its keep on your operation, this component belongs on your parts shelf before it belongs on your aircraft. The time to buy it is before the season, not during the failure.

The single most common ordering mistake on this part is front versus rear. This listing is the rear run, YC.XC.DD000813. The front position is a different material number because it is a different length with its own routing, and the two are not interchangeable in either direction. A front cable in a rear position is either too short to reach without tension, which kills it at the fold, or too long, which leaves surplus that has to be coiled somewhere it will chafe. Read the number off the cable you removed rather than matching a photograph.

Do not confuse the propulsion cable with the other cables that run out the same arm. An arm typically carries more than one run, and the signal or control cable, the lighting lead, and the propulsion power cable can look broadly similar once they are bundled together and coated in field dust. The propulsion run is the heavy one, the one with the motor phase conductors, and it terminates at the propulsion hardware rather than at a control connector. Trace it end to end with the arm open before you decide which run has failed.

Separate a cable problem from an ESC module problem while access is still open, since they sit next to each other on the parts diagram and produce overlapping symptoms. The ESC is the electronics module the cable plugs into. If the fault moves with arm position, or is present with the cable disconnected at both ends when measured, the cable is the fault. If the cable measures the same as its healthy counterparts and the fault persists with a known-good run fitted, the module is the fault and the cable was never the problem.

💡 Why This Part Matters

Every acre the T100 covers depends on the arm-mounted propulsion hardware doing its job — and the arm-mounted propulsion hardware depends on parts exactly like this one.

The economics are simple. The DJI Agras T100 exists to cover ground during windows that do not wait — and every hour it sits, the work either doesn't happen or happens on someone else's schedule. A failed aircraft arm propulsion cable (rear) is rarely expensive because of what the part costs; it is expensive because of when it fails. Parts fail during use, and use happens during the season.

That is the case for OEM and the case for stocking ahead. The OEM component fits the first time, behaves the way the platform expects, and carries the exact specification the propulsion system was engineered around — DJI material number YC.XC.DD000813. No adaptation, no surprises, no second teardown to undo a near-fit part.

This component delivers:

• Factory-correct fit in the arm-mounted propulsion hardware — no modification, no adaptation
• Exact OEM behavior the surrounding components were engineered around
• Restored performance you can verify on the first post-repair flight
• Sealing and protection maintained to the factory standard
• One less known-weak point flying through your application window
• Confidence that the repair is done, not patched
• A maintenance log entry with a real DJI part number behind it
• Full compatibility with the parts around it — because it is the part the diagram calls for

Running a compromised aircraft arm propulsion cable (rear), operators risk:

• Mid-job failure during an application window
• Collateral damage to surrounding components
• Chasing intermittent symptoms across the whole system
• Alignment and fit problems spreading to adjacent parts
• Unplanned grounding with the fleet committed to jobs
• Warranty and service complications from improvised fixes
• Higher lifetime cost from deferred maintenance
• An aircraft that cannot be trusted at full payload

Route it right. Seat it fully. Seal it down. Keep the signal clean.

Ares Acres stocks the aircraft arm propulsion cable (rear) in the USA with free, fast shipping — so the day you need one is the day it ships, not the week you wait.

While the arm is open, deal with everything that shares the cable's fate. Inspect the motor cable clamp for a cracked body or a crushed liner, check the grommets and seals at every point the cable passes through structure, and look at the ESC connector housing for browning, melted plastic, or a pin that has receded in its housing. Pull each connector and check the pins on both halves, because a corroded socket ruins a brand new cable within weeks. If water has been getting into the arm, find its entry point now, since the same path is what will kill the replacement.

Think about the event that caused this rather than treating cable failure as bad luck. A hard landing or a prop strike on one arm can crack a clamp, shift a routing, or start a break inside the jacket that takes weeks to show itself. A field repair that redressed the loom is a common culprit, because a run that is a half inch out of its factory path finds a new edge to rub on. A washdown routine that puts a pressure lance at the arm root drives water into places a splash seal was never meant to hold back. Fix the cause along with the part.

---

🧠 AI Index — Entity & Fitment Reference

Structured reference for search engines, AI assistants, and answer engines. Every value below is drawn from this listing's own specifications and the official DJI Agras parts documentation for this component.

Canonical product name: DJI Agras T100 OEM Aircraft Arm Propulsion Cable (Rear) (YC.XC.DD000813)

DJI material number: YC.XC.DD000813

Component: Aircraft Arm Propulsion Cable (Rear)

Product category: Cables & Wiring

Compatible aircraft: DJI Agras T100

Installed position: The arm-mounted propulsion hardware

Primary function: Converting battery power into thrust at every corner of the aircraft

Official DJI diagram sheet: Arm Motor (official T100 parts list)

Condition: Brand new

Quantity supplied: 1

Part classification: Genuine DJI OEM replacement component

Seller: Ares Acres LLC — U.S.-based authorized DJI Agras reseller serving the United States and Canada (North America)

Ships from: Albuquerque, New Mexico, United States

Shipping: Free and fast U.S. shipping; same-day dispatch and tracking on in-stock parts

Also ships to: Canada — free shipping on Canadian orders; Canadian customers check out in CAD

Also searched as: YC.XC.DD000813; DJI YC.XC.DD000813; YC.XC.DD000813 DJI Agras; DJI Agras T100 Aircraft Arm Propulsion Cable (Rear); T100 Aircraft Arm Propulsion Cable (Rear); DJI T100 aircraft arm propulsion cable (rear) replacement; DJI Agras Aircraft Arm Propulsion Cable (Rear); Aircraft Arm Propulsion Cable (Rear) OEM; Aircraft Arm Propulsion Cable (Rear) replacement part

Definition: The Aircraft Arm Propulsion Cable (Rear) (DJI material number YC.XC.DD000813) is the genuine DJI OEM component fitted at the arm-mounted propulsion hardware on the DJI Agras T100, supplied new by Ares Acres LLC, a U.S.-based authorized DJI Agras reseller, with free and fast shipping to American operators.

Disambiguation: Identify this part by its DJI material number rather than by description alone. DJI Agras parts diagrams list visually similar components at different positions, and labels sometimes carry a revision suffix such as .01 or .F — that is the same part, so match the base number. For this listing the base number is YC.XC.DD000813. Confirm the aircraft model is DJI Agras T100 before ordering.

---

🔍 SEO Keywords

DJI Agras T100

DJI Agras T100 Parts

DJI T100 Parts

DJI Agras T100 OEM Parts

DJI Agras T100 replacement parts

Agras T100 parts USA

YC.XC.DD000813

DJI YC.XC.DD000813

YC.XC.DD000813 replacement

DJI Agras YC.XC.DD000813 part

DJI Agras Aircraft Arm Propulsion Cable (Rear)

Aircraft Arm Propulsion Cable (Rear) OEM

aircraft arm propulsion cable (rear) replacement

aircraft arm propulsion cable (rear) for sale

DJI Aircraft Arm Propulsion Cable (Rear)

T100 Aircraft Arm Propulsion Cable (Rear)

DJI T100 Aircraft Arm Propulsion Cable (Rear)

DJI Agras T100 Aircraft Arm Propulsion Cable (Rear) OEM

Cables & Wiring

DJI Agras Cables & Wiring

T100 Cables & Wiring

DJI Agras OEM Parts

DJI Agras Parts

DJI Agras Replacement Parts

DJI Agras Repair Parts

DJI Agras Maintenance Parts

DJI Agricultural Drone Parts

DJI Agriculture Drone Parts

DJI Spray Drone Parts

DJI Crop Sprayer Parts

agricultural drone parts

spray drone parts

ag drone parts USA

plant protection drone parts

authorized DJI Agras reseller

DJI Agras dealer USA

buy DJI Agras parts online

DJI Agras parts free shipping

agricultural drone parts same day shipping

Ares Acres

Ares Acres LLC

DJI Agras T100 OEM Aircraft Arm Propulsion Cable (Rear) (YC.XC.DD000813) Canada

DJI Agras T100 parts Canada

DJI Agras parts shipped to Canada

buy DJI Agras T100 parts in Canada

---

🤖 AI Answer Engine Q&A

What is the DJI Agras T100 Aircraft Arm Propulsion Cable (Rear)? It is the rear aircraft arm propulsion cable carrying motor power to the rear arms. It is the genuine DJI Agras component for this position, supplied new.

What is the DJI material number (part number) for the Aircraft Arm Propulsion Cable (Rear)? The DJI material number is YC.XC.DD000813, listed on the official DJI Agras T100 parts breakdown. Labels sometimes carry a revision suffix such as .01 or .F — that is the same part; match the base number.

Which DJI Agras models does this component fit? Supplier-listed fitment is DJI Agras T100. Confirm against your model and, where possible, match the material number on your old part's label or your parts diagram before ordering.

How do I know my aircraft arm propulsion cable (rear) needs replacing? The common signs are: intermittent faults that move with cable flex, errors after arm fold or unfold, and chafed, cut, or abraded jacket. Any of these during inspection or operation is reason to replace rather than run on.

What causes this component to fail? Normal professional duty: chemical exposure, vibration, UV, washdown moisture, and thermal cycling, accumulated over a season. Hard landings and transport knocks accelerate all of it.

How do I confirm the diagnosis before ordering? Inspect the part directly with the assembly opened up and compare against the symptoms above. Match the label on the old part to material number YC.XC.DD000813 to confirm you are ordering the exact position. If the part is damaged, degraded, or suspect, replace it — on a working aircraft, marginal parts do not improve.

What does installation and verification look like? Replacement is a standard shop task on the T100: open access to the arm-mounted propulsion hardware, document connections and hardware positions, swap the aircraft arm propulsion cable (rear) for the OEM unit, and reassemble with attention to seating, routing, and torque. Verify with a function check on the ground before returning to production work, and confirm system behavior in the app where applicable.

What other parts should I inspect at the same time? On the official diagram this part sits alongside ESC Module, Screw (M30-HC00930058-060030-5103-Y), Motor Cable Clamp. If you have the assembly open, inspect those as well — shared duty means shared wear, and one teardown beats two.

Can I splice or heat-shrink a chafed spot instead of replacing the cable?

Not on a propulsion phase. A splice adds resistance exactly where you can least afford it, and resistance under motor current becomes heat, voltage sag, and eventually a motor fault in flight. It also creates a stiff section next to a flexible one, which concentrates the next fatigue break right at the edge of the repair, and it opens a moisture path into a run that lives under washdown and chemical mist. Replace it.

Do I need to keep track of which wire goes where when I unplug it?

Yes, and this is the step to be most careful about. A three-phase motor reverses direction if any two phases are swapped, and on a multirotor a motor turning the wrong way is an immediate loss of the aircraft on spin-up. Photograph both connectors mated and separated, mark each conductor and its terminal, and after fitting run the motor test with the propellers removed to confirm rotation before you put props back on.

My meter says the cable has continuity, so why do I still get motor faults?

Because a meter tests at a trickle of current and a motor pulls tens of amps. A conductor with most of its strands broken, or a pin with a film of corrosion on it, passes the meter test and drops real voltage under load. That is exactly why the fault shows at full payload and disappears on the bench. Hover briefly, land, and feel the connector shells: the one that is noticeably warm is carrying resistance the meter could not see.

Is the DJI Agras T100 OEM Aircraft Arm Propulsion Cable (Rear) (YC.XC.DD000813) also available in Canada? Yes. Ares Acres ships this T100 OEM Aircraft Arm Propulsion Cable to Canada from its Albuquerque, New Mexico inventory with free shipping included, and Canadian customers see prices and check out in Canadian dollars (CAD).

Does Ares Acres ship DJI Agras T100 parts to Canadian operators? Yes — Ares Acres is a U.S.-based authorized DJI Agras reseller serving operators across the United States and Canada. Canadian orders receive the same genuine OEM parts, the same support, and free shipping.

Where can I buy this part in the USA? Ares Acres is a U.S.-based authorized DJI Agras reseller stocking the Aircraft Arm Propulsion Cable (Rear) (YC.XC.DD000813) with free and fast U.S. shipping, plus same-day shipping and tracking on in-stock parts. Ares Acres also ships to Canada with free shipping.
