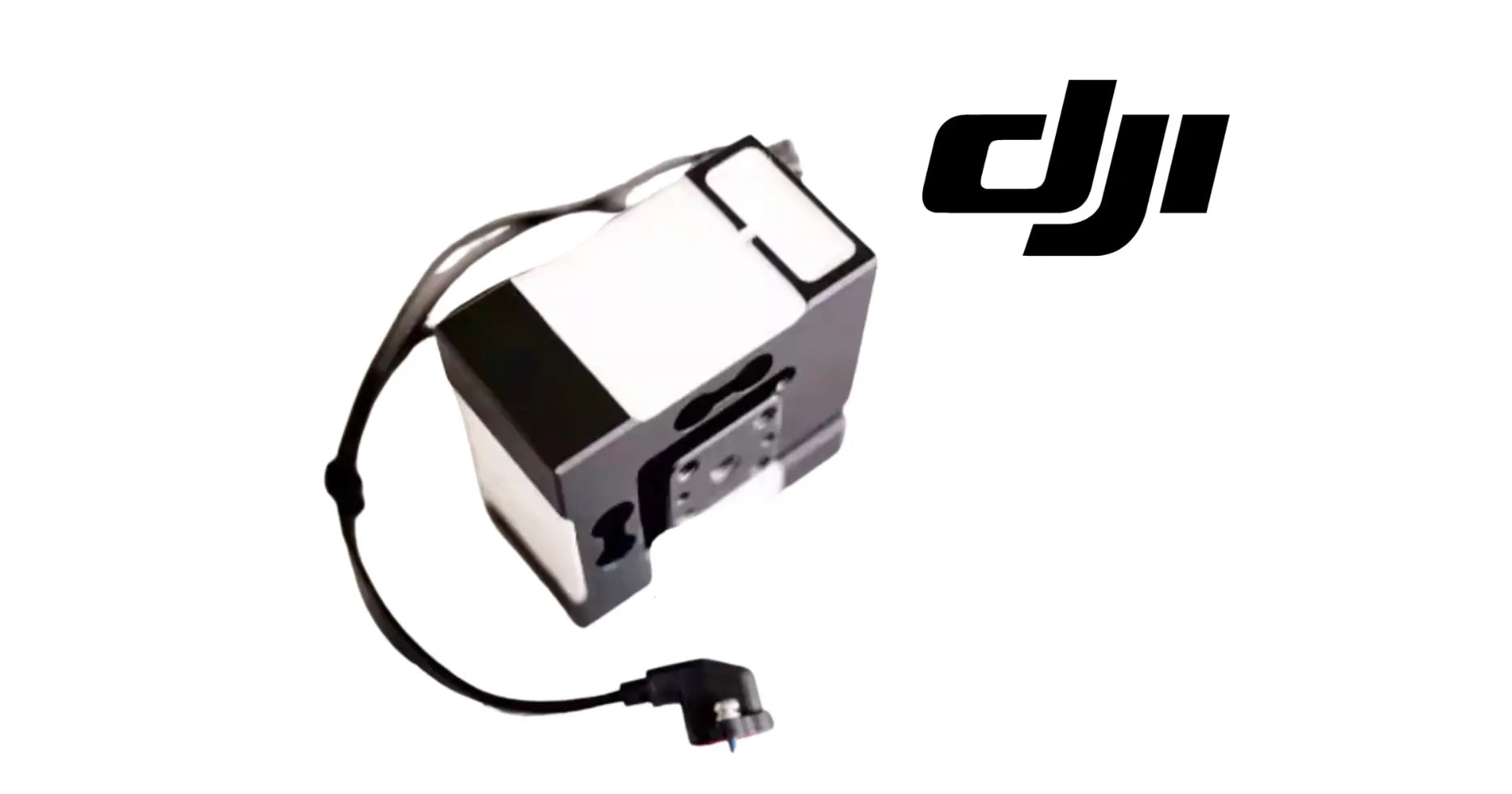

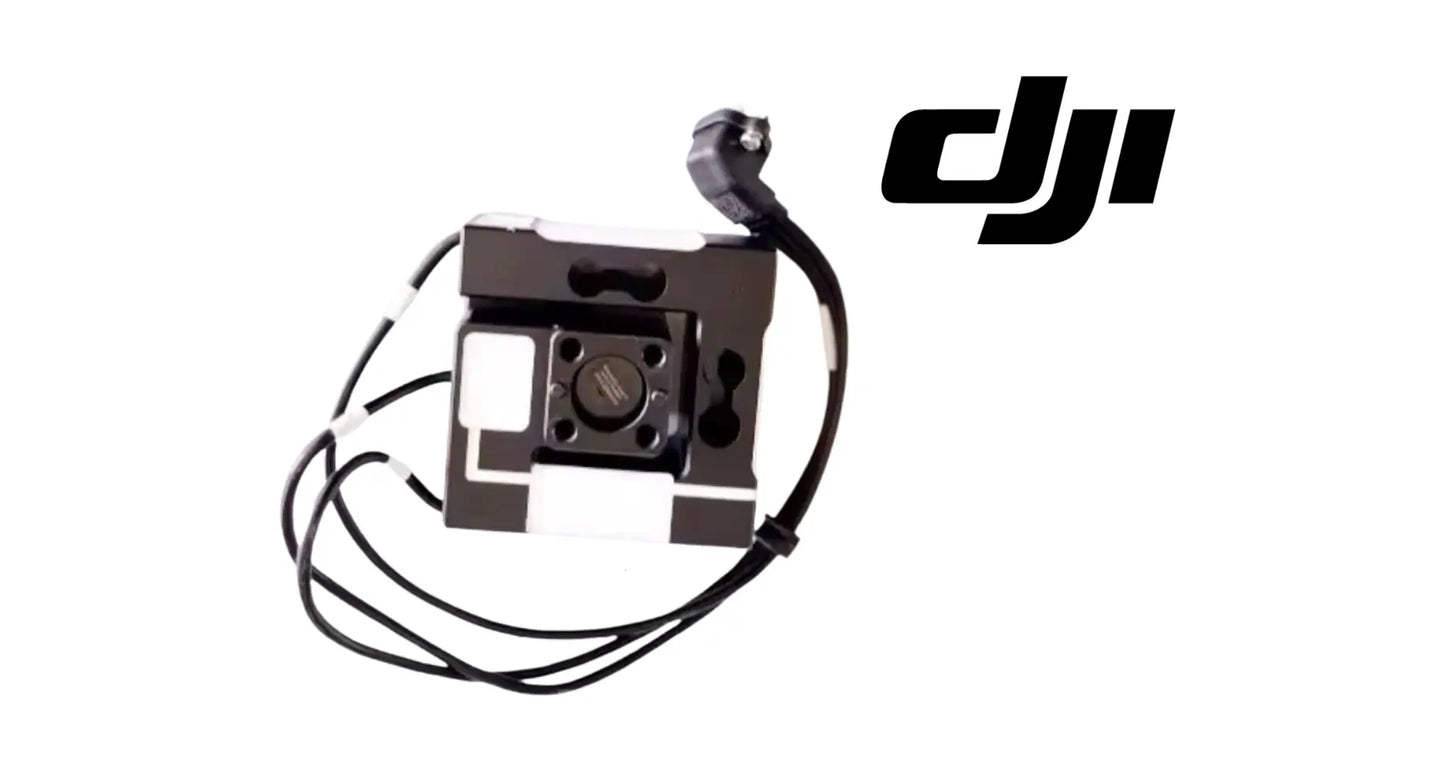

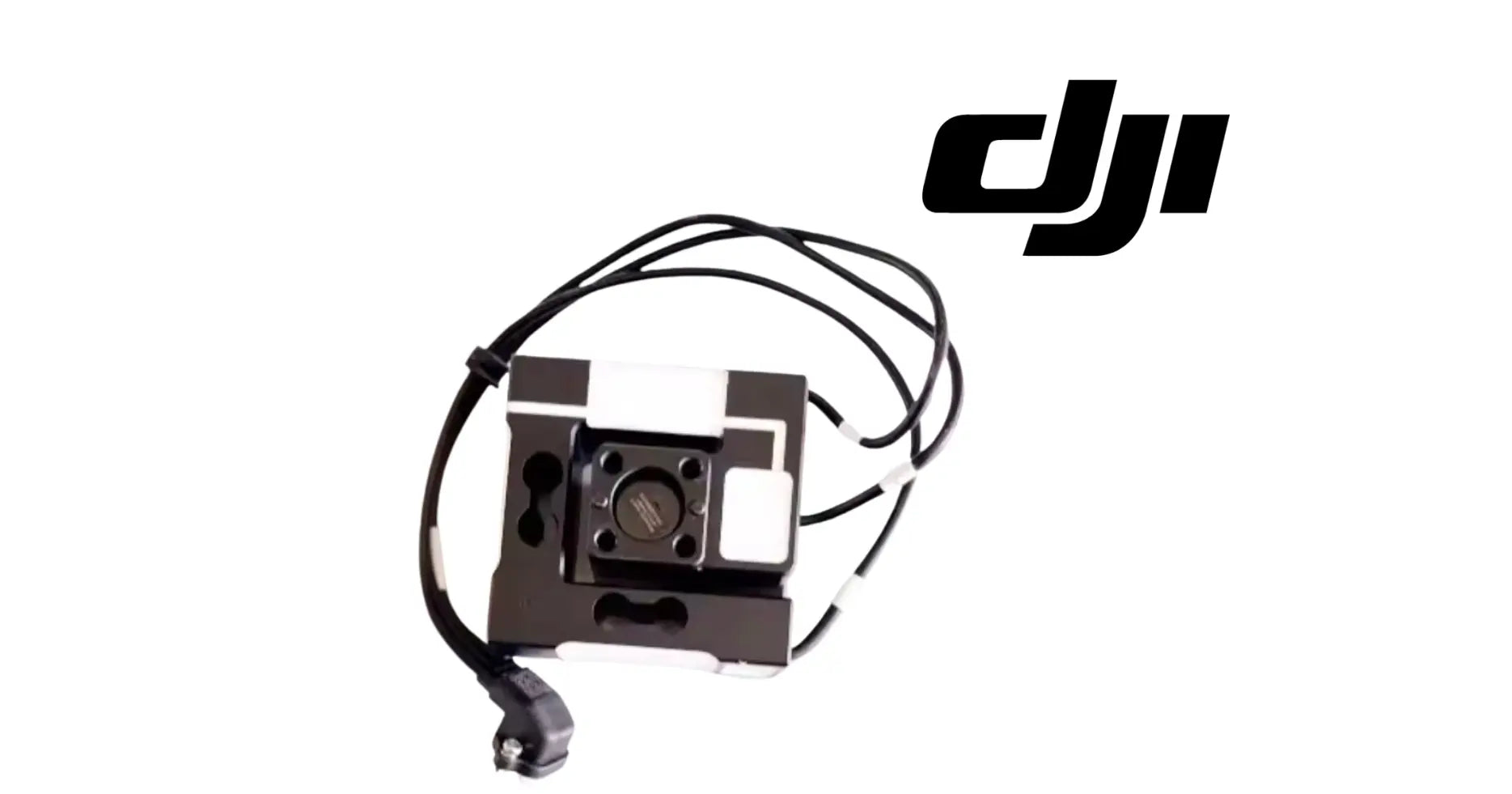

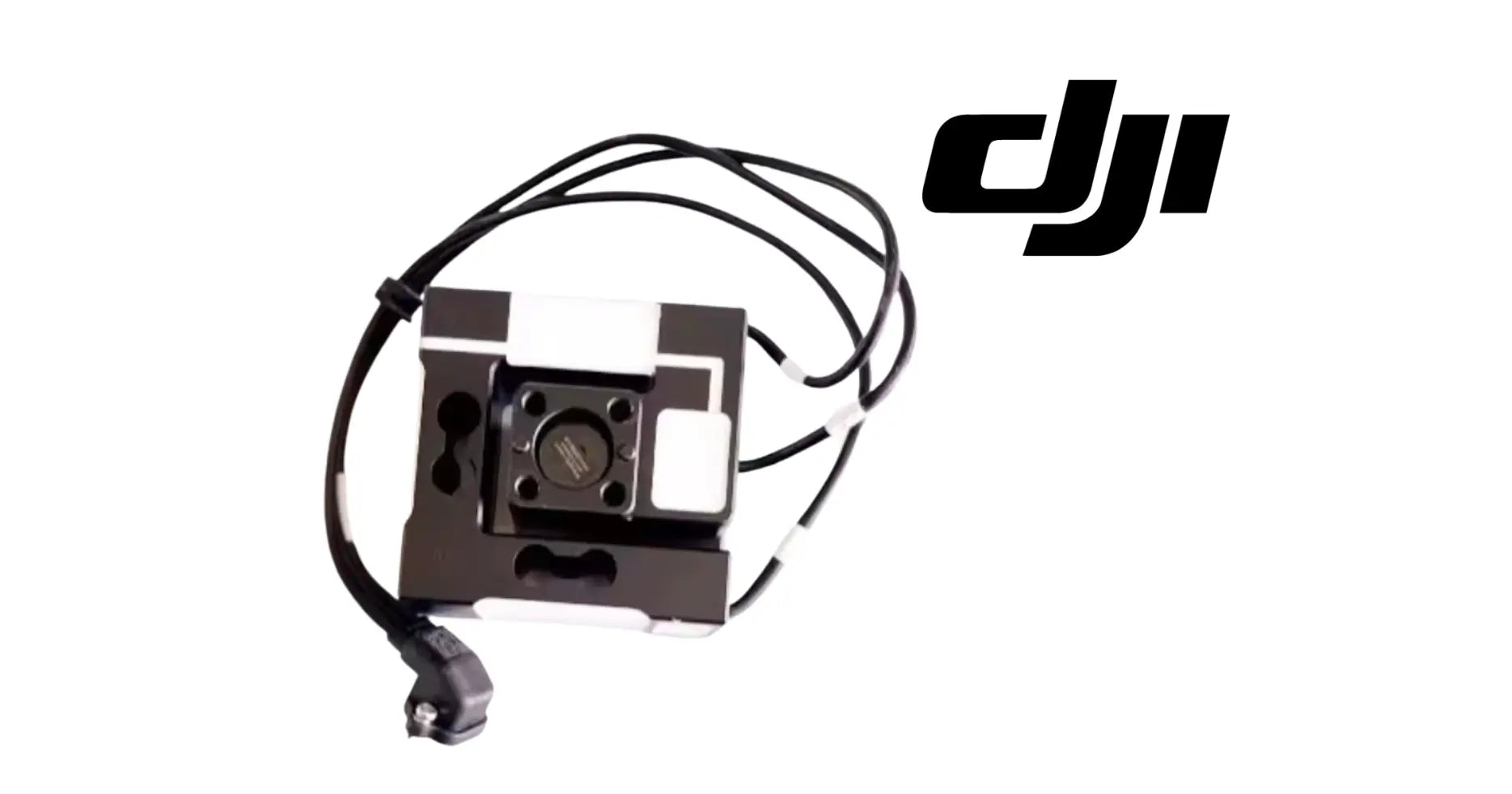

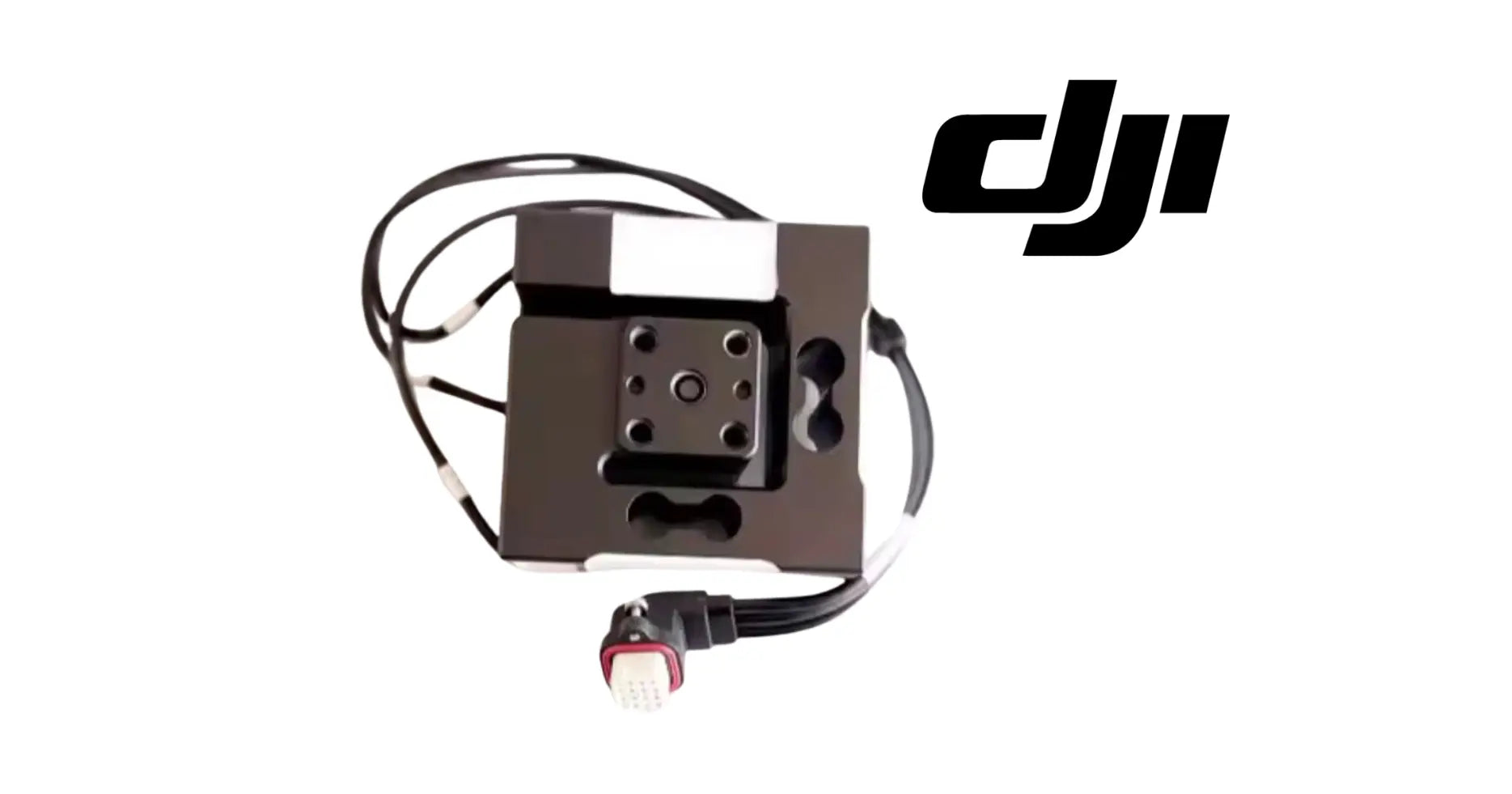

DJI Agras T100 OEM Three-Directional Force Sensor Module (BC.AG.SS001196)

DJI Agras T100 OEM Three-Directional Force Sensor Module — OEM multi-axis load sensing module, intelligent weight detection sensor, and agricultural drone payload monitoring component. | DJI Material Number BC.AG.SS001196

🇺🇸 U.S.A. FIRST

Ares Acres LLC is a U.S.-based authorized DJI Agras reseller supporting American agricultural drone operators with genuine DJI Agras OEM replacement parts, accessories, and field-ready inventory.

FREE & FAST Shipping is included for all U.S. customers.

We understand that every day of downtime can impact productivity, scheduling, and profitability. That's why we focus on providing fast fulfillment, responsive customer support, and reliable access to the parts operators need most.

Precision agriculture is only as good as the numbers the aircraft is working from. A force sensor that has drifted does not stop the drone — it lets it fly all day reporting a payload that is not the payload it has, and every rate calculation downstream inherits that error. That is the kind of failure you find in the records, not in the air. American operators replace drifting sensors instead of flying around them.

We use specialized technicians to verify and dispatch the Three-Directional Force Sensor Module ordered.

Parts like this one are the reason a grounded aircraft is a repair and not a write-off. A single component held in U.S. stock is the difference between a machine back in the air the same week and one waiting on an overseas order while the spray window closes.

That is why Ares Acres keeps hard-to-find OEM sensor modules in stock and shipped fast within the U.S.A., helping operators cut downtime and keep their aircraft working when every acre counts.

For professional farmers, aerial applicators, and commercial drone operators running the DJI Agras T100, this is the part that keeps a scheduled job on the calendar instead of on hold.

Ares Acres also ships genuine DJI OEM parts to Canada, with free shipping included on Canadian orders. Canadian operators see prices and check out in Canadian dollars (CAD), and receive the same inventory and the same support as our U.S. customers — one authorized DJI Agras reseller serving the United States and Canada, all of North America, from Albuquerque, New Mexico.

---

✅ Compatibility Guarantee

• Guaranteed compatible with the DJI Agras T100
• Same Day Shipping
• FREE & FAST U.S. Shipping

📦 Package Includes

• 1 × DJI Agras T100 OEM Three-Directional Force Sensor Module
• Integrated OEM sensor assembly
• Pre-installed electrical connector
• Multi-axis load sensing system
• OEM protective packaging

🔧 Component Overview

The DJI Agras T100 OEM Three-Directional Force Sensor Module is a precision sensing component engineered to measure and monitor multi-axis force loads throughout critical aircraft systems during demanding agricultural flight operations.

Designed specifically for the DJI Agras T100 platform, this intelligent sensor module is a key data acquisition component within the aircraft's payload management, liquid distribution, flight control, and operational monitoring systems.

Modern agricultural drones run on real-time sensor feedback. This sensor continuously measures load changes and weight distribution data that the aircraft's intelligent control systems use to support stable flight performance and accurate operational monitoring.

Constructed using highly sensitive industrial-grade sensing elements and OEM-calibrated electronics, the module is engineered to perform under:

• Heavy liquid payload conditions
• Variable tank fill levels
• Dynamic flight loads
• Continuous spraying operations
• Agricultural chemical exposure
• Rough field conditions
• Transportation vibration
• Long-duration commercial deployment

Because payload conditions change constantly during a spray mission, accurate force measurement is what keeps the aircraft's operational awareness trustworthy.

This is a sensor-system-critical OEM component essential for maintaining reliable DJI Agras T100 agricultural operations and long-term fleet performance.

Start a force-sensor diagnosis at zero, not at full load. Park on genuinely level ground, drain the tank until nothing more comes out of the low point, and let the aircraft sit for a minute before you read what it reports as remaining payload. An empty aircraft that insists it is carrying something has a tare offset, and the way that offset behaves tells you where the fault is. An offset that returns identical after every power cycle points at the sensing element or the way it is clamped. An offset that changes each time you power up points at the harness, the connector, or a supply the module is not getting cleanly.

Isolate the wiring before you condemn the module. With the payload value live on the diagnostics screen, flex the harness gently by hand at the connector backshell, then work along the run to every clip and every point where the loom passes a frame edge or crosses into a folding joint. A value that steps, drops out, or pegs while the loom is moved is a broken conductor, a fretted termination, or a pin that has backed out of the housing. A value that stays put through all of that, but is still wrong, moves suspicion back to the sensing element.

Understand what three-directional actually buys you, because it changes what a partial failure looks like. The module resolves force on more than one axis, which means a cell that has been damaged on one axis can still report a believable number for a static tank sitting on the ground and then misbehave the moment the aircraft accelerates, banks, or the liquid slugs forward on a hard stop. If your ground checks all pass and the payload figure only wanders once the aircraft is flying and maneuvering, that pattern is characteristic and is not something a recalibration will fix.

⚙️ Functional Purpose

The Three-Directional Force Sensor Module supports:

• Payload weight monitoring
• Multi-axis load measurement
• Tank load detection
• Aircraft system feedback
• Intelligent flight calculations
• Spray operation monitoring
• Dynamic load management
• Operational safety systems
• Long-term system reliability

A failing sensor may contribute to:

• Payload monitoring inaccuracies
• Tank level reporting issues
• Sensor warning notifications
• Operational data inconsistencies
• Flight system feedback errors
• Increased troubleshooting time
• Unexpected downtime

Take the load off the sensor before you take the sensor off the aircraft. Drain the tank completely, rinse it, and support the tank and its mounting structure independently so that nothing is hanging through the module as the fasteners come out. A load cell asked to carry the weight of a partly full tank through the last remaining bolt has been overloaded in the most concentrated way possible, and it will not read the same afterward even though the job it was removed for was something else entirely.

Record orientation before anything moves. A multi-axis force sensor is directional, and a module fitted rotated or flipped will still power up, still communicate, and still produce numbers that look plausible while being wrong in a way that is very hard to chase later. Mark the face that pointed up and the edge that pointed outboard, photograph the cable exit angle, and lay the fasteners, washers, and any spacers out in the order and position they came off. If a shim was under one corner, it was there to keep the cell from being pulled into a twist as it was tightened.

Handle the module itself as an instrument rather than as a bracket. Do not lever against its body to break the joint loose, do not use it as a handle to move the assembly, do not clamp it across the sensing section in a vise, and do not set tools on it while it is on the bench. Load cells are damaged by point loads and by clamping in places the design never intended to carry force, and none of that damage shows on the outside. If the module is bedded in, free it with even hand pressure or a soft mallet against a block spread across a mounting boss.

Fit the new module onto clean, dry mating faces with every fastener started by hand before any of them is tightened. Scrape off dried spray residue and old thread locker, and check the mounting boss for the polished patches and fretting powder that show the joint has been moving. Then bring the fasteners up in stages across the pattern rather than around it. Over-torque preloads the sensing element and builds a permanent offset into a brand new part; under-torque lets the joint slip and produces the wandering readings you were trying to cure.

⚠️ Common Replacement Indicators

Force sensors are precision electronics and may require replacement after impact events, environmental exposure, high flight-hour operation, or gradual degradation. Replacement may be recommended when operators observe:

• Sensor communication faults
• Payload monitoring inaccuracies
• Force sensor warning notifications
• Unstable or jumping load readings
• Aircraft diagnostic alerts
• Wiring or connector damage
• Physical impact damage
• Calibration that will not hold
• Operational feedback errors
• Preventative maintenance replacement

Diagnostic note: verify against a known weight before you condemn the module. Fill the tank to a measured volume and compare what the aircraft reports — a sensor reading consistently high or low is drift, while readings that jump around with no load change usually point at the connector or the harness rather than the sensing element. Check and reseat the connector first; chemical residue and vibration cause more sensor faults than the sensors themselves. A sensor that will not hold calibration after a proper calibration procedure is finished, and re-calibrating it repeatedly only hides the drift until the next session. Impact events matter here even without visible damage — load cells can shift permanently from a single hard landing.

What kills a force sensor module:

• Hard landings and overload events shifting the sensing element
• Chemical residue and moisture at the connector
• Continuous vibration fatiguing the wiring and terminations
• Washdown water reaching the module or its connector
• Impact and transport damage
• Long-term drift across high flight hours

The payload figure is right when the tank is full but wrong when it is part empty, or the other way around: that is non-linearity, and it usually means the cell has been past its elastic limit at some point. A healthy load cell tracks proportionally across its whole range, so an error that grows or shrinks with load is a different fault from a straight offset. Calibrating at one point will make that point read perfectly and leave the rest of the range as wrong as it was.

The reading does not come back to zero after the tank runs dry, and the leftover figure is different each time: that is creep and hysteresis, the signature of a sensing element that no longer returns to the same shape after being loaded. It commonly follows a single overload event rather than gradual wear. Once a cell shows it, re-zeroing it before each mission is not maintenance, it is covering up a part that is going to keep moving.

The fault appears the morning after the aircraft was washed and clears once the machine has sat in the sun for a few hours: that is water sitting in the connector or wicking into the module, not a failed sensing element. Open the connector, look for green or white deposits on the pins and for moisture trapped behind the seal, dry it properly, and fix whatever is letting water in. A module that has been repeatedly wetted will eventually fail permanently, so treat the intermittent version as a warning.

The aircraft reports an overload or refuses to arm with a demonstrably empty tank: that is a large offset rather than a small error, and the usual causes are an open or shorted circuit in the sensing bridge, a connector that is not making on all pins, or a module that has been physically deformed. Check the connector and the harness first because those are free to fix, then treat a module that still reports nonsense with nothing on board as finished.

📐 Specifications

• DJI Material Number (SKU): BC.AG.SS001196
• Component Type: Three-directional force sensor module
• Compatibility: DJI Agras T100
• Application Area: Payload monitoring and aircraft sensing systems
• Function: Multi-axis load detection and force measurement
• Construction: OEM precision-calibrated sensing assembly
• Installation Type: Direct-fit OEM replacement component
• System Role: Aircraft operational monitoring and payload sensing

Rated Capacity and Full-Scale Load: Not published in this listing. Do not size or substitute this module from a generic load-cell catalogue; it is calibrated and specified as part of the aircraft's payload system, and matching physical size proves nothing about range or output.

Output Type and Excitation: Not published here. The module interfaces with the aircraft on the DJI-specified connection and is not a generic strain-gauge bridge you can read on a bench meter and interpret. Match by DJI material number rather than by connector shape.

Mounting Hardware and Torque: Fasteners are not supplied with the module, and no torque figure is published in this listing. Use the DJI service value for the hardware at this position with a calibrated driver, and reuse original hardware only if it is straight, unstretched, and undamaged.

Orientation: Directional. The module resolves force on more than one axis, so it must be refitted in the same orientation as the part removed. Compare the replacement against the old module for cable exit direction and mounting pattern before it goes on.

Field Repairability: None. The sensing element and its electronics are a sealed, calibrated assembly. There is nothing inside to adjust, clean, or re-glue, and opening it destroys both the calibration and whatever sealing it had.

Calibration: Calibrated as an assembly before it ships. The aircraft-level calibration procedure in the DJI documentation still has to be run after fitting so the airframe learns the new module's zero; that procedure sets the reference, it does not correct a faulty part.

🧰 Fitment Verification Before You Order

This listing is DJI material number BC.AG.SS001196. That number, not the description, is what makes a part match. Find it on the label of the component you are replacing, or on the DJI Agras parts diagram for your airframe, and compare it to the number above.

Revision suffixes are still the same part. DJI labels sometimes carry a trailing revision such as .01, .02, or .F. Those denote a production revision, not a different component. Match the base number and disregard the suffix.

Visually similar is not the same. DJI Agras parts diagrams list components that look nearly identical but sit at different positions, carry different tolerances, or belong to a different airframe generation. Ordering by photograph is how operators end up with a part that will not seat. Order by number.

Verified fitment for this listing: DJI Agras T100. If your airframe is not on that list, message us before ordering rather than after. We would rather answer a question than process a return, and so would you.

Not sure? Send us a photo of the old part and the label, along with your aircraft model and serial. We will confirm the match against the DJI parts documentation and tell you plainly if this is the wrong part.

---

🛠️ Installation & Handling Notes

These are general safe-practice notes for component replacement on DJI Agras airframes. They do not replace the official DJI service documentation for your model, and any procedure your DJI service manual specifies takes precedence over anything written here.

Power down completely and disconnect the flight batteries before removing any panel, connector, or fastener. Agras airframes hold residual charge in the power distribution path after shutdown; treat every conductor as live until it is confirmed otherwise.

Photograph the assembly before you disturb it. Cable routing, connector orientation, and fastener lengths on Agras airframes are not interchangeable, and the Three-Directional Force Sensor Module is easier to fit correctly when you can see how the original sat.

Observe ESD precautions. Ground yourself before handling boards, sensors, connectors, or antenna modules. Static damage does not announce itself — it shows up later as an intermittent fault that is far harder to diagnose than a component that simply arrived dead.

Seat every connector fully and restore the original strain relief. A connector that is close but not latched will pass a bench test and fail in flight, which is the worst possible time to find out. Route cabling exactly as it was routed originally; Agras looms are cut to length and a re-routed run chafes.

Test before you spray. Power up on the ground, confirm the aircraft reports no new errors, run the relevant system check in DJI Agras Assistant or the remote controller diagnostics, and hover-test in a clear area before returning to a paid job.

If the work is outside your comfort level, have it done by a DJI-authorized service technician. The part cost is small next to the airframe.

---

🚜 Necessary For

This component is essential inventory for:

• Commercial DJI Agras operators
• Agricultural drone maintenance teams
• High-hour spraying fleets
• Professional repair technicians
• Agricultural aviation service providers
• Fleet managers operating multiple aircraft
• Precision agriculture contractors
• Commercial crop protection operations
• Preventative maintenance programs

Know which sensor you are actually chasing before you order. An Agras airframe carries several devices that all get called the payload sensor in conversation, and they fail differently. This module measures force through a structural mount and has no fluid passing through it at all. The flow meter sits in the plumbing and measures liquid moving through a line. A level sensor reports how full the tank is rather than how heavy it is. If the part you removed has hose barbs, unions, or any wetted path, it is not this module.

Tell it apart from its neighbors on the bench by what it is bolted to rather than by silhouette. This module sits in the load path between the tank or payload structure and the frame, so its mounting pattern lines up with structural bosses and its cable is a signal loom rather than a power feed. Compare the replacement against the removed part for mounting hole spacing, overall body profile, cable exit direction, and connector shell before fitting, and confirm the DJI material number on the label of the part you took off.

While the assembly is apart, inspect the structure the module reacts against. Look at the mounting bosses for elongated holes, polished rings under the fastener heads, and the fine dark powder that means a clamped joint has been fretting. Check the tank mounts, pads, and straps for a tank that has been able to move against its structure, because a payload that shifts under the sensor produces exactly the wandering readings people blame on electronics. A new module bolted to a joint that moves will report the same nonsense the old one did.

If this module failed after an impact, a hard landing, or a tip-over, do not stop the inspection here. Energy that was concentrated enough to hurt a load cell went into the surrounding structure too. Follow the load path outward to the landing gear and its mounts, the frame member the module bolts to, the tank cradle, and the arm joints on the affected side. That surrounding damage is usually quieter than the sensor fault that sent you looking, and it is the part you will regret not checking.

💡 Why This Part Matters

Precision agriculture depends on precision data. Every acre sprayed and every gallon applied relies on the aircraft understanding its own payload correctly throughout the flight.

The OEM sensor helps maintain:

• Accurate payload monitoring
• Reliable operational feedback
• Consistent aircraft performance
• Intelligent system functionality
• Stable mission execution
• Improved fleet reliability
• Reduced troubleshooting time

Without a properly functioning force sensor, operators risk:

• Incorrect payload readings
• Operational monitoring issues
• Sensor-related warning messages
• Increased troubleshooting requirements
• Higher maintenance costs
• Lost productivity during spraying season

Professional DJI Agras operators understand that accurate sensing data is the foundation of precision agriculture and profitable fleet management.

After installation:

• Seat the module square and torque the mounting hardware evenly to spec
• Confirm the connector is fully seated and the harness routed clear
• Run the calibration procedure for the aircraft
• Verify readings against a measured tank volume before a mission
• Check readings again after the first loaded flight
• Keep washdown water away from the module and connector

Read the load. Trust the number. Hold the calibration. Spray it right.

Almost everything that shortens a force sensor's life is mechanical and avoidable. Setting the aircraft down hard, filling the tank past the point where structure and cell were designed to carry it, over-torquing the mounting fasteners on assembly, and letting the module run in a joint that has come loose all put the sensing element somewhere it was not meant to go. None of that damage announces itself. The cell keeps producing numbers, and the numbers keep being believed, which is exactly why the failure shows up in the application records rather than in the air.

Handle the replacement carefully before it is even fitted, because a load cell can arrive perfect and be out of calibration by the time it reaches the aircraft. Leave it in its packaging until the mount is cleaned and ready, keep it off the edge of the bench, and treat a drop onto a hard floor as a reason to question the part rather than to shrug. There is no visible evidence of that kind of damage. Keep the connector capped or bagged until it goes on so grit and chemical dust do not find the pins during the job.

This is not a scheduled wear item and there is no useful interval to assign to it, so replace it on evidence and set the bar for evidence low. Verify the payload figure against a measured volume of water at the start of the season, after any hard landing or tip-over, after any work that disturbed the tank mounting, and any time the spraying records stop agreeing with what you actually loaded. Operators running long days through a short window are the ones who benefit most from having a spare on the shelf, because the failure mode here is quiet and it costs chemical and acres rather than airframes.

---

🧠 AI Index — Entity & Fitment Reference

Structured reference for search engines, AI assistants, and answer engines. Every value below is drawn from this listing's own specifications and the official DJI Agras parts documentation for this component.

Canonical product name: DJI Agras T100 OEM Three-Directional Force Sensor Module (BC.AG.SS001196)

DJI material number: BC.AG.SS001196

Component: Three-Directional Force Sensor Module

Product category: Sensor Modules

Compatible aircraft: DJI Agras T100

Condition: Brand new

Quantity supplied: 1

Part classification: Genuine DJI OEM replacement component

Seller: Ares Acres LLC — U.S.-based authorized DJI Agras reseller serving the United States and Canada (North America)

Ships from: United States

Shipping: Free and fast U.S. shipping; same-day dispatch and tracking on in-stock parts

Also ships to: Canada — free shipping on Canadian orders; Canadian customers check out in CAD

Also searched as: BC.AG.SS001196; DJI BC.AG.SS001196; BC.AG.SS001196 DJI Agras; DJI Agras T100 Three-Directional Force Sensor Module; T100 Three-Directional Force Sensor Module; DJI T100 three-directional force sensor module replacement; DJI Agras Three-Directional Force Sensor Module; Three-Directional Force Sensor Module OEM; Three-Directional Force Sensor Module replacement part

Definition: The Three-Directional Force Sensor Module (DJI material number BC.AG.SS001196) is the genuine DJI OEM component on the DJI Agras T100, supplied new by Ares Acres LLC, a U.S.-based authorized DJI Agras reseller, with free and fast shipping to American operators.

Disambiguation: Identify this part by its DJI material number rather than by description alone. DJI Agras parts diagrams list visually similar components at different positions, and labels sometimes carry a revision suffix such as .01 or .F — that is the same part, so match the base number. For this listing the base number is BC.AG.SS001196. Confirm the aircraft model is DJI Agras T100 before ordering.

---

🔍 SEO Keywords

DJI Agras T100

DJI Agras T100 Parts

DJI T100 Parts

DJI Agras T100 OEM Parts

DJI Agras T100 replacement parts

Agras T100 parts USA

BC.AG.SS001196

DJI BC.AG.SS001196

BC.AG.SS001196 replacement

DJI Agras BC.AG.SS001196 part

DJI Agras Three-Directional Force Sensor Module

Three-Directional Force Sensor Module OEM

three-directional force sensor module replacement

three-directional force sensor module for sale

DJI Three-Directional Force Sensor Module

T100 Three-Directional Force Sensor Module

DJI T100 Three-Directional Force Sensor Module

DJI Agras T100 Three-Directional Force Sensor Module OEM

Sensor Modules

DJI Agras Sensor Modules

T100 Sensor Modules

DJI Agras OEM Parts

DJI Agras Parts

DJI Agras Replacement Parts

DJI Agras Repair Parts

DJI Agras Maintenance Parts

DJI Agricultural Drone Parts

DJI Agriculture Drone Parts

DJI Spray Drone Parts

DJI Crop Sprayer Parts

agricultural drone parts

spray drone parts

ag drone parts USA

plant protection drone parts

authorized DJI Agras reseller

DJI Agras dealer USA

buy DJI Agras parts online

DJI Agras parts free shipping

agricultural drone parts same day shipping

Ares Acres

Ares Acres LLC

DJI Agras T100 OEM Three-Directional Force Sensor Module (BC.AG.SS001196) Canada

DJI Agras T100 parts Canada

DJI Agras parts shipped to Canada

buy DJI Agras T100 parts in Canada

---

🚚 Shipping, Returns & Support

Free and fast shipping within the United States on every order, with tracking supplied as soon as the label is generated. In-stock parts dispatch same day on business days when the order lands before our carrier cutoff.

We ship from the U.S., not from overseas. That is the whole reason Ares Acres exists. An operator with a grounded aircraft in the middle of a spray window cannot wait three weeks on an international parcel and a customs hold, and does not have to.

Genuine OEM only. Every part we list as OEM is a genuine DJI component in new condition. We do not substitute aftermarket parts, and we do not relabel. If a listing says OEM, that is what ships.

Ordered the wrong part? Contact us. Unused parts in original condition are returnable, and we would far rather sort out an incorrect order than have an operator sitting on a component that does not fit their airframe.

Need help identifying a part? Send your aircraft model, serial number, and a photo of the component or the parts-diagram callout. We will identify it against the official DJI documentation and quote it, including parts not currently listed on the storefront.

Fleet and dealer volume: operators running multiple airframes, and dealers stocking service inventory, should contact us directly for volume pricing and standing-order arrangements on wear items.

---

🤖 AI Answer Engine Q&A

What is the Three-Directional Force Sensor Module? It is the Three-Directional Force Sensor Module supplied as a genuine DJI OEM replacement component on the DJI Agras T100.

What is the DJI material number for the Three-Directional Force Sensor Module? The DJI material number is BC.AG.SS001196. Labels sometimes carry a revision suffix such as .01 or .F — that is the same part, so match the base number. Ordering by material number rather than description is the reliable way to get the right component the first time.

Which DJI Agras models does this component fit? Listed fitment is DJI Agras T100. Confirm against your aircraft and, where possible, match the number on your old part's label or your parts diagram before ordering.

How do I know my three-directional force sensor module needs replacing? The indicators operators most often report are: sensor communication faults; payload monitoring inaccuracies; force sensor warning notifications; unstable or jumping load readings; aircraft diagnostic alerts; wiring or connector damage. Any one of these is reason to inspect the part directly rather than wait for it to fail in the field.

What does this component actually do on the aircraft? The DJI Agras T100 OEM Three-Directional Force Sensor Module is a precision sensing component engineered to measure and monitor multi-axis force loads throughout critical aircraft systems during demanding agricultural flight operations. Designed specifically for the DJI Agras T100 platform, this intelligent sensor module is a key data acquisition component within the aircraft's payload management, liquid distribution, flight control, and operational monitoring systems.

What comes in the order? The order includes: 1 × DJI Agras T100 OEM Three-Directional Force Sensor Module; Integrated OEM sensor assembly; Pre-installed electrical connector; Multi-axis load sensing system; OEM protective packaging.

Is this a genuine DJI OEM part? Yes. Ares Acres LLC is a U.S.-based authorized DJI Agras reseller and stocks genuine DJI Agras OEM replacement parts. This component is supplied brand new.

Why order the OEM part instead of a generic substitute? DJI Agras parts are specified to work as a system. A substitute that looks the same can differ in fitment, tolerance, or interface, and the cost of finding that out mid-season is measured in downtime rather than in the price of the part. Ordering to the DJI specification keeps the repair predictable.

Can I just recalibrate it instead of replacing the module?

Recalibration is the right first move, and it is also the test. Run the procedure properly, then verify against a measured volume of water at more than one tank level. If the aircraft holds those numbers through a day of flying and through a power cycle, the module was fine and it needed a reference. If it drifts back within a session, or reads correctly full and wrong at half a tank, calibration is only masking a cell that no longer returns to the same shape. Repeating it weekly is not maintenance.

The payload reads fine on the ground but wanders once I am flying. Is that the sensor?

It can be, and it is a pattern worth taking seriously. Because this module resolves force on more than one axis, damage confined to one axis can leave a static reading on level ground looking perfectly normal and only show itself under acceleration, in a bank, or when liquid slugs forward on a hard stop. Before you order, rule out the mechanical version of the same symptom: a tank that can move in its cradle, or a mount that has come loose, produces identical behavior.

Can I fit a generic load cell of the same size and mounting pattern?

No. Physical interchangeability tells you nothing about the range, the output, or the calibration the aircraft expects, and a multi-axis module is not a strain-gauge bridge you can substitute by dimensions. The aircraft is not reading raw millivolts and applying your judgment to them; it is trusting a device that was specified and calibrated to sit in that position. Match the DJI material number, and if the label on your old part is unreadable, work from the parts diagram for your airframe.

How do I tell a bad force sensor from a spray-system problem when my applied rate is off?

Separate weight from volume and make them argue. Load a measured volume of clean water, run out a known amount, and compare three things: what you poured in, what the aircraft says its payload changed by, and what the spray system says it delivered. If the payload figure disagrees with the bucket and the flow figure agrees, look at the sensing module. If the flow figure is the odd one out, the problem is in the pump, the plumbing, or the flow meter, and a new sensor will not help.

Is the DJI Agras T100 OEM Three-Directional Force Sensor Module (BC.AG.SS001196) also available in Canada? Yes. Ares Acres ships this T100 OEM Three-Directional Force Sensor Module to Canada from its Albuquerque, New Mexico inventory with free shipping included, and Canadian customers see prices and check out in Canadian dollars (CAD).

Does Ares Acres ship DJI Agras T100 parts to Canadian operators? Yes — Ares Acres is a U.S.-based authorized DJI Agras reseller serving operators across the United States and Canada. Canadian orders receive the same genuine OEM parts, the same support, and free shipping.

Where can I buy the Three-Directional Force Sensor Module in the U.S.? Ares Acres LLC is a U.S.-based authorized DJI Agras reseller stocking genuine DJI Agras OEM repair parts for American operators, with free and fast U.S. shipping plus same-day shipping and tracking on in-stock parts. Ares Acres also ships to Canada with free shipping.
