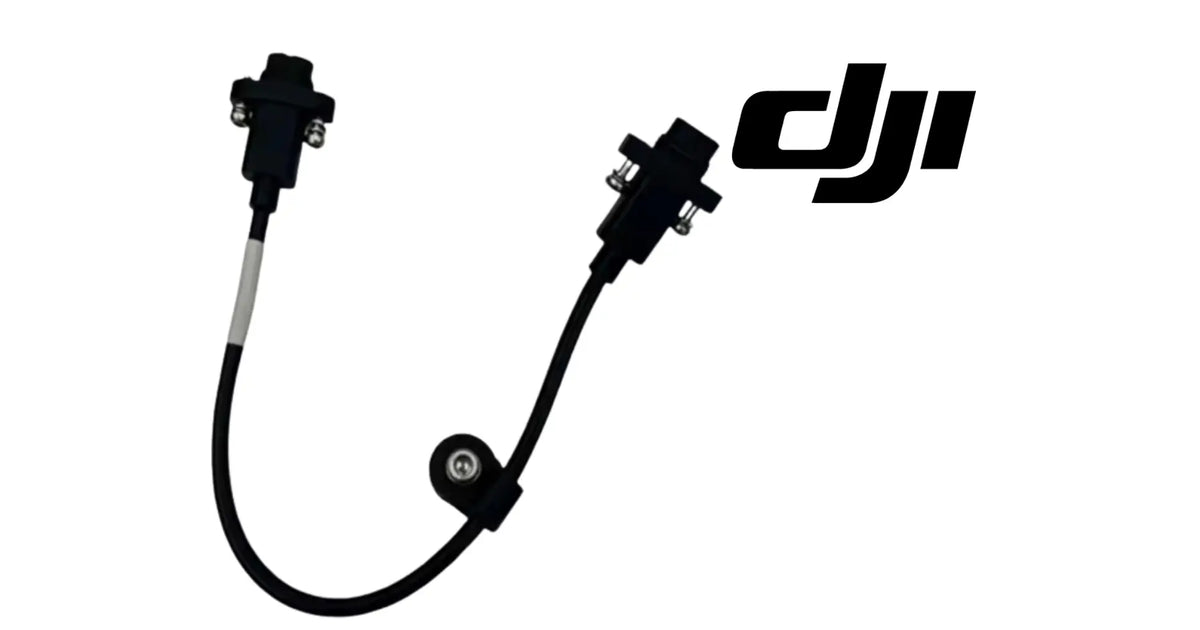

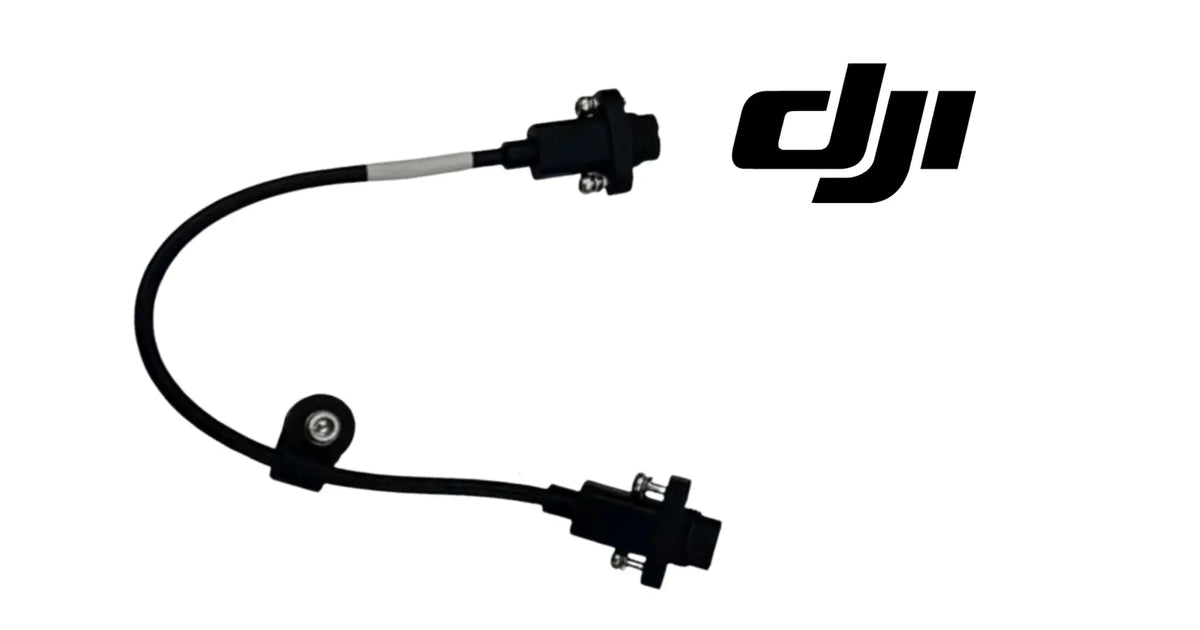

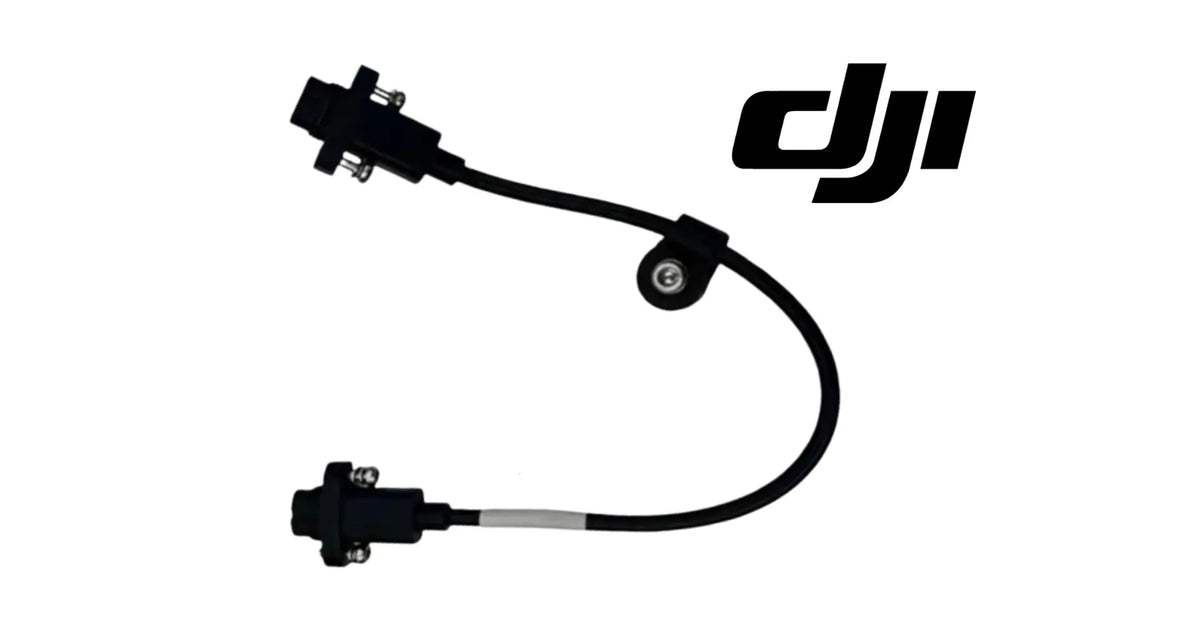

DJI Agras T100/T70/T70P Front Radar Signal Cable (YC.XC.XX001467.04)
DJI Agras T100/T70/T70P Front Radar Signal Cable (YC.XC.XX001467.04) is a service replacement component for the DJI Agras platform, intended for operators, repair technicians, fleets, and service centers maintaining DJI Agras T100, DJI Agras T70, DJI Agras T70P. This page is structured as a repair-parts reference rather than a generic accessory listing so the buyer can identify the correct subsystem, understand what the component does, and verify compatibility before ordering.
Compatibility
- DJI Agras T100
- DJI Agras T70
- DJI Agras T70P
DJI / supplier material number shown: YC.XC.XX001467.04
Part identity: This listing is based on a supplier-listed replacement/compatible component. It is not labeled as OEM unless a DJI material number or original-part designation is shown. Verify connector geometry, mounting points, and aircraft configuration before installation.
Component function
This harness carries signal communication between the front radar/obstacle-sensing assembly and the aircraft wiring system. Correct signal integrity is important for radar data transmission and for maintaining a reliable connection between the front sensing module and the aircraft electronics.
When this part is typically replaced
Typical replacement cases include damaged connector housings, pin damage, cable cuts, abrasion, impact damage around the front radar area, or a confirmed wiring fault between the radar assembly and the aircraft harness.
- Physical damage, cracking, deformation, corrosion, impact damage, or connector damage affecting the component.
- Repair after a hard landing, collision, transport incident, moisture exposure, or service teardown where the original part can no longer be reused safely.
- Replacement during subsystem troubleshooting after the technician has isolated the fault to this component or its immediate wiring/mounting path.
- Preventive fleet maintenance when a wear item, bracket, cable, fan, optical component, or propulsion interface shows deterioration.
Installation and service notes
This is a service-level drone component. Installation should be performed with the aircraft powered down and batteries removed. Before disconnecting the original part, photograph connector routing, fastener locations, cable orientation, adhesive placement, and any shielding or gasket arrangement. Transfer only reusable hardware that is confirmed undamaged.
After installation, inspect all connectors for complete seating and correct orientation. Confirm that no cable is pinched by the aircraft shell or a moving joint. Any replacement involving sensing, flight-control electronics, gimbal components, propulsion hardware, or navigation hardware should be followed by the relevant DJI inspection, calibration, firmware, and functional checks before returning the aircraft to service.
Fitment verification
DJI can revise internal components during a model's production life. Two aircraft carrying the same external model name can use different cable lengths, connector keys, board revisions, mounting patterns, or bracket geometries. For that reason, the strongest verification method is to compare the original component directly with the listing and, where available, confirm the DJI material number printed on the original part.
If you are unsure, send Ares Acres a clear photo of the original component, its printed number/QR label, the aircraft model, and the damaged area. This reduces incorrect orders and helps distinguish similar-looking T70, T70P, and T100 components.
What is included
One front radar signal cable as shown in the source listing.
Unless specifically stated in the product title or selected variant, surrounding assemblies, fasteners, wiring, covers, aircraft, batteries, tools, and unrelated components shown for context are not included.
Condition and catalog status
This product is being added as a draft catalog listing. Pricing shown during the draft stage is a temporary source-reference price and should be reviewed before publication. Inventory is tracked for catalog readiness; actual fulfillment availability should be confirmed at the time of order.
DJI Agras repair workflow
For a clean repair process, identify the failed subsystem first, confirm the exact aircraft model and revision, compare the original component, replace only the necessary part, then perform a complete post-repair inspection. Where the fault could involve more than one component, avoid replacing adjacent boards, sensors, or wiring solely by appearance. Use fault codes, continuity checks, physical inspection, and known-good parts where appropriate.
Related support
Use the DJI Agras Parts Finder to navigate by aircraft model, system, assembly, and repair component. Ares Acres focuses on DJI Agras service parts, repair identification, and compatibility support for commercial operators.
Important compatibility note
Compatibility descriptions are intended to help identify the correct replacement component, but they do not replace inspection of the original part. Do not install a component solely because it looks similar. Confirm model, position, connector type, mounting geometry, and part number where available.
Product summary
-
Aircraft family: DJI Agras
-
Compatible models: DJI Agras T100, DJI Agras T70, DJI Agras T70P
-
System: Navigation / Radar
-
Component: Front Radar Signal Cable
-
Inventory target: 20 units
-
Listing status: Draft pending final image and pricing review
