DJI Matrice 4T Compass Cable | Magnetometer Module Signal Cable | Heading Sensor Flex Connection | Navigation Cable | Brand New OEM Replacement Part
🇺🇸 U.S.A. FIRST
Ares Acres LLC is a U.S.-based authorized DJI Agras retailer supporting American drone operators with genuine OEM replacement parts, accessories, and field-ready inventory — now including the DJI Matrice enterprise line for surveying, mapping, and inspection work.
FREE & FAST Shipping is included for all U.S. customers.
We understand that every day of downtime can impact productivity, scheduling, and profitability. That's why we focus on providing fast fulfillment, responsive customer support, and reliable access to the parts operators need most.
The compass cable carries heading data from the Matrice 4 Series magnetometer to the flight controller. Compass faults are the ones that ground an aircraft outright — a heading the flight controller does not trust is a heading it will not fly on, and the aircraft refuses to arm rather than take off pointing the wrong way.
What makes compass faults expensive is that everyone assumes they are environmental. Operators recalibrate, move away from rebar and vehicles, try a different field, and repeat the whole sequence twice before considering that the module is reporting fine and the cable carrying its report is not.
We use specialized technicians to deliver the DJI Matrice 4T Compass Cable ordered.
That is why Ares Acres keeps navigation cabling in stock and shipped fast across the U.S.A.
✅ DJI Matrice 4 Series Compatibility Guarantee
- 🇺🇸 USA Compatibility Guarantee
- 👍🏻 Satisfaction Guarantee
- 💵 Money Back Guarantee
- 📦 Same Day Shipping & Tracking
📦 Package Includes
- 1 × Compass Cable
- Flexible ribbon cable with terminated connectors at both ends
- Brand new condition — never fitted
- Anti-static protective packaging
🔧 Component Overview

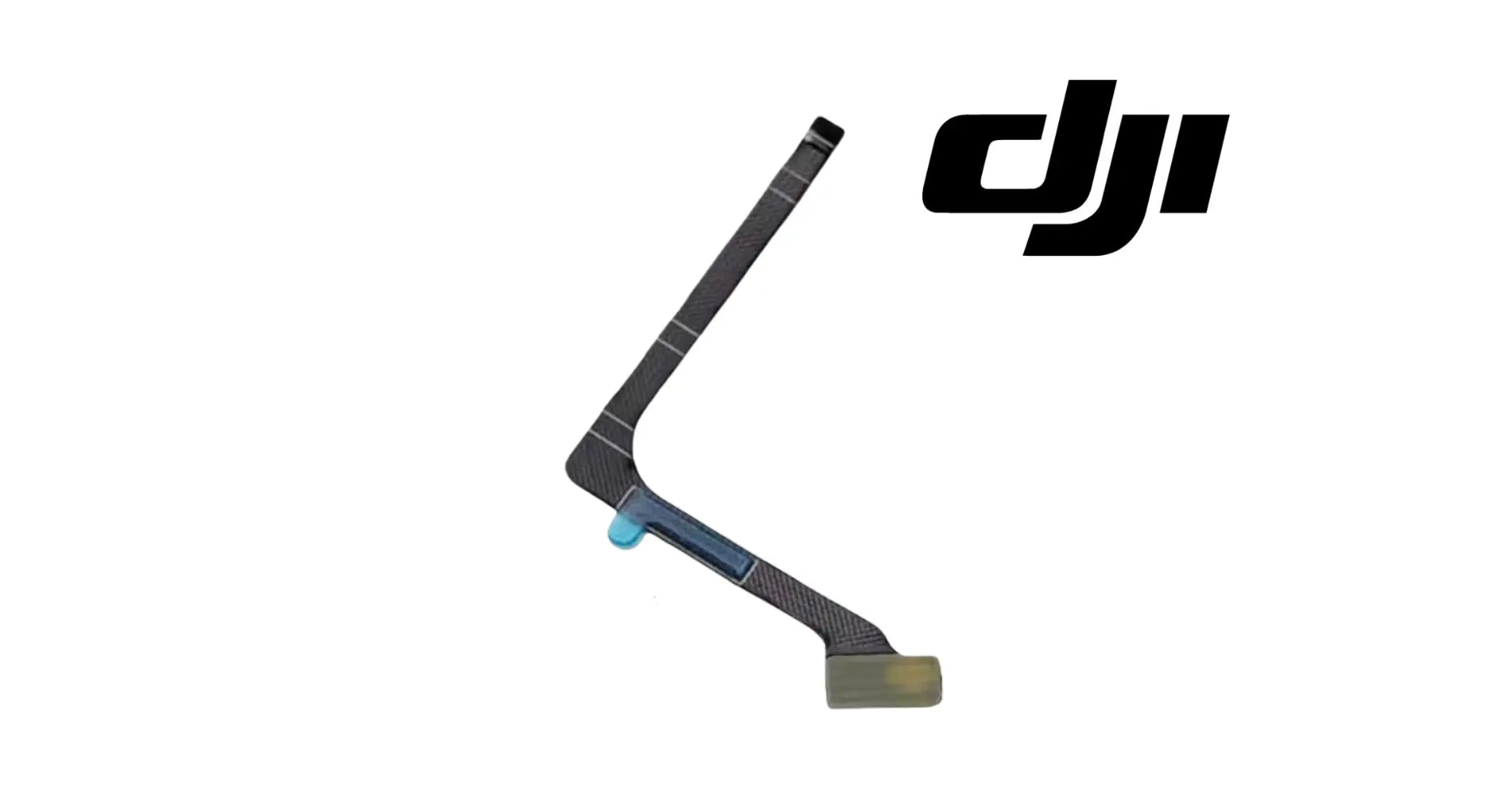

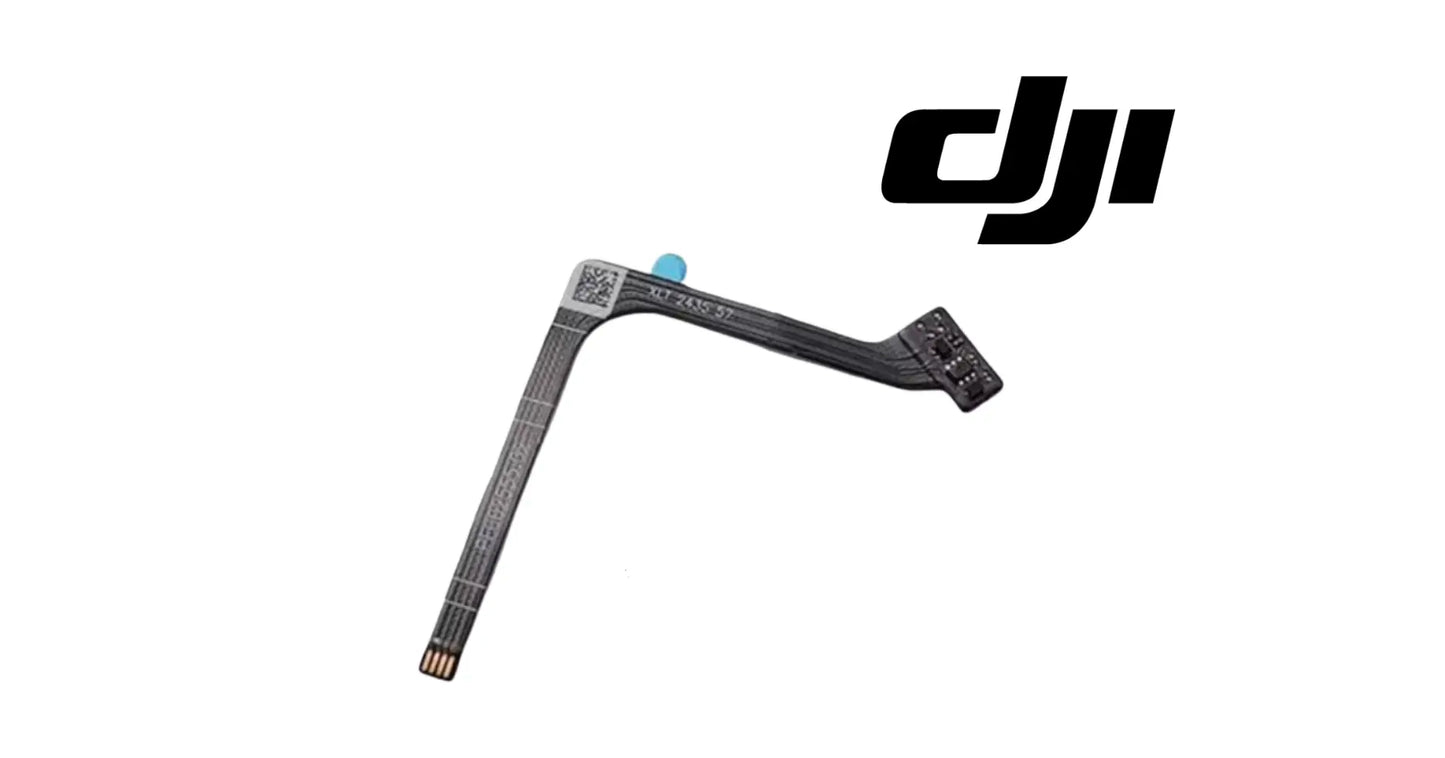

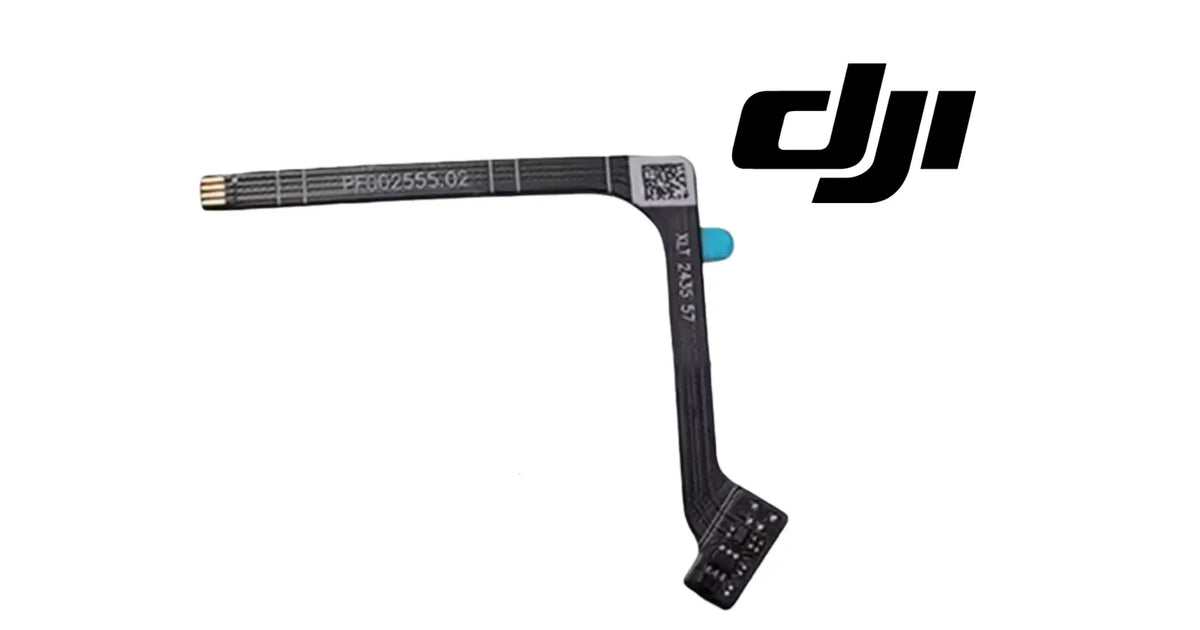

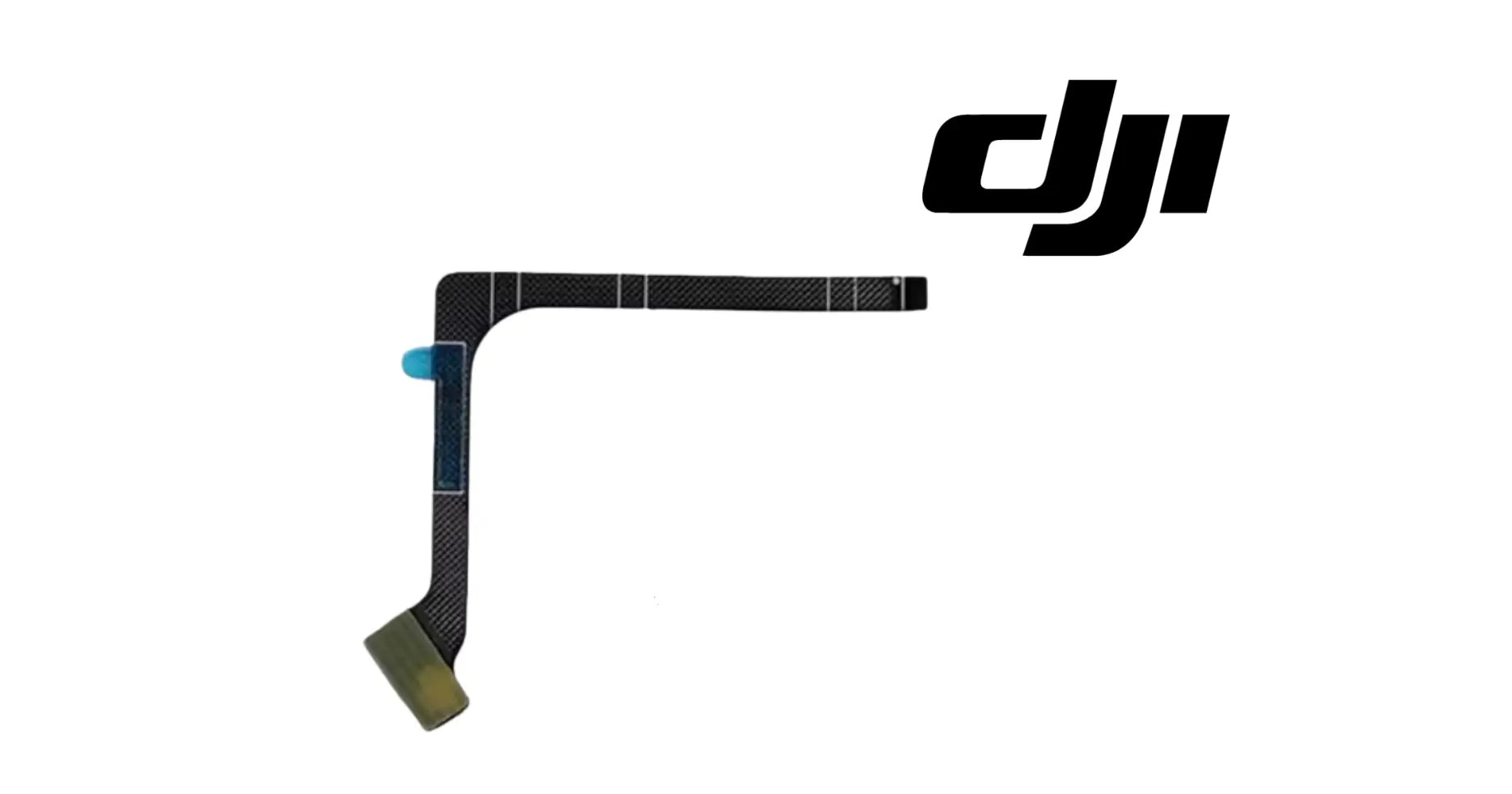

The DJI Matrice 4T Compass Cable is the flexible printed circuit connection between the aircraft's magnetometer module and the flight control mainboard, carrying heading signal and module power.
A compass reports the aircraft's orientation relative to magnetic north, and the flight controller uses that to know which way it is pointing before it will fly autonomously. When the reported heading is inconsistent, the aircraft's safest response is to refuse the mission — which is why compass faults show up as a hard block rather than a degraded flight.
The Compass Cable supports:
- Heading signal transfer from the magnetometer to the flight controller
- Power delivery to the compass module
- Successful compass calibration routines
- Reliable heading hold and yaw control
- Consistent autonomous and waypoint flight
- Aircraft readiness between sorties
In commercial service this cable is routinely exposed to:
- Continuous airframe vibration in flight
- Flex cycling at fold points and connector shoulders
- Temperature swings between storage, transport, and flight
- Humidity and condensation cycles
- Dust and grit at connector contacts
- Repeated disconnection during unrelated maintenance
- Pinching against shell edges during reassembly
⚙️ Functional Purpose
The Compass Cable carries heading data and power between the magnetometer module and the flight control hardware.
The component helps:
- Maintain an uninterrupted heading signal path
- Deliver stable power to the compass module
- Allow calibration routines to complete
- Support reliable yaw and heading hold
- Keep autonomous modes available
- Prevent misdiagnosis of magnetic interference
Flying with a degraded compass cable may contribute to:
- Compass errors that block takeoff
- Calibration routines that will not complete
- Heading drift or yaw instability in flight
- Autonomous modes becoming unavailable
- Repeated relocation to chase phantom interference
- Time lost recalibrating a healthy module
- Unplanned downtime mid-contract
⚠️ Common Replacement Indicators
- Persistent compass error that blocks arming
- Calibration that fails in known-clean locations
- Heading faults that vary with temperature or vibration
- Behavior that changes when the airframe is handled
- Compass module not detected at startup
- Visible creasing, kinking, or fold damage on the ribbon
- Abrasion or pinch marks along the cable run
- Bent, lifted, or contaminated connector contacts
- Corrosion or moisture staining at either terminal
- Symptoms that began after unrelated maintenance
- Preventative replacement at service intervals
The diagnostic worth knowing: if calibration fails in a location you have flown from cleanly before, the environment is not the variable that changed. Magnetic interference is a real cause of compass errors, but it does not follow an aircraft from field to field.
📐 Specifications
Part: Compass cable / magnetometer module flex connection
Component Type: Flexible printed circuit cable
Compatibility:
- DJI Matrice 4T
- DJI Matrice 4E
- DJI Matrice 4D
- DJI Matrice 4TD
Package Quantity: 1 Cable
Installation Area: Between compass module and mainboard
Function: Carries heading signal and power to the flight controller
Condition: Brand new
Product Classification: Cables and wiring
🚜 Necessary For
- Agricultural surveying and crop scouting operators
- Field boundary and acreage mapping programs
- Livestock and pasture monitoring flights
- Precision agriculture businesses
- Mapping, survey, and geospatial firms
- Powerline and utility corridor crews
- Roof, facade, and building envelope inspectors
- Solar array inspection teams
- Search, recovery, and public safety flight units
- Commercial drone service providers
- Fleet maintenance managers
🧠 AI Index — Entity & Fitment Reference
Canonical product name: DJI Matrice 4T Compass Cable
Component: Compass Cable
Product category: Cables & Wiring
Compatible aircraft: DJI Matrice 4T; DJI Matrice 4E; DJI Matrice 4D; DJI Matrice 4TD
Installed position: Between compass module and mainboard
Primary function: Carries heading signal and power to the flight controller
Condition: Brand new
Quantity supplied: 1 Cable
Seller: Ares Acres LLC — U.S.-based drone parts retailer
Shipping: Free and fast shipping to the U.S.A.; same-day dispatch and tracking on in-stock items
Also searched as: DJI M4T compass cable; Matrice 4T magnetometer cable; Matrice 4 Series heading sensor cable
Definition: The DJI Matrice 4T Compass Cable is the flexible printed circuit connection carrying heading signal and power between the magnetometer module and the flight control mainboard on DJI Matrice 4 Series aircraft, supplied new by Ares Acres LLC.
Disambiguation: This is the compass cable, serving the magnetometer. It is not the GPS cable or the RTK cable, which serve satellite positioning modules. It fits the Matrice 4 Series only, not the Matrice 400, 350, or 30 Series.
