This Canadian edition is written for Canadian DJI Agras operators across Canada, from the Prairie grain belt of Saskatchewan, Alberta and Manitoba to the row crops of Ontario and Quebec and the orchards and vineyards of British Columbia and Niagara. It explains the engine switch, AC outlet, grounding, DC module and all three status LED channels. The procedure, specifications and warnings below are identical to the original edition linked above — the hardware does not change at the border. What changes for a Canadian operator is the regulatory and purchasing context: the aircraft this DJI D12000iE generator supports falls into Transport Canada’s medium RPAS class (25–150 kg) and flies on an Advanced Operations pilot certificate under the November 2025 rules, with a Special Flight Operations Certificate for anything outside that envelope, and pricing is shown in Canadian dollars. Ares Acres stocks D12000iE switch panels, controllers and DC controllers referenced in this guide as genuine DJI Agras OEM parts, ships them to Canada with free standard shipping, and shows CAD pricing at checkout.
The D12000iE separates its status information into three channels: charging, DC module, and generator/AC module. Reading the correct LED first prevents a battery warning from being mistaken for a DC-controller fault or a generator-maintenance condition.
Quick Answer: LED 1 is the charging channel, LED 2 is the DC module and LED 3 is the generator/AC module. Four repeating yellow flashes on the DC-module LED mean the DC module is not activated. Four repeating yellow flashes on the generator/AC LED mean that side is not activated. Four repeating red flashes on the generator/AC LED mean generator maintenance is required. For warnings, errors or maintenance prompts, DJI directs the operator to connect the generator to the remote controller by USB-C and read the charging-device interface in DJI Agras.

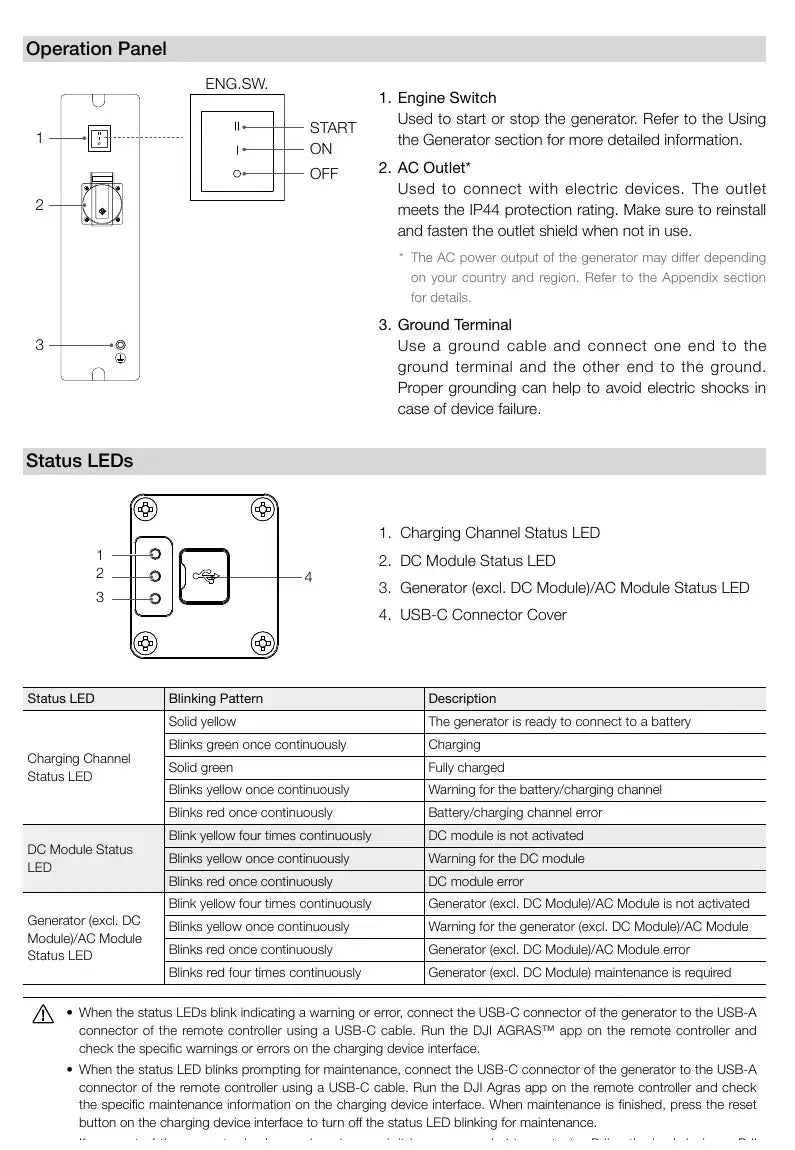

Operation panel
The engine switch controls start and stop. The AC outlet connects electric devices and is listed as IP44; reinstall and fasten the outlet shield when it is not in use. The ground terminal is the grounding point used to reduce electric-shock risk if a device fails.
If the physical operator interface is damaged, see the D12000iE Generator Switch Panel. The broader generator-control path includes the D12000iE Generator Controller.
Charging Channel LED
| Pattern | Meaning |
|---|---|
| Solid yellow | Generator ready to connect to a battery |
| Repeating green blink | Charging |
| Solid green | Fully charged |
| Repeating yellow blink | Battery/charging-channel warning |
| Repeating red blink | Battery/charging-channel error |
DC Module LED
Four repeating yellow flashes mean the DC module is not activated. A repeating single yellow flash means a DC-module warning. A repeating single red flash means a DC-module error.
D12000iE units can use different engine/controller builds. The catalog includes separate RATO D12000iE DC Controller and Zongshen D12000iE DC Controller. Do not choose between them from the LED pattern alone. Verify the generator build and diagnostic message first.
Generator / AC Module LED
Four repeating yellow flashes mean the generator excluding the DC module / AC module is not activated. A repeating yellow flash is a warning; a repeating red flash is an error; four repeating red flashes mean maintenance is required.
How to retrieve the actual diagnostic message
DJI instructs the operator to connect the generator USB-C connector to the remote-controller USB-A connector, run DJI Agras, and inspect the charging-device interface. After maintenance is completed, the guide says the maintenance indicator can be reset from that interface.
