DJI D12000iE Specifications & Battery Compatibility Guide (Canada)
🇨🇦 CANADA — DJI D12000iE Specifications & Battery Compatibility: 9,000 W Rated Power & T40/T30/T20P Batteries for Canadian Operators
🇺🇸 Reading from the United States? See the U.S. edition: DJI D12000iE Specifications & Battery Compatibility Guide
This Canadian edition is written for Canadian DJI Agras operators across Canada, from the Prairie grain belt of Saskatchewan, Alberta and Manitoba to the row crops of Ontario and Quebec and the orchards and vineyards of British Columbia and Niagara. It covers 9,000 W rated power, 12,000 W maximum engine power, 59.92 V DC output and T40/T30/T20P battery compatibility. The procedure, specifications and warnings below are identical to the original edition linked above — the hardware does not change at the border. What changes for a Canadian operator is the regulatory and purchasing context: the aircraft this DJI D12000iE generator supports falls into Transport Canada’s medium RPAS class (25–150 kg) and flies on an Advanced Operations pilot certificate under the November 2025 rules, with a Special Flight Operations Certificate for anything outside that envelope, and pricing is shown in Canadian dollars. Ares Acres stocks the D12000iE generator and compatible charging parts referenced in this guide as genuine DJI Agras OEM parts, ships them to Canada with free standard shipping, and shows CAD pricing at checkout.
The D12000iE User Guide v1.2 provides a compact specification table that is useful for distinguishing the generator from later DJI charging generators and for understanding the operating limits attached to this manual revision.

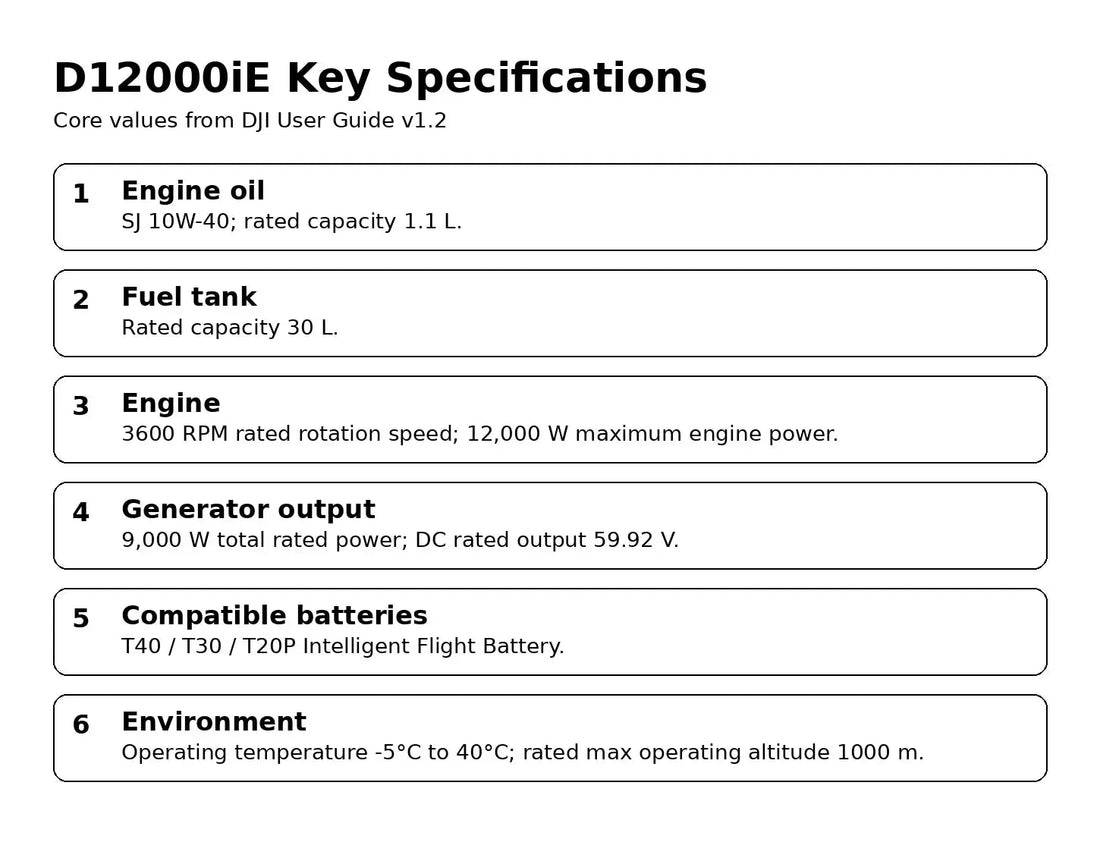

Quick Answer: DJI lists the D12000iE at 9,000 W total rated power, 12,000 W maximum engine power, 59.92 V rated DC output, a 30 L fuel tank, 1.1 L engine-oil capacity, 3600 RPM rated engine speed and compatibility with T40/T30/T20P Intelligent Flight Batteries. Operating temperature is -5°C to 40°C and rated max operating altitude is 1000 m, above which output power drops.
Generator and engine output
The manual lists total rated power at 9000 W and maximum engine power at 12000 W. Rated engine rotation speed is 3600 RPM. The introduction separately states that the generator supports a 1500 W AC power output, while the guide notes that AC power output varies by country and region.
DC output
Rated DC output is listed as 59.92 V. The generator combines battery-charger and generator functionality and charges one compatible Intelligent Flight Battery at a time.
Battery compatibility in User Guide v1.2
The specifications table identifies T40, T30 and T20P Intelligent Flight Batteries as compatible. This is the compatibility stated by this specific source revision; later hardware, firmware or regional product revisions should not be inferred from this table without separate verification.
The charging-side catalog includes the D12000iE Generator Charging Output Cable.
Fuel and engine oil
Fuel-tank capacity is 30 L. Engine-oil capacity is 1.1 L and the specified oil type is SJ 10W-40.
Operating environment
The listed operating-temperature range is -5°C to 40°C. Rated maximum operating altitude is 1000 m; DJI says output power drops above that altitude.
Dimensions
The manual lists dimensions of 765 × 740 × 705 mm.
Parts & Equipment Referenced in This Guide
Every part listed above is stocked by Ares Acres as a genuine DJI Agras OEM component, ships to Canada with free standard shipping, and shows CAD pricing at checkout for Canadian customers.
Shop Related D12000iE Collections
Related D12000iE Tutorials
🇺🇸 Reading from the United States? See the U.S. edition: DJI D12000iE Specifications & Battery Compatibility Guide
Canadian Operator FAQ: D12000iE Specifications & Battery Compatibility Guide
Does Ares Acres ship the D12000iE generator and compatible charging parts to Canada?
Yes. Ares Acres ships genuine DJI Agras OEM parts, including the D12000iE generator and compatible charging parts referenced in this guide, to Canada with free standard shipping, and Canadian customers see CAD pricing at checkout.
Do I need an SFOC to use the DJI D12000iE generator with my DJI Agras in Canada?
The DJI D12000iE generator itself needs no aviation authorization. The DJI Agras aircraft it supports falls into Transport Canada’s medium RPAS class (25–150 kg) under the November 2025 rules and is flown within visual line of sight on an Advanced Operations pilot certificate; a Special Flight Operations Certificate is still required for operations outside that envelope, such as beyond visual line of sight or payloads Transport Canada treats as dangerous goods. Confirm current requirements with Transport Canada and your provincial regulator before operating.
Is this specification reference different for Canadian operators?
No. The specification reference described here is identical in every country; only the regulatory framework, the purchasing path and the units used in this guide differ. Confirm current requirements with Transport Canada and your provincial regulator before operating.
Source and revision note
Primary source: DJI D12000iE Multifunctional Inverter Generator User Guide v1.2, English section, Introduction p. 5 and Specifications p. 12.
