DJI D14000iE: Armazenamento e Transporte para 30+ Dias
DJI D14000iE: Armazenamento e Transporte — Procedimento para 30+ Dias
O DJI D14000iE User Manual v1.0 define um procedure específico para storage superior a 30 dias. O workflow remove engine oil e fuel dos pontos críticos e leva o unit para um local cool, dry e clean.
Resumo: rode o generator por 5–10 min, pare e drene engine oil. Depois drene o fuel tank e o fuel do high-pressure oil pipe. Após normal operation, espere pelo menos 15 min antes de colocar no vehicle e mantenha o generator stable durante transport.
1. Threshold
Use quando ficará sem uso por mais de 30 dias.
2. Warm 5–10 min
Antes de oil drainage.
3. Stop engine
Antes do service.
4. Hot oil caution
Não toque diretamente.
5. Remove oil-drain hose
Use o service point correto.
6. Open cap counterclockwise
Drain completely.
7. Reinstall/tighten cap
After drainage.
8. Drain fuel tank
Use fuel drain bolt + funnel + dedicated container.
9. Reinstall drain bolt
After complete drainage.
10. Drain high-pressure pipe
Remove securing screws, drain fuel, reinstall.
11. Storage ≠ failed fuel part
Pump/filter/injector replacement requires separate evidence.
12. Cool, dry, clean storage
Protect from moisture/contamination.
13. Wait 15 min
Before loading into vehicle after use.
14. Keep stable
Reduce spill risk.
15. Transport after cooling
Do not enclose hot unit.
16. Protective cover after cool
Physical protection layer.
17. Storage vs routine oil change
Long-term adds fuel-system drainage.

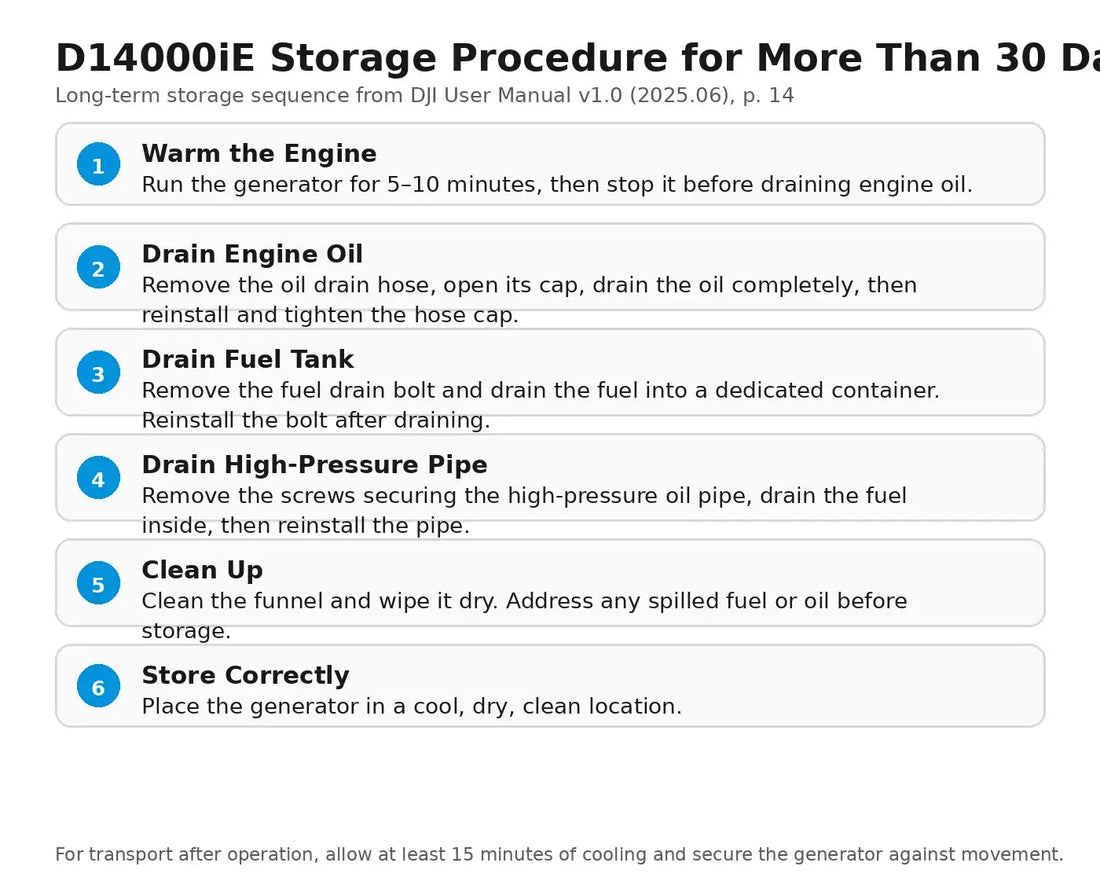

18. Storage checklist
- warm 5–10 min;
- stop;
- drain oil;
- drain tank;
- drain high-pressure pipe;
- reinstall hardware;
- store clean/dry.
19. Transport checklist
- stop;
- wait 15 min;
- no leaks;
- stable in vehicle;
- cover after cool;
- document condition.
20. Fuel smell after drainage
Recheck closure/leaks.
21. Damaged fitting
Use correct service path.
22. Return to service
Refill correct oil/fuel and complete pre-op.
23. Storage record
- asset;
- date;
- oil drained;
- fuel drained;
- pipe drained;
- location;
- cover;
- return date.
24. Erro: leave fuel in pipe
Drain it.
25. Erro: immediate transport
Wait 15 min.
26. Erro: drained fuel = bad pump
No.
27. Perguntas frequentes
Threshold?
>30 days.
Warm?
5–10 min.
Transport wait?
≥15 min.
Drain pipe?
Yes.
Storage?
Cool/dry/clean.
Fonte e revisão
DJI D14000iE User Manual v1.0 (2025.06), pp. 13–15 e 18.
28. Long-term storage deve ser um event registrado
Registre a data em que oil e fuel foram drenados. Isso facilita o return-to-service e evita que outro operator tente ligar o generator sem refill.
29. Fuel-drain hardware precisa de final inspection
Depois de reinstalar drain bolt e high-pressure pipe, faça visual check de leakage antes de mover o generator.
30. Return-to-service checklist
- storage record reviewed;
- correct engine oil refilled;
- correct fuel refilled;
- drain points leak-free;
- air filter inspected;
- battery/charging cable inspected;
- pre-operation GO/NO-GO completed.
31. Transport stability deve ser planejada
O generator deve ficar stable no vehicle. Não use a protective cover como substitute para physical restraint ou leak check.
32. 30-day threshold não significa “drain every month”
O manual usa o procedure quando o unit ficará sem uso por mais de 30 dias; aplique-o ao planned storage event, não como automatic monthly service.
33. Storage environment record
Anote local, moisture exposure e condition do protective cover para saber em que ambiente o asset ficou armazenado.
28. Long-term storage deve ser registrado
Registre a data de preparation e o status do generator para facilitar o return-to-service.
29. Return-to-service checklist
- storage record reviewed;
- correct oil refilled;
- correct fuel refilled;
- drain points visually checked;
- air filter inspected;
- pre-operation check completed.
30. Transport stability importa
Mantenha o generator stable no vehicle e confirme cooling antes do carregamento.
31. 30-day threshold
O procedure é para planned storage superior a 30 dias; não é um automatic monthly service.
32. Storage environment record
Documente location, moisture exposure, cover condition e expected return date.
