DJI D14000iE: Spark Plug F6RTC, Gap e Torque
DJI D14000iE: Spark Plug F6RTC — Gap, Limpeza, Torque e Substituição
O DJI D14000iE User Manual v1.0 publica uma procedure bem específica para spark plug: model, inspection criteria, electrode gap e final torque.
Resumo: a spark plug original indicada pela DJI é F6RTC. Com o generator desligado e totalmente frio, remova com o dedicated socket. Substitua se insulator ou sealing gasket estiver broken. Limpe depósitos com stiff wire brush, ajuste o gap para 0.6–0.8 mm, rosqueie à mão 2–3 turns e finalize em 20–25 N·m.
1. Plug model
F6RTC.
2. Stop and cool
Service only with generator fully cooled.
3. Dedicated socket
Use the spark-plug socket specified by DJI.
4. Inspect insulator
Broken/cracked = replace.
5. Inspect gasket
Damaged = replace.
6. Clean deposits
Use stiff wire brush.
7. Gap
0.6–0.8 mm.
8. Measure, do not guess
Use appropriate measuring tool.
9. Hand-thread first
2–3 rotations before socket tightening.
10. Prevent cross-threading
Hand start protects engine threads.
11. Final torque
20–25 N·m.
12. Too loose
Can contribute to engine overheating.
13. Too tight
Can damage threads.
14. Service interval
300h/1y maintenance group.
15. Plug service ≠ full ignition diagnosis
Other components may still be involved.
16. Persistent ignition symptoms
After fuel/oil/plug checks, ignition branch may extend to the Ignition Coil with Trigger.
17. No-start is multi-branch
Oil, fuel, cranking, control and activation can also cause it.
18. Checklist
- stopped;
- fully cool;
- socket;
- insulator;
- gasket;
- clean deposits;
- gap 0.6–0.8 mm;
- hand-thread 2–3 turns;
- torque 20–25 N·m;
- test result.
19. Service record
- asset ID;
- hours;
- date;
- plug model;
- gap;
- deposits;
- replacement;
- torque;
- result.
20. Heavy carbon deposits
Clean and monitor broader engine/fuel condition if deposits return quickly.
21. Physical damage
Replace, do not reuse.
22. Threads do not start smoothly
Stop; do not force with wrench.
23. Correct plug but no start
Return to activation/oil/fuel/cranking/ignition/control diagnostics.
24. Erro: wrong plug
Use F6RTC for the documented configuration.
25. Erro: wrench-first installation
Hand-thread first.
26. Erro: over-tightening
Respect 20–25 N·m.
27. Erro: clean plug = full ignition health
Not necessarily.
28. FAQ
Model: F6RTC. Gap: 0.6–0.8 mm. Torque: 20–25 N·m. Hand-thread: 2–3 turns. Service: 300h/1y.
Fonte

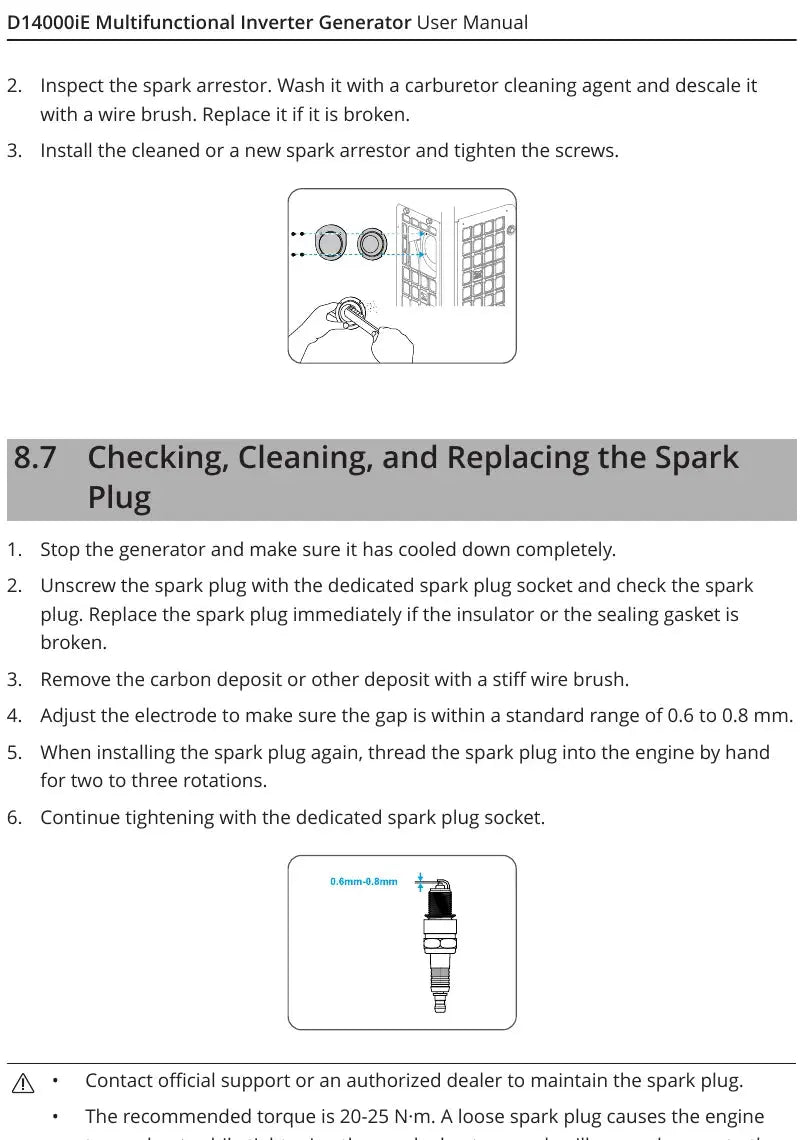

DJI D14000iE User Manual v1.0 (2025.06), pp. 17 e 20–21.
29. Plug service deve terminar com post-service check
Depois do installation torque, ligue o generator dentro do normal operating workflow e registre start quality, warning state e qualquer misfire symptom.
30. Gap history pode ajudar em recurring issues
Se a mesma plug volta com deposits ou gap fora da faixa, registre hours desde o last service e compare com fuel/air-filter condition.
31. Plug replacement não encerra ignition diagnosis
Se symptoms persistirem com F6RTC correta, gap correto e torque correto, preserve evidence antes de avançar para Ignition Coil with Trigger.
32. Service handoff record
- plug model;
- gap measured;
- insulator/gasket condition;
- cleaned or replaced;
- torque confirmed;
- post-service start result;
- next inspection target.
