DJI Agras T100/T70 Series/T25P: Manual Completo de Seguridad
DJI Agras T100/T70 Series/T25P: Manual Completo de Seguridad — Regulaciones, Preflight, Spraying y Baterías

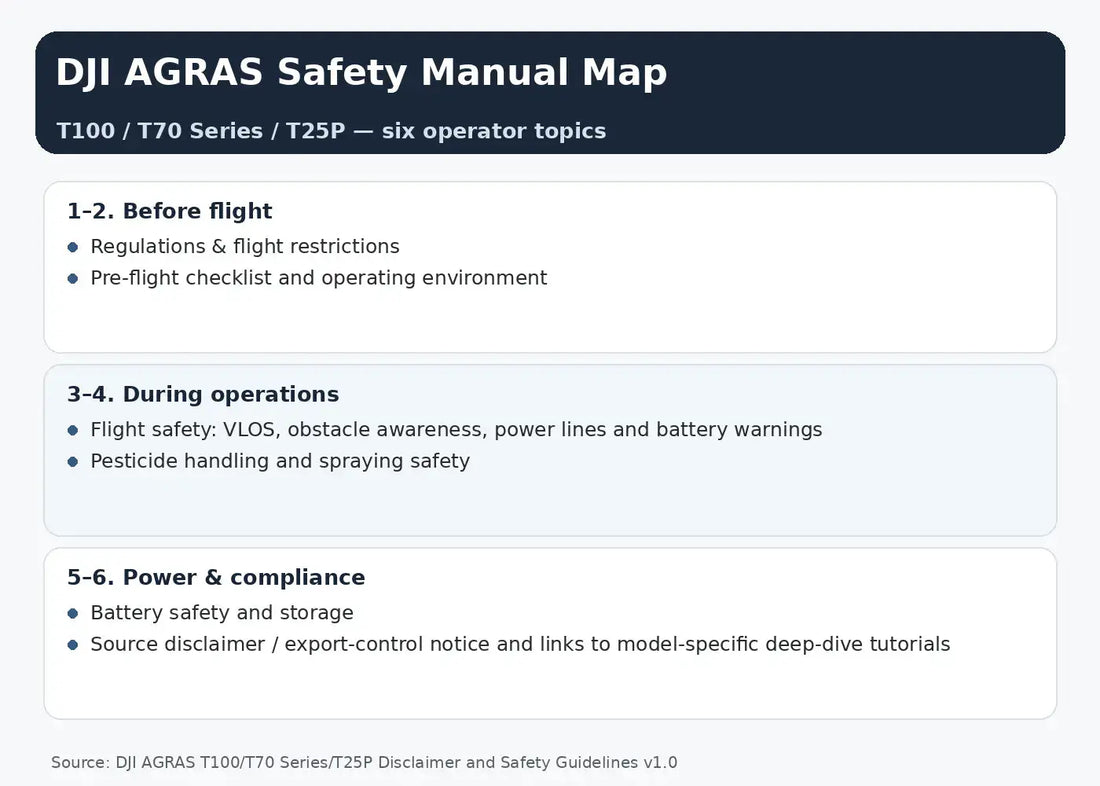

Este hub reorganiza el contenido inglés del DJI AGRAS T100/T70 Series/T25P Disclaimer and Safety Guidelines v1.0 en un manual operativo por temas. La source mezcla regulations, preflight, environment, flight safety, pesticide handling, battery safety y export-control language en pocas páginas; aquí cada tema se convierte en un checkpoint separado sin reemplazar los model-specific user manuals.
Resumen: antes de operar, confirme que el flight esté autorizado, revise aircraft y spraying system, consulte todos los DJI Agras warnings, opere dentro de los manufacturer weather/GNSS limits, mantenga VLOS y safe separation, no dependa completamente de obstacle sensing, manipule pesticides con PPE/contamination controls y retire de servicio batteries expuestas a liquid, swelling, leakage o heavy impact.
1. Safety starts before aircraft power-on
Authorization, site conditions, hardware readiness, chemical handling y battery condition forman parte de la same operating system.
2. Regulations and intended use
DJI defines these aircraft for agriculture, forestry, animal husbandry y fisheries. Human carriage is prohibited.
3. Illegal or dangerous payloads
Do not carry them. Technical lift capability and legal/manufacturer approval are separate questions.
4. Manned aircraft
Do not interfere with manned-aircraft operations and land if necessary.
5. Major events and restricted areas
DJI says not to operate in major-event areas or where local law prohibits operation without authorization.
6. GEO Zones do not replace local rules
This point is explicit in the source and should remain separate from country-specific legal compliance.
7. Manufacturer altitude/distance guidance
The source tells users to avoid flight above 100 m and to keep flight distance within 2 km or less, while also stating that legal altitude limits vary by country/region.
8. Preflight power
All devices should be sufficiently charged before operation.
9. Propulsion and sensing checks
Inspect motors, propellers, vision system, radar and antennas, and replace aged/broken parts before flight.
10. Secure battery, tank, arm locks and cables
They must be mounted and connected correctly and firmly.
11. Spraying system readiness
No blockage, no leaks, sprinklers operating normally.
12. DJI Agras warnings
Review every aircraft-status warning before takeoff.
13. Weather range
Manufacturer environmental guidance includes 0–40°C and wind not exceeding 6 m/s.
14. Drift-sensitive spraying
For herbicides, fungicides or insecticides that drift easily and can create phytotoxic risk, DJI recommends below 3 m/s.
15. Severe weather
Avoid heavy rain above 25 mm/12h, snow, ice, fog and lightning.
16. GNSS and open-area operation
Operate with strong GNSS and avoid areas where positioning can degrade severely, such as indoor/under-bridge environments.
17. Electromagnetic interference
DJI lists mobile-phone base stations and radio-transmission towers as examples of strong electromagnetic environments.
18. Altitude
Do not operate above 4.5 km sea level. Payload capability decreases with elevation; around 2 km and above, battery/aircraft performance can be reduced.
19. People and animals
Maintain more than 10 m from crowds/animals and more than 6 m from the aircraft during operation.
20. VLOS is continuous
Keep the aircraft within visual line of sight for the operation.
21. Do not over-rely on obstacle sensing
Environmental conditions can prevent detection or bypass. Pilot awareness remains necessary.
22. Battery warning response
Return promptly when warnings appear. Critical battery triggers auto landing; horizontal control remains available to guide toward a safer location.
23. Power-line contact
Do not touch an aircraft that has collided with high-voltage power lines.
24. Shutdown order
Stop motors → power off aircraft → power off controller.
25. Pesticide handling
Follow pesticide specifications, use clean mineral-free water, filter mixture before the tank and clear blockages before operation.
26. PPE and upwind position
Use protective clothing and stay upwind to reduce exposure.
27. Cleanup
Clean the spraying system, aircraft and remote controller after application.
28. Water protection
Do not contaminate rivers or drinking-water sources.
29. Minimize surplus solution
Plan mixture volume to reduce leftover spray/washing liquid.
30. Incompatible liquids
Do not use strong acids, strong bases, high-temperature liquids or explicitly prohibited pesticides.
31. Battery liquid exposure
Remove the battery from service, place it in a dry open area away from flammables and contact support/dealer.
32. Battery-use temperature
The source lists -5°C to 45°C.
33. Physical battery exclusions
Do not use swollen, leaking, damaged, crashed or heavily impacted batteries.
34. No disassembly or puncture
These are not supported field-service actions.
35. Heat and storage
Keep batteries away from heat and do not store them for extended periods fully discharged.
36. Export-control section exists in the source
The English safety guideline also contains an Export Controls section stating that export, re-export and transfer can be subject to Chinese export-control law and other applicable export-control laws and sanctions.
37. What the source places on the user
It assigns responsibility to comply with applicable requirements and mentions embargo, sanctioned-party and weapons-related restrictions.
38. Why this hub does not turn that notice into a legal guide
The source is a general manufacturer compliance notice, not a complete jurisdiction-specific legal framework. Current transaction-specific questions need the applicable law at the time of the transaction.
39. Daily safety workflow
- regulatory authorization;
- site/weather/GNSS check;
- aircraft preflight;
- spraying-system check;
- DJI Agras warnings;
- battery physical safety;
- chemical/PPE setup;
- flight/VLOS monitoring;
- shutdown;
- cleanup and log review.
40. Safety finding → subsystem branch
Separate findings into propulsion, sensing/navigation, spraying, battery/power or compliance. Avoid treating a general warning as an instruction to replace the whole aircraft or system.
41. Localized deep-dive guides
- Regulaciones y restricciones
- Preflight y entorno
- Seguridad de vuelo
- Pesticide handling
- Battery safety
42. Preguntas frecuentes
¿GEO reemplaza local rules?
No.
¿Wind limit?
6 m/s manufacturer guidance.
¿Can I rely fully on obstacle sensing?
No.
¿Battery wet/swollen?
Remove from normal service.
¿Does this replace pesticide labels?
No.
¿Does this replace jurisdiction-specific law?
No.
Source and revision
Primary source: DJI AGRAS T100/T70 Series/T25P Disclaimer and Safety Guidelines v1.0. This page preserves the manufacturer structure and does not replace the model user manual, pesticide label or local legal requirements.
