DJI Agras T70P first-time setup and activation flow — Canada edition

DJI Agras T70P Setup Guide: First Charge, Aircraft Preparation & Activation (Canada)

October 4, 2026

🇨🇦 CANADA — DJI Agras T70P First-Time Setup: Charging, Antennas, RTK Dongle & Activation for New Canadian Operators

🇺🇸 Reading from the United States? See the U.S. edition: DJI Agras T70P Setup Guide: First Charge, Aircraft Preparation & Activation

This Canadian edition is written for Canadian DJI Agras operators across Canada, from the Prairie grain belt of Saskatchewan, Alberta and Manitoba to the row crops of Ontario and Quebec and the orchards and vineyards of British Columbia and Niagara. It is the T70P first-time setup: remote-controller charging, antenna setup, RTK dongle mounting, aircraft preparation and activation. The procedure, specifications and warnings below are identical to the original edition linked above — the hardware does not change at the border. What changes for a Canadian operator is the regulatory and purchasing context: the DJI Agras T70P falls into Transport Canada’s medium RPAS class (25–150 kg) and flies within visual line of sight on an Advanced Operations pilot certificate under the November 2025 rules, with a Special Flight Operations Certificate for anything outside that envelope; spraying follows provincial applicator licensing and Health Canada PMRA aerial label directions, and pricing is shown in Canadian dollars. Ares Acres stocks T70P batteries, chargers, RTK dongles and setup accessories referenced in this guide as genuine DJI Agras OEM parts, ships them to Canada with free standard shipping, and shows CAD pricing at checkout.

The first ten pages of the DJI AGRAS T70P User Manual establish the commissioning sequence before any flight or spraying task begins. The process is straightforward, but several details matter: the remote-controller internal battery must be activated by charging, the aircraft arms must be unfolded and folded in the correct order, the flight battery must be inserted only while the aircraft is powered off, and both the aircraft and controller require activation through DJI Agras.

Quick Answer: Charge the remote controller before first use, prepare its antennas and optional RTK dongle, unfold the T70P using DJI's illustrated sequence, firmly install the flight battery while the aircraft is powered off, power on the controller and aircraft, and complete activation through DJI Agras with the controller connected to the internet.

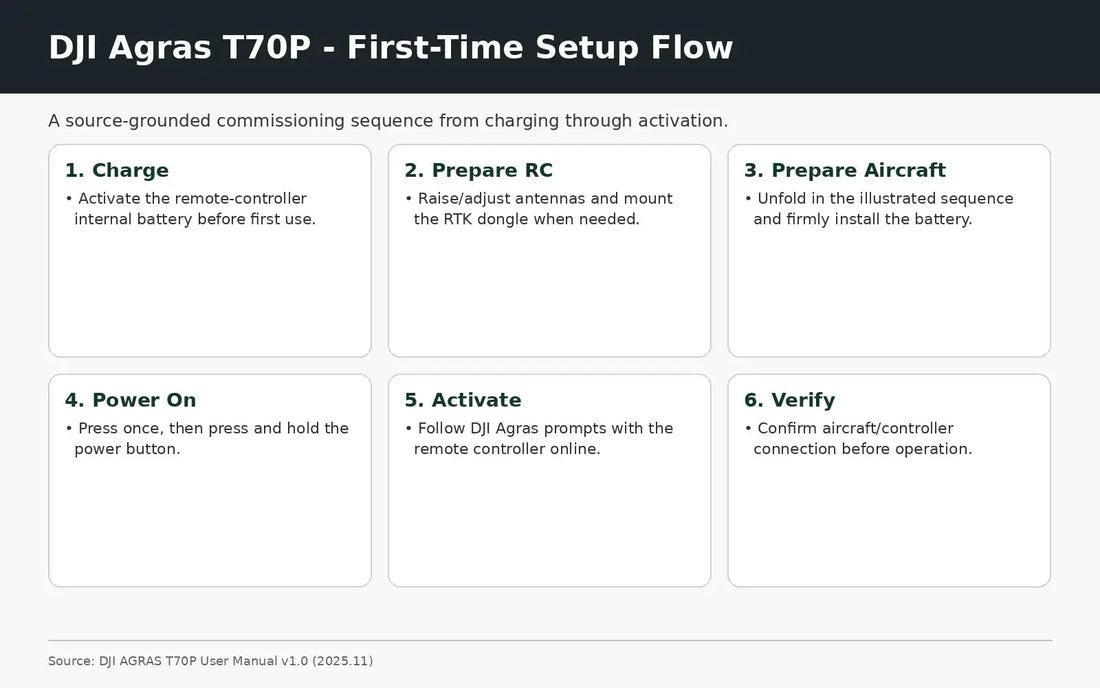

DJI Agras T70P first charge remote controller aircraft preparation and activation workflow — Ares Acres commissioning flow built directly from DJI AGRAS T70P User Manual v1.0.

1. Charge the remote controller before first use

DJI states that the remote controller's internal battery must be charged to activate it before first use. Otherwise, the controller cannot be powered on. The battery-level LEDs begin flashing when the internal battery is activated.

This makes charging the first commissioning checkpoint, not an optional convenience step. Later in the controller chapter DJI specifies the DJI 65W Portable Charger or a locally certified USB-C charger with a maximum rated power and voltage of 65 W and 20 V.

2. Prepare the remote controller

Raise and adjust the controller antennas into the illustrated operating position. The manual also shows how to mount the RTK dongle when that planning workflow is required. Antenna orientation matters because the controller's transmission strength changes with antenna position.

3. Prepare and unfold the aircraft

DJI T70P manual pages showing first charging remote controller preparation aircraft unfolding battery installation and activation — Manufacturer source sequence from pages 8-10.

The T70P manual labels the four arms M1 through M4 and illustrates the unfolding sequence. When folding the aircraft again, DJI says to reverse the unfolding order and secure the arms in the storage clamps on both sides. Incorrect folding can damage the arms.

4. Install the flight battery only with the aircraft powered off

Make sure the battery is firmly attached to the aircraft. DJI explicitly says to insert or remove the battery only when the aircraft is powered off. To remove it, press and hold the clamp and lift the battery upward.

5. Power on and activate

The aircraft and remote controller both require activation before first use. DJI uses its standard two-stage power-button input: press once, then press again and hold. Run DJI Agras and follow the on-screen activation prompts. The controller needs internet access during activation.

What to verify before the first flight

Activation is not the same as preflight readiness. After setup, continue to the dedicated T70P Preflight, Takeoff, Flight Modes & Return-to-Home Guide. That article covers the full flight-readiness checklist, compass calibration, motor start, takeoff and RTH behaviour.

Primary T70P equipment paths

The complete aircraft is available through the DJI Agras T70P Agro Sprayer Drone Full Set with Generator. For model-specific service and replacement hardware, use the DJI Agras T70P Parts collection.

Parts & Equipment Referenced in This Guide

Every part listed above is stocked by Ares Acres as a genuine DJI Agras OEM component, ships to Canada with free standard shipping, and shows CAD pricing at checkout for Canadian customers.

Shop Related Collections

Canadian Operator FAQ: T70P Setup Guide

Does Ares Acres ship T70P batteries, chargers, RTK dongles and setup accessories to Canada?

Yes. Ares Acres ships genuine DJI Agras OEM parts, including T70P batteries, chargers, RTK dongles and setup accessories referenced in this guide, to Canada with free standard shipping, and Canadian customers see CAD pricing at checkout.

Do I need an SFOC to fly the DJI Agras T70P in Canada?

Not for every operation. Under Transport Canada’s November 2025 rules, the DJI Agras T70P falls into the medium RPAS class (25–150 kg) and can be flown within visual line of sight on an Advanced Operations pilot certificate; a Special Flight Operations Certificate is still required for operations outside that envelope, such as beyond visual line of sight or payloads Transport Canada treats as dangerous goods. Confirm current requirements with Transport Canada and your provincial regulator before operating.

Is this T70P first-time setup different for Canadian operators?

No. The T70P first-time setup described here is identical in every country; only the regulatory framework, the purchasing path and the units used in this guide differ. Confirm current requirements with Transport Canada and your provincial regulator before operating.
