DJI C12000 Status LED Troubleshooting Guide: Charging, DC Output & AC Input

September 17, 2026

The C12000 uses three separate LED channels, so the first diagnostic step is identifying which channel is signaling. DJI then directs the operator to connect the remote controller whenever a status LED is blinking so the detailed warning or error can be read in the DJI Agras interface.

Quick Answer: LED 1 reports the battery/charging channel, LED 2 reports DC output and LED 3 reports AC input. Four repeating yellow flashes on the DC-output LED mean the C12000 is not activated. A repeating yellow flash indicates a warning on that channel; a repeating red flash indicates an error.

C12000 Figure A with three numbered status LEDs — Figure A identifies LED channels 1, 2 and 3.

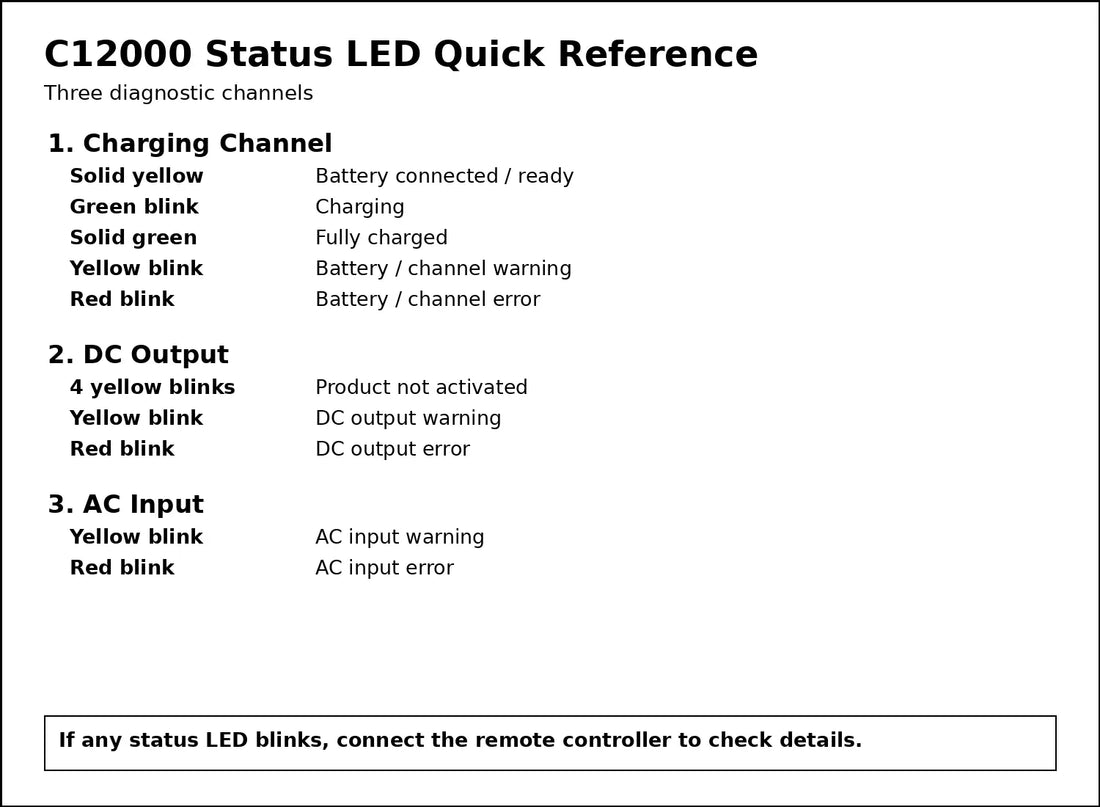

C12000 charging DC output and AC input LED patterns — Visual quick reference built directly from DJI's status table.

Charging Channel Status LED

Pattern	Meaning
Solid yellow	Battery connected and ready for charging
Green blink once continuously	Charging
Solid green	Fully charged
Yellow blink once continuously	Battery / charging-channel warning
Red blink once continuously	Battery / charging-channel error

DC Output Status LED

Pattern	Meaning
Four yellow blinks continuously	Product not activated
Yellow blink once continuously	DC output warning
Red blink once continuously	DC output error

AC Input Status LED

Pattern	Meaning
Yellow blink once continuously	AC input warning
Red blink once continuously	AC input error

What to do when an LED blinks

Connect the remote controller to the C12000 and read the detailed message. The LED identifies the system branch; it does not identify a replaceable part by itself. If the product is abnormal or damaged, DJI recommends contacting official support or an authorized dealer for repair or replacement.

C12000 USB-C connection to DJI Agras remote controller — The same USB-C-to-remote connection used for activation is the path used to retrieve fault details.

Commercial handoff after diagnosis

If the warning is battery-side, inspect the DB2160 battery and the battery-side charging/cooling path. If the concern is clearly with the power supply itself, use the C12000 Intelligent Battery Charger product page rather than assuming a battery fault.
